>Products Catalog > Pin Header Terminal Block, Male Terminal Connector, 5.0mm, PA66/UL94V-0/RoHS Certified

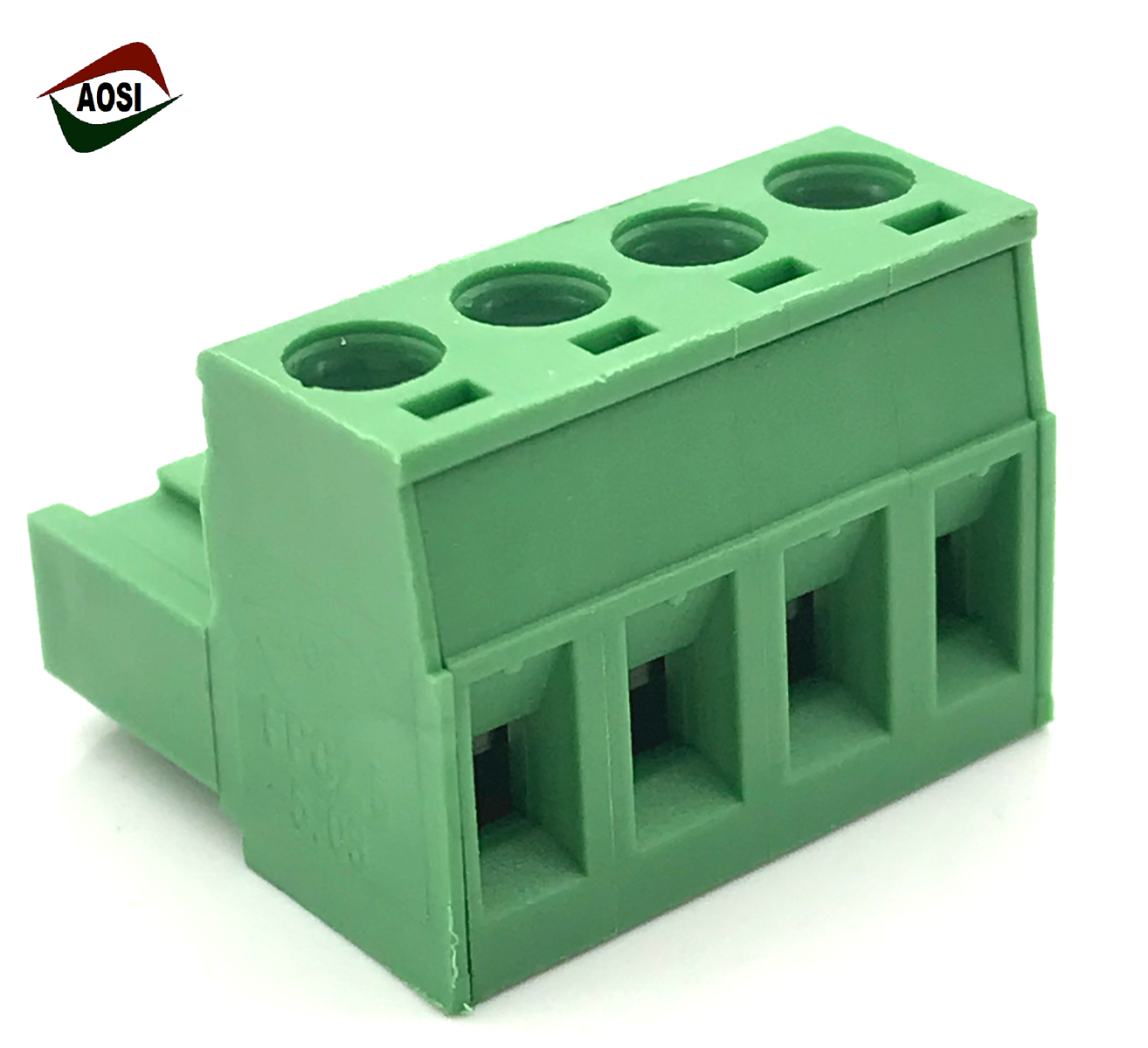

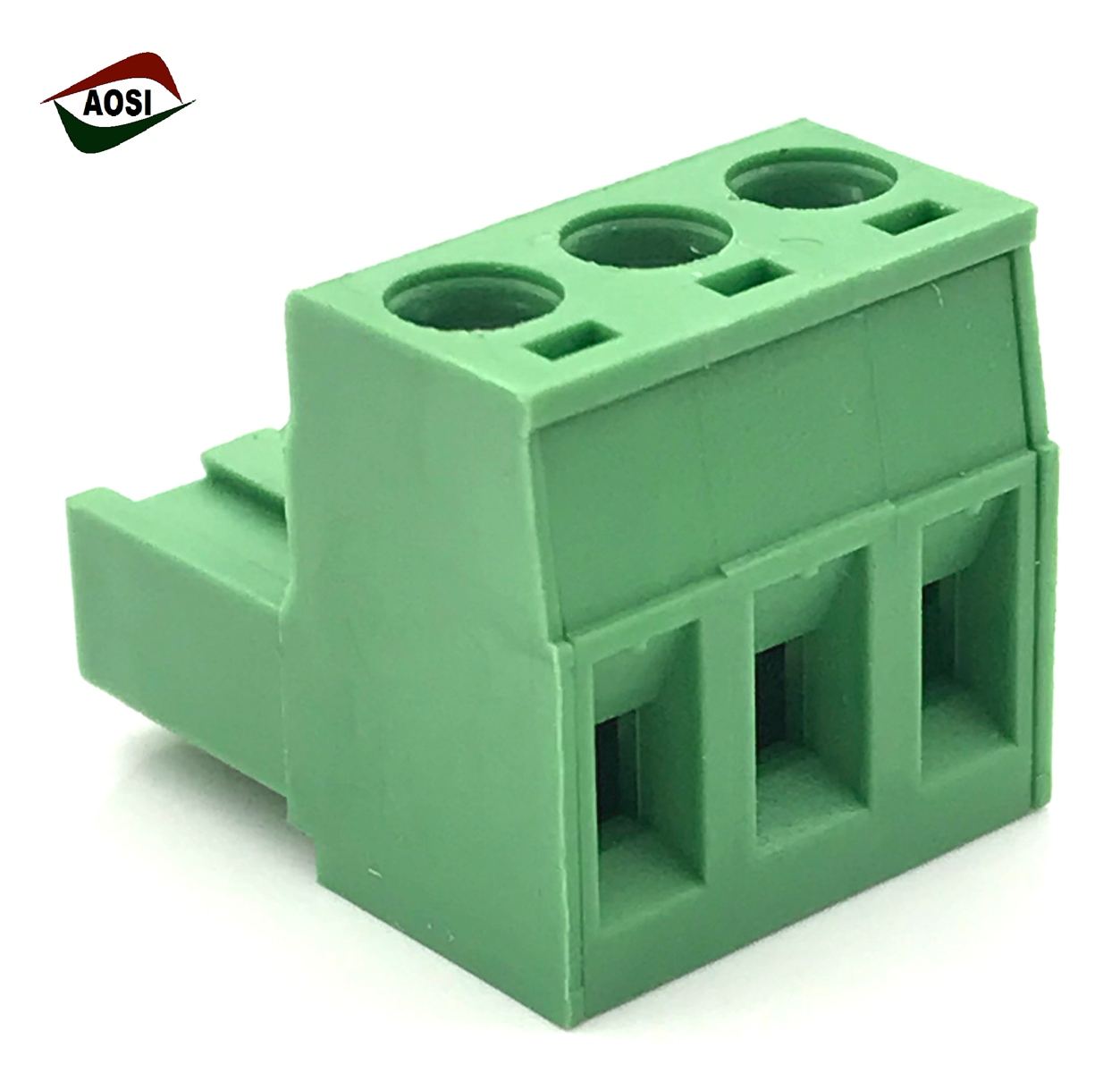

Pin Header Terminal Block, Male Terminal Connector, 5.0mm, PA66/UL94V-0/RoHS Certified
| FOB Price: | 0.02 - 0.02 USD/Pole |
|---|
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Type: Plug-in
- Conductor Size: 11 - 20 AWG
- Brand Name: AOSI
- Wire range: 12-28AWG
- Model Number: 0086-15014816629
Specifications
1. Male terminal connector
2. Certifications: UL and TuV
3. German raw made of PA66/UL94V-0
4. Competitive price
5. Best lead-time
1) Male terminal connector
1, Quality assured with advanced management, experienced engineers and workers
2, Best lead-time: usually 7 to 15 days if the order is no more than 1 million positions
3, Free samples can be offered
4, Trial and mixed lot order acceptable
5, Meets UL, TuV, SGS/RoHS Directive-compliant, CQC requirements
6, Offer OEM/ODM services
We are one of the manufacturers which located in China, specialized in terminal blocks and connectors design and produce and advanced management and technology, our products offer superb quality and competitive price over similar items from other manufacturers, technical data

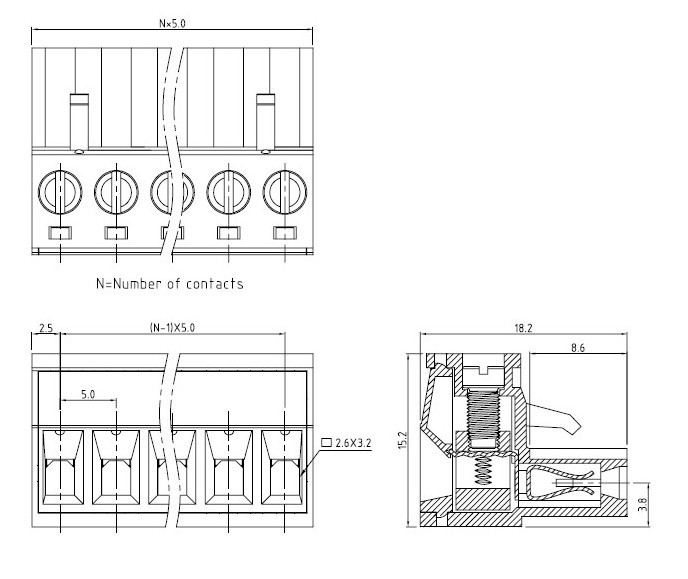

Specifications:
Pitch: 5.0mm
Poles: 2-24p
Electrical: UL
Voltage rating: 300V
Current rating: 15A
Contact resistance: 20MΩ (max)
Insulation resistance: 5000MΩ/1000V
Withstanding voltage: 1500V AC/1 minute test time=60 seconds/1 minute
Wire range: 12-26AWG
Made contact (metal housing): copper-alloy
Terminal screws: steel galvanized with CR3+plated
Wire guard: stainless steel
Surface of solder tail: tin-plated
Insulator body (housing): polyamide (glass filled) (UL94V-0)
Mechanical:
Temperature range: -30 to +105°C
Soldering reliability:
Testing temperature: 260 to ±10°C, for 10 seconds
