600 Three Side Sealing Machine, Foodpackage Bag Making Machine

FOB Price:	28500.00 - 30000.00 USD/Set
Supply Ability:	4 Set(s) per Month
Shipping:	FOB SHANTOU
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Middle-Sealing Machine

Price:

Min. Order:1 Set
OPP Bag Making Machine

Price:3000.00-10000.00 USD/Set

Min. Order:1 Set
Rolling & Floding Machine ZB-P1200)

Price:4000.00-4500.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	STANDARD PACKING

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: one year
Certification: Registration certificate
Brand Name: Jinneng
Condition: New
Weight: 6000kg
Dimension(L*W*H): 16000x1800x1900
Power(W): 40kw
Voltage: 380v50hz
Model Number: 600
Computerized: Yes
Material: Plastic
Machine Type: Sealing Machine

Specifications

Functions and features:

Function:

the equipment is suitable for three side sealing bag, Self-supporting bag, opening and closing bag composite film bag making process, and can meet the production requirements of wide bag making specification Range, high production efficiency and large batch (longitudinal sealing mold up to 2 rows to 3 layout).

Characteristic:

1. the whole machine adopts touch screen PLC control system for control, with advanced structure, coordinated appearance, high Manufacturing precision and stable performance of components, reaching the Current domestic advanced level.

the control system is controlled by touch screen PLC, which Can complete the main functions of unwinding tension - side position correction - winding speed - storage tension - auxiliary traction fixed length Compensation - main traction fixed length setting and tracking compensation - Sealing temperature control - sealing cutting speed and other auxiliary Functions such as counting and batch counting.

2. the main traction fixed length system and auxiliary Traction fixed length system adopt 4 sets of servo motors and servo drivers, Which are controlled by PLC.

the unwinding device is equipped with domestic magnetic Powder brake, which is made by automatic tension controller.

3. the main sealing and cutting motor and unwinding motor Adopt Panasonic AC frequency conversion controller, and the working program is Controlled by PLC.

4. Horizontal position automatic positioning detection, the Use of digital photoelectric sensor, PLC processing, by the executive system to Reliably complete the required functions.

the heating body and sealing die are made of special aluminum Magnesium alloy, with high strength, small deformation and high sealing quality.

the main cylinders of the whole machine are joint venture Products.

5. the electrical components of the products are International famous brand and domestic famous brand products.

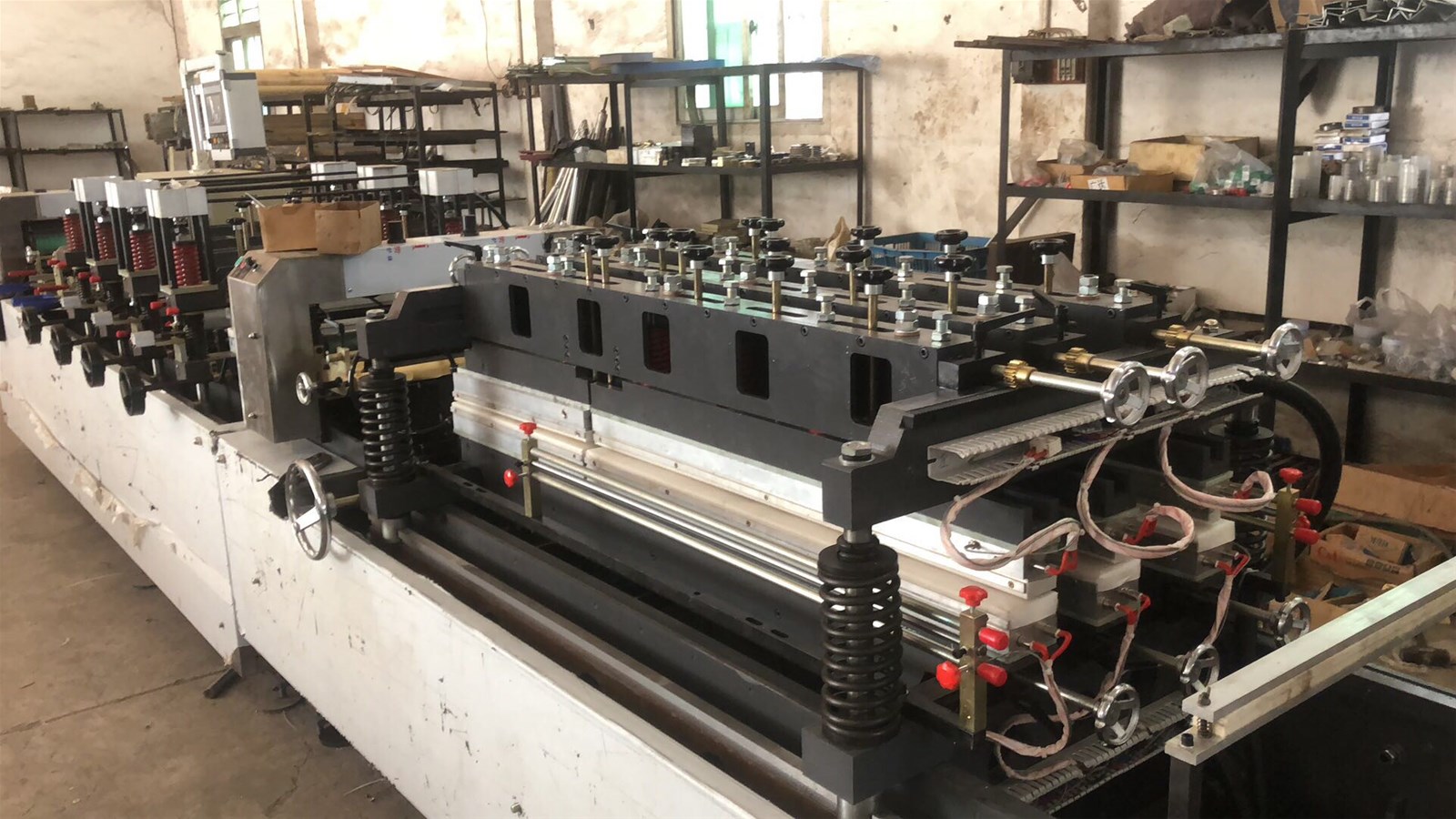

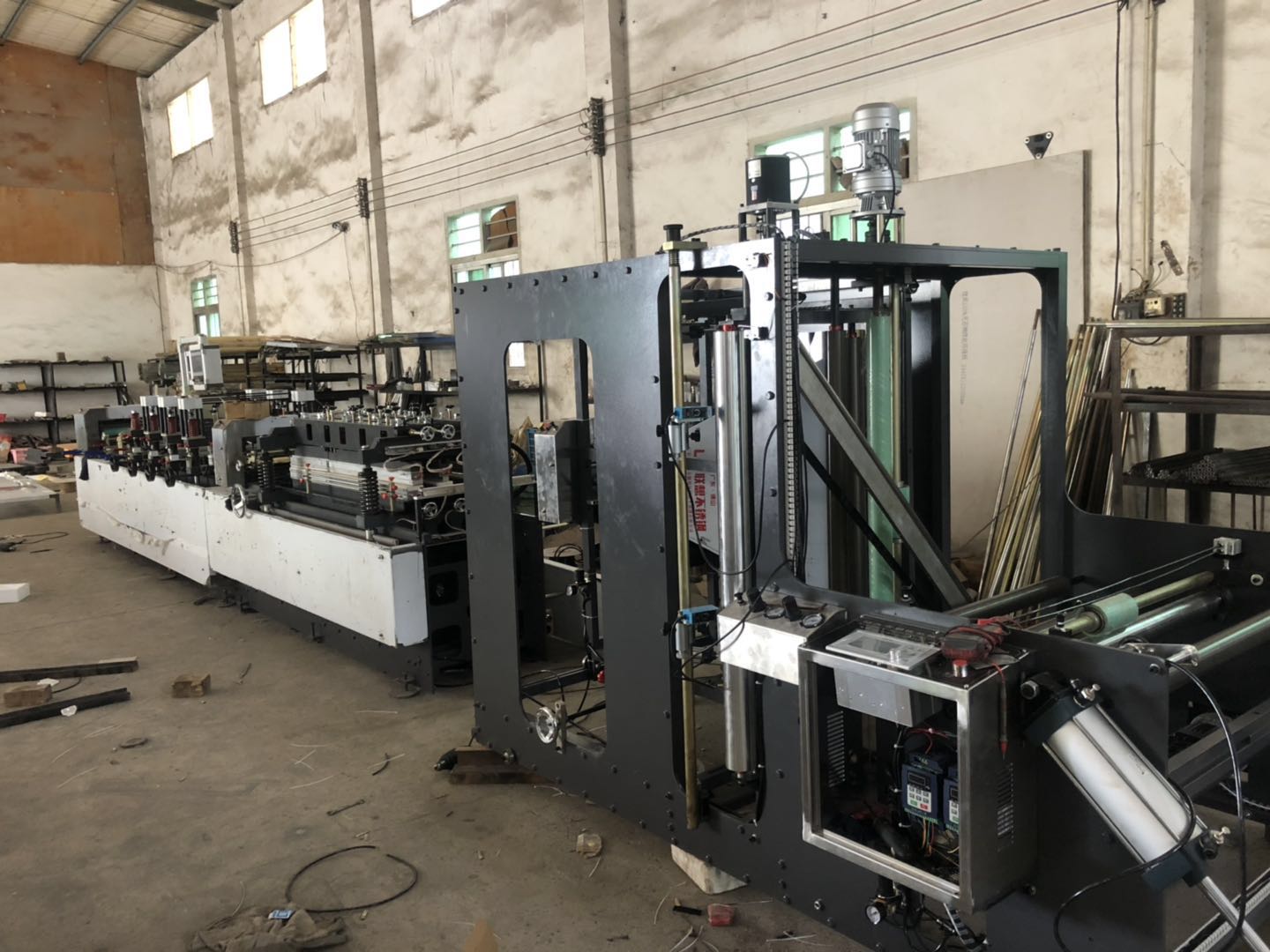

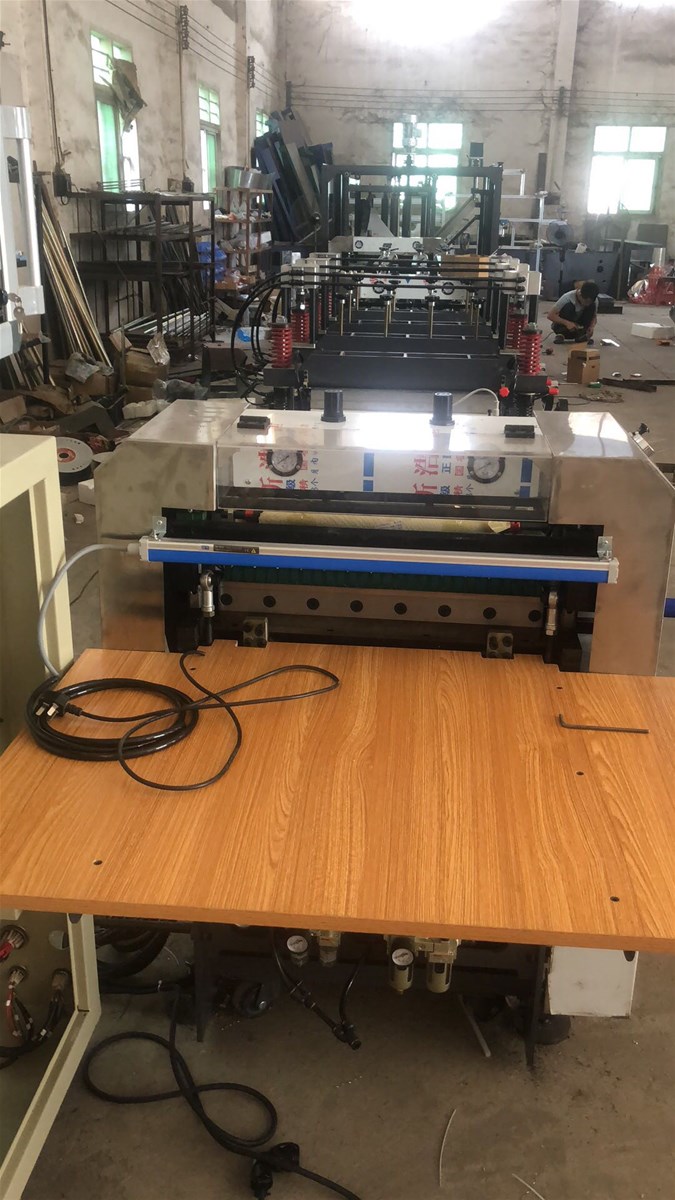

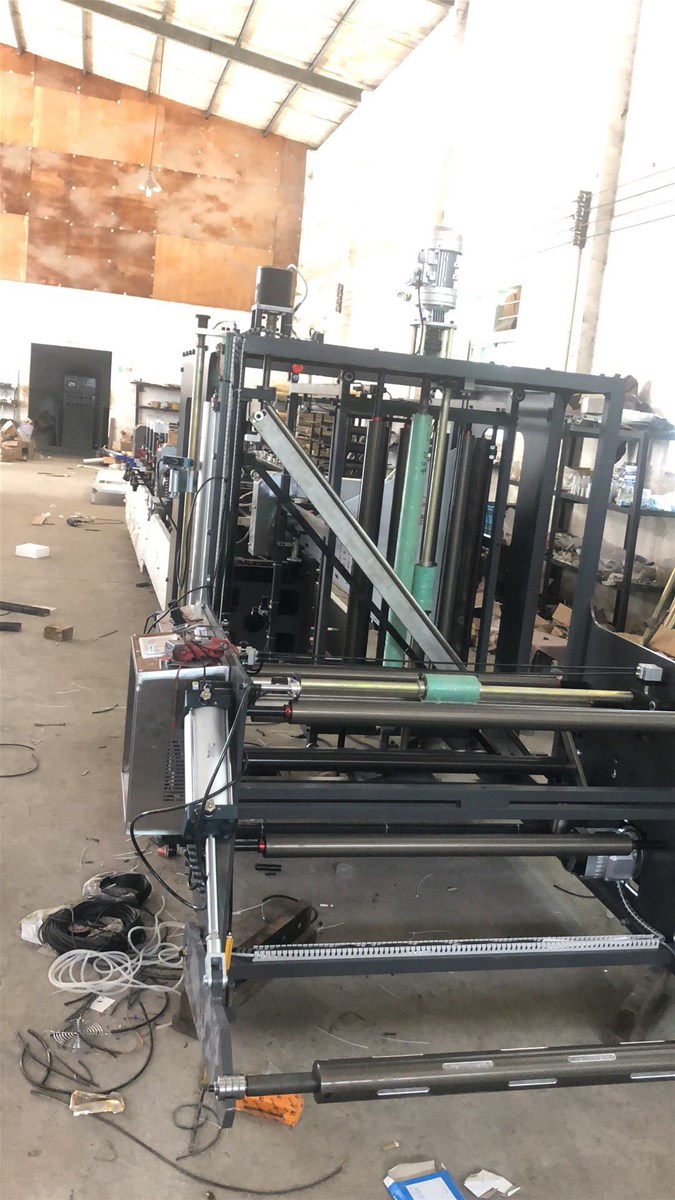

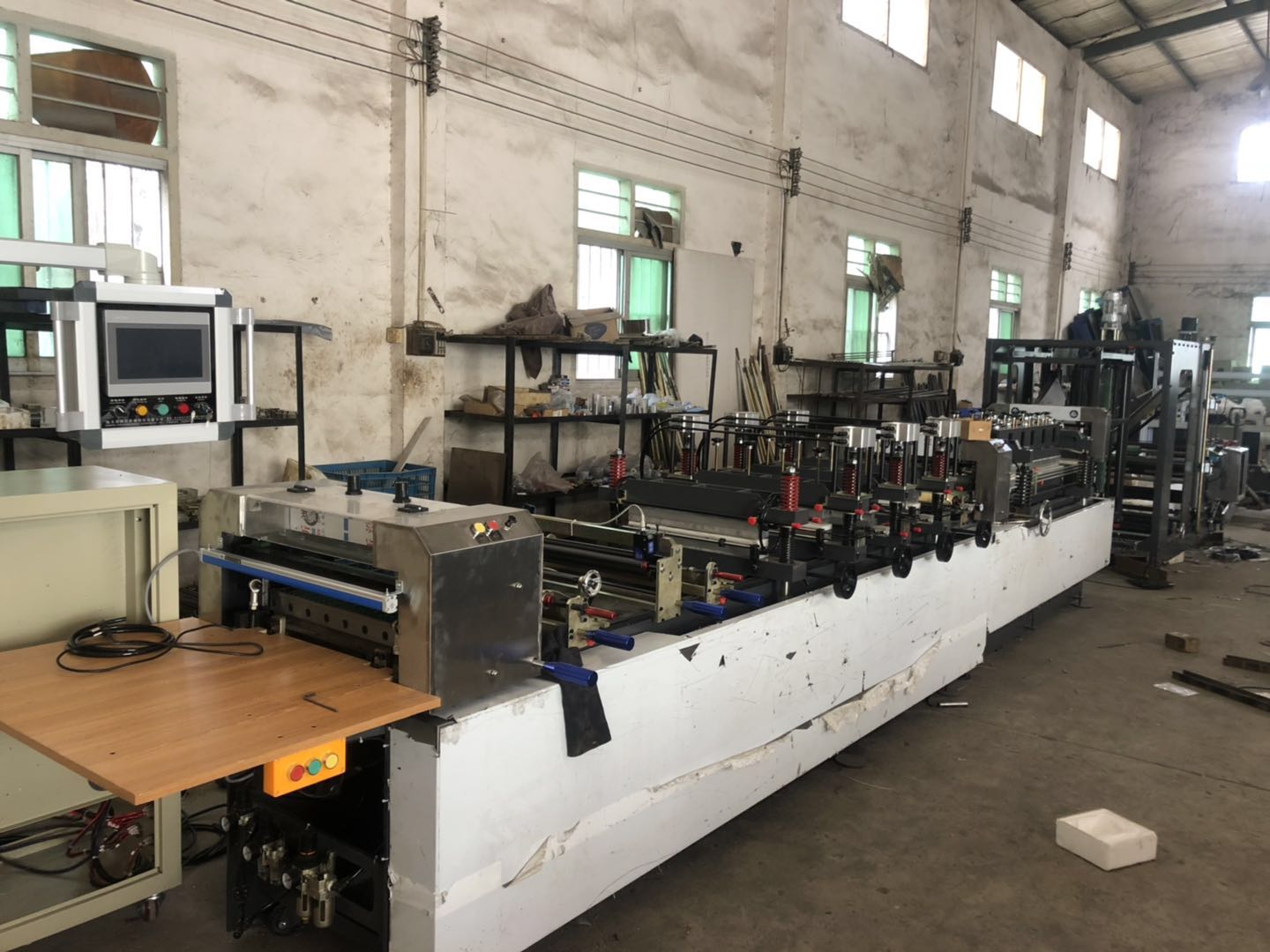

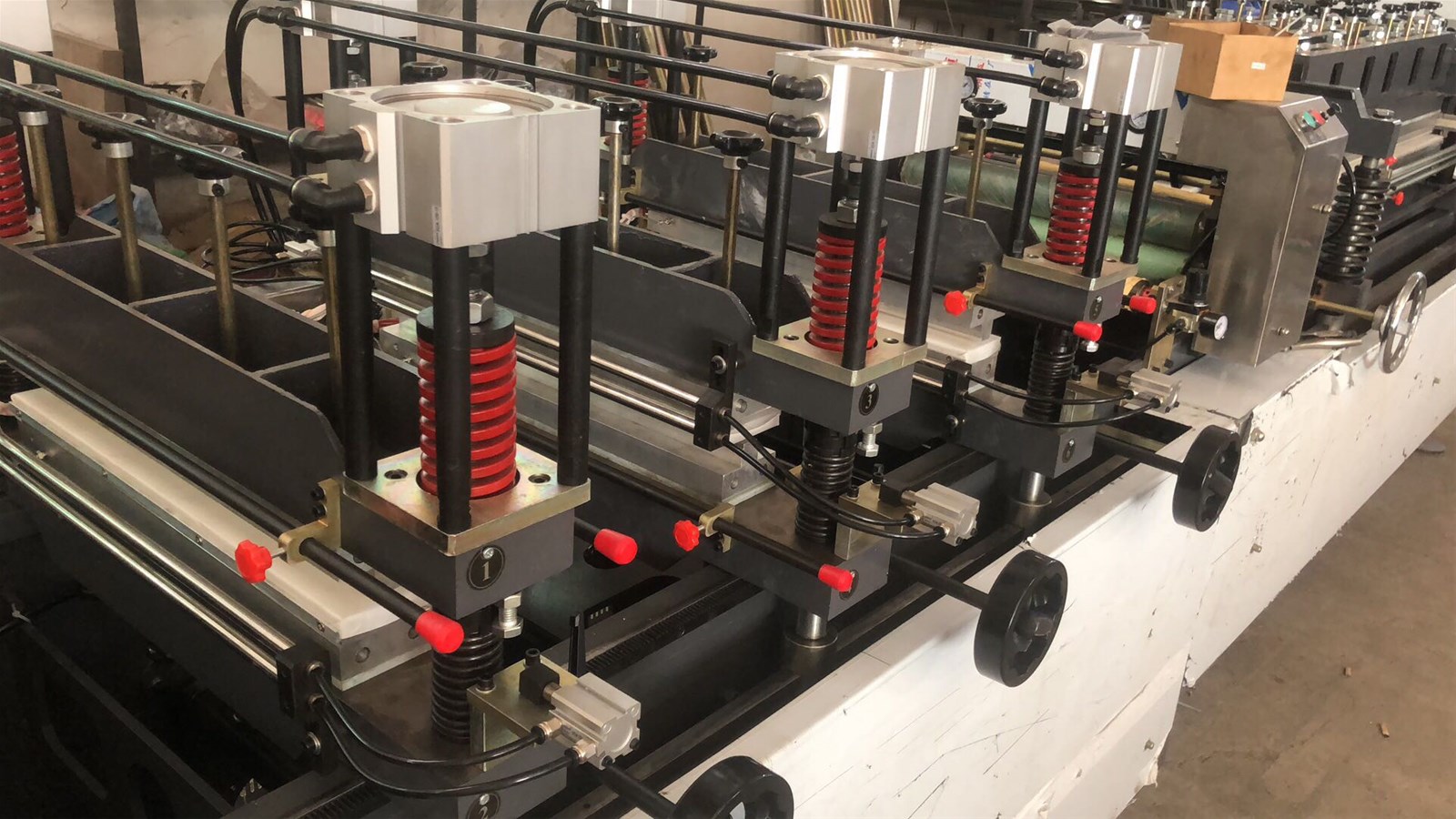

600 Three side sealing machine foodpackage bag making machine
