Home >Products Catalog > China OEM 0~1MPa Measuring Range 0-184 Output with Alarm NPT1/8/M18/ Customized Oil Pressure Sensor

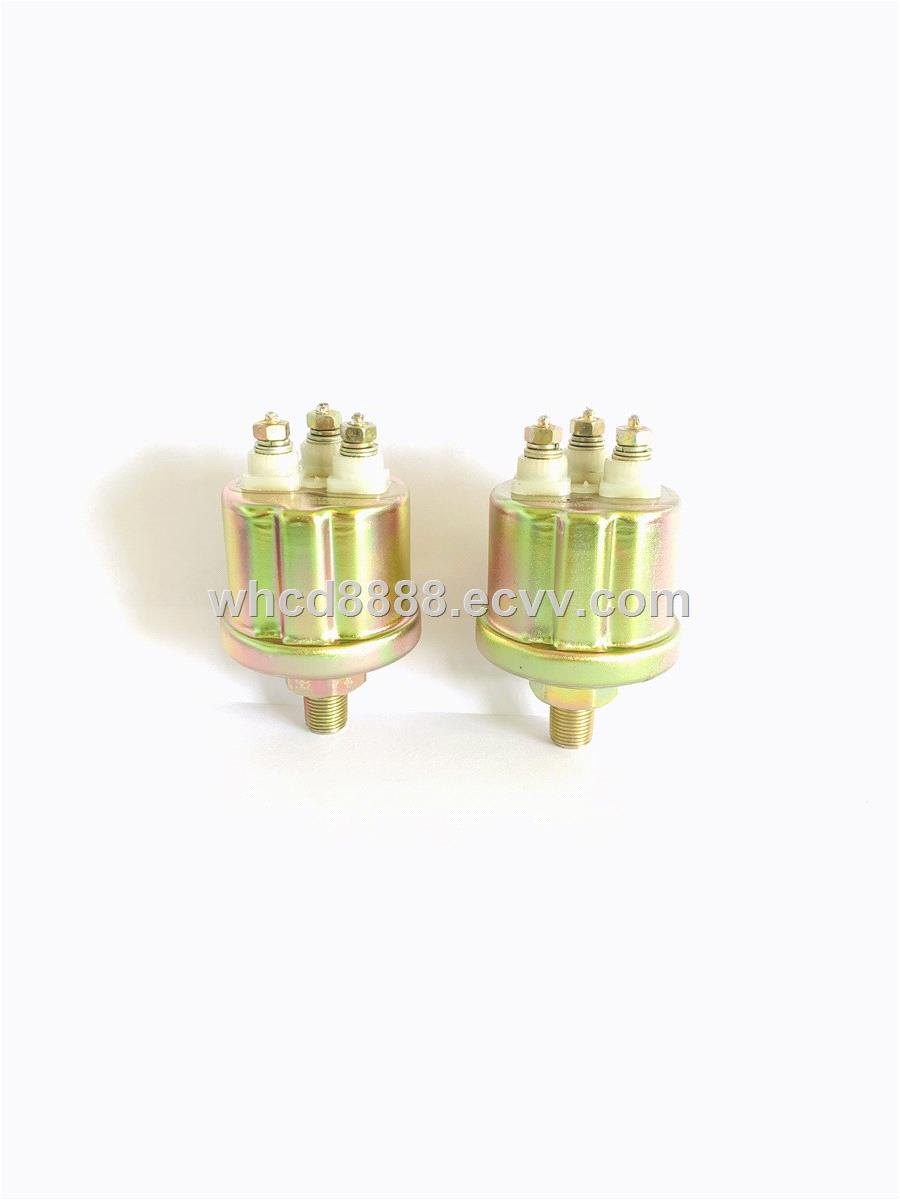

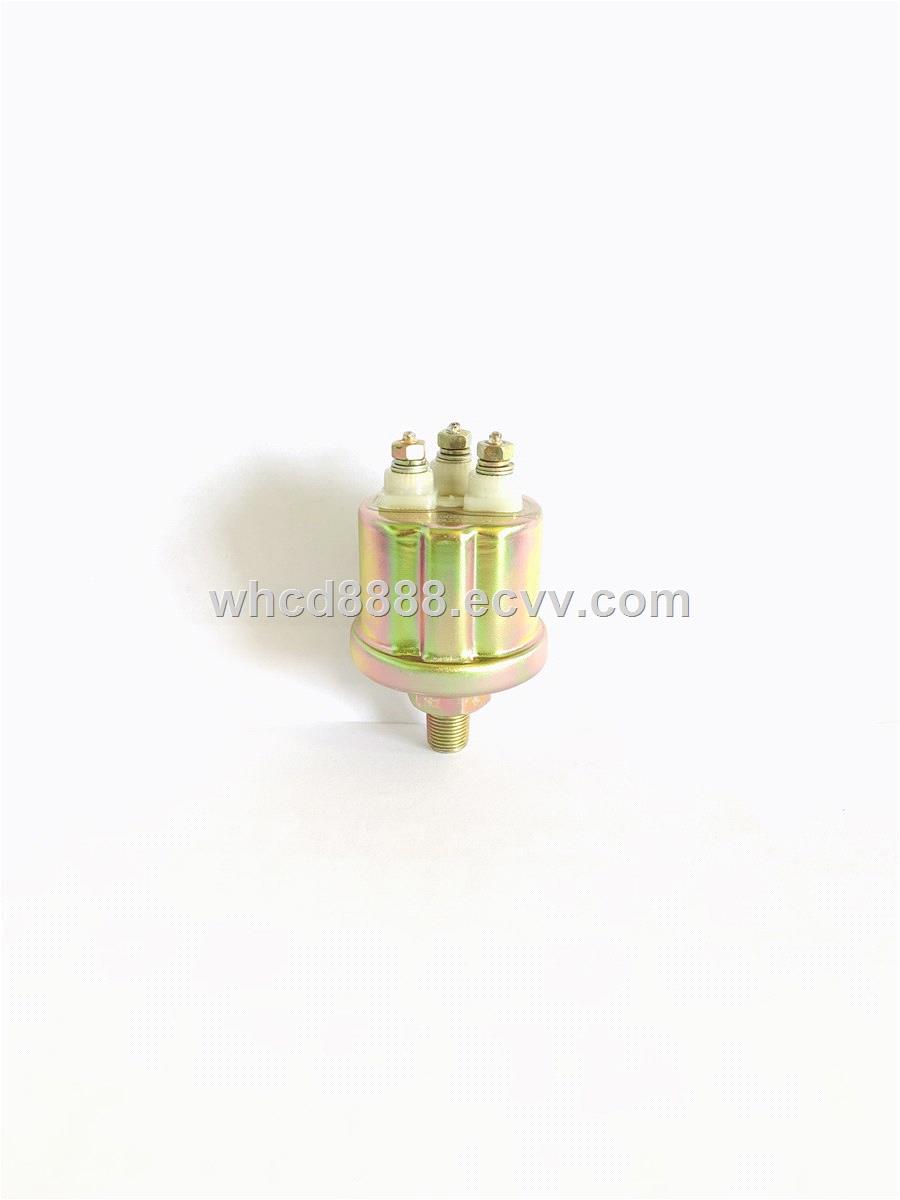

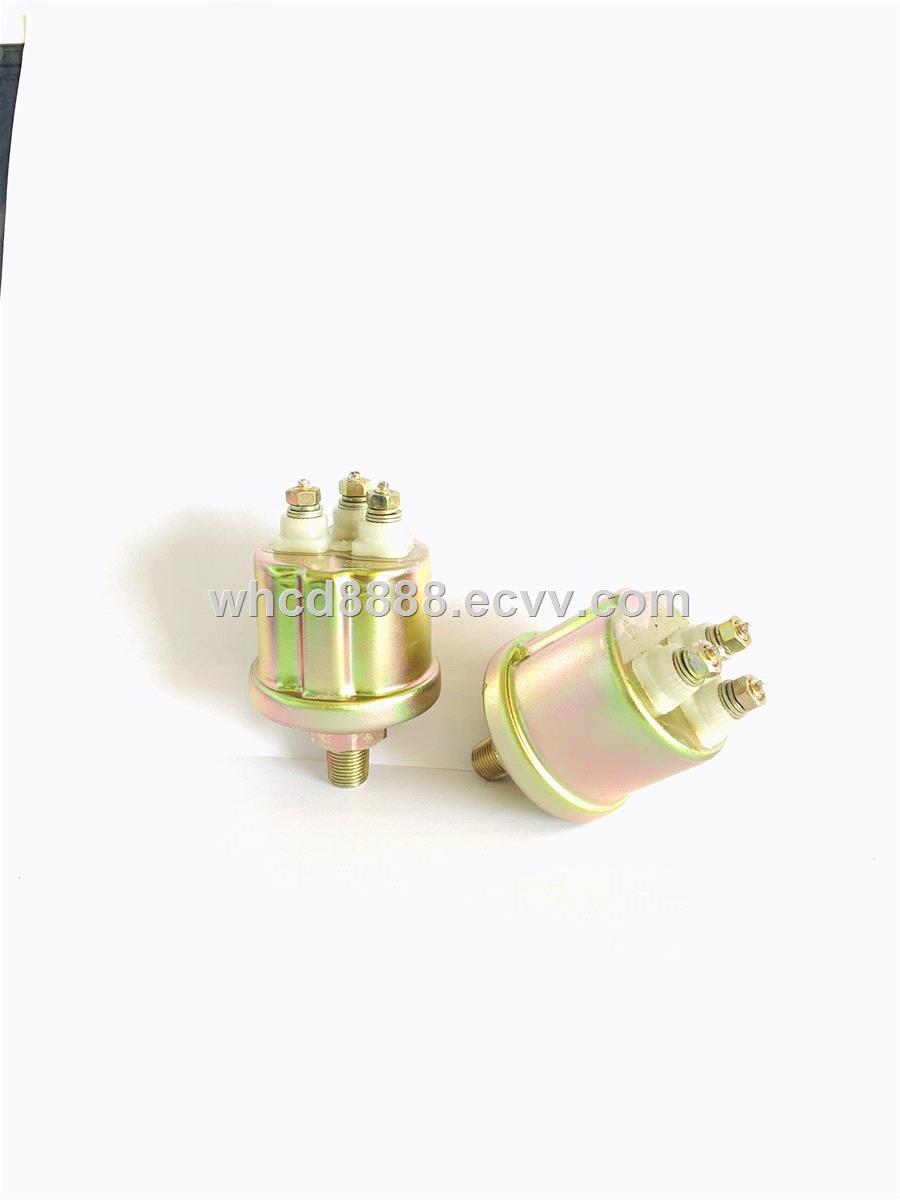

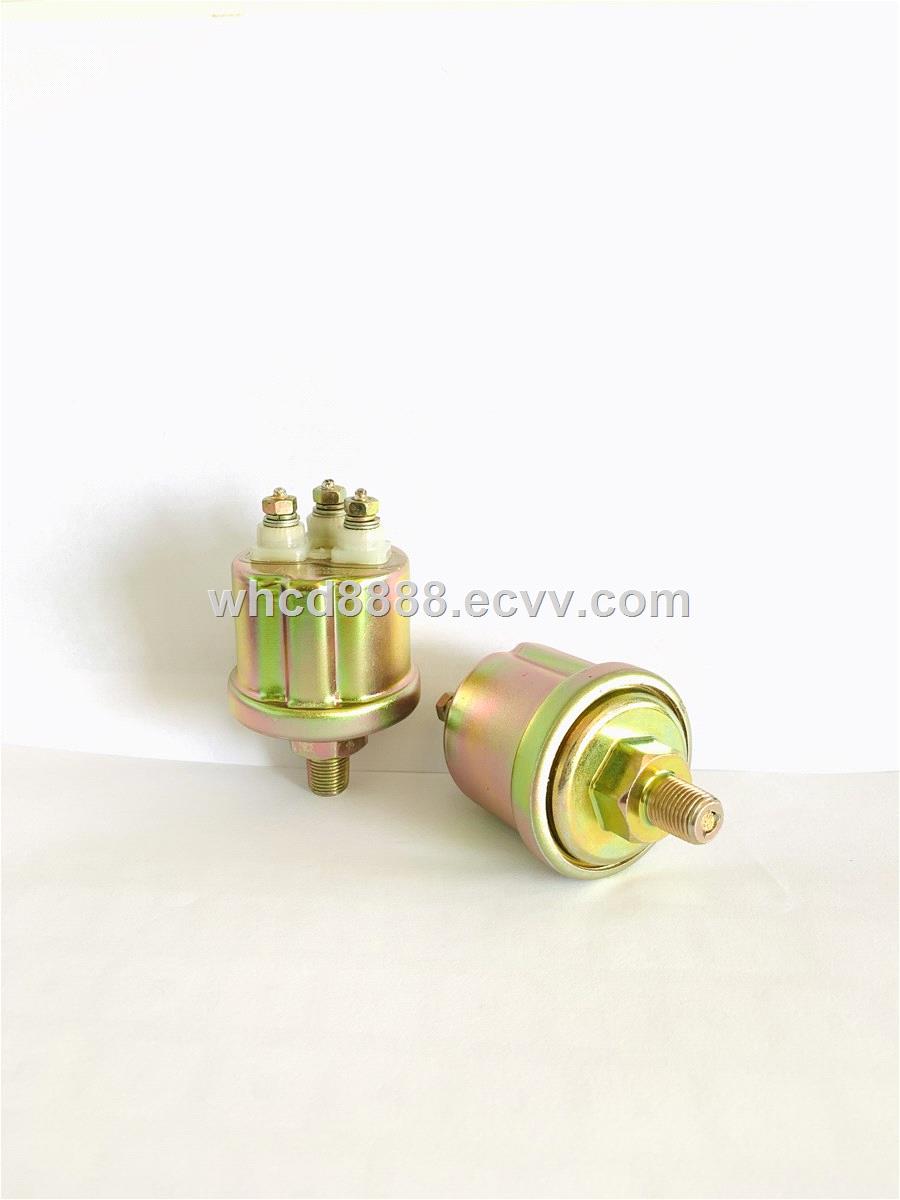

China OEM 0~1MPa Measuring Range 0-184 Output with Alarm NPT1/8/M18/ Customized Oil Pressure Sensor

FOB Price:	2.80 - 7.50 USD/Piece

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China

Quick Details

Brand Name: WHCD
Usage: Agricultural machinery, generator set, diesel engine, vehicle,tractor
Output: 10 to 184
Theory: 123
material: color zinc
Model Number: CDYG3-3
Color: color znic /blue white znic
output: 10 to 184
measuring range: 0-1.0MPa
thread fitting: NPT(z),M,NPTF,R(PT),G(BSP)
protection rank: IP65
operating voltage: 6-24VDC

Specifications

China OEM 0~1MPa measuring range 0-184Ω output with alarm NPT1/8/M18/ customized Oil pressure sensor

Product Description

Oil Pressure Sensor is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control projects.

Technical Data

Operating voltage	6~24V
Conducting power	< 5W
Operating temperature	-25 ~120℃ (120℃ MAX 1H)
Measuring range	0~ 5 Bar
Alarm	Nil
Resistance range	10~184Ω
Thread fitting	NPT1/4, NPT1/8, M10, M10x1, M16x1.5 or customized
Protection rank	IP66

Application

Automotive Engine

Automotive Brake System

Air Compressor

Agricultural Machinery Engine

Generator Engine

Diesel Engine

Hydraulic Control System

Function

Oil Pressure Sensor is installed in the down side of the throttle door spindle, it will change the open size of throttle door into electrical signal then pass it to the controlled computer ECU, and the computer ECU judge the engine work situation according to this signal, to control the oil injection according to different work situation for the requirement of mixture concentration.

Our Service

Our quotation is always valid for you if there is no world market unrest.
Receiving your new inquiry, the details of products & the best price will be provided you asap.
7 days replacement and 12 months repair free of charge for quality problem.
Port: Shanghai.
Payment: T/T.
OEM available
Delivery time is 7-10 working days.
All goods will be fully checked by our QC.
Package: the goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.

Advantage

1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for universal vehicles.
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service

Q & A

Question	Answer
What's your main products?	Oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor
Where are you?	Wuhan city, Hubei Province, China
Do you accept OEM?	Yes, OEM is welcomed
Are you manufacturer or trading company?	We are manufacturer with export license.
Do you provide sample?	Yes
Do you have any certificate?	Yes,we have ISO/TS16949, RoHS
What's the MOQ?	There's no limit for MOQ

Company Introduction

since its establishment, Wuhan Chidian Technology Co., Ltd. Has always regarded product quality as the core competition of the company in market. It is precisely because of product positioning and the strong product quality awareness of all employees that the company continues to develop and is getting better and better.

in the auto parts industry, there are two key factors of product quality control, one is raw materials of the components, and the other is the process control of the production.

First, in the purchasing of raw materials, high quality is the only choice for our production.

1. Thick Film Resistors: All high-precision, high wear-resistant ceramic resistance.

2. Spring: Imported spring steel.

3. the alarm board developed by our chief engineer that is exclusively owned by our company.

4. Media separator: all fold resistant, high temperature resistance, anti-aging, made of corrosion and other excellent properties of rubber and high-strength fabric and other polymer materials.

Second, the product debugging and testing equipment is independently researched and developed by the company. It has uniqueness and leading technology to automate the testing process and intelligently judge the testing results.

Third, in the quality control process, every product will be tested three times before delivery.

Stage I: preliminary adjustment of the product. Which includes two aspects:

1. to debug the resistance value of the detection points

2. to test reliability of detection point for the entire process from zero to the full scale pressure. Prevents the occurrence of momentary short-circuit between two detection points due to dust, fibers, other impurities on the circuit board or poor manufacturing of the circuit board, mainly due to the sudden abnormal occurrence of the meter pointer.

Stage II Semi-final product testing include 4 aspects:

1. to test the resistance value of the detection points

2. to test reliability of detection point for the entire process from zero to full scale pressure

3. to debug and test the pressure value of the alarm

4. to test reliability of detection for the entire process from zero to alarm value.

Stage III Final product testing include four aspects:

1. to test the resistance value of the detection points

2. to test reliability of detection point for the entire process from zero to full scale pressure

3. to test pressure value of alarm

4. to test reliability of detection for the entire process from zero to alarm value.

Regardless of the size of the company, whether the funds are strong or not, the quality control of the product is life of the company and our responsibility. We are confident that we will not produce an unqualified product and will not allow an unqualified product to out of factory.

Yours satisfaction is the motivation of all of us!
