Electromagnetic Soft Wave Absorbing Materials Emi Microwave Absorber Absorbing, 3M Absorbing Material
| FOB Price: | 0.20 - 9.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Chain(s) per Day |
| Shipping: | SHENZHEN |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | carton |
Quick Details
- Brand Name: TRUSS
- Design Printing: No Printing
- Adhesive Type: Pressure Sensitive
- Adhesive: Acrylic
- Adhesive Side: Double Sided
- Model Number: EMI Filter
- Feature: Antistatic
- Use: Masking
- Material: PVC
- Type:: EMI Filter
- Transfer Function: ALL PASS
- Nominal Center Frequency:: 0.5~0.8
- Input Impedance:: 1.6*10
- Description: wave absorbing material
- Mounting Type: Custom
- Relative: 30/50/70/100
- Package Type: Surface Mount
Specifications
1.as Required from Customer
2.Single---Several Hundred Pieces Sealed In Transparent OPP Bag
3.Sheet---Several Sheets Sealed with PE Film or in Opp Bag,Several Bags Packed in Export Papar Carton.
4.Roll---Several Roll Is Packed in Export Paper Carton,Each Roll Is Separated by Release Paper Or Hardboard.
Description:

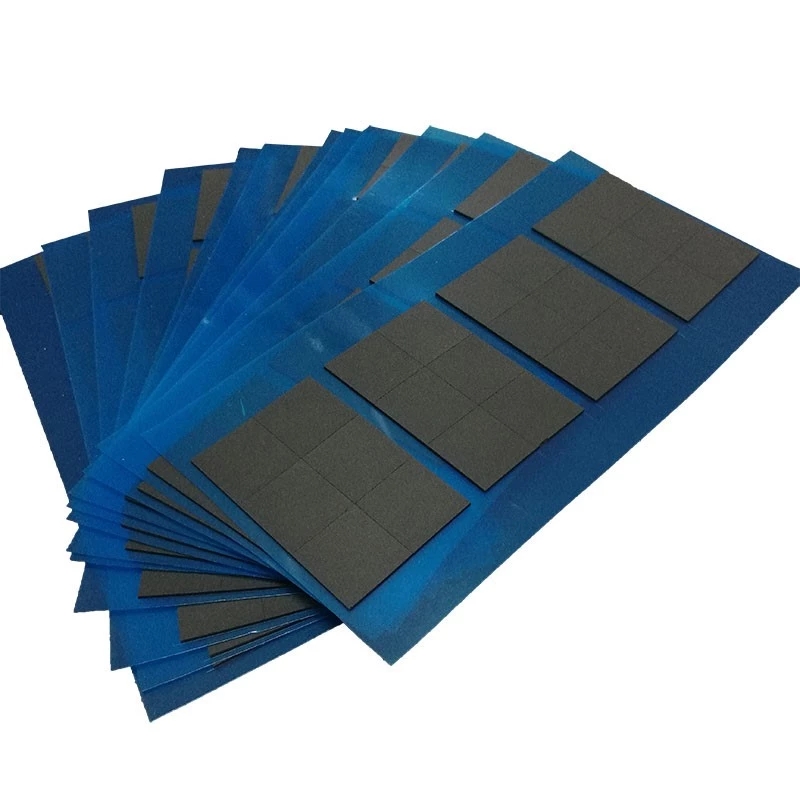

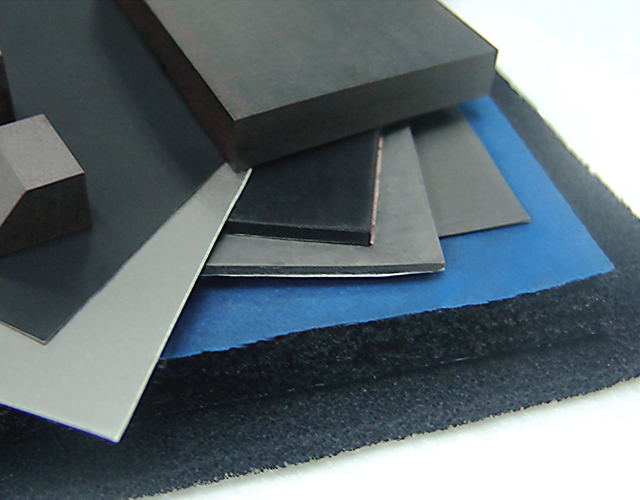

Wave absorb material is tailored for EMI wave/harmonic noise / crosstalk occured on PCB label or any EMI noise inside enclosure of consuming electronic equipment. Non-conductive PSA is for better insulation separation and easier / reliable mounting. Per needed, and can be laminated with foil tape and conductive fabric tape to equip the absorber with perfect shielding function for some special uses. Supply with a soft release liner for easier handing and die-cut.
Features:
1) High performance sheet-type absorb wave material;
2) Non-conductive so that it could use safely in PCB level;
3) High adhesion strength makes its reliable installing;
4) Excellent mechanical property make die cutting easier.

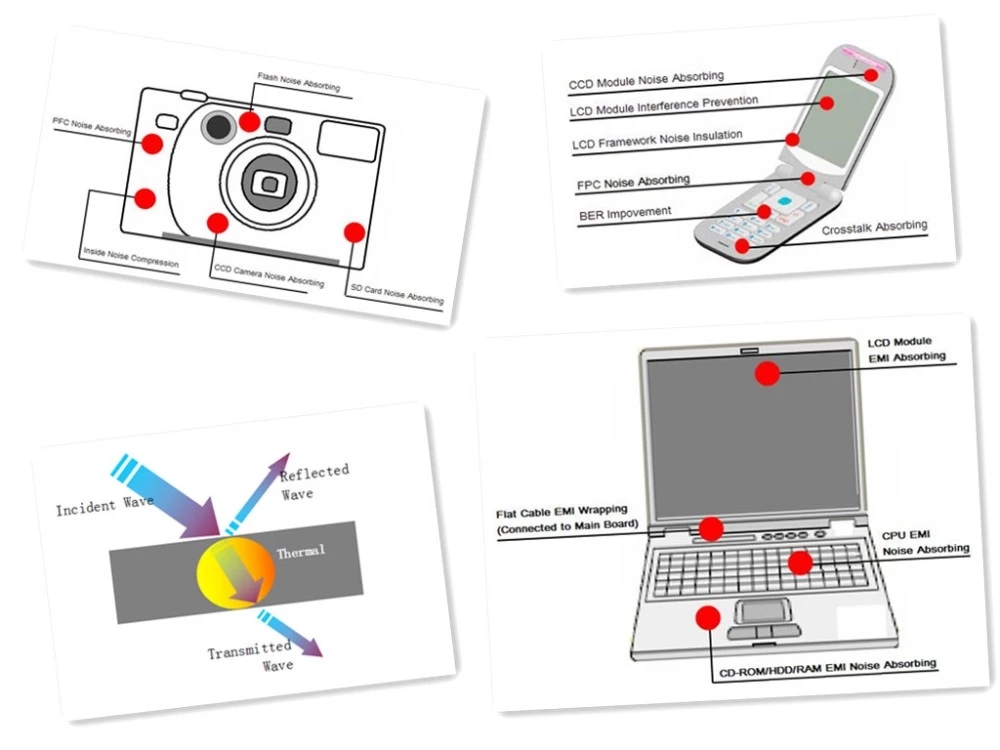

Applications:
1) Electromagnetic EMI Absorber (absorbing material products)
- Smart phone and PDA phone circuit board the electromagnetic wave absorption.
- mobile phone circuit board, notebook of electromagnetic interference absorption.
2) Fox WLAN, RF Module internal interference prevention and control.
- suitable for GSM, PHS mobile phone and base station application.
- absorption signal and power lines brought out the noise.
- PC, OA affairs machine, digital camera, 3 c products of the electromagnetic wave absorption

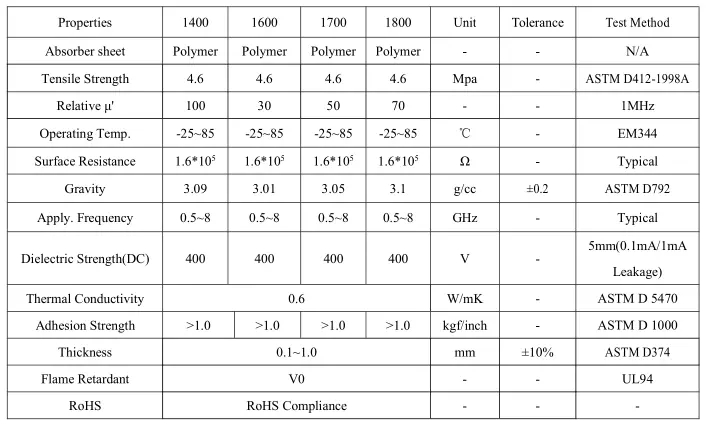

Note: the above performance data for this product were tested in the environment of 70% humidity, temperature 25℃. It's only for users' reference. in a particular environment, it maycan not achieve the above data. Users are requested to use their actual data from experiments, while using our products. King Bali reverse all the right if interpretation for this product.
Cts. King Bali reverse all the right if interpretation for this product.
how it works:
1) Transfer the hot heat to the outside interface
2) in the formation of their electrical insulation layer between the heat Interface and electronic components
3) Materials, electronic components in the buffer to be subjected to severe Shocks to form a protective
