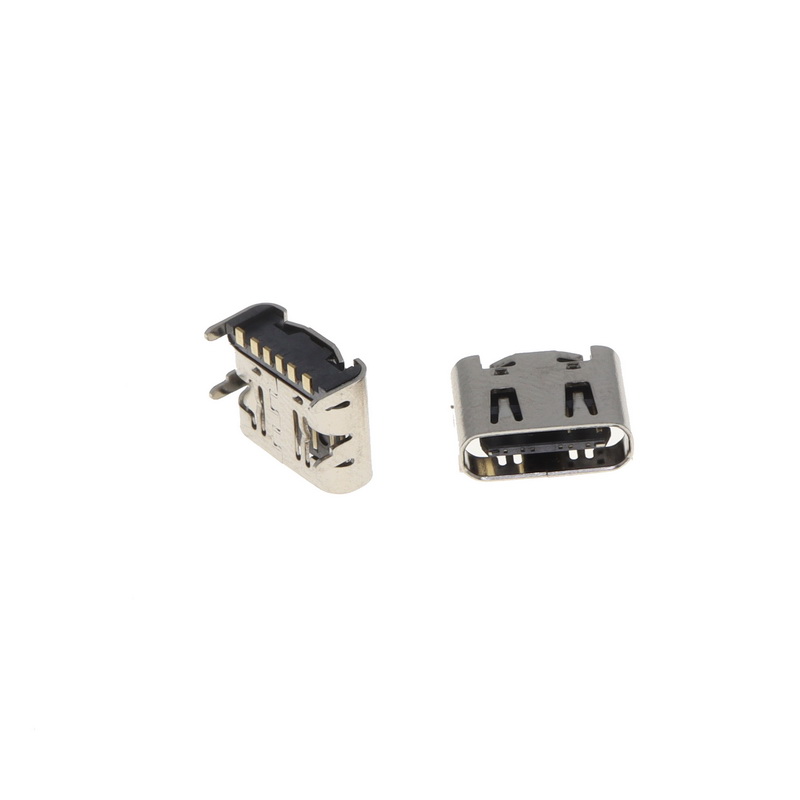

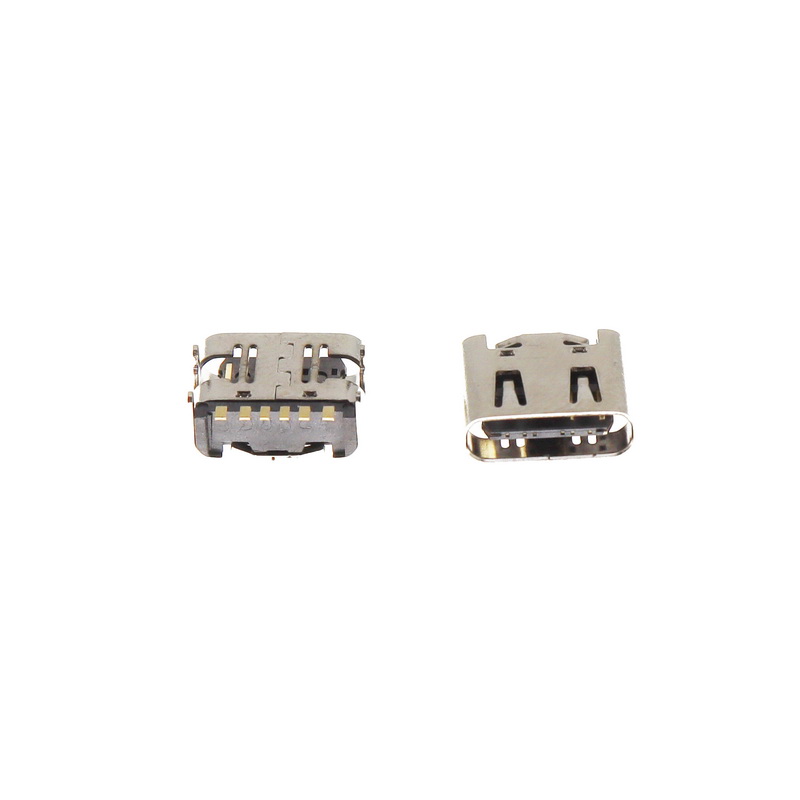

6 Pin SMT Type for Mobile Phone Charging c Type Connector Vertical Connector
| FOB Price: | 0.20 - 0.22 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece(s) per Day |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Gender: Female
- Application: Power
- Type: USB
- Brand Name: DHT
- Color: black
- Model Number: SLD-6PIN-W
Specifications
USB 3.1 type-c female charging connector
Product Description
Features of USB 3.1 C type connector:
1.An entirely new design which will feature bidirectional plugging in of USB devices so that the user doesn't need to take care of which way the USB cable is being plugged in.
2.USB 3.1 will be smaller than the current standards being used for USB. this will enable slimmer and sleeker product designs of USB enabled devices.
3.Type C connector and cable will support scalable power charging.
4.Scalability the connector design will scale for future USB bus performance.
Spec of USB 3.1 C type connector
1. Materials
*Hoursing: LCP Black
*Terminals: Copper Alloy C2680
*Gold plated in contact area: Tin 40u''min plated in termination Nickel Plated Overall.
*Shell: C2680/SPCC t=0.4mm
*Nickel 40u''min plated overall
2. Electrical Characteristics
| Insulator | High temperature plastic UL 94V-0 |
| Current rating | 5.0A Max |
| Voltage rating | 20V DC max |
| Dielectric withstand voltage | 100V AC |
| Contact resistance | 40 Millionhm max |
| Insulation resistance | 100 Megohms min |
| Mating force | 5 ~ 20N |
| Unmated force | 8 ~ 20N after test |
| Durability | 10,000 Cycles |
