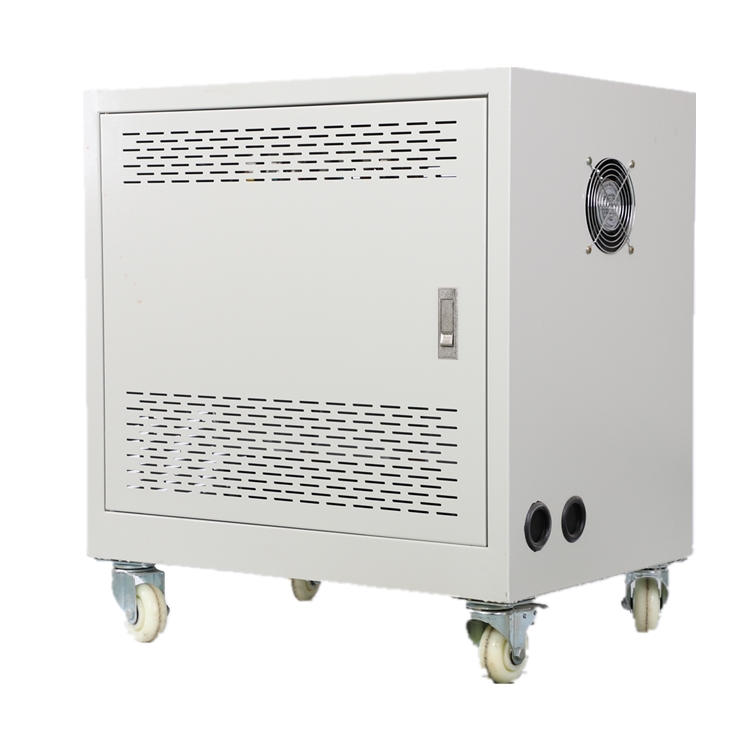

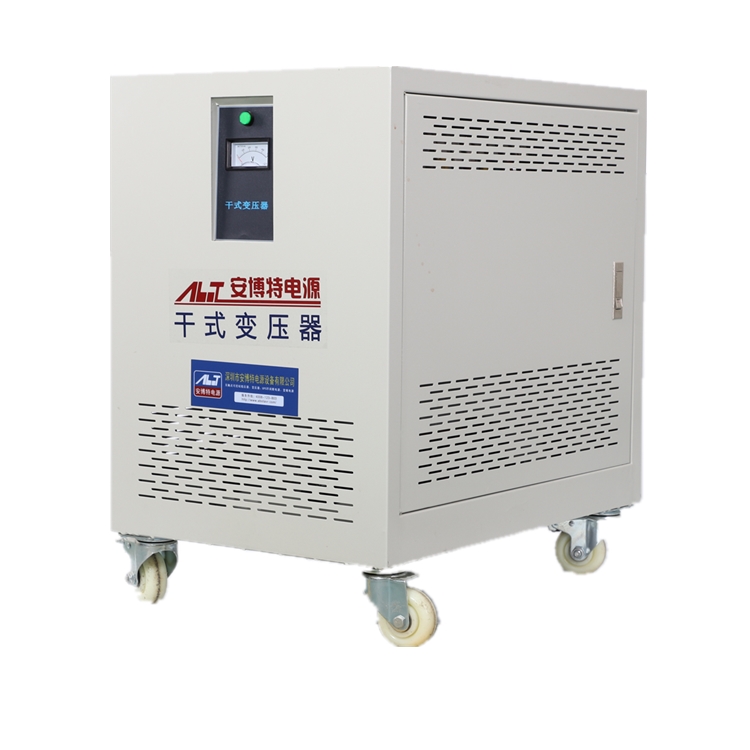

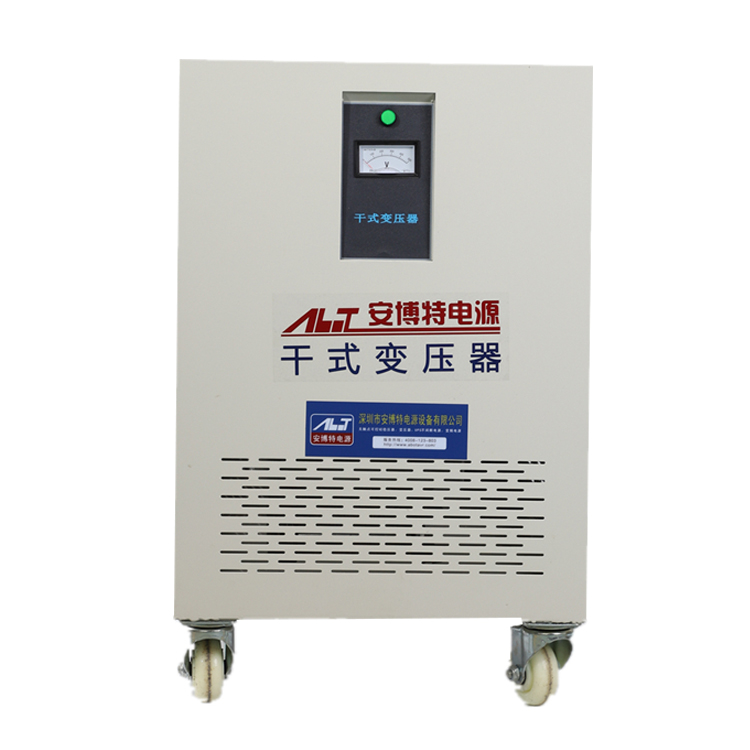

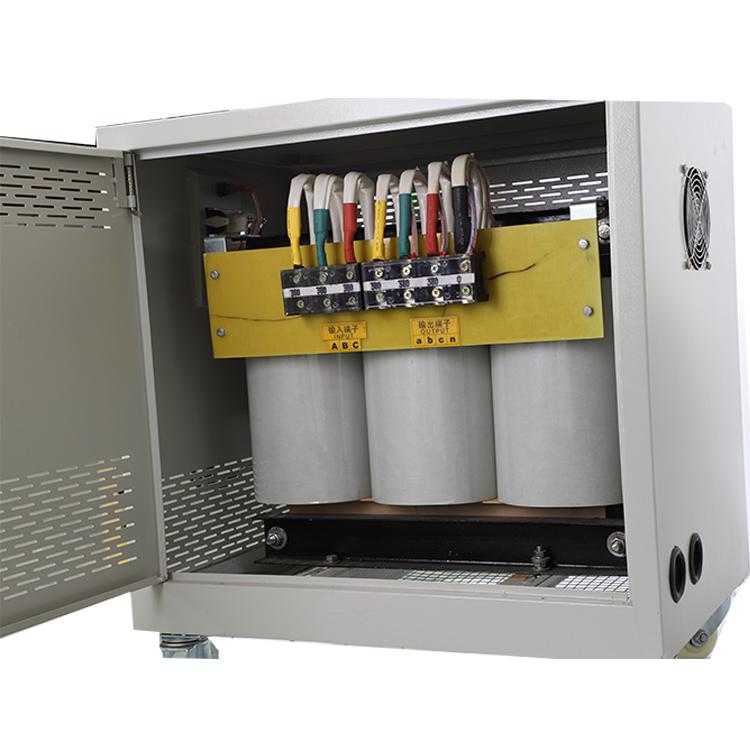

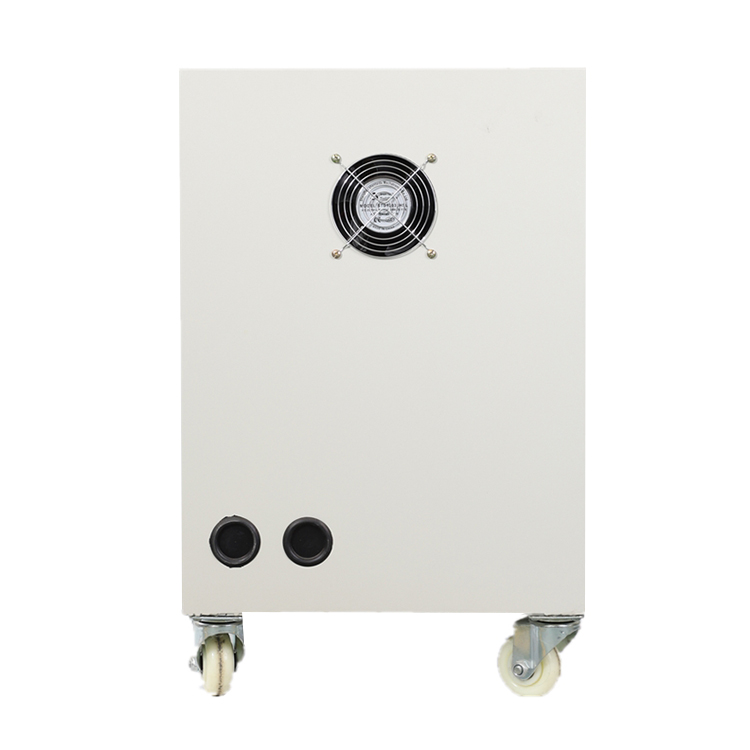

ABOT Three Phase to Single Phase 380V to 220V Dry Type Transformer
| FOB Price: | 500.00 - 800.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set(s) per Month |
| Shipping: | SEA |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | film packing, then with exporting wooden box |
Quick Details
- Coil Number: Autotransformer
- Coil Structure: Toroidal
- Phase: Three
- Usage: Electronic
- Brand Name: ABOT
- Model Number: SG-10KVA
- Input voltage: 380V
- Output voltage: 220V
- Frequency: 50/60HZ
- Capacity: 10kva
- IP rating: IP20
Specifications
Brief Introduction:
SG series transformer is ABOT self-developed dry-type isolation transformer, from row materials to process technology, we have done authoritative analysis and optimization upgrading, which enable the transformer with less noise, lower loss, less voltage drop, more stable and efficient. It is suitable for AC 50HZ to 60HZ, under 660V voltage, widely used for precision machinery and equipment, multiplespindle automatic lathe, injection molding machinery, electronic machinery, medical equipment and lighting.
Technical Parameters
Input |
Voltage |
600V/480V/400V/380V/220V/110V or custom |
Frequency |
50/60Hz | |
Output |
Rated Voltage |
600V/480V/400V/380V/220V/110V or custom |
Type |
Dry type | |
Insulation Level |
H Level | |
Waveform Distortion |
No additional waveforms generated (static) | |
Efficiency |
≥98% | |
Overload Ability |
150%(60min) 300%(10min) | |
Cooling Method |
Forced Air Cooling | |
Relative Humidity |
20%~90% | |
Seismic Coefficient |
0.3G | |
Ground Clearance |
>8mm | |
Ground Resistance |
0.1Ω | |
Heat Resistance of Wire |
Level H, 180℃ | |
Noise |
≤55dB | |
Certificate |
CE | |
