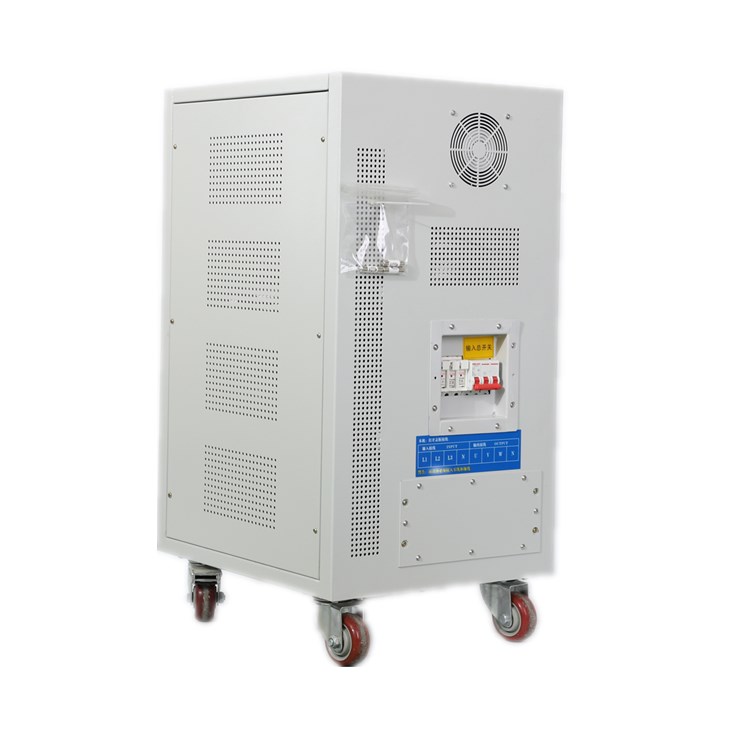

ZBW Three Phase AC Triac Voltage Stabilizer for Voltage 200KVA
| FOB Price: | 2100.00 - 3000.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set(s) per Month |
| Shipping: | SEA |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Film packing, then put into exporting wooden box |
Quick Details
- Phase: Three Phase
- Usage: DBW
- Brand Name: ABOT
- Warranty: 18 months
- Model Number: ZBW-200KVA
- Input Voltage: 304V-456V
- Output Voltage: 380V+/-2%
- Accuracy: +/-2%
- Current: 303A
- Voltage Balance: Independent balance on three phase
- Color: Gray
Specifications
Brief Introduction:
ZBW series non-contact compensated voltage regulator use high power thyristor (silicon controlled rectifier) instead of mechanical and carbon brush to control and adjust voltage, which can realize 2000KVA high capacity. Max compensation range is ±50%, efficiency is up to 99%. this type of voltage regulator is the newest regulator which has full protection functions, high reliability and adaptability, continuous working time over one hundred thousand hours without any failure.
Technical Parameters
| AC input | Input Voltage Range | 3-phase 304V-456V |
| Frequency | 47hz-63Hz | |
| AC output | Rated voltage | 3-phase 4-wrie 380V/220V |
| Regulation precision | ±1-5%(optional) | |
| Waveform distortion | without additional waveform distortion(static) | |
| Efficiency | ≥98% | |
| Response time | 20-100ms | |
| Power factor | 0.8 | |
| Output Delay | Stabilize voltage first, then output | |
| Protections | Overvoltage or low voltage | Voltage at output phase over 10%, cutting off output or continuous steering bypass |
| Overload | Electronic detection,cutting off output within 3 minute of overload | |
| Missing phase | Automatic cut-off | |
| Bypass | Continuous automatic bypass in case of failure | |

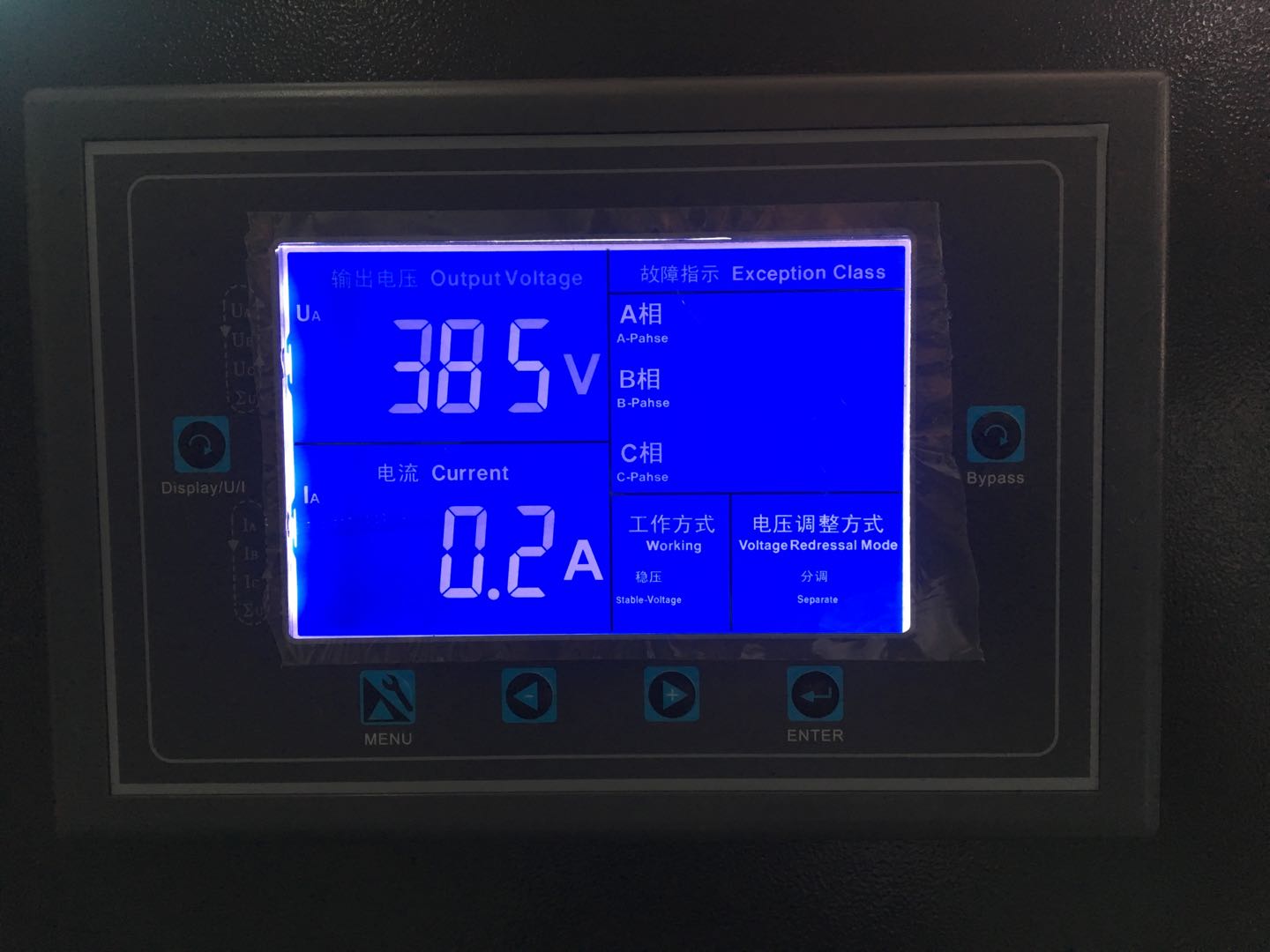

| Indication | Voltage | LCD display for A, B, V, ∑ABC 3 phases with virtual value |
| Current | LCD display for A, B, V, ∑ABC 3 phases with virtual value | |
| Working Condition | Stabilized voltage/electric supply | |
| Abnormal | over voltage, low voltage, overload, fuse wire broken | |
| LCD Interface | Intelligent operation interface, easy to set and research various parameters | |
| Working Modes | with two working modes, stabilize voltage and electric supply mode | |
| Overload capacity | 5 times of rated current for 1 second | |
