>Products Catalog > Plasma Cleaner > Portable 300W Oxygen Argon PCB Surface Treatment Plasma Cleaning Cleaner Machine

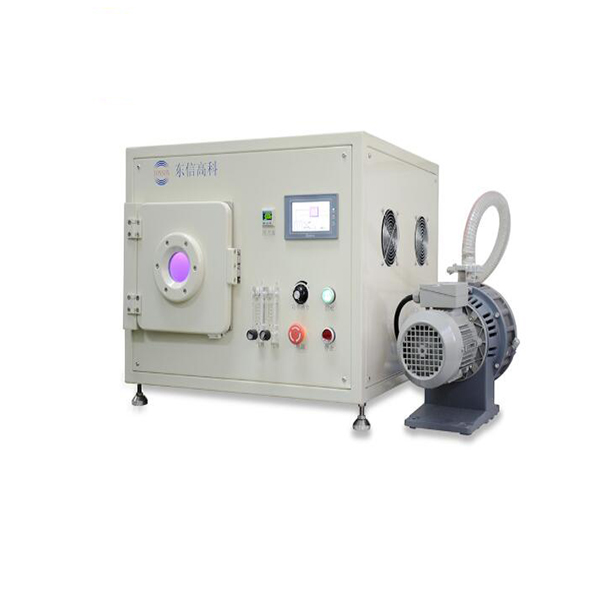

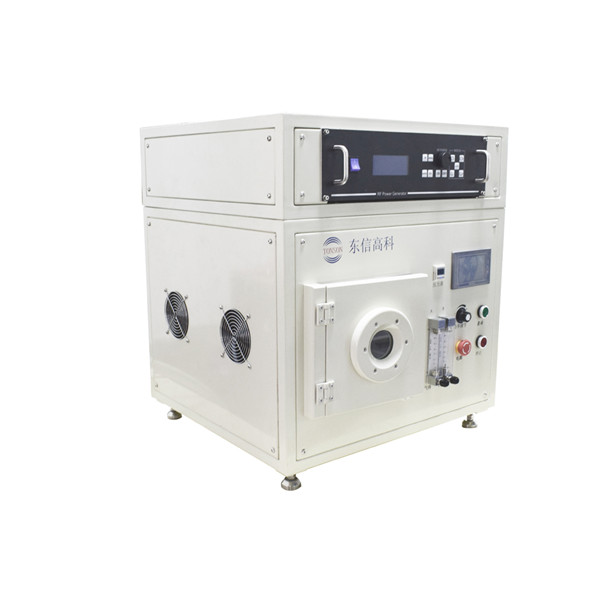

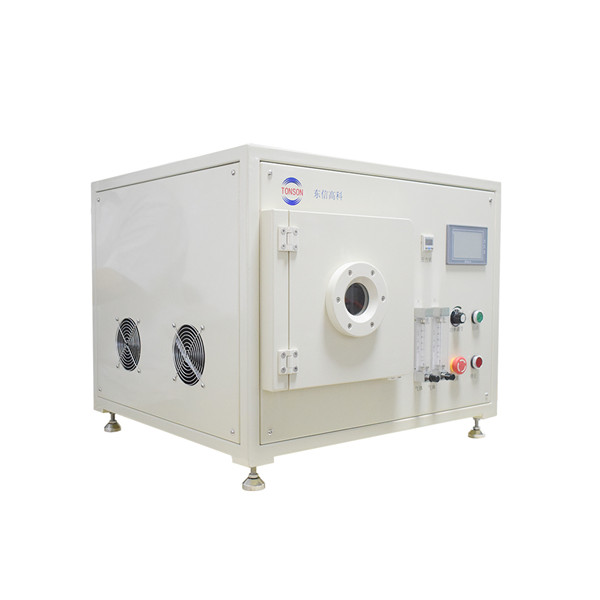

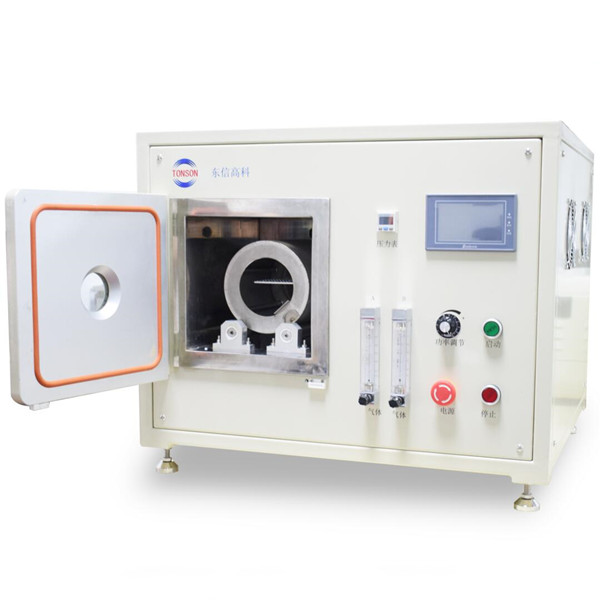

Portable 300W Oxygen Argon PCB Surface Treatment Plasma Cleaning Cleaner Machine
| Supply Ability: | 10 Set(s) per Month |
|---|---|
| Shipping: | ship by sea or air |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | standard export package box |
Quick Details
- Machine Type: Other
- Material: Metal / Coil
- Certification: CE
- Brand Name: TONSON
- Condition: New
- Machine Type: plasma cleaning machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Dimension(L*W*H): 660*700*600mm
- Power(W): 500
- Industry Used: Electronic Industry
- Cleaning Type: High Pressure Cleaner
- Cleaning Process: Vapor Cleaning
- Use: Sterilizing / Disinfecting
- Fuel: Electric
- Feature: Critical Cleaning / Residue Free,plasma cleaning
- Model Number: TS-PL05
- Product: plasma cleaner
- Material: imported 316 stainless steel
- Power frequency: 40khz/13.56mhz
- Volume: 5L
- Power: 500w
- Vacuum degree: 30pa-100pa
- Cleaning time: 1-100min
- Gas channel: two-way working gas:oxygen and argon
- Vacuum pump: oil pump/dry pump
- Control mode: PLC+touch screen
Specifications
Portable 300W oxygen argon PCB surface treatment plasma cleaning cleaner machine
Model
TS-PL02/05/10 Cavity material
Stainless steel surface treatment Power frequency
40KHz/13.56MHz Power
300/500/600W Working current
the overall working current
Shall be no more than 1.2A (excluding vacuum pump) Vacuum degree
30pa-100pa Gas
Flow
0-100ml/s Cleaning time
Adjustable(1-100miniutes) Gas channel
Two-way working gas:oxygen and
Argon,etc Cooling mode
Air cooling Control mode
Man-machine interface Vacuum cavity temperature
Less than 50℃ Vacuum pump
Oil pump/dry pump(optional) Volume
2L/5L/10L Cavity dimensions(LxWxH)mm
Diameter:100*270mm/150*280mm/200*200*270mm Overall dimensions(LxWxH)mm
550*600*400mm/660*700*600mm/660*700*600mm Application
Glass,Touch green,Material science,Printing,Paper manufacturing,Ink coating,Medicine & healthcare,Thin film polymer,Electronic
Circuit,Textile fibre,Chemistry
and chemical industry,Petrochemical
Industry.Feature
A.Mainly applicable to small
Scale production and scientific experiment
B.Small volume,tight structure and easy to operate and maintain
C.German core plasma technology
D.Imported 316 stainless steel material,corrosion resistant
E.Imported needle value precise flow controlling machine
F.Two-way process gas channel
G.Customization available
