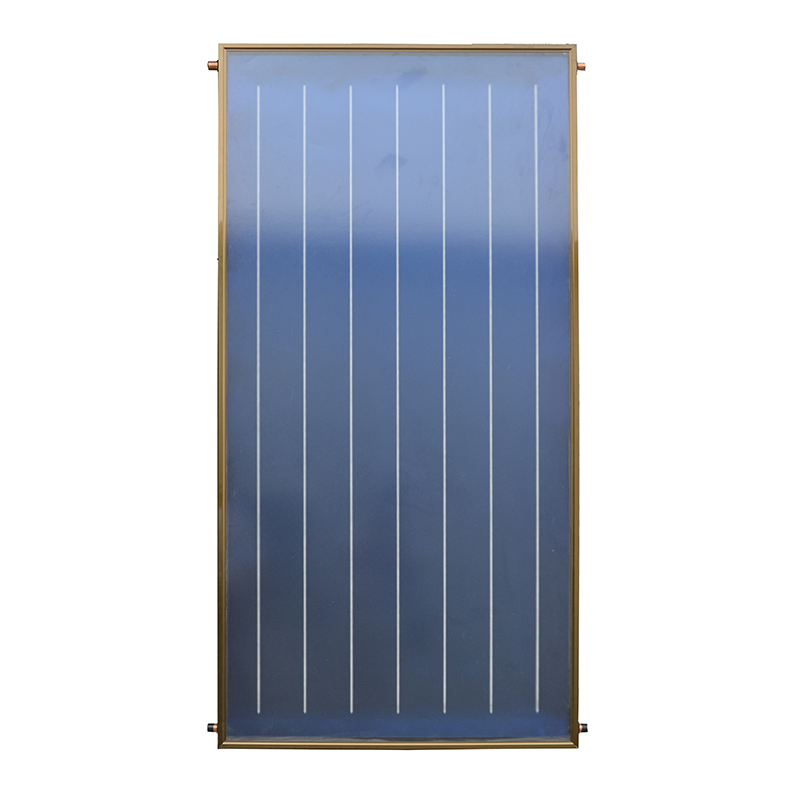

Fast Assembly Rooftop Flat Plate Solar Panel Collector

Supply Ability:	6,000 Set(s) per Month
Shipping:	shenzhen
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Southeast Asia, Africa
Place of Origin:	Guangdong in China
Packaging Details:	wooden case

Quick Details

Type: Solar Water Heater Parts
Brand Name: Millionsun
Type: solar collector
Weight: 29kg
Voltage/wattage: 220v
Warranty: 10 years
Model Number: M-SBC/2.0-Blue
Dimension: 2000X1000X80mm
Gross Area: 2.0m2
Aperture Area: 1.84m2
Absorber Area: 1.76m2
Max.idle temperature: 152 Celsius
Absorber Material: Full Aluminium sheet
Absorber Surface: Blue selectivity coating

Specifications

Product Description

Millionsun solar water heater parts blue absorber flat plate solar collectors are manufactured according to European quality standards. by introducing BLUETEC coating layer from Germany and applying ultrasonic or Laser welding technology, our products, with stable quality and SRCC and solar keymark certificate, have been sold in batches to European markets.Featuring optimal and reasonable structures, fine appearance and easy installation, our products are well combined with buildings and applicable to household and scaled systems. Millionsun solar flat plate collector can be used in both closed and open circulation systems.the collector is designed to connect to multiple collectors easily, to make up a large collector field, it also can be used in different solar system.

Product name	Millionsun blue absorber flat plate solar collector
Description	Unit	Specification
Dimension (LXW XH)	mm	2000X1000X80	2000X1250X80
Gross Area	m2	2.0	2.5
Aperture Area	m2	1.84	2.32
Absorber Area	m2	1.76	2.22
Total weight of the empty	Kg	29	34
Collector connection (Inlet /	mm	22	22
Max.Idle temperature	℃	152	152
Liquid content	L	1.6	2.0
Operating pressure	Bar	12	12
Nominal volume flow		50-300	50-300

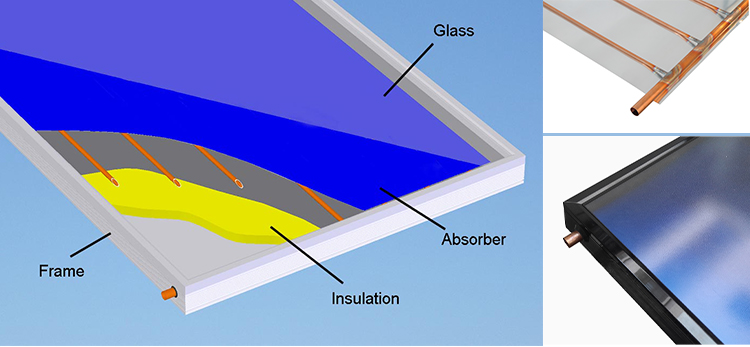

Cover	Cover material	Low iron patterned tampered glass
	Cover thickness	3.2 mm
	Cover	≥92%

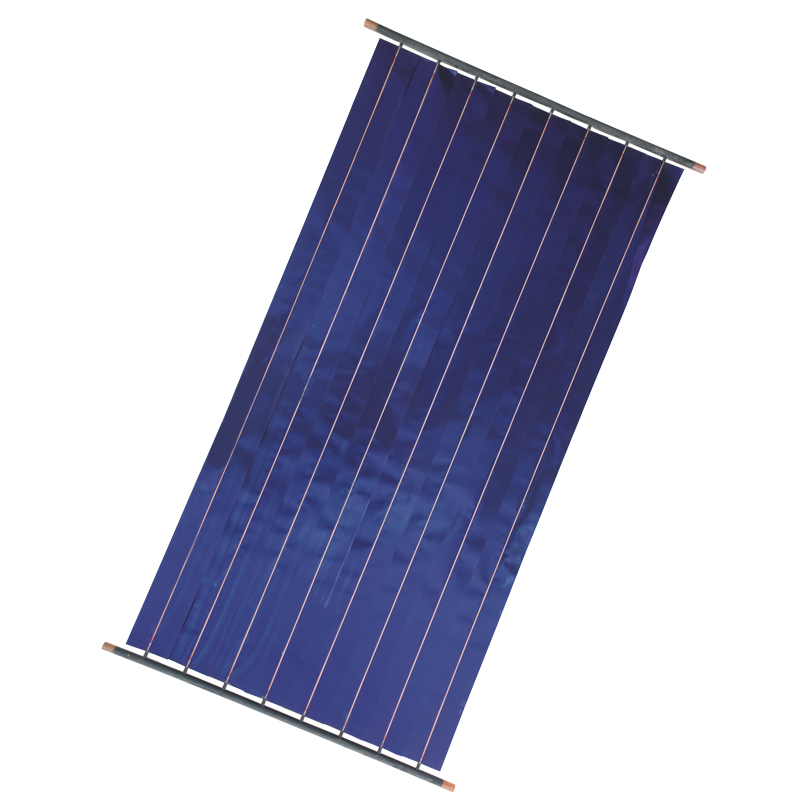

Absorber	Material	Full Aluminium sheet
	Surface	Blue selectivity coating
	Absorptivity	95%±2%
	Emissivity	8%±2%
Frame	Material	Aluminium alloy 6063
Frame	Colour	Silver or Black
Insulation	Material	Glass wool (30mm,35Kg/ m3 )
Back plate	Material	Aluminium sheet (0.5mm)
Glass sealing	Material	EPDM

Warranty Details: 10 years warranty for collector

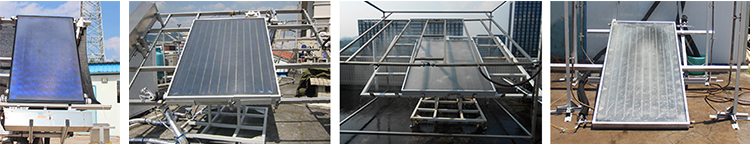

Product Test

Blue Coating Flat Plate Thermal Solar Water Collector

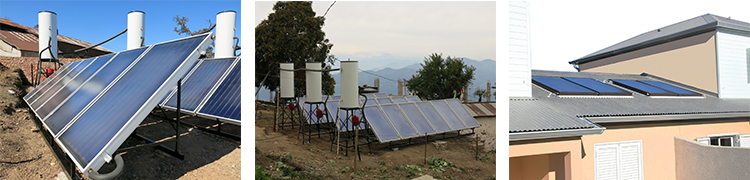

Application

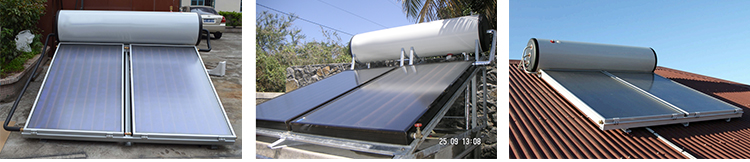

(1)Integrated solar water heater

(2)Split solar water sysytem

Company Profile

Millionsun Solar flat collector manufacture line start to made solar flat collector at 2002, there is 50000 sqm for the manufacturing place. We have 1 Black absorber coating production lines, black absorber coating annual production capacity over 1 million sqm, we hold black absorber coating market capacity of 30% in china. We have 2 ultrasonic welded production lines and 1 laser welded production lines, We supply all kinds of flat plate solar collector to client, workshop manufacture 20000 sqm flat per month, annual production capacity over 200000 sqm flat collector. Clean and tidy production environment, Automatic production line, well-established technological process, Strict quality control and regulate the delivery process, ensure quality qualified rate 100% solar water system to customers and without error delivery rate.

>>> 2008 years millionsun solar flat collector get solar keymark certificate
Black collector solar keymark certificate Number: PSK-003/200
Blue collector solar keymark certificate Number: PSK-034/2008
>>> 2011 years millionsun solar flat collector get SRCC certificate
Blue collector SRCC certificate Number: 100-2011019A
>>> 2011 years millionsun solar water system get solar keymark certificate
Solar water system certificate Number: 011-7S1787A
>>> 2011 years millionsun solar water system get WaterMark and as certificate
Solar water system WaterMark certificate Number: WMKA25272, OMK25271 and WM-025272 (renew certificate in 2016)
>>> 2011 years millionsun renew blue and black solar keymark certificate
Black collector solar keymark certificate Number: PSK 053-2011
Blue collector solar keymark certificate Number: PSK 054-2011
>>> 2012 years millionsun solar flat collector get SRCC certificate
Black collector SRCC certificate Number: PSK-003/200
>>> 2012 years millionsun solar flat collector get CSA certificate
Blue collector solar keymark certificate Number: 2561085
>>> 2013 years millionsun solar flat collector get solar keymark certificate
Blue collector solar keymark certificate Number: SP SC0975-13
>>> 2016 years millionsun get new black collector solar keymark certificate
Black collector solar keymark certificate Number: 011-7S2656 R
