New Design Down Pipe Cold Roll Forming Machine/Rain Water Down Pipe Making Line

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Package Type: the machine body was packed by the plastic film , the spear parts was packaged in the carton box for Automatic crimp roof panel curving machine

Quick Details

After-sales Service Provided: No overseas service provided
Brand Name: SHIBO
certificate: CE/ISO
product name: New Design Down Pipe Cold Roll Forming Machine/Rain Water Down Pipe Ma
material: PLC, Motor
Application: Down pipe
Production Capacity: 8-12m/min
Base frame: 350H steel
Control cabinet: PLC and frequency changer in it
Cutting blade: Cr12 with heat treatment

Product Description

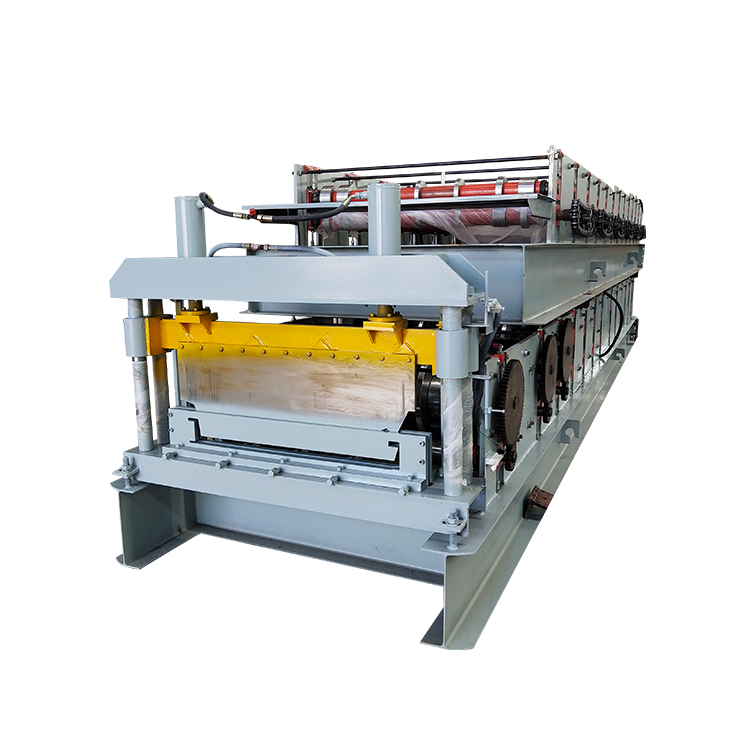

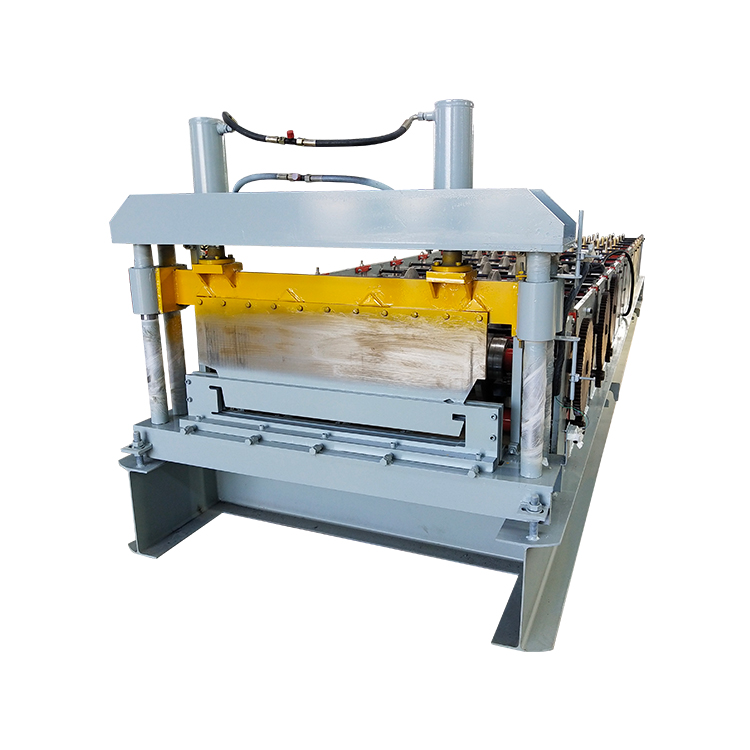

DOWN WATER PIPE ROLL FORMING MACHINE
Feeding material	PPGI
Thickness of the plate	0.4mm
Machine size	about 8000mm1000mm1000mm
Diameter of the axle	Φ70mm
Rolling stages	20 stages
Productivity	8-12m/min
Total power	7.5 kw machine motor + 4 kw pump station motor
Voltage	220V 60Hz 3phase or as requirement
Weight	about 6T
Base frame	350H steel
Side board thickness	16mm
Cutting blade	Cr12 with heat treatment
Cutting system	Hydraulic cutting system after forming
Loading hole	Two loading hole both side, easy load and unload
Control cabinet	PLC and frequency changer in it
