Home >Products Catalog > 1300-1500 w/Mk Electronic Products Efficient Graphite Sheet Heat Dissipation & H Level Insulation Graphite Materials

1300-1500 w/Mk Electronic Products Efficient Graphite Sheet Heat Dissipation & H Level Insulation Graphite Materials

Supply Ability:	50,000 Roll(s) per Week
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Brand Name: Dowell
Design Printing: No Printing
Adhesive Type: Pressure Sensitive
Adhesive: Silicone
Adhesive Side: Single Sided
Model Number: DL-200
Feature: Heat-Resistant
Use: Masking
Product name: Good Conductive Graphite film
Type: Flexible
Color: Black
Grade: Industrial Grade
Thickness: 0.017mm-0.25mm
Temperature resistance: 180-1200degree
Application: smartphone,LED,LCD,tablet computers
Sample: Free sample Artificial Graphene Film

Specifications

1300-1500 w/mk Electronic products efficient graphite sheet heat dissipation and H level insulation graphite materials

13001500 wmk Electronic products efficient graphite sheet heat dissipation and H level insulation graphite materials

Product Description

Compared with copper, aluminum and other metals, graphite is a better thermal conductivity material. The main reason is that graphite has a special hexagonal planar network structure, which can distribute heat evenly in two-dimensional plane and transfer heat effectively. In the horizontal direction, the thermal conductivity of graphite is 300~1900W/ (m) K, while the thermal conductivity of copper and aluminum is about 200~400 W/ (m) K. In the vertical direction, the thermal conductivity of graphite is only 5~20W/ (m) K. Therefore, graphite has a good horizontal heat conduction, vertical heat resistance effect

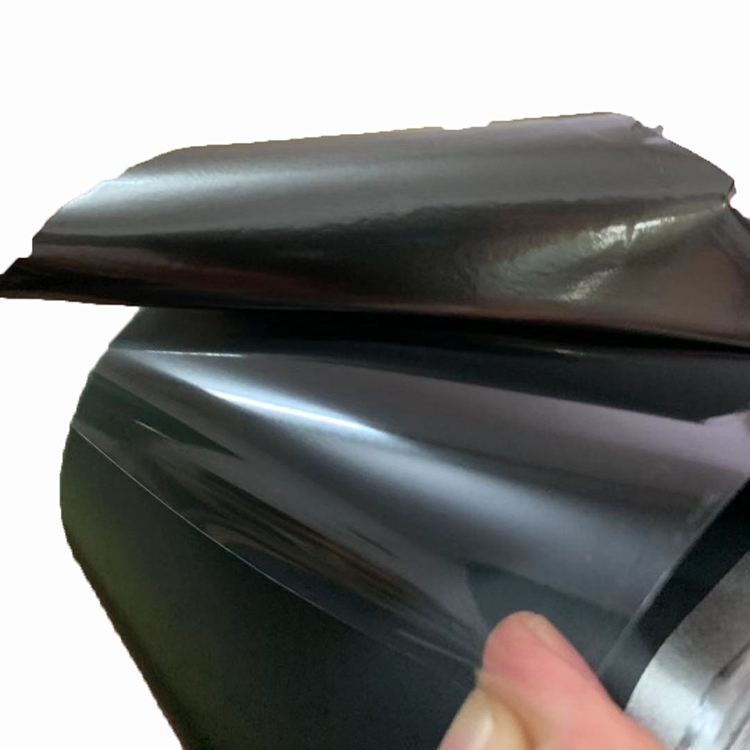

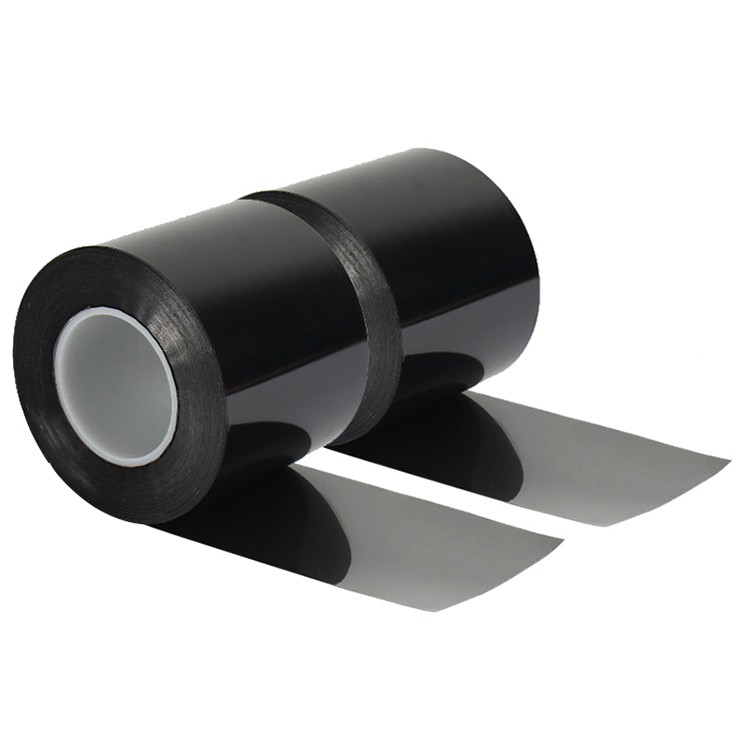

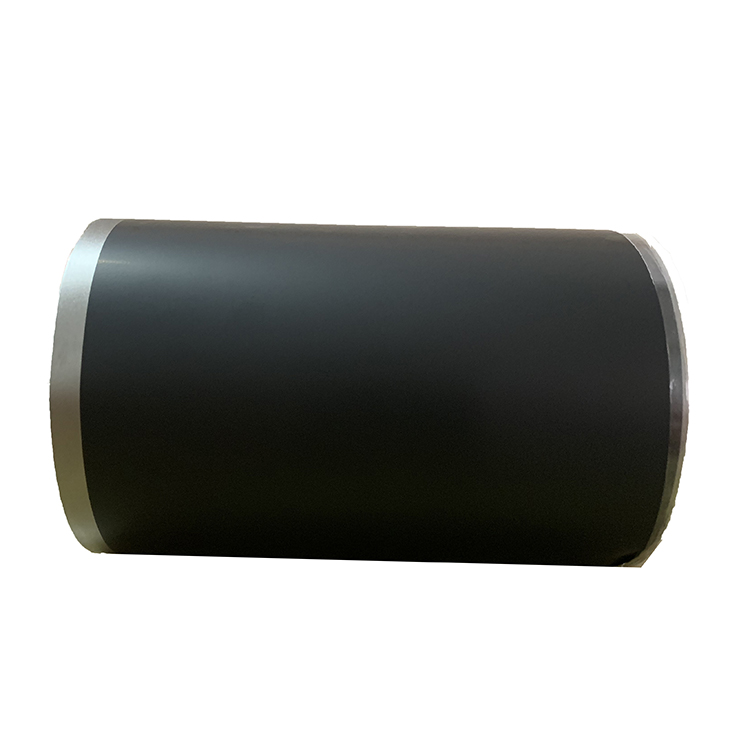

Product	Artificial graphite film
Material	Artificial graphite
Color	black
Thickness	0.017 up or customized by customer requirements
Length	33m/66m
Width	<980mm
Expiry time	1 years
Grade	Thermal conductivity 500-1800w/mk

13001500 wmk Electronic products efficient graphite sheet heat dissipation and H level insulation graphite materials

Feature

1,Low thermal resistance
2, flake graphite (99.5%),Light weight
3,Reliable performance from -40℃to 400℃
4,Offered in thicknesses from 0.05mm~0.5mm
5,Ultra-high thermal conductive performance / easy to operate
6,Can be adhesive-backed and Insulative adhesionType, RoHS compliant and UL94V0 flammability rated

13001500 wmk Electronic products efficient graphite sheet heat dissipation and H level insulation graphite materials

Applicant

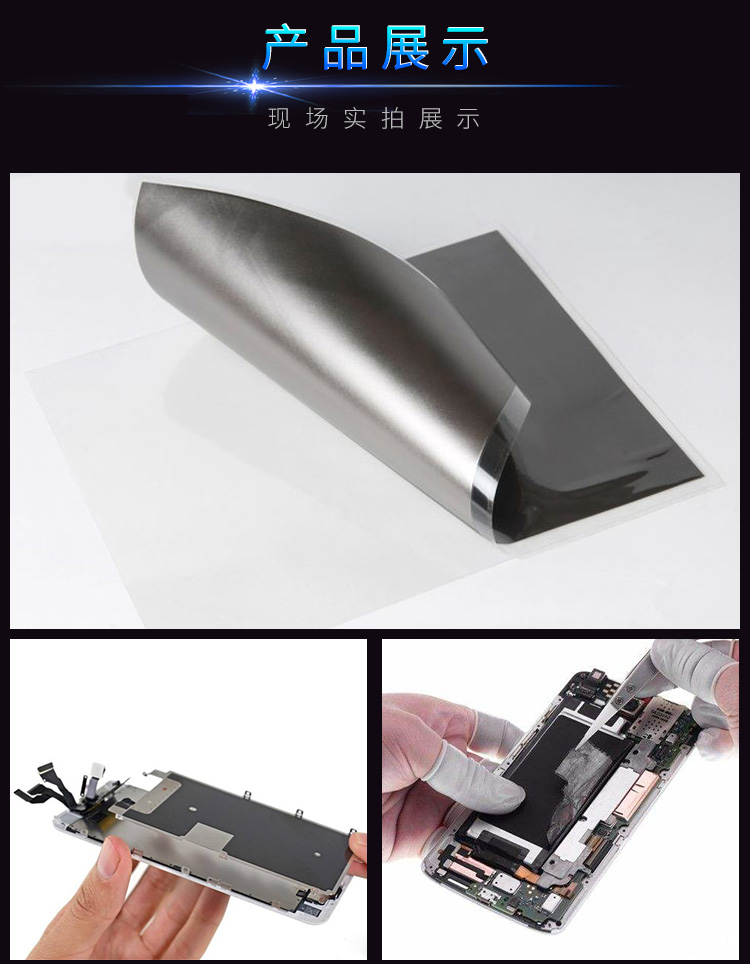

Graphite sheet with high thermal conductivity and light weight can provide the best thermal management solution.

It is widely used insmartphones, PC, ultra HD TV, LED lamp, solar energy, battery, VR, new energy vehicles, wireless

Charging and other fields.
