Shenzhen Dowell Adhesive Products Co., Ltd.
China Manufacturer with main products: Copper Foil Tape, Protective Film, Functional Protective Film, High Temperature Double-Sided Tape, Adhesive Pads, Pet Double-Sided Tape,... |
Home
>Products Catalog > PI Tape Die-Cutting Adhesive Polyimide Tape High Temperature Adhesive Polyimide Tape

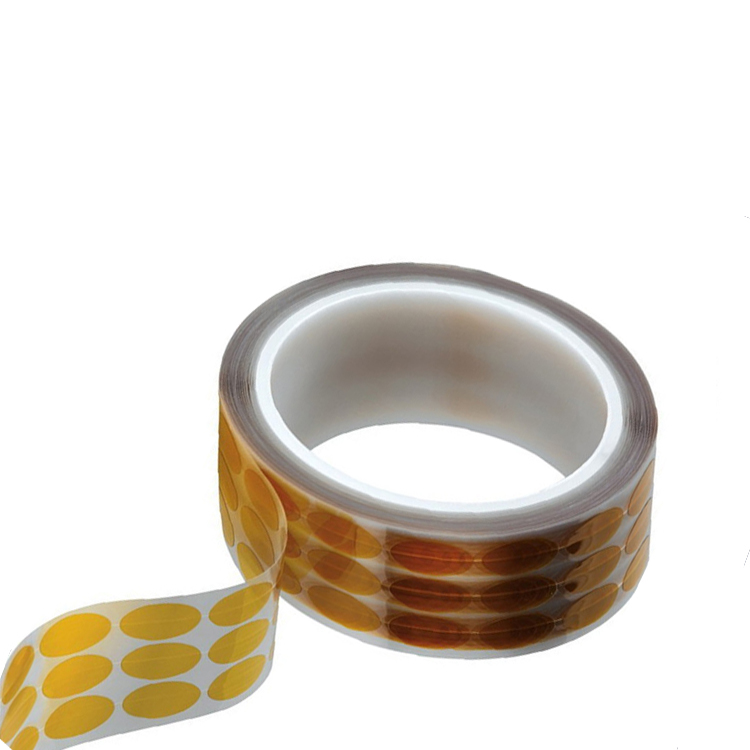

PI Tape Die-Cutting Adhesive Polyimide Tape High Temperature Adhesive Polyimide Tape
| Supply Ability: | 50,000 Roll(s) per Week |
|---|---|
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: Dowell
- Design Printing: No Printing
- Adhesive Type: Pressure Sensitive
- Adhesive: Silicone
- Adhesive Side: Single Sided
- Model Number: DL-401
- Feature: Antistatic
- Use: Masking
- Material: Polyimide
- Material: Polyimide
- Substrate: PI film
- Adhesivesilicon: silicone
- Adhesive type: Pressure Sensitive
- Feature: Heat-Resistant
- color: brown
- Total thickness: 0.05mm-0.1mm
- Design Printing: No Printing
- Application: Electronics
Specifications
PI Tape Die-Cutting adhesive polyimide tape High Temperature adhesive polyimide tape
| Product name | Die-cutting Polyimide Tape |
| Material | Polyimide film + silicone adhesive |
| Color | Brown |
| Thickess | 0.05mm 0.06mm 0.08mm 0.11mm |
| Log roll size | 500mmX33m |
| Feature | 1,High temperature resistant 3,Polyimide film with good abrasion and chemical resistance
|
| Item No. | Total thickness | Polyimide film thickness | Silicone Adhesive thickness |
| D-01 | 0.06mm | 0.025mm | 0.035mm |
| D-02 | 0.075mm | 0.05mm | 0.025mm |
| D-03 | 0.11mm | 0.075mm | 0.035mm |
| D-04 | 0.1mm | 0.025mm | 0.0375mm each side |
| D-05 | 0.2mm | 0.075mm | 0.0625mm each side |
Product detail
Product Description
Polyimide Film Property
Polyimide Film is synthesized by the polycondensation of aromatic dianhydride and aromatic diamine (PMDA and ODA ). It shows outstanding physical, thermal, electrical, and chemical properties over a wide range of temperature as low as -452F(-269C) and as high as 500F(+260C).It also offers good dimensional stability and can be die-cut, laminated, metallized, formed, thermoformed or adhesive coated.
Polyimide Film Applications
Flexible printed circuits board(F-PCB)
Motor, wire and cable insulation
Bar code label
Bonding tape
Polyimide Film Specifications
Density: 1.42+/-0.02 g/cm3
Tensile Strength: 135 MPa (MD), 115 MPa (TD)
Elongation: 35 %
Shrinkage: 1.0 % (150°C), 3.0 % (400C)
Breakdown Strength: 150 MV/m (50HZ)
Surface Resistivity: 1.0x10e13 Ω (200C)
Volume Resistivity: 1.0x10e10 Ω (200C)
Dielectric Constant: 3.5+/-0.4 (50HZ)
Loss Tangent: 4.0x10e-3 (48~62HZ)
Advantage
1.Factory supplier:We are a factory professional in making Silicone adhesive polyimide-film in rolls.
2.Competitive price:Factory direct sales, professional production, quality assurance,
3.Good service:Delivery in time,and any question will be reply in 24 hours
3.Good service:Delivery in time,and any question will be reply in 24 hours
Q1:how could I buy the products I need if there is no price in the website?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.
Q2:how long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What kind of warranty do you offer?
A: Product offer quality warranty.
Q4:What kind of payment methods do you have as a manufacturer?
A: We take T/T, Western union, L/C and Cash as payment terms
Q5:how long will it take to deliver goods?
A: We will start preparing goods when we get your bank receipt. the package will be shipped out in 2-10working days after we get your payment.
Q6: What kind of packaging you offer?
A: during the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
