Protective Film Coating Machine for PE PET PVC Plastic Film Surface Self Adhesive

FOB Price:	7000.00 - 220000.00 USD/Set
Supply Ability:	50 Set(s) per Year
Shipping:	Transport by sea,60~80days, Shanghai port/Ningbo port
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Wooden box

Quick Details

Type: Coating Machine
Brand Name: Weisheng Machinery
Packaging Material: Wood
Voltage: 380-440v
Application: Chemical,Commodity,Food,Machinery & Hardware
Type: coating machine
Certification: CE, ISO9001
Weight: 5~50T
Dimension(L*W*H): 10~40m*1~3m*3~5m
Model Number: TB600, TB800, TB1000, TB1300, TB1600, etc
Packaging Type: Case
Power: 50~400kw
Driven Type: Electric
Automatic Grade: Automatic
Condition: New
Function: protective film coating
Coating speed: 5-50m/min
Coating width: 0.5~2m
Glue type: solvent glue, water based glue
Heating type: electric, gas, heat conduct oil, steam heating, etc

Specifications

1.Brief Introduction:

this machine is used for coating of web materials, mainly for protective film products.

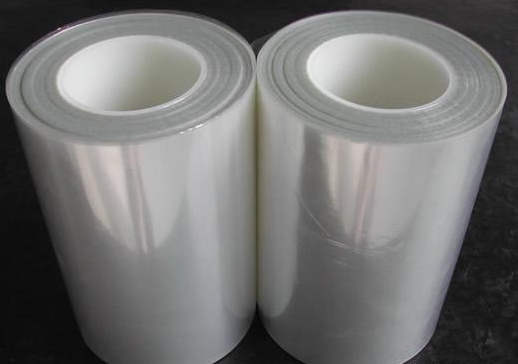

Protective film coating machine for PE PET PVC plastic film surface self adhesive

2.Techincal parameters:

Coating type	Multifunctional coating, coating type can adopt comma scraper coating, anilox roller coating, micro concave roller coating, slot die coating or wire bar coating.
Effective coating width	500-1600mm
Coating speed	5~200m/min(depends on technics)
Unwinding diameter	≤φ1000mm (double station, non-stop material changing)
Rewinding diameter	≤φ1000mm (double station, non-stop material changing)
Heating and drying type	Heating cycling wind by centrifugal blower, heating type can adopt electric hearing, heat conduction oil heating, steam heating or hot-blast stove heating.
Oven length and temperature control	15-40m optional oven length,3m for each temperature section,50-170℃±2℃ automatic controlled temperature.
Winding edge planeness	±1.0mm

3.Performance features:
1.Whole machine adopts unit-frame type structure, machine length can be made according to production requirement.

2.Coating type can adopt comma scraper coating, anilox roller coating, micro concave roller coating, extrusion coating or wire bar coating, according to actual production technology.

3.Step-less speed regulating by AC inverter, synchronous control of unwinding, pre-traction, coating, laminating traction and rewinding.

4.Sectional independent homothermic drying system of oven, heating type can adopt electric heating, heat conduction oil heating and so on, automatic temperature control for each temperature section.

5.Automatic coating weight, automatic speed up and down, automatic material breaking inspection, automatic failure warning, automatic separation and reunion of pneumatic component.

6.Unwinding and rewinding adopt automatic rotary double stations, non-stop material changing.
