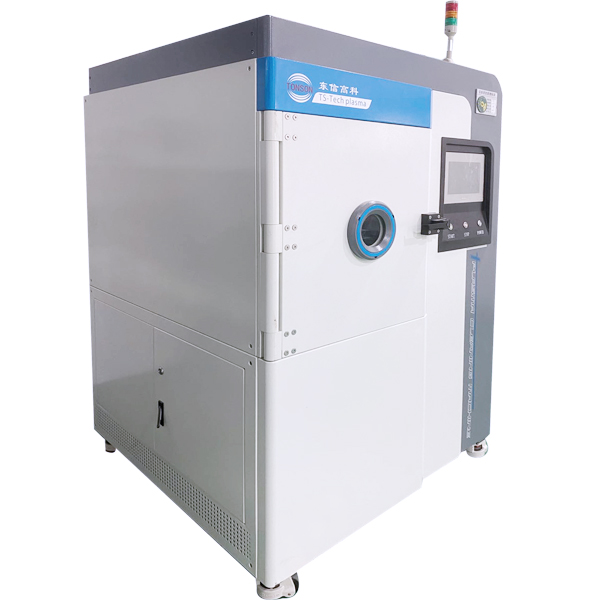

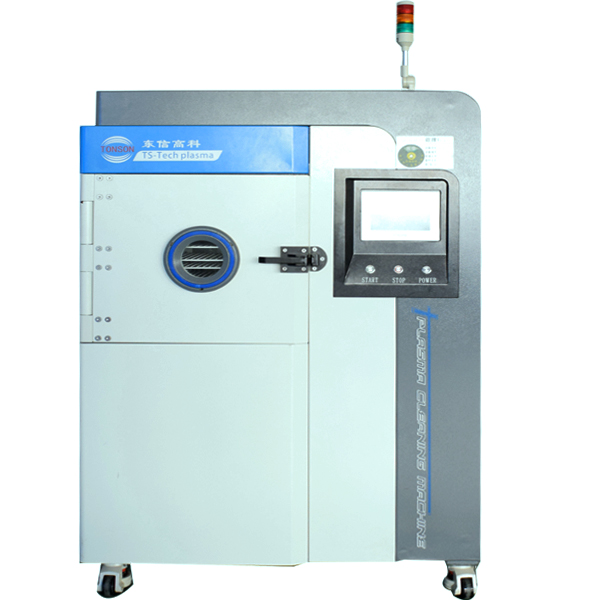

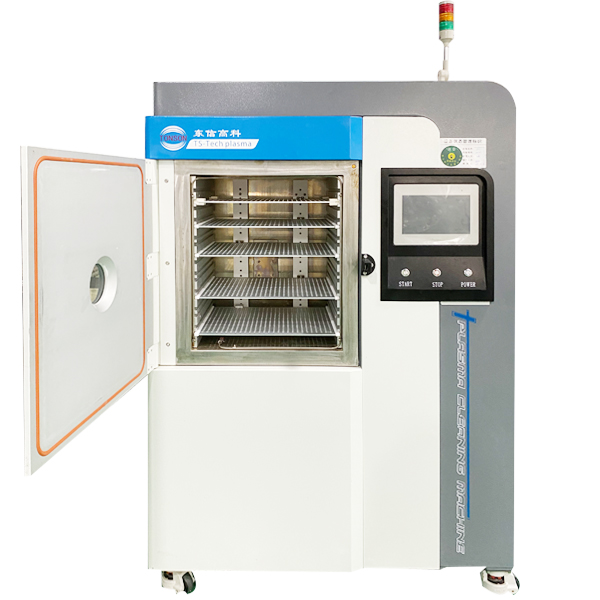

Semiconductor Wire Bonding Plasma Cleaner with Vacuum Pump Vacuum Plasma Cleaning Machine

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	wooden box package

Quick Details

Semiconductor Wire Bonding Plasma Cleaner with Vacuum Pump vacuum plasma cleaning machine

Model	TS-PL30MA/60MA/110MA/150MA/180MA/200MA
Cavity material	316 stainless steel/imported aluminum alloy(optional)
Power frequency	40KHz/13.56MHz
Power	TS-PL60MA/110MA 0-500W(Adjustable) TS-PL150MA/180MA/200MA 0-1000W(Adjustable)
Treatment layers	11/15/17/17/21
Vacuum degree	0-100pa(adjustable)
Gas Flow control	0-500SCCM(MFC+-2%)
Electrode ceramics	Imported high frequency ceramics
Gas channel	Two-way(addable):Ar,N,H,CF,Oxygen
System control software	Self-developed V2.0
Control mode	PLC+touch screen
Vacuum cavity temperature	Less than 30℃
Vacuum pump	Oil pump/dry Pump(optional)+roots combination
Capacity	30L/60L/110L/150L/180L/200L
Cavity dimensions(LxWxH)mm	400450400mm 500450500mm 500500600mm 500600600mm 600580700mm
Overall dimensions(LxWxH)mm	100010301630mm 110010301680mm 120011001730mm 120012001730mm 125012301790mm
Application	Glass,Touch green,Material science,Printing,Paper manufacturing,Ink coating,Medicine & healthcare,Thin film polymer,Electronic Circuit,Textile fibre,Chemistry and chemical industry,Petrochemical Industry.
Feature	A.Highly stable and applicable to large scale continuous production. B.Special electrode structure to ensure plasma evenness. C.Applicable to the products of all shapes,high generality. D.Self-developed integrated control system software is easy to operate. E.Highly safe,multi-functional safety protection F.the cavity dimensions and layers can be customized to satisfy Customers"diversified demands
