>Products Catalog > PoE Injector > Single Port Poe Midspan Injector with 2 Pair Output To 15.4watts of Power At 48Vdc, 0.32Amp.

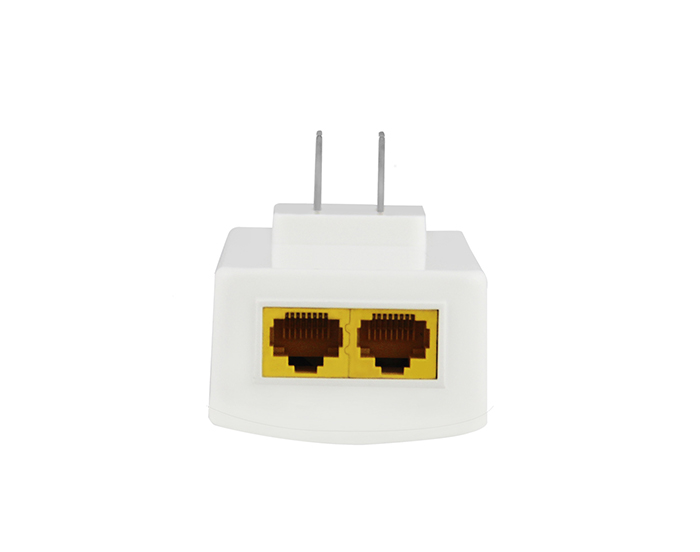

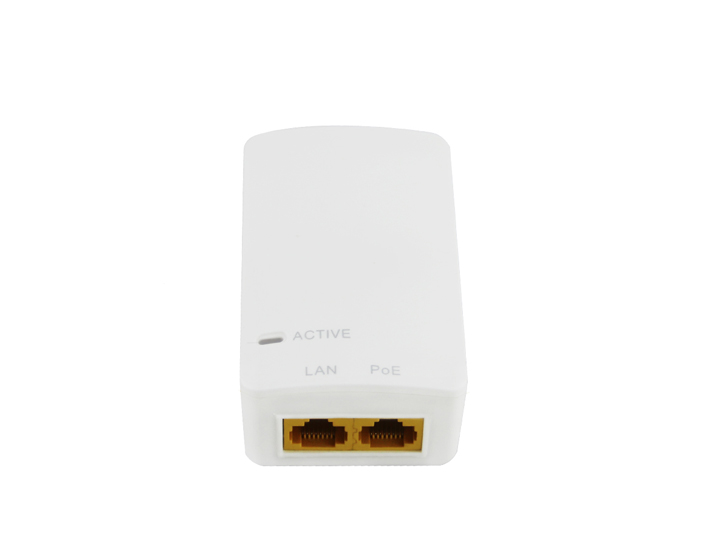

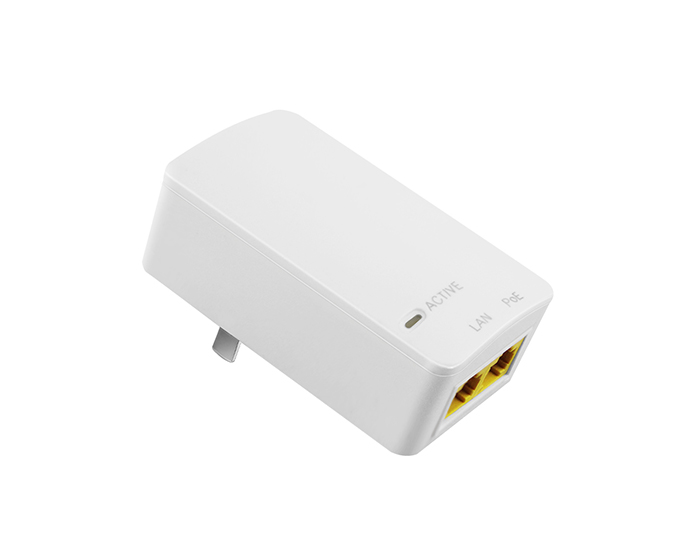

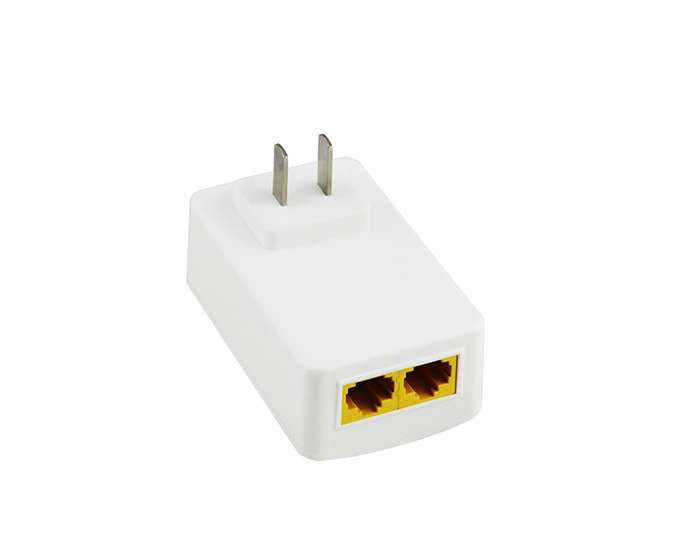

Single Port Poe Midspan Injector with 2 Pair Output To 15.4watts of Power At 48Vdc, 0.32Amp.
| FOB Price: | 6.00 - 9.00 USD/Piece |
|---|---|
| Supply Ability: | 200,000 Piece(s) per Month |
| Shipping: | EXW Dongguan /FOB Shenzhen |
| Payment Terms: | L/C, T/T, Other, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Output Current: 0.32A
- Output Power: 15.4W
- Output Voltage: 48Vdc
- Input Voltage: 100-240Vac
- Brand Name: PROCET
- Model Number: PT-PSE10GF
- Apllication: Indoor PoE
- Regulatory Compliance: IEEE802.3af
- Operating Temperature: 0 to 40 degree
- Safety Approvals: CE, FCC
- Data Speed: 10/100/1000 Mbps
- Pin Assignment and Polarity:: 4/5(+), 7/8(-)
Specifications
Specifications
| Parameter | Description |
| Key Features | Indoor POE Detection chip inside |
| Part Number | PT-PSE10GF |
| Ports condition | LAN Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3af RoHS Compliance WEEE Compliance |
| Pass through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) Output Power Voltage: 48Vdc User Port Power: 15.4W Guaranteen |
| Input | Input Voltage: 100-240Vac Frequency: 50/60Hz Typ |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
| Mechanical Characteristics | Case: Plastic Color:White Mounting: Wall-plug IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 83X 51X 69mm Weight: 380g(0.83lb) |
| LED Indicator | Power Indicator: Red PoE Load Indicator: Green |
| Warranty | 2 year |
| Safety Approvals | CE, FCC |
