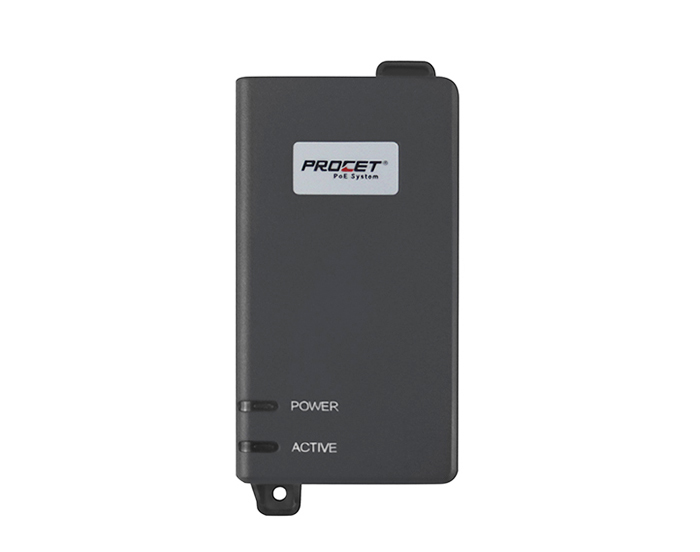

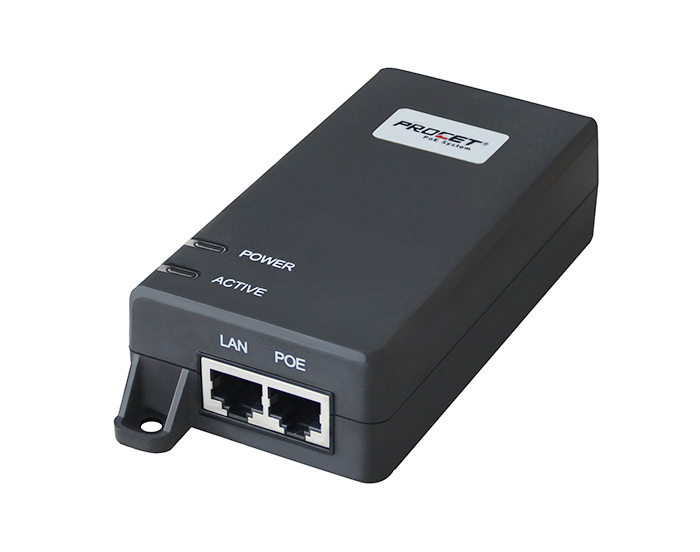

CCTV Power Supply PoE Midspan Injetcor Indoor Use with 30W of Power
| FOB Price: | 9.80 - 14.00 USD/Piece |
|---|---|
| Supply Ability: | 200,000 Piece(s) per Month |
| Payment Terms: | L/C, T/T, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Western Europe |
|---|
Quick Details
- Brand Name: PROCET
- metal case: Plastic
- mini size: 140*62*32.5
- MOQ: 1pcs
- Item name: PoE Injector
- Model Number: PT-PSE101G-AT
- Input: 100-240Vac
- Output: 55V/550mA
- Data Speed: 10/100/1000Mbps
- Power pin: 4/5+,7/8
Specifications
Specifications
| Parameter | Description |
| Key Features | Wall-mounted |
| Part Number | PT-PSE101G-at |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3at RoHS Compliance WEEE Compliance |
| Pass through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 () Output Power Voltage: 55Vdc User Port Power: 30W Guaranteen |

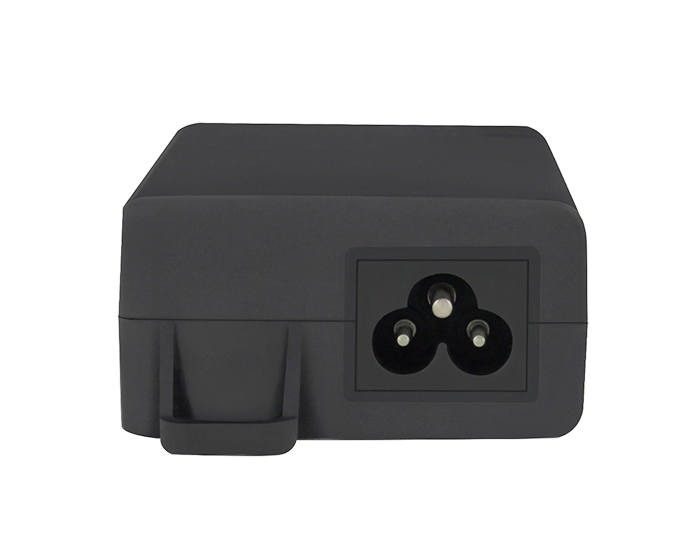

| Input | AC Input Voltage: 100-240 Vac Frequency: 47 to 63Hz (50/60Hz Typ.) AC Input Current: 1A |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
| Mechanical Characteristics | Case: Plastic Color: Black Mounting: Wall-mounted IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 140mmX 63mmX 33mm Weight: 205g(7.23oz) |
| LED Indicator | Power Indicator: Green PoE Load Indicator: Green |
| Warranty | 2 year |
