New Design Desiccant Wheel for Industrial Dehumidifier Manufacturers
| Supply Ability: | 100 Piece(s) per Month |
|---|---|
| Shipping: | Sea, air or express |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | 1:Standard export packing 2: Carton packing |
Quick Details
- Type: Dehumidifier Parts
- Brand Name: Puresci
- Type: PSS-S
- Model Number: 450*200mm
- Size: Customized
- Color: Red
- Outer plate: Alum zinc plate
- Skeleton: Galvanized sheet
- Drive bearing: NSK
- Wheel's materail: Composite material
- Diameter: 180-4250mm
- Thickness: 50/100/150/200/300/400
- Feature: Energy-saving
- Weight: According to size
Specifications
Desiccant Wheel Description

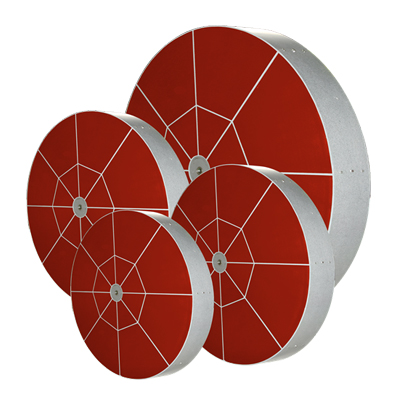

PSS-S Refrigeration Energy-saving Desiccant Rotor
PSS-S is a new generation of desiccant rotor with higher performance and cost-effective.
PSS-S dehumidification performance is better than regular PSS under the same condition of airflow, temperature and moisture of process air, regeneration temperature and humidity ratio of regeneration air.
Desiccant Wheel Features
1. Refrigeration Energy-saving
PSS-S products have excellent performance in ordinary humidity (RH:10% ~ 40%), benifiting to its larger dehumidity performance. Refrigeration system matching with desiccant rotor can be changed and the temperature of chilled water could be increased by 4°C ~ 5°C. (standard 7°C inlet, 12°C outlet, 11~12°C inlet, 16~17°C oulet)
Save 12% ~ 15% of the total operating cost of system.
2. Smaller Size
Keep same performance, PSS-S is a size smaller than of regular PSS.
Compared with normal silica gel desiccant rotor on the market, under the same working conditions, because PSS-S has a very high performance dehumidification capacity, it is a smaller size than regular PSS when selecting the desiccant rotor.
3. Enhance Adsorption Performance
PSS-S performance is 10% ~ 15% more efficient than regular PSS.
PSS-S regeneration temperature is 20°C ~ 40°C lower than regular PSS in low dew point.
4. Wide Range of Application
(1) Normal humidity 10% ~ 40% application, Regeneration temperature 120℃ ~ 180℃
(2) Low dew point application, can reach to -50℃ ~ -75℃
5. Unique Composite Materials
All materials are developed independently by Puresci Material R&D Lab for several years.
PSS-S material is compOsed of inorganic fiber, inorganic silicate and high temperature resistant inorganic surface coating.
6. Professional Surface Treatment
Adopt international standard environmental paint with water-resistant, high temperature resistance, strong weather resistance, anti-corrosion, no odor and high hardness.
