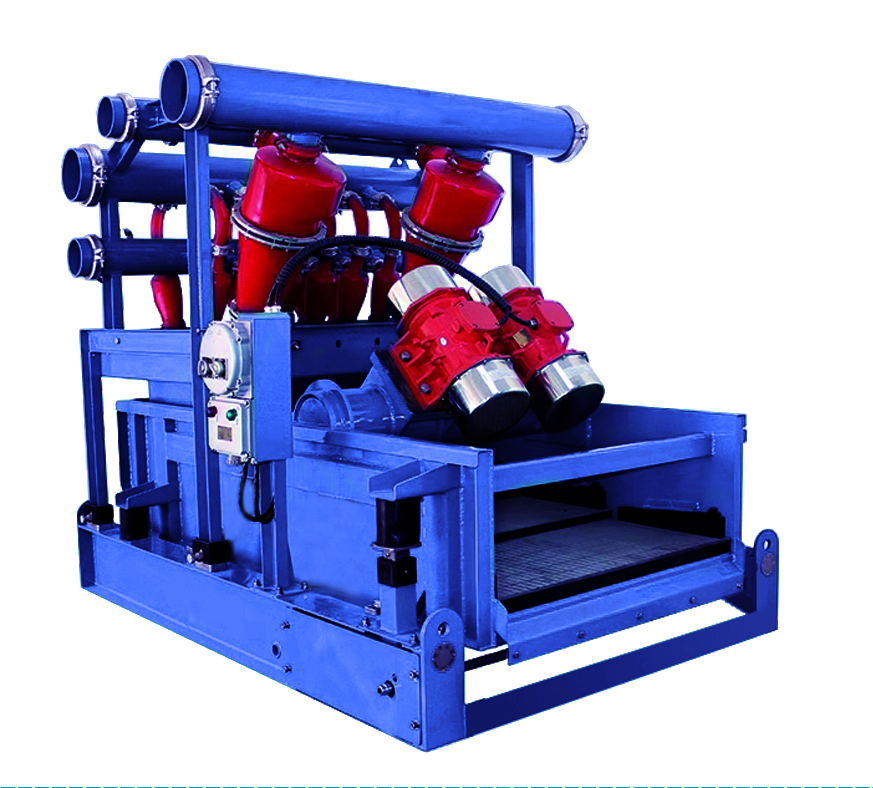

BZ Hydrocyclone Mud Cleaner of Separation Drilling Fluid

FOB Price: 15000.00 - 25000.00 USD/Set
Payment Terms: L/C, T/T, MoneyGram
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hebei in China

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1year
  • Brand Name: BZ
  • Application: drilling fluid recycling
  • Condition: New

Specifications

Mud cleaner is a combination of desander, desilter and shale shaker. It is the second and third phase solids control equipment. Mainly to separate solids in 15-75μm. BZ mud cleaner has the advantages of compact structure, less space needed, powerful treatment capacity. It is an ideal equipment in drilling mud recycling. Be widely used in oil and gas drilling fluid recycling, HDD&TBM mud recycling and other solids&liquid separation industries.

BZ Hydrocyclone Mud Cleaner of separation drilling fluid

BZQJ Mud Cleaner Specification
Model BZQJ583-1S8N BZQJ583-2S12N BZQJ583-3S16N BZQJ584-2S12N BZQJ584-3S16N
Capacity 120m3/h 240m3/h 360m3/h 240m3/h 360m3/h
Desander Size                               10inch
Desander Qty(pcs) 3 2 3
Desilter Size                               4inch
Desilter Qty(pcs) 8 12  16  12 16
Working Pressure 0.250.4MPa
Particle Size 1545μm
Shaker Model BZS583 BZS584
EX Standard ExdIIBt4/IECEX/A-TEX
Weight 2010kg 2285kg 2380kg 2485kg 2660kg
Dimension 241019782147mm 241019782147mm 241019782147mm 300419782147mm 300419782147mm


Features:
        100% Polyurethane(PU) material for desander cones with longer service life
         High separation efficiency, 15-75um drilling cuttings can be separated
         Desander, desilter and shale shaker 3 in 1, compact structure with small footprint
.         Quantity fo hydrocyclones can be adjusted by different applications
         Different size of underflow shale shakers are optional
.         Spraying nozzle design of cone outlet, no block problem
         Famous brand vibration motors: IEC Ex, ATEX and UL certified
         Electrical components: SIEMENS, Schneider
