Export Markets:
|
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
|
|
Place of Origin:
|
Hebei in China
|
Quick Details
-
After-sales Service Provided:
Engineers available to service machinery overseas
-
Warranty:
1year
-
Brand Name:
BZ
-
Application:
drilling fluid recycling
-
Condition:
New
Specifications

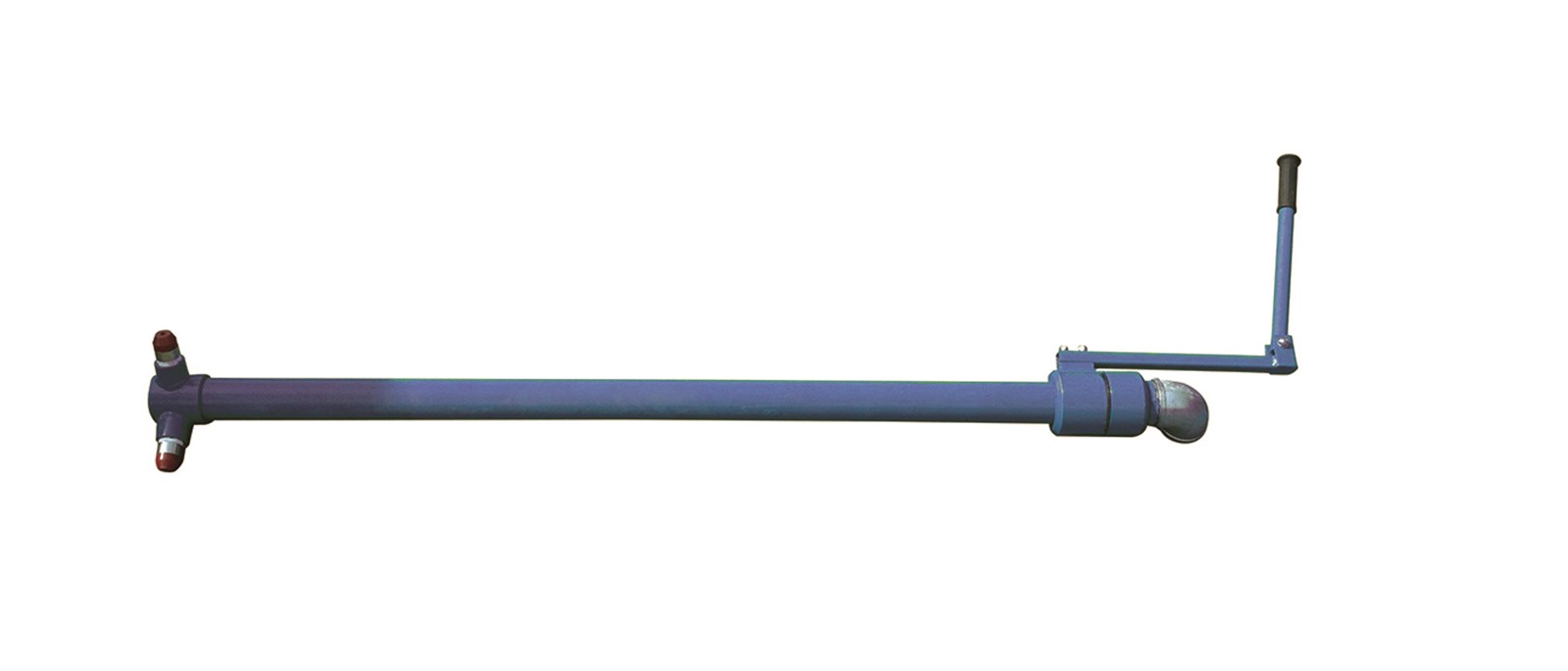

BZ mud gun is designed and manufactured to clean mud tanks in drilling mud solids control system. It is ustally used in tank corners to keep solids from settling and a mud agitator is placed in the tank center.
Mud guns are classified into 3 kinds: low pressure ones, medium pressure ones and high pressure ones, mainly be matched with a centrifugal pump, a mud pump, or a shear pump. According to different structure, BZ mud guns are optional in fixed ones and rotary ones.
BZ mud gun has the advantages of good spraying effect, large cleaning area, simple structure, flexible operation and easy to use.
BZNJQ Mud Gun Specification
| Model |
BZNJQ-50G |
BZNJQ-50X |
BZNJQ-80G |
BZNJQ-80X |
| Gun Diameter |
50mm |
80mm |
| Connection Size |
2inch |
3inch |
| Rotation Angle |
0° |
0-360° |
0° |
0-360° |
| Nozzle Qty(pcs) |
3 |
| Working Pressure |
1.0-6.4MPa |
Features:
. High jet power, well sealed, good spraying effect, large cleaning area, simple structure, flexible operation and easy to use
. Optimized structure, can be equipped with various pumps
High quality steel with acid cleaning and galvanized treatment, good anti-rust performance
Discharge nozzles can be polyurethane and tungsten carbide alloy material
Flexible on configuration size
Simple design and easy to operate
