Uni t Pocket Thermal Imager Camera LCD Touchscreen WiFi Connect

FOB Price:	590.00 - 640.00 USD/Piece
Shipping:	DHL /fedex / express
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Southeast Asia, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Temperature range: -20~400 celius
Accuracy: 2 celius
Theory: Infrared Thermometer
Usage: Industrial
Brand Name: Uni-T
Model Number: uti120t

Specifications

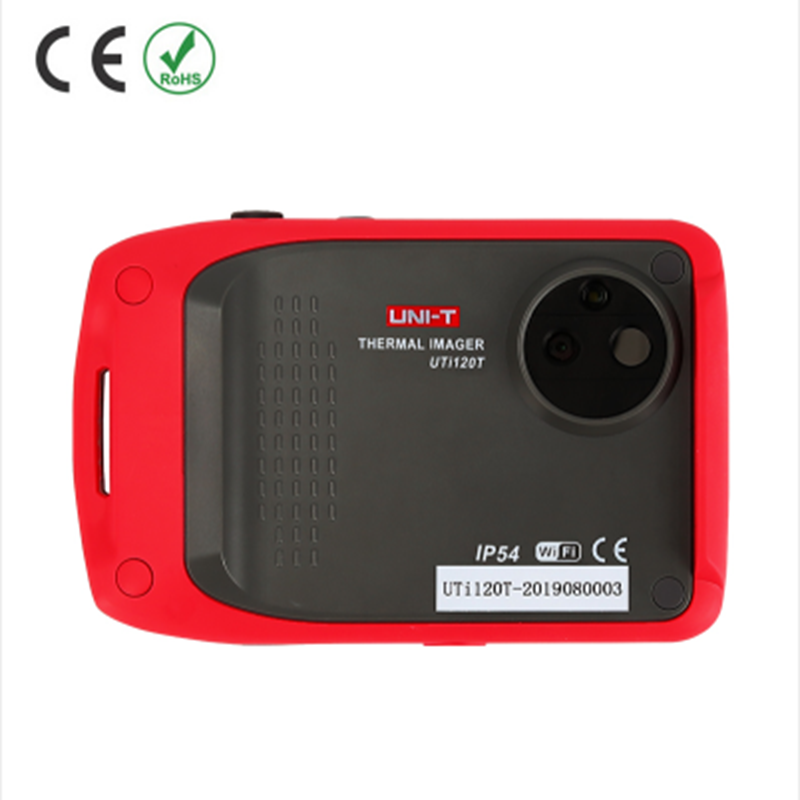

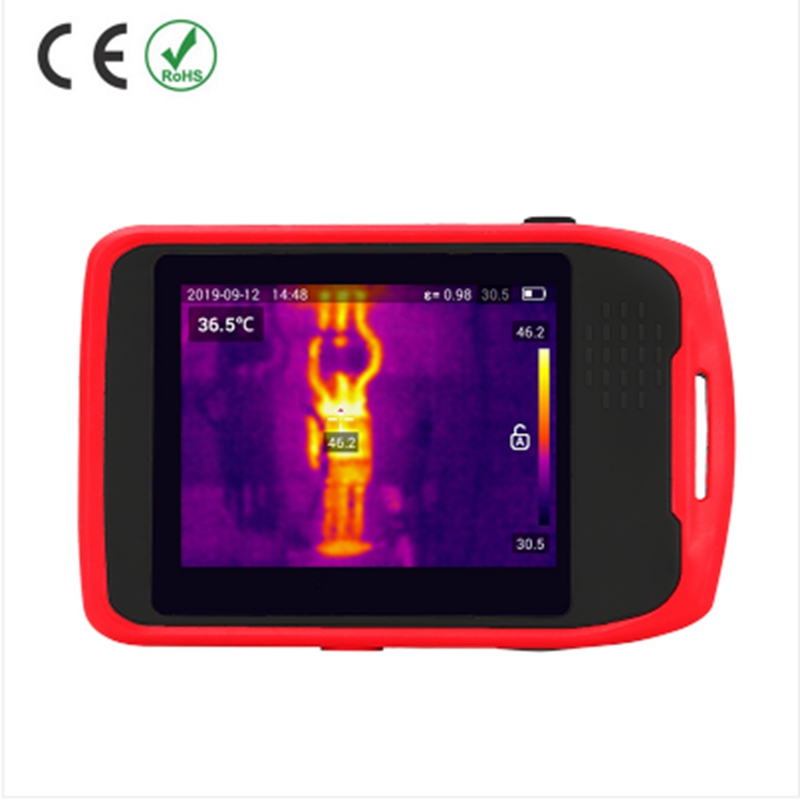

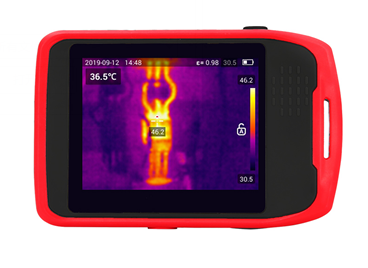

UNI-T UTI120T WiFi Connectivity Pocket IR Thermal Camera with 3.5 LCD Touchscreen and -20 C-400 C Measurement

Features:

1. Intuitive, efficient and convenient, making users directly "see" the temperature variation.

2. Thermal condition of different locations for comprehensive analysis, providing more information for judgment

3. Avoiding judgment errors, reducing labor costs, and discovering poor heat dissipation and hidden trouble points

4. PC software for data analysis and report output
uni t pocket thermal Imager camera LCD touchscreen WiFi connect

Specifications
Model                                         UTi120T
IR resolution 12090 pixels
Field of view (FOV)                 50°38°
Thermal sensitivity (NETD) <60mk
Temperature range   -20~400C
Spatial resolution (IFOV) 7.6mrad
Frame rate 25Hz/9Hz
Measurement accuracy    ±2C or ±2% whichever is greater
Focus                                                     Focus free
Digital zoom 2, 4, 8
Display modes Thermal, image blending, visible light
Display 3.5"LCD
Auto capture of Hi/Lotemperature √
Measurement modes Point, area
WiFi √
PC analysis software √
Drop proof    1m
IP rating IP54

General Characteristics
Power Li-ion battery (3.7V 5000mAh)
Product color    Red and grey
Product net weight 212g
Product size 205mm x 124 mm x 65mm
Standard accessories Carrying bag, micro USB cable, micro SD card
Standard individual packing Blister, gift box, English manual
Standard quantity per carton 5pc
Standard carton measurement    387mm x 246mm x 166mm
