| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | 33CM*23CM*20CM |
Quick Details
- Gender: Male
- Application: CONDUIT CONNECTING
- Type: FLEXIBLE CONDUIT CONNECTOR
- Brand Name: Driflex
- Color: METAL
- Model Number: LTC-S
- SIZE: 3/16"-2"
- THREAD TYPE: METRIC, NPT, G
Specifications
Material:
- Connector body - Galvanized die casting, zinc plated steel& malleable Iron, nickel plated brass, stainless steel.
- Hexagon pressure nut - Galvanized die casting zinc plated steel& Malleable iron, nickel plated brass, stainless steel.
- Sealing ring - Nylon 66
- Ferrule - Galvanized steel or stainless Steel.
Features:
- Simple, one piece installation provides a quick and reliable liquid-tight seal
- IP rating from IP40 to IP66/67/68 in combination with the corresponding Flexible conduits
- High mechanical strength
- Highly liquid-tight and dustproof
- Vibration and tensionproof
- Inherently low fire hazard
- Covering of the conduit ends

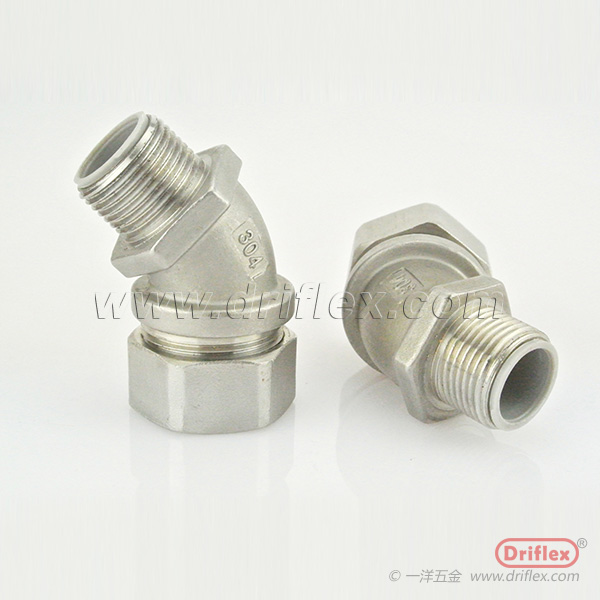

- Available in straight, 45oand 90oBodies
- Available in ISO Metric and NPT, PF, PG, BSP etc. Threads
Applications:
- General indutrial and commerical electrical wiring protection
- Machining centres and robotics
- Any narrow space in static applications
- General wiring for OEM applications
- Low fire hazard applications
- Underflooring wiring in office buildings
- Machine tools
- Installations where liquid-tight is a requirement
- Outdoor installation
Special Applications:
According to customer's samples and specifications, we can
Manufacture special fittings for suit any type of flexible conduit
Applications.
Specifications:
| Part No | ISO Thread (mm) | Part No | NPT Thread (inches) | I.D. (mm) | O.D (mm) | Box (pcs) |
|---|---|---|---|---|---|---|
| LTCM-S309 | 16 | LTC-S309 | 5/16" | 11.0 | 15.7 | 25 |
| LTCM-S30 | 16/20 | LTC-S30 | 3/8" | 11.0 | 19.7 | 25 |
| LTCM-S31 | 20 | LTC-S31 | 1/2" | 14.5 | 19.7 | 25 |
| LTCM-S32 | 25 | LTC-S32 | 3/4" | 19.5 | 24.7 | 25 |
| LTCM-S33 | 32 | LTC-S33 | 1" | 25.0 | 31.7 | 15 |
| LTCM-S34 | 40 | LTC-S34 | 1-1/4" | 33.5 | 39.7 | 6 |
| LTCM-S35 | 50 | LTC-S35 | 1-1/2" | 38.0 | 49.7 | 6 |
| LTCM-S36 | 63 | LTC-S36 | 2" | 49.5 | 62.7 | 4 |
Suitable flexible conduits:
- VJ type of vacuum jacketed flexible conduit
- LT type of liquid-tight flexible conduit
- FM type of flexible metallic conduit
