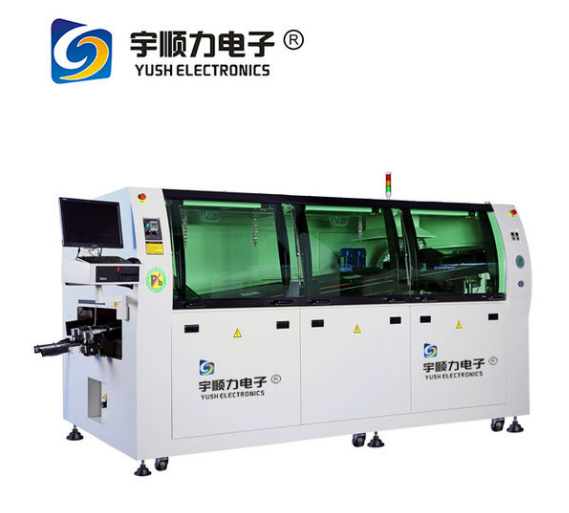

PC + PLC Control Solder Reflow Oven with Preheating Length 2000mm
| FOB Price: | 1000.00 - 10000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Month |
| Shipping: | FOB 100%T/T before delivery |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | plywooden case |
Quick Details
- Brand Name: YUSHUNLI
- color: White
- Elongation at Break: none
- Min. Bending Radius: none
- Consistency of rod: none
- Model Number: YUSH N450
- Dimension:: 4300(L)*1400(W)*1560(H)
- Weight:: 1100KG
- PCB Width:: Max 350mm
- Flux Capacity:: Max 6.5L
- Preheating Length:: 2000mm
Specifications
Practical Lead-free wave soldering machine for making LED light
DIP SMT lead free wave soldering machine for PCB /dual wave soldering manufacturer WS450
Specifications
| Model No. | Yush N450 |
| Number of heating zones | 4 |
| Length of heating zones | 2000mm |
| Total/steady consumption | 30KW/8-11KW |
| Air supply | 0.5MPa |
| Preheating style | Hot air |
| Preheating consumption | 220V 8KW |
| Control method | PC +PLC |
| Range of temp. Setpoint | Room temperature---300C |
| Preheating time | about 10-15mins for setting 150C |
| Solder Application | Lead-free / Sn-Pb |
| Solder pot capacity | 400KG |
| Solder pot temperature | 300C |
| Solder pot material | Cast Iron Ceramic Coating/TA1 Titanium/316 Stainless Steel |
| Heater consumption | 380V 8KW |
| Solder temp. Control method | PID+SSR |
| Wave motor consumption | 1KW 220V |
| Wave height Control | Inverter |
| Solder melting time | about 180mins for setting 250C |
| PCB width | 60-350mm |
| Product clearance | Top 120mm(option 160mm) Bottom 15mm |
| Conveyor speed | 0-2000mm/min |
| Process height | 750+/-20mm |
| Conveyor direction | L→R (R→L optional) |
| Conveyor Inclination | 4-7 |
| Process width adjustment | Manual |
| UPS | Option |
| Nitrogen structure | Option |
| Flux pressure/capacity | 3-5 bar/6.5L |
| Weight | 1100KG |
| Power Requirement | 3P5W,380/220V 50Hz 63A |
| Dimensions | 4300(L)*1400(W)*1560(H) |
Product Description
1. Automatic conveying power system and auto synchronous board feeding functions.
2.Tin stove peak uses frequency conversing speed adjustment which can independently control the wave peak height.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4. PLC is used to control the machine, to ensure the reliability and stability of the system.
5.with Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit board bottom, fast heating and stimulate the full activity of flux.
6.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
7.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
8. Lead-free solder furnace with independent design, environment protection and safety, easy to clean.
9. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2C.
10.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
11.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.
Heating motor.
Patented titanium alloy chain claw, non-stick tin, never deformed, long life, stable and reliable transport PCB. Equipped with a cooling module (optional with a cooling fan), it is suitable for lead-free multi-process requirements.
the whole titanium tin furnace has a function of automatic entry and exit of the tin furnace, and the double wave peak passes through the frequency converter to independently control the double peak height.
1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment failure, the supplier in the receipt of the notification, the maintenance personnel in one hour to respone.
4, service principle: product wave soldering machine warranty period of 12 months, in the guarantee period the supplier will free maintenance and replacement of quality caused by the damaged wave soldering machine parts.
