| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | wooden package |
Quick Details
- Brand Name: Jinzhen Boiler
- Style: Horizontal
- Pressure: Low Pressure
- Usage: Industrial
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: 5.6ton
- Dimension(L*W*H): 4650*2300*2800
- Output: Steam
- Model Number: WNS3-1.25
- Fuel: Gas-fired
- Structure: Fire Tube
- Type: Natural Circulation
- steam capacity: 3ton/h,3000kg/h,200hp
Specifications
Fuel Gas, Oil, Dual Fuel Packaged Steam Boiler with European Burner
Model:WNS Series Oil Gas Steam Boiler
Structure:Wet Back Fire Tube Packaged Three Pass
Fuel:oil, gas, light oil, heavy oil, natural gas, lpg, lng, cng, diesel, biogas etc
Capacity:1-20 ton per hour
Pressure:0.7/1.0/1.25/1.6 Mpa (7/10/12.5/16 Bar)
Temperature:170/184/194/204 Celsius
Application:Chemical, food and brewery, pharmaceutical, package plant, textile dyeing and printing industry, swimming pool, hospital,school,clothing industry etc.
WNS series is a classical shell type steam boiler, with classical design: firetube+ wetback+ 3pass. Its average thermal efficiency >95%, design working life span more than 15 years. Equipped with well-known auxiliary parts, such as BALTUR/RIELLO- Burner, DANFOSS- Pressure Controler, SIEMENS- PLC operation system, LEO- Multistage Pump, etc. to ensure the boiler's steady performance. The entire system warranty period: 2 Years.
Free-Installation

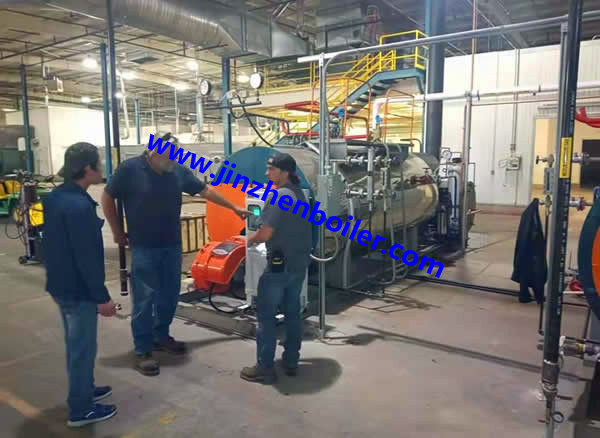

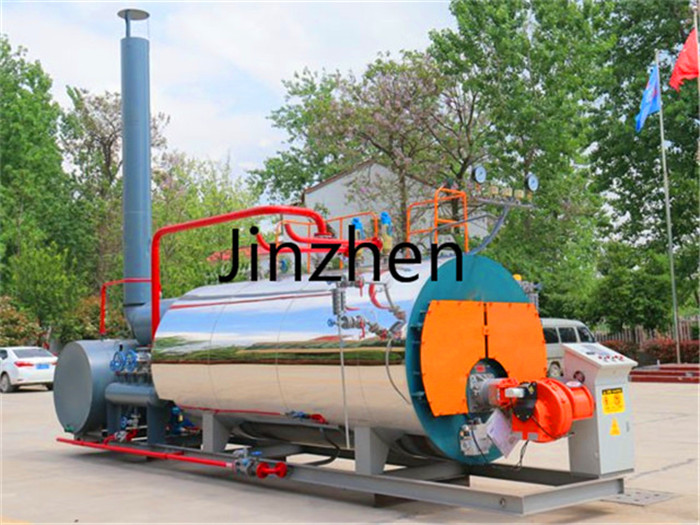

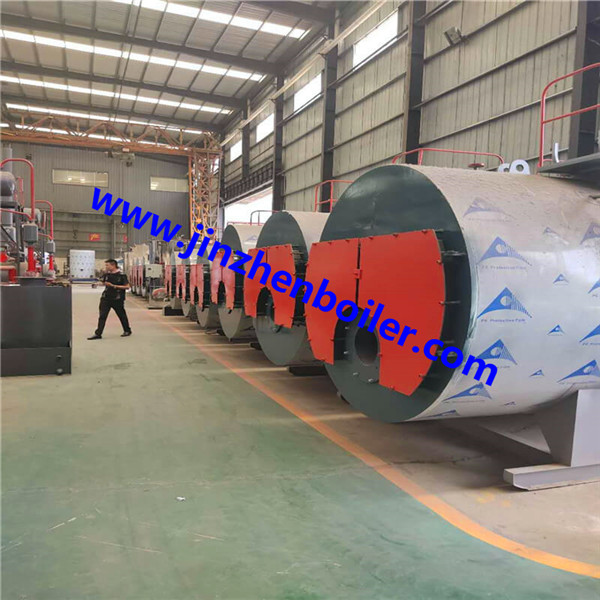

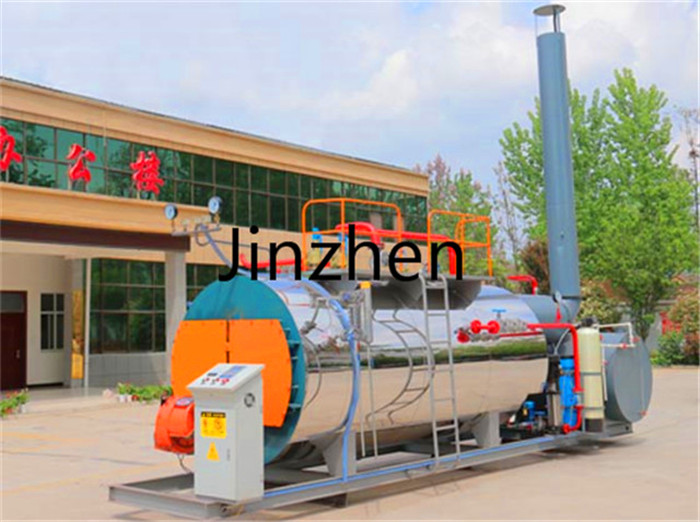

Before the shipment, complete boiler system is well skid-mounted on the basement, also we have done the pipe(valves) connection and wire connection. after receiving the boiler, no need installation/ assembly. Just join the boiler to water/ gas/ electricity. Comparing with other traditional boilers in the market, our boiler does save lots of cost/ energy/ time in installation. The additional, the entire boiler system is portable.
Technical Parameter
Model |
WNS0.5-1.0-Y(Q) |
WNS0.7-1.0-Y(Q) |
WNS1-1.25-Y(Q) |
WNS1.5-1.25-Y(Q) |
Steam Capacity |
500 KG/H |
700 KG/H |
1000 KG/H |
1500 KG/H |
Boiler Horsepower |
30 HP |
50 HP |
70 HP |
100 HP |
Working Pressure |
0-10 BAR |
0-10 BAR |
0-13 BAR |
0-13 BAR |
Steam Temperature |
≤184 ℃ |
≤184 ℃ |
≤194 ℃ |
≤194 ℃ |
Fuel Type |
Gas, Oil |
Gas, Oil |
Gas, Oil |
Gas, Oil |
Performance advantage
1. Boiler design
Horizontal internal combustion three return journey full wet back design, 100% corrugated furnace, with good thermal retrability, water cooled retrorse chamber, retrorse chamber and back tubeplate butt joint, lowest stress, more reliable quality.
2, large diameter corrugated furnace
the boiler combustion chamber is composed of a large diameter full ripple furnace with large combustion space, complete fuel combustion, effective heat absorption and thermal expansion, and large radiation heating surface.
3. Sufficient heat
the heating area of the boiler is designed to be more than 25 square meters/ton, fully absorbing effective heat, low smoke exhaust temperature, small heat loss, ensuring sufficient output and high efficiency.
4. Steam quality
Pot shell diameter, large water capacity, strong adaptability to load changes, stable output, steam space volume, soda interface and steam outlet net distance is high, low steam humidity.
5. Multi-functional safety and explosion protection device
the back plate of the boiler is equipped with the explosion-proof device which is connected with the furnace to prevent the high energy of the discharge moment when the fuel is violently deflated in the furnace, and it can automatically reset. Meanwhile, it has the function of the fire-viewing mirror and the maintenance channel. It makes use of the adjustment of the burning flame in operation, and makes the furnace inspection and maintenance convenient.
