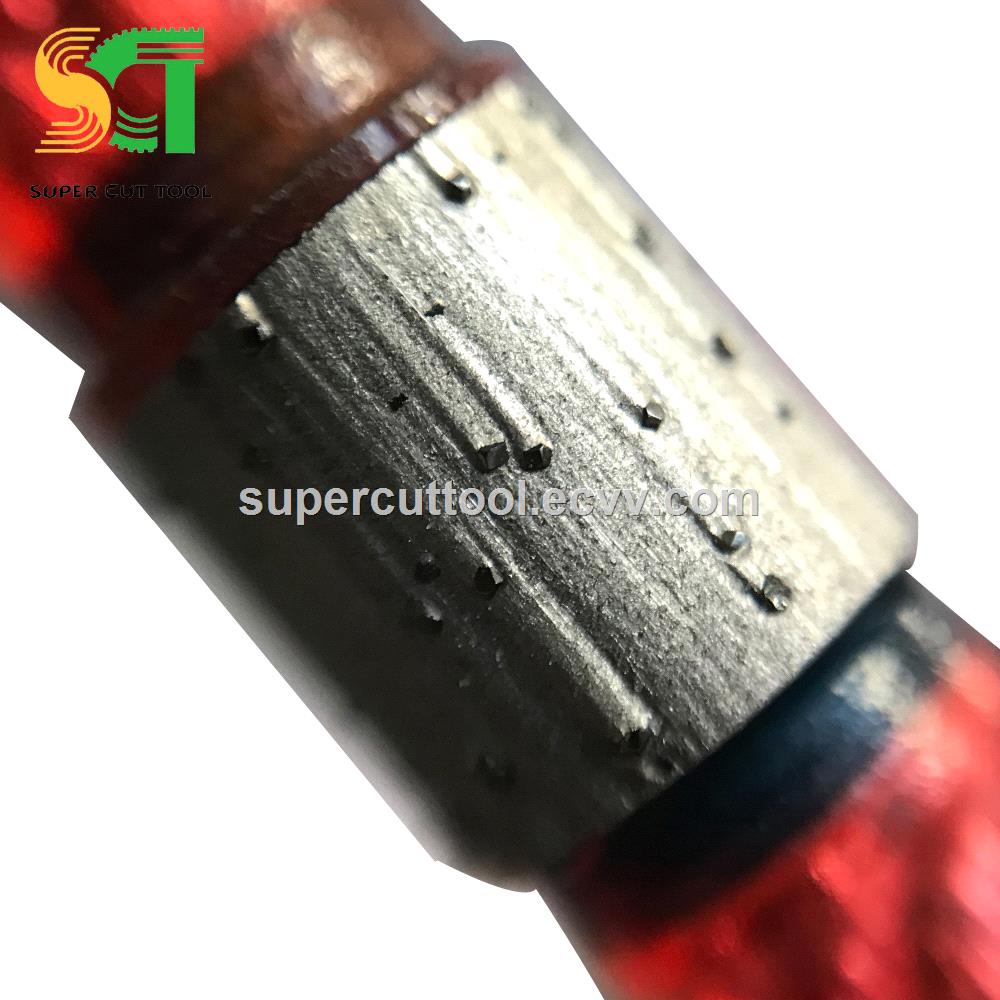

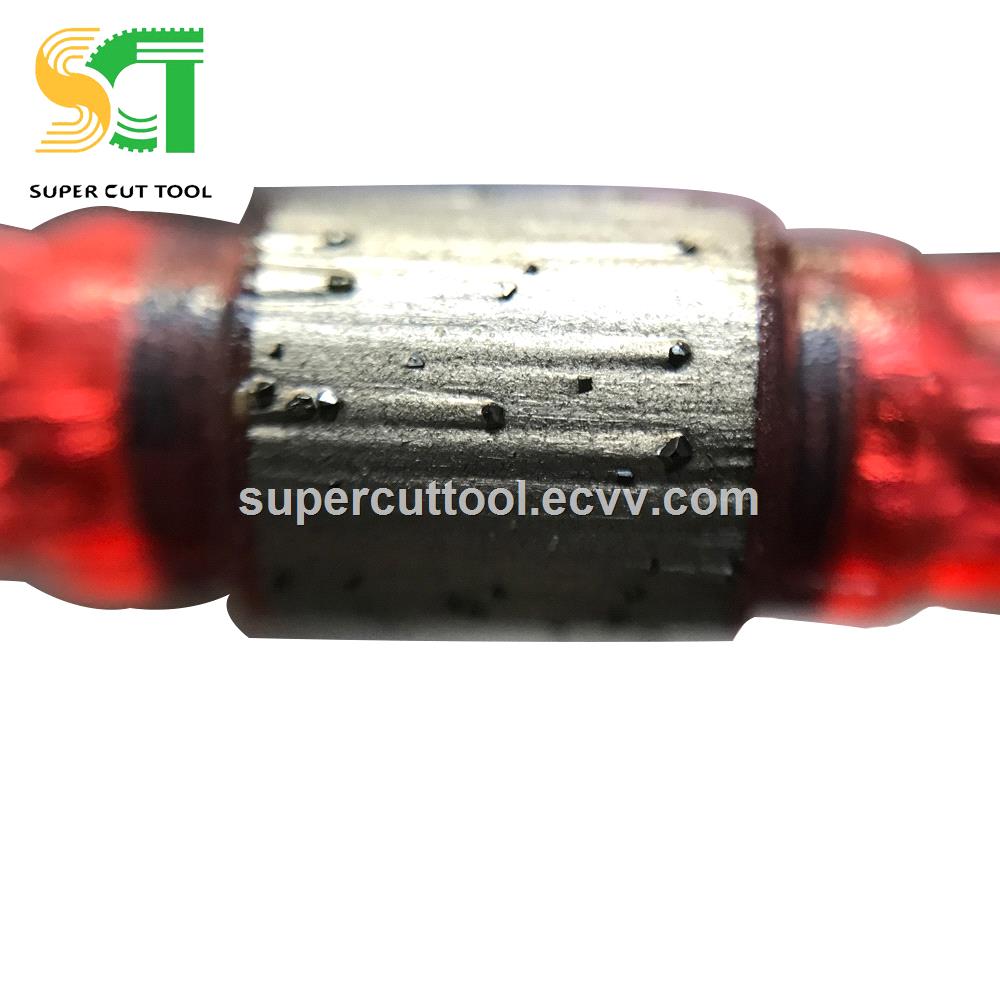

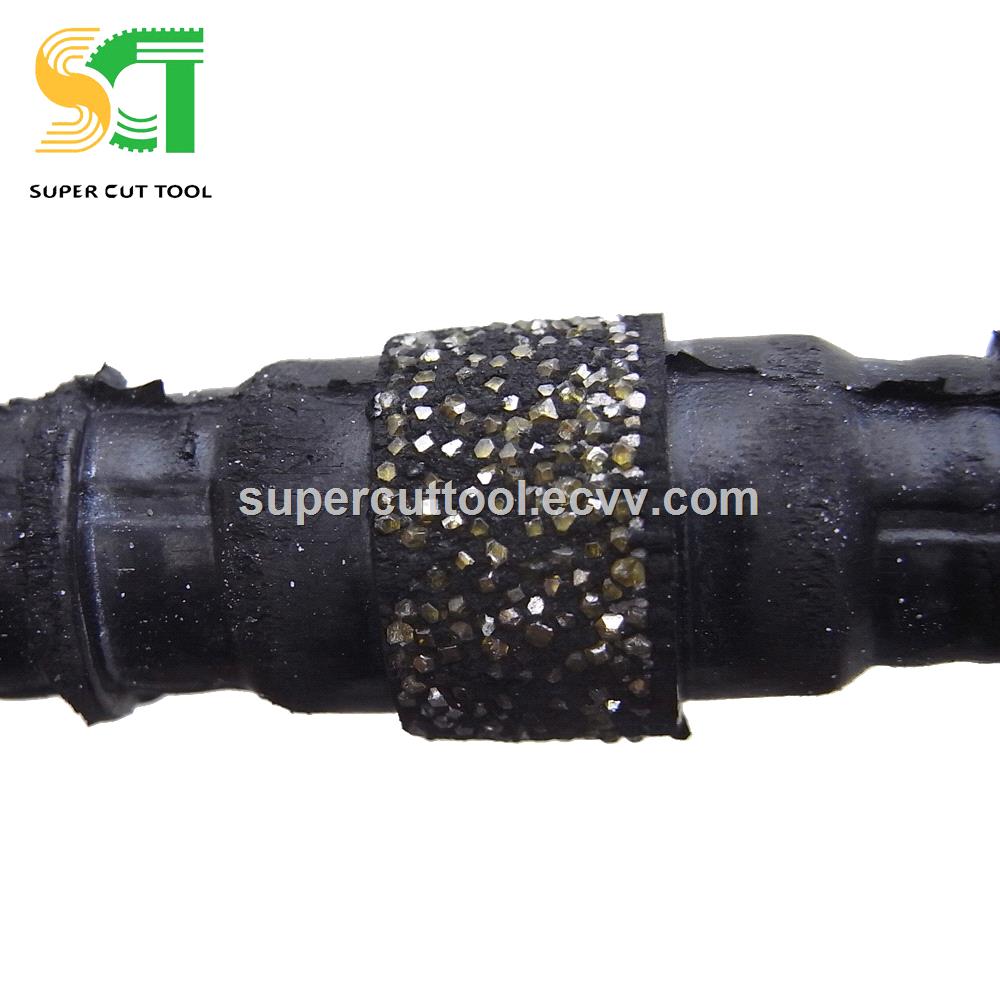

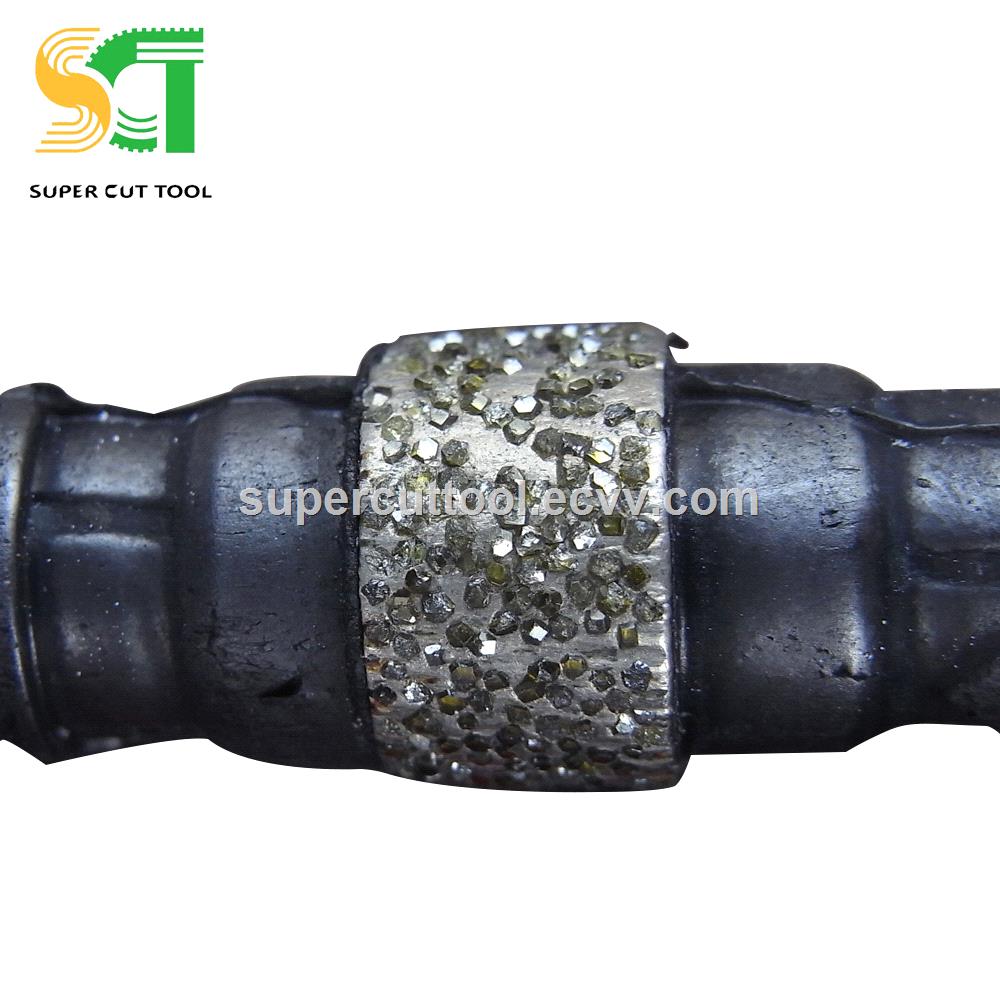

6.3mm Accurate Cutting Diamond Wrie Saw Tools for Granite Marble Block -Diamond Multi Wire Saw for Natural Stone

FOB Price:	20.00 - 35.00 USD/Meter
Supply Ability:	2,000 Meter(s) per Day
Shipping:	By sea, by air from xiamen or Guangdong port ,China
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy, Other, Diamond wire saw

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	For diamond wire saw: Inner package: Plastic bag+protective filler Outer package: Carton or wooden crate

Quick Details

Type: Diamond wire saw
Material: Diamond
Brand Name: SCT
cutting spee: 20
line spee: 18-40m/h
Weight: 2-40m/h
Dimensions: 6.3-12.5
Blade Length: 50/100m
Model Number: SCTSJ6.3/7.2/8.8/9.5/10/10.5/11/11.5/12/12.5
Product name: Diamond wire saw
Application: Stone and concrete
Technology: hot press sinter
Used: Marble,granite quarrying&profiling&cutting
Features: Fast cutting speed and long lifespan
Certification: ISO9001-2008,CE,SGS
Quality: European Standard
OEM: Support
Connection: Plastic/spring/rubber
Main Market: Europe, Amercia, Mid East, Asia

Specifications

Wire Connection
Plastic reinforced wire should be twisted 1.5-2 rounds/meter
Rubber reinforced wire should be twisted 2-3 rounds/meter.
Use correct crimping die and ferrule.

Wire Operation

When new wire starts to run, use less water and less wire speed to Sharpen the wire until diamonds are coming out. Afterwards, the wire Speed for plastic reinforced wire is suggested to be 26-31 meter/second; the wire speed for rubber reinforced wire is suggested to be 28-36 Meter/second, and make sure the wire is cooled down with proper cooling Water. For hard stone, wire speed should be reduced accordingly; for Soft stone, wire speed should be increased accordingly.

Precaution
Safety: It is prohibited to stand close to running diamond wire to avoid hurting people in case wire breakage.
Storage: avoid tensioning the plastic reinforced wire while not Using; avoid rubber reinforced wire being exposed to sunshine for Too long and avoid wire being contaminated with oil.
Side Wearing: increase twisting number appropriately.

Application	Diameter	Bead/ Meter	Manufacture Tech	Fixture	Line Speed	Cutting Spead	Life
Application	(mm)	Bead/ Meter	Manufacture Tech	Fixture	m/s	m2/h	m2/m
Granite	6.3	37	Sintered	Plastic	Hard: 20-24 Medium: 22-26 Soft: 24-28	Hard: 0.4-0.6 Medium: 0.8-1.2 Soft: 1.2-1.8	Hard: 12-15 Medium: 20-25 Soft: 25-30
	7.3	37
	8.0	37
	8.8	37
	10.5	37
	11.5	40		Rubber	18-22,22-25,25-30	2-4,4-8,8-15	7-9,8-15,15-25
Marble	6.3	37	Sintered	Plastic	Hard: 28-32 Medium: 32-35 Soft: 30-35	Hard: 1-2 Medium: 2-3 Soft: 3-4	Hard: 20-30 Medium: 30-60 Soft: 60-80
	7.3	37
	8.0	37
	8.8	37
	10.5	37
	11.0	28		Spring	20-30,20-35,25-35	4-9,8-15,10-20	15-25,15-35,20-50
Reinforced Concrete	11.5	40	Sintered	Rubber + Spring	Concrete Strength Grade ≤ 50Mpa Diameter of the Steel Bar ≤ 50mm		1.0-3.0
Steel (Metal)	10.5	44	Vacuum Brazed	Rubber + Spring	High Strength Reinforced Concrete Emergency Rescue, Very Fast Cutting		1.0-2.0
Note: Other specifications are available upon request!
