Blue on Green Automotive PVB Film for Car Windshield Glass 0.76mm

FOB Price:	2.80 - 3.50 USD/Square Meter
Supply Ability:	60 Roll(s) per Day
Shipping:	by sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Shandong in China
Packaging Details:	200m/roll

Quick Details

Certification: CE
Type: Windshield
Brand Name: safelayer
Color: blue
THICKNESS: 0.76mm
Size: 600-2500mm
Model Number: pvb film
Thickness: 0.76mm
Width: 600mm-2500mm
Length: 200m
Certificate: Ce/SGS/ISO9001
Visible Light Transmittance: 80% Min
Haze: 0.4% Max
Color Band Width: 0-230mm
Moisture Content: 0.35-0.55%
Application: Automobile Windshied Glass

Specifications

Blue on Green Automotive PVB Film for Car Windshield Glass 0.76mm

Product Descripition

PVB interlayer film is a macromolecule material which produced by extrusion using PVB resin, plasticizer and additives. Saflayer pvb film is not only can shield out the UV, heat and sound, but also famous for its high visible transmittance, super anti-penetration. the major application of PVB film is laminated safety glass used on automotive windshields, architectural glass as well as the bullet proof glass.

Product Parameters

Thickness		0.76mm

Appearance	Surface	Smooth surface without Nick,Crease,Bond; the color band should be evenly distributed and the width of transitional region is equalized
	Band Color	Clear, Blue,Green,Gray & others
	Crystallite and watermarks	Crystallite Diameter exceed 2.0mm is not allowed. No visible watermarks.
	Visible defects (impurities, bubbles, oil, drop etc.)	Defects Diameter exceed 0.5mm and Allowed maximum 6 defects per 200m
		Defects Diameter exceed 0.5mm to tag on PVB film; Diameter less than 0.5mm in the Intensive defects area* must tag on one defect. the defects marks and places should be showed in the packing list.
	Thickness tolerance(mm)	Plus or Minus 0.04mm
Thickness and size	Uniformity ratio	at any two points from 25mm distance either horizontally or vertically of the thickness tolerance is less than 15μm; (or 50mm - less than 25μm; or 100mm - less than 50μm)
	Length (m)	Normal length
	Width (mm)	Normal width
Roughness Rz		15 -70
Moisture content (%)		0.35 - 0.55
Heat shrinkage rate ( 60C/15min) (%)		8.0 Max
Pummel value		7 Max
Light transmittance (%)		85 Min
Haze (%)		0.2 - 0.4
UV Screening, up to 380nm (%)		99
Tensile strength (MPa )		20.0 Min
Tensile elongation (% )		200 Min
Yellowness index (%)		10 Max
*Intensive defects area: Within the 300mm diameter circle, the defect numbers is over 10 and its interval less than 5 mm.

Product Package

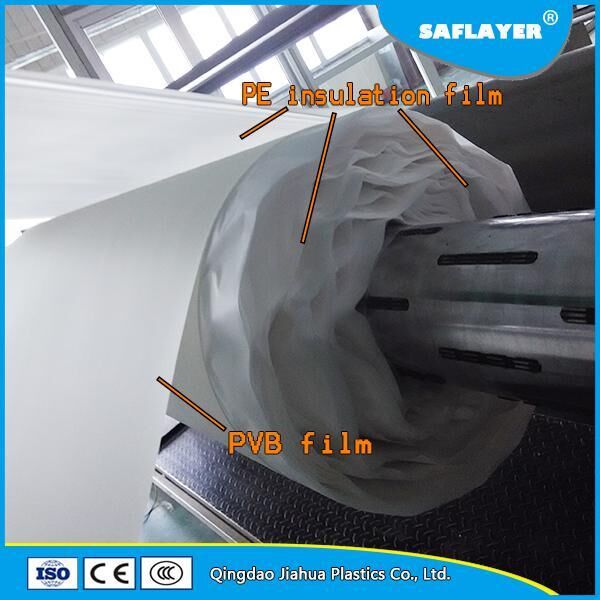

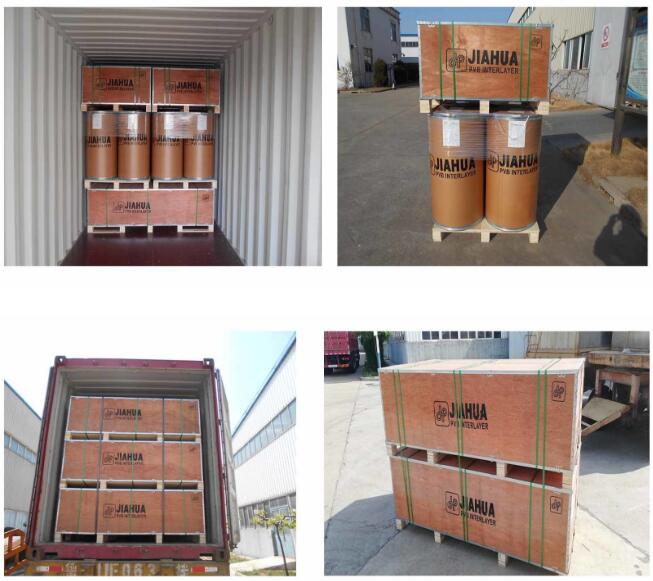

Packing:the pvb film is rolled by insulated with PE film and then wrapping film, cased into an aluminum foil bag by vacuum sealed, and then packing into plywood box or fiber can. (remark: The width is less than 1250mm, which can be packing into fiber can)
Transportation:There should no direct sunlight, drench, and violent shaking during the transportation.
Storage:Be stocked in cleanhere should be quality certificate, packing list in the package. the marks of moisture proof, shock proof and sunlight proof should be labeled.
