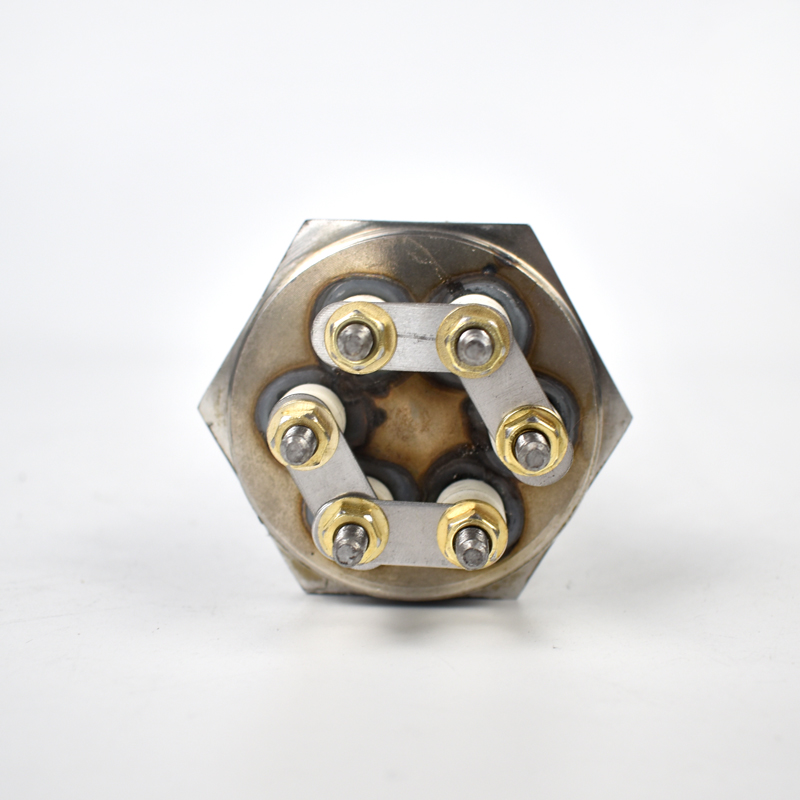

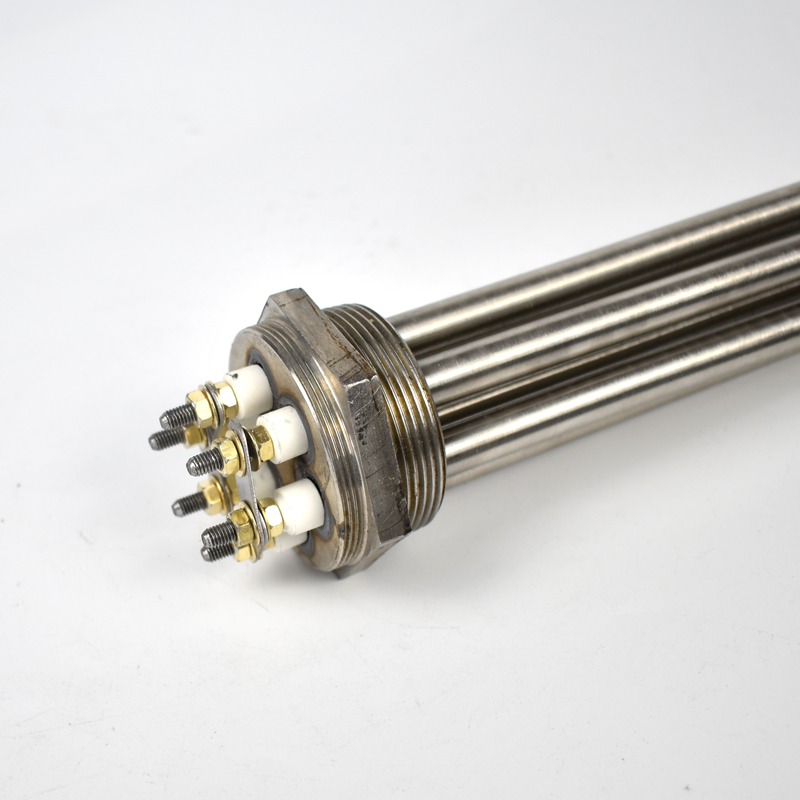

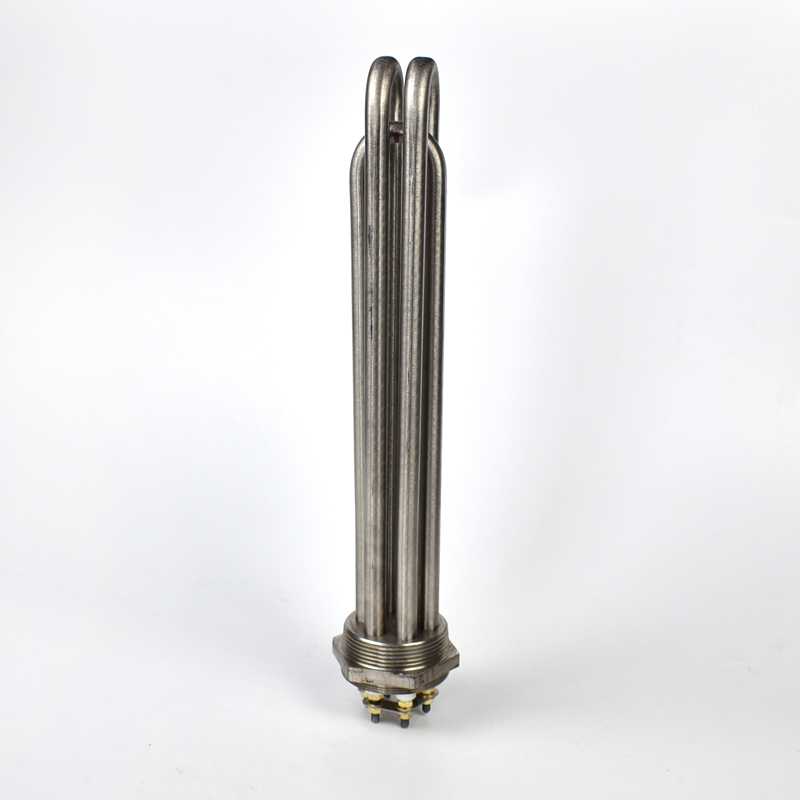

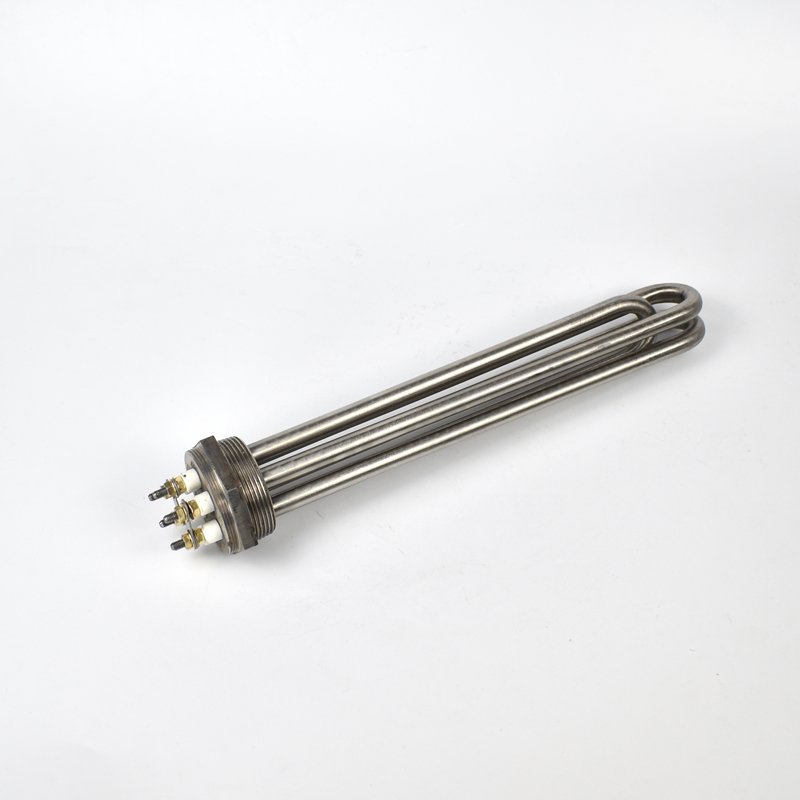

Industry Electric Heating Elements 220V 3Kw Immersion Rod Tube Water Steam Heaters with Flange

FOB Price:	10.00 - 32.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Month
Shipping:	Express/Ocean freight
Payment Terms:	L/C, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	1. Export carton 2. Export standard wooden box for 220V 3KW flange immersion heater

Quick Details

Brand Name: BRIGHT
Voltage (V): 220
Power (W): 3000
Housing Material: Stainless Steel
Certification: CE
Model Number: FLG-3U305 2203K-S
Installation: Freestanding
Storage / Tankless: Instant / Tankless
Power Source: Electric
Key Selling Points: Easy to Operate

Specifications

Flange immersion heaterIs made of seamless stainless steel tube, high-quality Mgo, High Ohm NiGr alloy wire. Flange immersion heater is more heat exchange efficient, that means flange immersion heater could standard 3 to 4 times wattage. Flange immersion heater is made of advanced production equipment and through strict quality test. Characteristic fast temperature rise heating uniformity heating exchange efficiently long-time usage appliance.

Technical Parameters

Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Insulation resistance (cold)	≥ 500 MΩ
Maximum leakage current (cold)	≤ 0.5 mA
Dielectric strength	1500 V
Tube diameter	Φ6.6mm-Φ20mm
Flange size	Thread flanges (NPT /BSP:1.5"/2"/2.5"/1.25" ) Round Flange: DN25/DN50/DN100 Othe shape ara customized
Tube Material	SUS304, 310S, 321, 316L, Ti, Cu, Ni880, Ni840
Insulation Material	High-purity Mgo
Reisistance wire element	Ni-Cr or FeCr
Lead Connection Option	Crimped or Swaged leads
Lead and type of connection leads	10" Fiberglass Standard(Wire options,silicone high temperature frberglass)
Voltage and power	Customized
Shape	Customized according to drawing
Warranty	One year
