Wenzhou Darong Textile Instrument Co., Ltd.
China Manufacturer with main products: Textile Testing Equipment, Tensile Testers, Face Masks Testers, Color Fastness Testers, Martindale Abration and Pilling Testers, Thermal... |
Related products from verified members
| Export Markets: | North America, Southeast Asia, Africa, Mid East, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Usage: Textile Testing Instrument
- Power: Electronic
- Brand Name: DARONG
- Warranty: 1year
- weight: 150kgs
- Model Number: YG(B)401T
Specifications

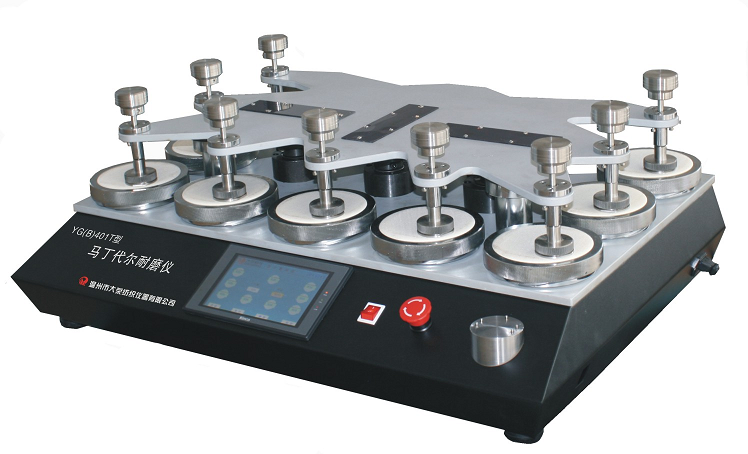

YG(B)401T Martindale abration and pilling tester
[Scope of application]
It is used for testing the wear resistance, abrasion and appearance change (pilling) of textiles and membrane materials (Martindale method).
[Relevant Standards]
GB/T 21196 (International Standard Drafting Unit), FZ/T 20020, GB/T 4802.2, GB/T 13775, ASTM D4966, ASTM D4970, ASTM D3886, ISO 12945.2, ISO 12947, JIS L1096, IWSTM 196/TM112 M&S, etc.
[Instrumentation characteristics]
1. Three test modes, adding and subtracting two counting modes.
2. No turning guide plate design, no need to move the sample.
3. PLC modular control, seven inch color touch screen, Chinese and English double-choice menu operation.
[Technical parameters]
1. Workplace:9 place
2. Counting range:0-999999 times
3. Maximum travel:60.5±0.5mm 24±0.5mm
4. Pressure mass:A. Clothing sample weight hammer:397±2g
B. Furniture decoration sample weight hammer:597±2g
C. Stainless steel discs:260±1g
5. Effective friction diameter of grinding block:
Type A 198g(3kpa) friction head 28.8-0.084mm
B-type 155g(1.52N) friction head 90-0.10mm
6. Relative velocity of gripper and grinding table:50 + 2R / MI (20-70r / min adjustable)
7. Sampling hammer quality:2385±10g
8. Shape size:885600410mm
9. Power supply:AC220V 50Hz 500W
10. Weight: 150 kg
