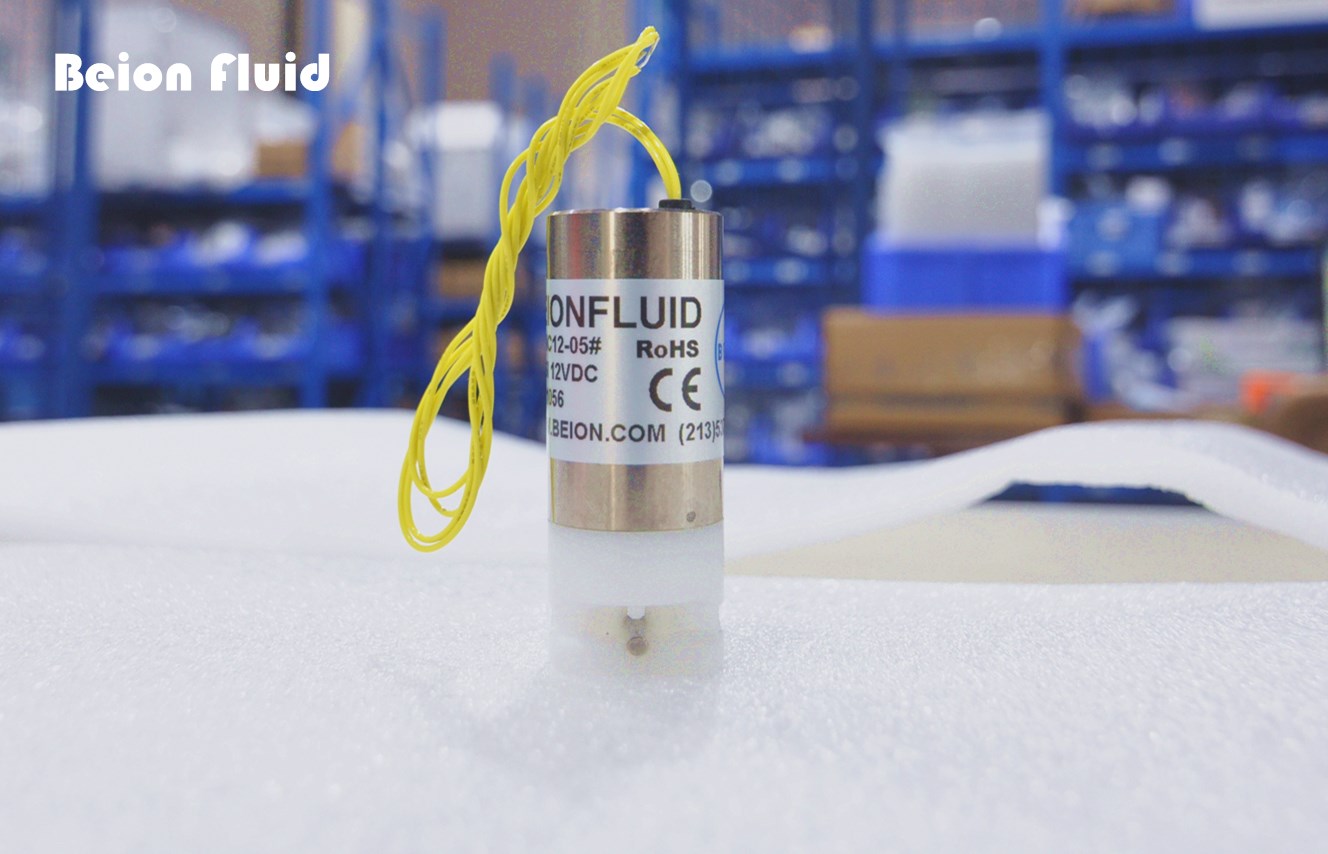

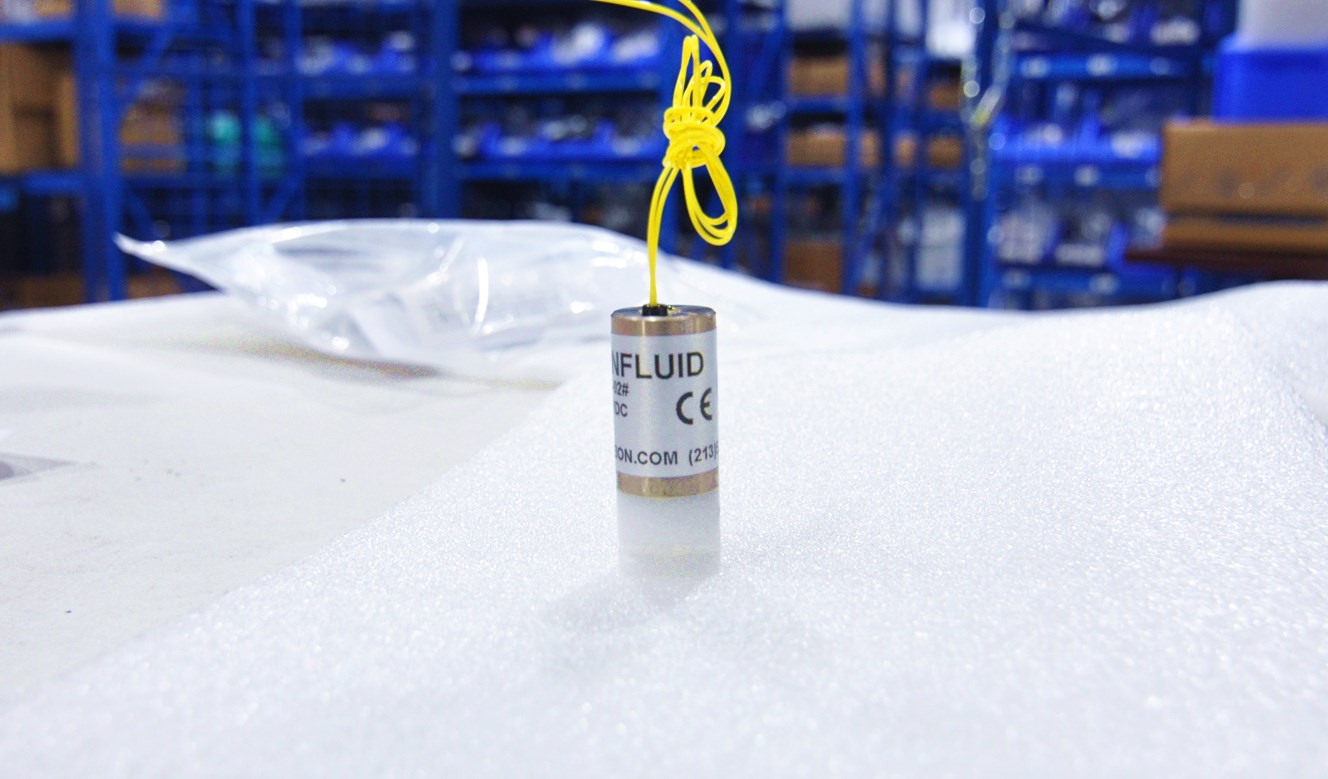

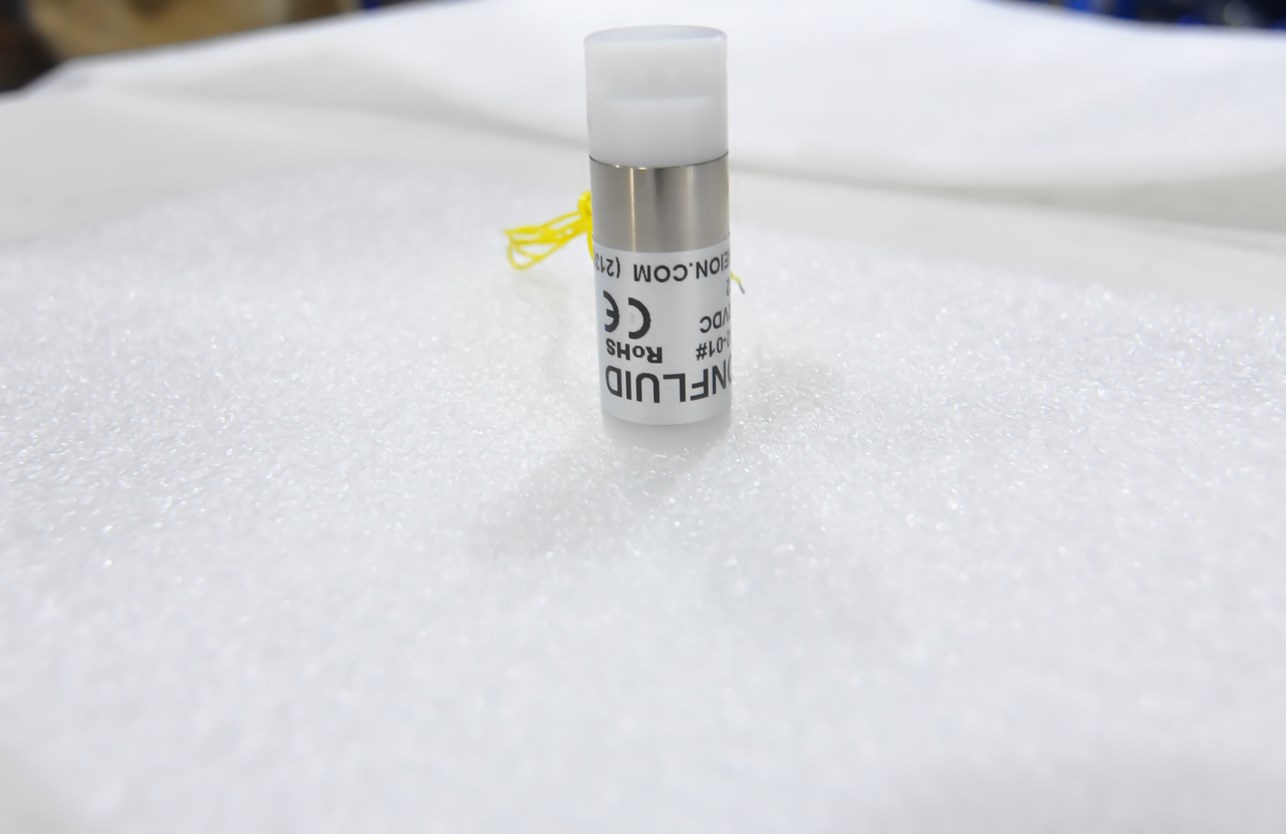

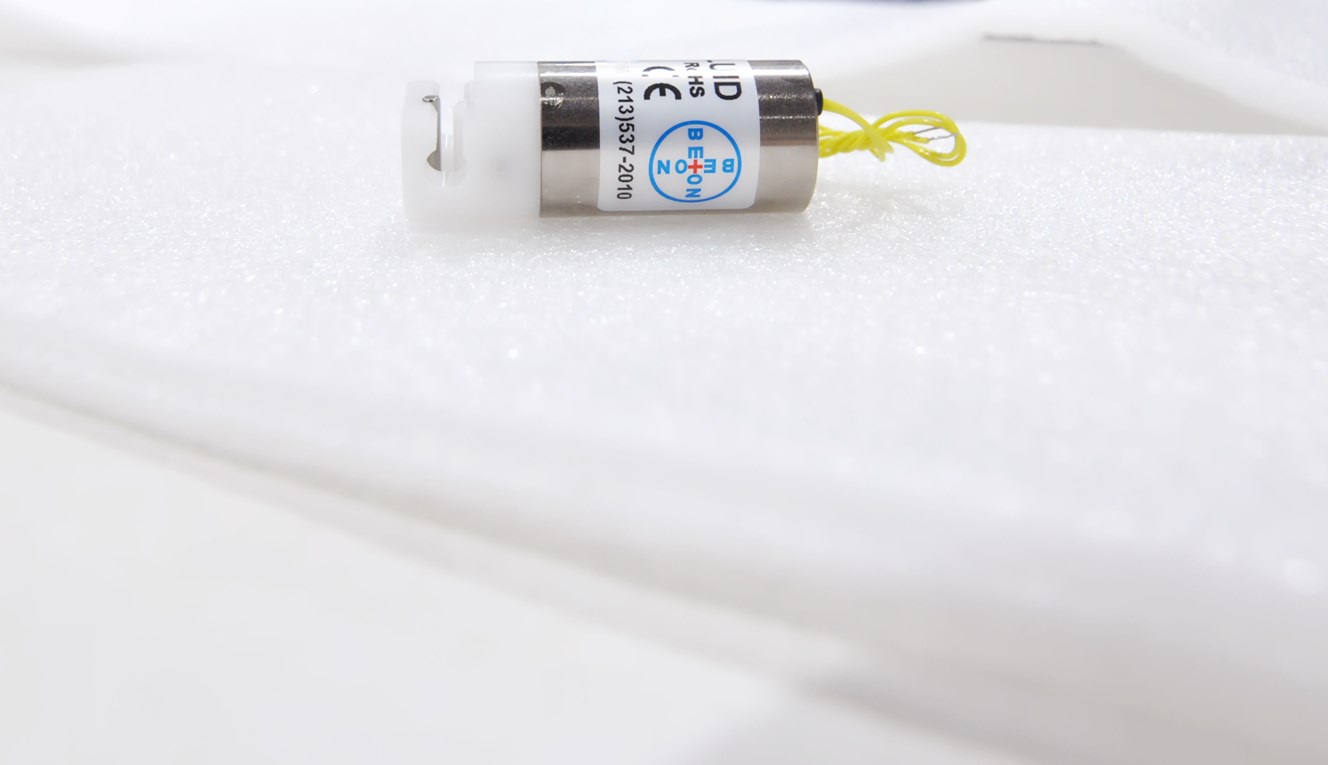

12VDC Normally Open Series Micro Fluid Control Solenoid Pinch Valve with 2 Way

FOB Price:	25.00 - 35.00 USD/Piece
Supply Ability:	2,000,000 Piece(s) per Year
Shipping:	DHL, FEDEX, UPS, EMS etc/as clients' requirements
Payment Terms:	L/C, D/P, T/T

In Stock

Inquiry Now

Related products from verified members

Valve

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	Standard Carton/as Clients' Requirements

Quick Details

Brand Name: Beion Fluid
Temperature of Media: -5degree-45degree
Material: Stainless Steel
Pressure: max 60psi
Standard or Nonstandard: Standard

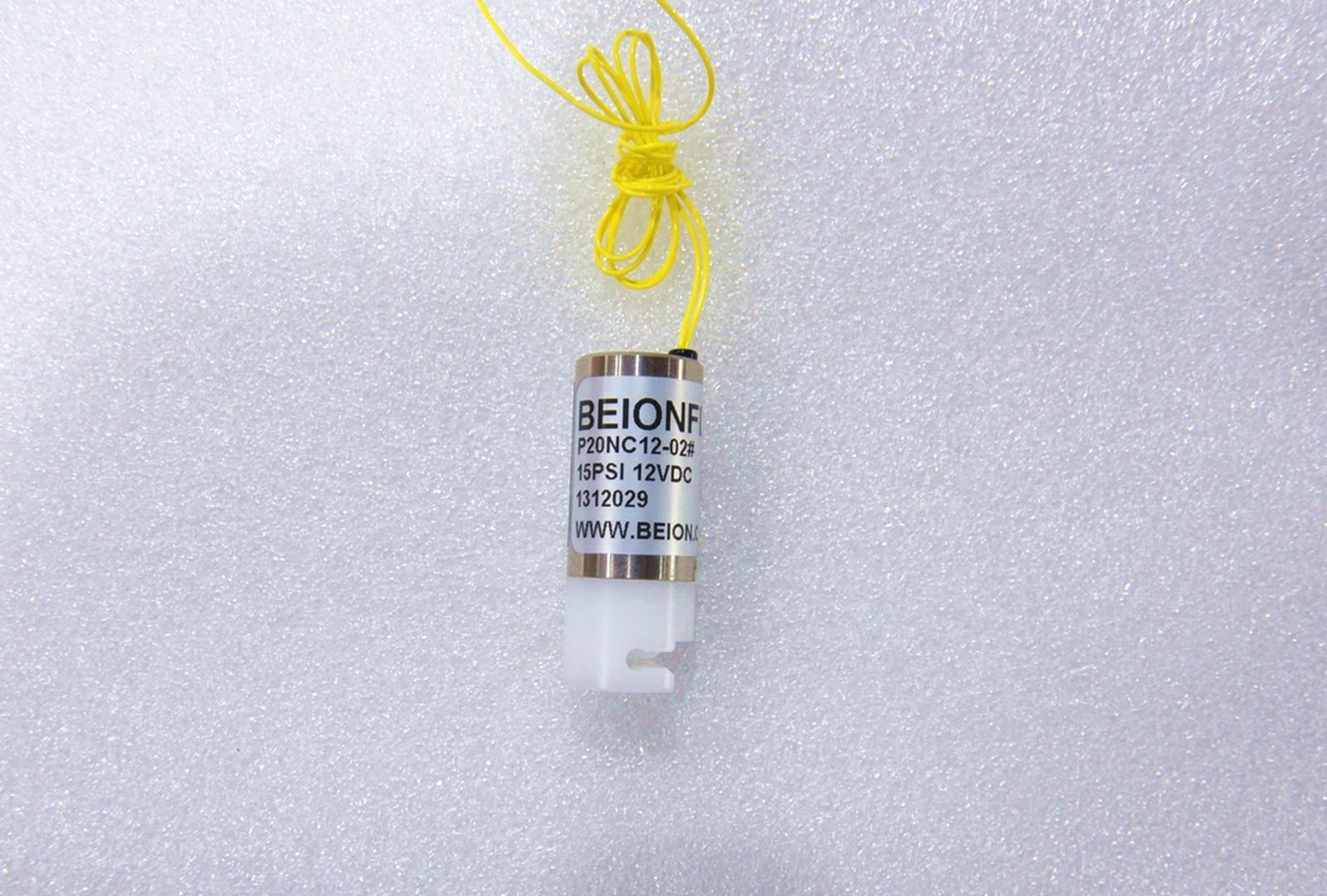

Model Number: P20NC12-02#
Port Size: 20mm
Power: Solenoid
Structure: Pilot
working voltage: 12VDC

Specifications

Description for P Series of Pinch Valve:

L Solenoid operated, widely applied to applications such as IVD, medical instruments, analytical instruments, etc.

L Long life span(valve: 20,000,000 times, tubing >1000,000 times)

L Low consumption/high heat dissipation rate

L Regular open-and-close working mode

L Zero dead volume, effectively prevents cross-infection

L Safe and reliable tube fixing mode, without fluid path cutting off

L Multiple tubes applied to various chemical and corrosive resistance requirements

L Optimal closing force, specialized silicone tube fitted which is located in the bottom groove of pinch valve body,accurately designation and processing technic making the tube is clamped more stable without extra clamping devices to fix the tube.

L Multiple specifications of pinch valves, P series pinch valve and FT series pinch valve, 2 way(Normally open/Normally close) and 3 Way (one pipe side for normally open and the other pipe side for normally close) for both series, fitted with tubes which different specifications are available.

Specification:

Valve Types & Weight
ValveType	Overall Dimensions	Weight
P20	0.75 inches	2 oz(57g)
P25	1.00 inches	5 oz(142g)

Parameters for 2 Way Pinch Valve
Valve Type	Voltage	Power @ 70^.F(21℃)	Current @ 70.F(21℃)
P20	12 VDC	2.8 watts	0.22 amps
P20	24 VDC	2.8 watts	0.10 amps
P25	12 VDC	4.0 watts	0.32 amps
P25	24 VDC	4.0 watts	0.16 amps

Parameters for 3 Way Pinch Valve
Valve Type	Soft Tube Size	Structure	Voltage	Power @ 70^.F(21℃)	Current @ 70.F(21℃)
P20	I.D.≥1/32"	3-way	12 VDC	4.0 watts	0.31 amps
P20	I.D.≥1/32"	3-way	24 VDC	4.0 watts	0.16 amps
P25	O.D≥3/16"	3-way	12 VDC	4.0 watts	0.66 amps
P25	O.D≥3/16"	3-way	24 VDC	4.0 watts	0.34 amps

Structure and Pressure Range
Valve Type	Tube Type	2-Way (NC)	2-Way (NO)	3-Way(T)	Minimum Pressure	Maximum Pressure
P20	-01	√	√	√	0 PSI	15 PSI
P20	-02	√	√	√	0 PSI	15 PSI
P25	-05	√	√	√	0 PSI	20 PSI

Pinch Tube Diameter &Product Number
Suffix Number for Pinch Valve	Fitted Pinch Tube Specification Number	Silicone Tube	Specialized C-Flex	>	>	Wall thickness (in/mm)
-01	10025-01/10026-01	√	√	1/32"/0.79mm	3/32"/2.38mm	1/32"/0.79mm
-02	10025-02/10026-02	√	√	1/16"/1.59mm	1/8"/3.17mm	1/32"/0.79mm
-03	10025-03/10026-03	√	√	1/16"/1.59mm	3/16"/4.76mm	1/16"/1.59mm
-05	10025-05/10026-05	√	√	1/8"/3.17mm	1/4"/6.35mm	1/16"/1.59mm
