Aikema 85SX 100SX 128SX Front & Rear Hub Motors Manufacturer 36V 48V 250W 350W 500W E-Bike Kit

Specifications

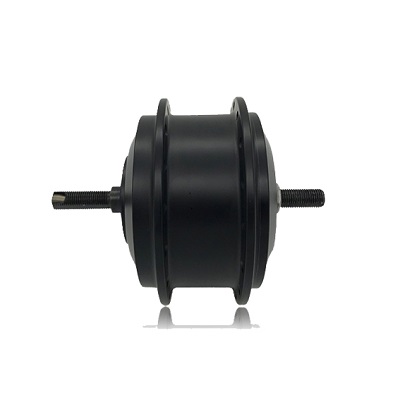

75SX 28 Spoke Holes Front-Drive High Speed E-Bike Hub Motor

• Power: 200W
• O.L.D.: 100mm
• Max Torque: 32N.M
• Weight (kg):1.2 KG
• Product description: the best front hub motor for eCity Bike,eCommuting Bike, eFolding Bike Mini front hub motor for electric bicycle 36V 200W Max torque:32 N.M Speed: 25 km/h, Motor rpm: 201 rpm,260 rpm,328 rpm,or customized

• Specification:

  75 SX 28 Spoke Holes Front-drive High Speed E-Bike Hub Motor

  Rated Power (W):200 W

  Rated Voltage (DC): 36 V

  Max Torque(N.M):32 N.M

  Efficiency (%):≥80

  Weight (kg): 1.2

  O.L.D: 100mm

  Motor rpm: 201/260/328 RPM, or customized

  Noise Grade (dB): <55

  IP level :65

  Reduction ratio: 13.2

  Pole Pairs: 5

  Surface finish: silver/mat black

  Certifications: CE/ ROHS /EN 15194

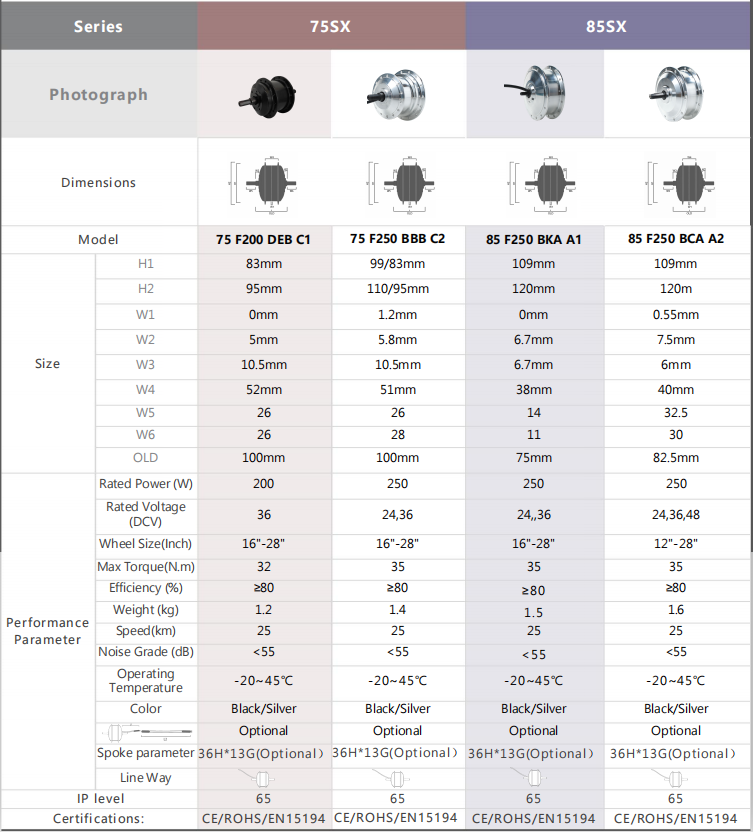

  Model	75 F200 DEB C1
  Rated Power(W)	200
  Rated Voltage(V)	36
  Speed Range(rpm)	180-350
  Efficiency(%)	>80
  Noise(dB)	<55
  Weight(kg)	1.2
  Gear Ratio	5:1
  Usage	Front Hub motor for electric bicycle,EFolding bike,e-CITY bike,e-urban bike .







  75SX F250 BBB C2

  Light-Weight High Speed E-Bike Front Wheel Hub Geared Motor

  Rated Power (W):250W

  Rated Voltage (DCV): 24V, 36V

  Max Torque(N.M):35 N.M

  Efficiency (%):≥80

  Weight (kg): 1.4

  O.L.D: 100 mm

  Speed(km): 25 km/h

  Noise Grade (dB): <55

  IP level :65

  Certifications: CE/ ROHS/ EN15194

  Small size and light weight featured good performance for urban electric cycling. this mini geared motor that are suited for people who want a more minimal level of assistance electric bike engine.

  AKM 85SX front hub motor for electric folding ebike,eCITY bicycle
  • Power: 250W
  • O.L.D.: 75mm,82.5mm,100mm
  • Brake: Roller Brake/Disc brake,V brake
  • Max torque: 42N.M
  • Product description: Our 85SX Series e-bike front hub motor is one of the best electric bike motors on the market.the features are lightweight,only 1.5 kg,high torque and efficiency 80%. 85SX FRONT hub motor can easily be
•


85 F250 BKA A1

250W ebike brushless front hub motor geared

24V/36V 250W Front Drive Hub Motor

Brake available with :Disc-Brake,V-brake,Rim-brake

Rated Power (W):250W

Rated Voltage (DCV): 24V,36V

Max Torque(N.M):35 N.M

Efficiency (%):≥80

Weight (kg): 1.5

O.L.D: 75mm

Speed(km): 25km/h

Noise Grade (dB): <55

IP level :65

Certifications: CE/ROHS/EN15194




Features:this hub engine is suitable for folding electric bicycle,with 75mm forks where the power output isn't quite adequate. allowing to work with most 20" Dahon/TERN bikes along with the Tikit and Brompton.




85 F250 BCA A2

Bicycle electric hub motor front hub motor for folding ebike drive system

250W Front Drive Hub Motor

Brake available with :Disc-Brake,V-brake,Rim-brake

Rated Power (W):250W

Rated Voltage (DCV): 24V,36V,48V

Max Torque(N.M):35 N.M

Efficiency (%):≥80

Weight (kg): 1.6

O.L.D: 82.5 mm

Speed(km): 25km/h

Noise Grade (dB): <55

IP level :65

Certifications: CE/ROHS/EN15194







85 F250 CFA A3

HIgh-speed,light-weight ebike engine,24V/36V/48V 250W FRont Drive Hub Motor

Brake available with :Disc-Brake,V-brake,Rim-brake

Rated Power (W):250W Peak Power:450W

Rated Voltage (DCV): 24V,36V,48V

Max Torque(N.M):42 N.M

Efficiency (%):≥80

Weight (kg): 1.7

O.L.D: 100 mm

Speed(km): 25km/h

Noise Grade (dB): <55

IP level :65

Certifications: CE/ROHS/EN15194
