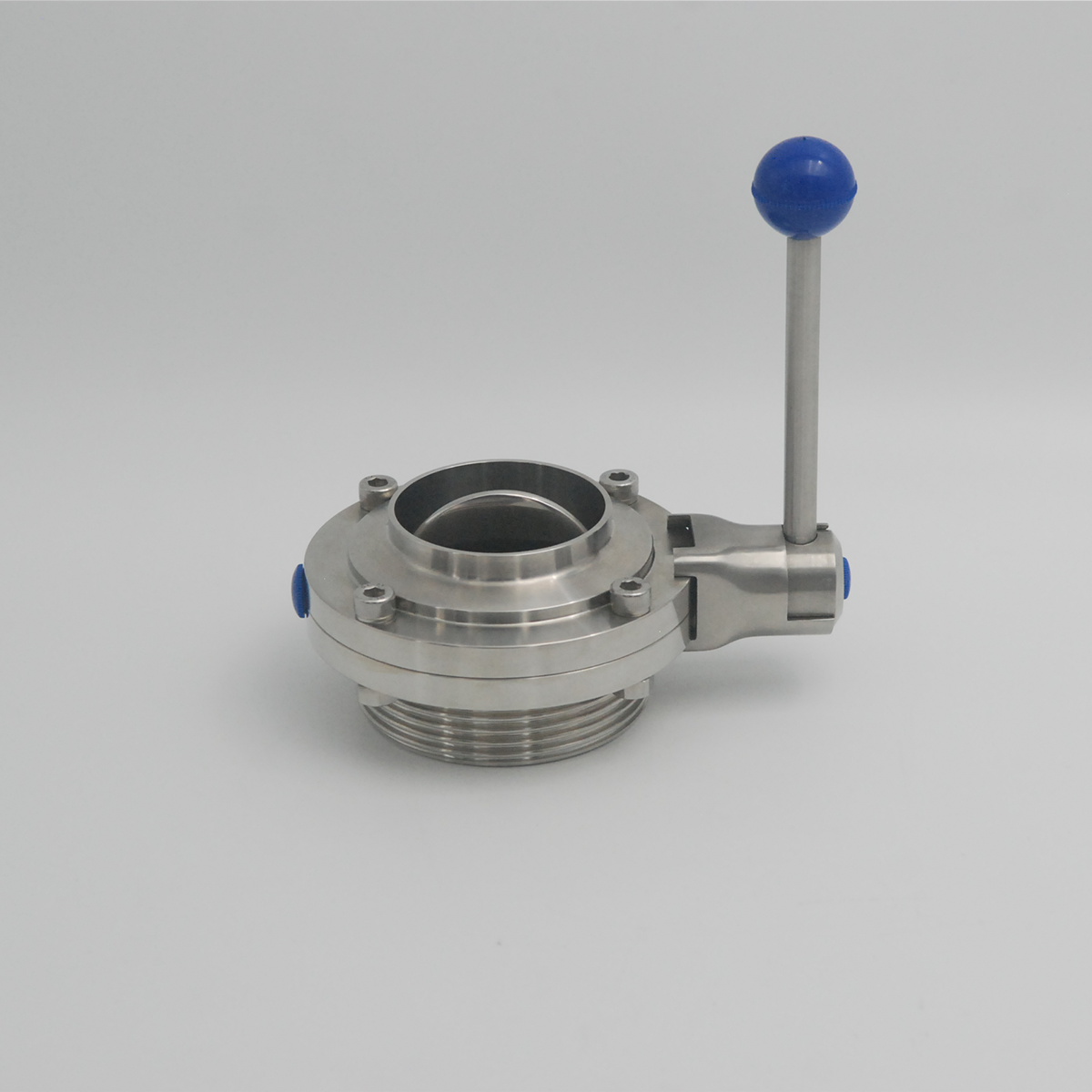

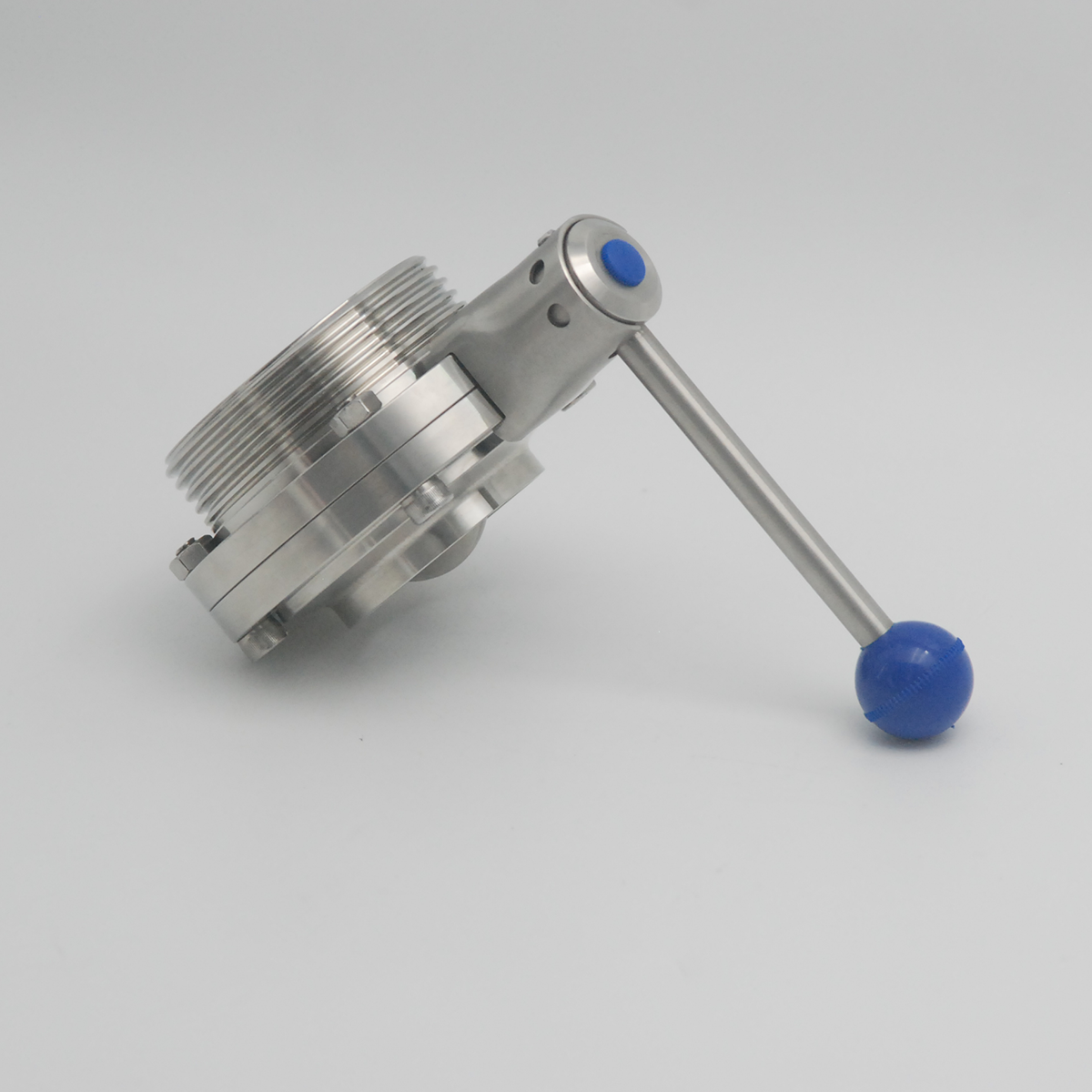

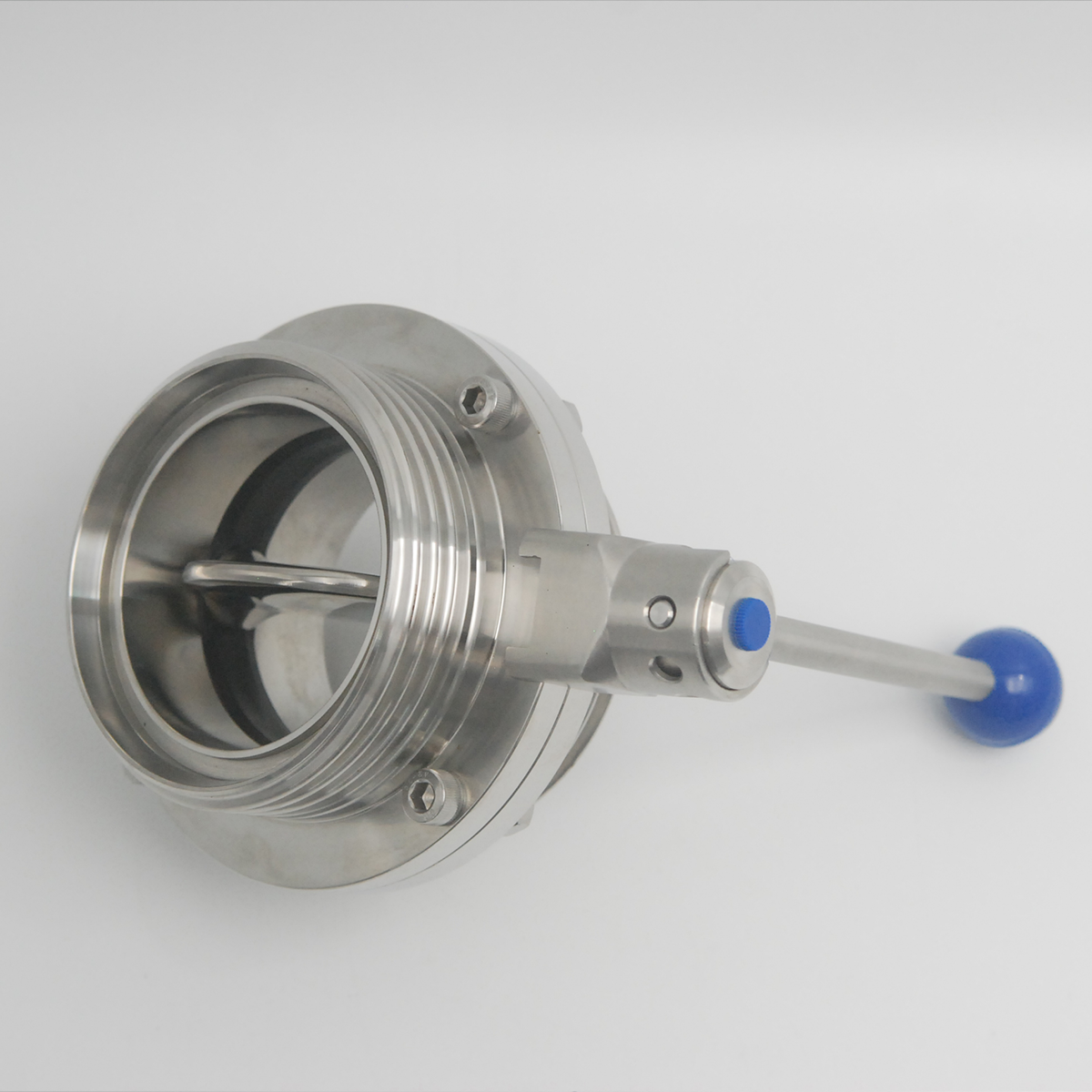

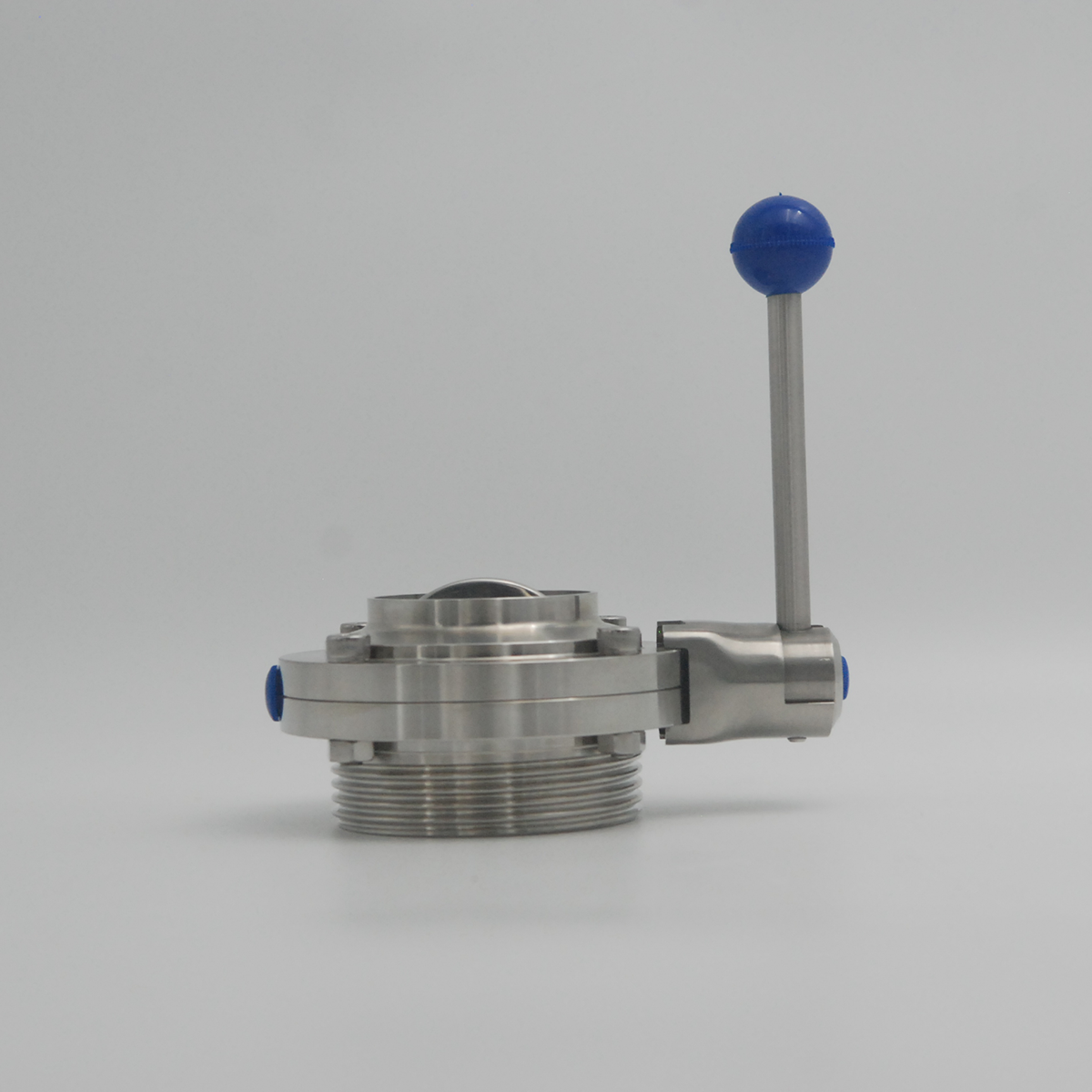

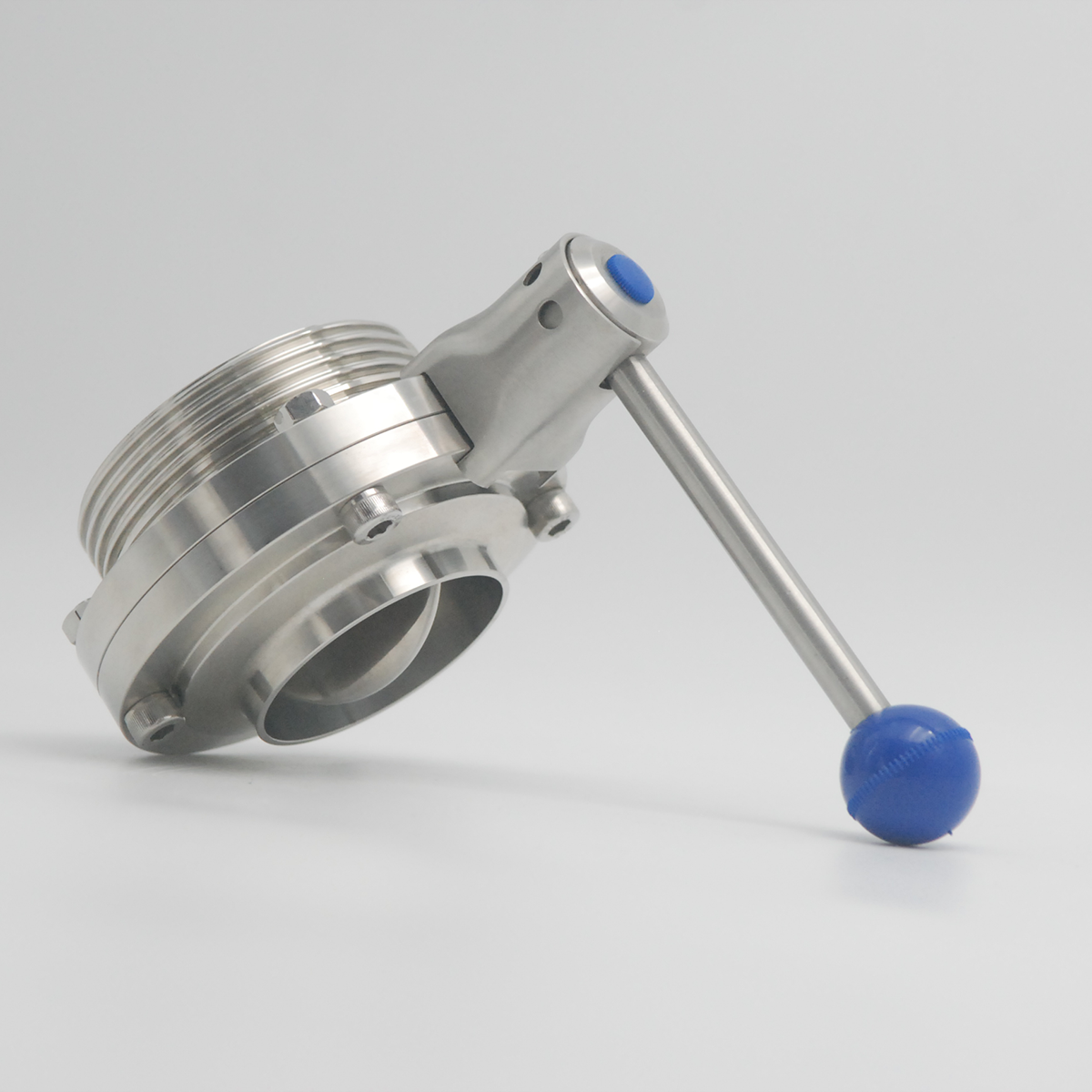

Hygienic Stainless Steel High Quality Manual Male/Weld Butterfly Valve with Stainless Handle
| FOB Price: | 12.00 - 20.00 USD/Piece |
|---|---|
| Supply Ability: | 4,000 Piece(s) per Month |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Brand Name: SANSUN
- Temperature of Media: Medium Temperature
- Material: Stainless Steel
- Pressure: Medium Pressure
- Standard or Nonstandard: Standard
- Model Number: SS-V104
- Port Size: 1 "-4",DN10-DN150
- Media: Water
- Power: Manual
- Structure: Butterfly
- Certificate: Ce, FDA, ISO 9001
- Seal Material: EPDM (Standard) FPM/Silicon/NBR, FDA177.2600
- Disc: AISI 316L/304(Forged)
- Handle Application: Two-Position Handle, Three-Position Handle, Four-P
Specifications
| Product Name: | Hygienic Stainless Steel High Quality Manual Male/Weld Butterfly Valve with Stainless Handle | |||||||||
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L(Forged) | |||||||||
| Disc: | 1.4404/1.4301, SS304/SS316L(Forged) | |||||||||
| Seal Material: | EPDM (standard) conforms to FDA177.2600 | |||||||||
| Surface Finishing | RA<0.8 um | |||||||||
| Operating Principles: | the handle blocks valve in Open or Close position, if with muti-position handle, other position is also available. | |||||||||
| Max Working Pressure: | 10Bar(DN25 to DN100), 8 bar(DN125 to DN150), 5 bar(DN200 to DN300) | |||||||||
| Max. Working Tem.: | 120 degree C | |||||||||
| Availably Size: | 1"-4", DN10-DN150 | |||||||||
| Features | Compact and robust design | |||||||||
| PED97/23EC | ||||||||||
| FDA.177.2600 | ||||||||||
| the valve body can be changeable with any kind of connection | ||||||||||
| Availably standard: | DIN/SMS/RJT/ISO/IDF | |||||||||
| Operated: | Manual | |||||||||
| Options | Gasket: EPDM, silicone or Viton | |||||||||
| Connection:weld,clamp,thread,weld thread,flange | ||||||||||
| Hanld:two-position handle,three-position handle,four-position pull handle,multi-position plastic handle and multi-position stainless steel handle | ||||||||||
| Control: | Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(as-I) | |||||||||
| Certificate: | PED/97/23/EC, FDA.177.2600 | |||||||||
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc | |||||||||
| Operating Torque (N.M) | DN25/1" | DN40/1.5" | DN50/2" | 2.5" | DN65 | 3" | DN80 | DN100/4" | DN125 | DN150 |
| 3 | 4 | 5 | 10 | 12 | 14 | 18 | 25 | 40 | 55 | |
| Weld Butterfly Valve Parameter Drawing Date Sheet | ||||||||||
 | ||||||||||
| SANSUN Factory Capacity | FAQ | |||||||||
| Factory Square Meter | 3000 m3 | Q: DO YOU HAVE MILL TEST CERTIFICATE? | ||||||||
| Number of employees | 105 Workers + 10 officers | Yes, Each order is traceable by Material certificate EN10204 3.1, and we also can offer pressure testing report, roughness test report if Client need. | ||||||||
| Number of Engineers | 3 designers +2 CAD drawers | |||||||||
| Number of Inspectors | Raw Material (3) | Q: DO YOU HAVE PRODUCT WARRANTY | ||||||||
| Finish Product (5) | Yes,12 months warranty. 100% inspection on finished products before dispatch. Inferior products can be returned or replaced. Repair parts is supplied for replacement. | |||||||||
| Workshop Equipment | 10--Mazak CNC Machine | |||||||||
| 6--HEADMAN CNC Machine | Q: WHAT'S the MOQ? | |||||||||
| 1--of automatic CNC center | No MOQ for standard products. Customized products can be discussed. | |||||||||
| 4--plain lathe | Q: MAY I HAVE FREE SAMPLES? | |||||||||
| 4--Press Machine | Free samples can be provided for starting cooperation, Freight is collected by Client. | |||||||||
| 3--bending Machine | Q: how LONG IS the DELIVERY TIME? | |||||||||
| 2--Cutting Machine | Standard item are in stocked--Normally 3-5 days. Bulk order usually takes about 20-25 days. | |||||||||
| 2-- Chamfering Machine | Q: WHY WOULD I CHOOSE YOU? | |||||||||
| 10--Polishing Machine | 1.Hard-working labor worker and advanced machine ensure large production capacity. It will give our clients fast delivery time. | |||||||||
| 2--Laser marking Machine | ||||||||||
| 2--Chamfering Machine | 2. Professional engineer and designer ensure the product parameter is well manufatcured and every month, we will have new products to help our client's enlarge market. | |||||||||
| Testing Equipment | 2--Pressure Testing Machine | |||||||||
| 1--Surface roughness device | 3. 100% inspection on finished products before dispatch, give our clients good quality products | |||||||||
| 2--Spectro Instrument Gun | 4. High effective sales team quick response to Any quote and complaint. | |||||||||
    | ||||||||||
| SANSUN Exhibitions | ||||||||||
 | ||||||||||
| SANSUN Team | ||||||||||
 | ||||||||||
| Other Products We Manufacture: | ||||||||||
| 1 .Sanitary valve | 2. Sanitary Pipe Fittings | 3. Tank Facility | ||||||||
| Sanitary Butterfly Valves | Sanitary Elbow | Sanitary Round Manway without Pressure | ||||||||
| Sanitary Check Valves | Sanitary Tee Sanitary Reducer | Sanitary Round Manway with Pressure | ||||||||
| Sanitary Ball Valvess | Sanitary Cross | Sanitary Square Manway | ||||||||
| Sanitary Reversal Valve/Mixproof valve | Sanitary Triclamp Ferrule | Sanitary Oval Manway | ||||||||
| Biopharmaceutical Diaphragm Valves | Sanitary Cap | Sanitary Tank Cleaning Ball | ||||||||
| Sanitary Sample Valves | Sanitary Pipe Hanger | Sanitary Sight Glass | ||||||||
| Sanitary Safety Valves | Stainless steel pipe clip/holder | Sanitary Strainer/Filter | ||||||||
| Sanitary Control Valves | Sanitary Hose Joint | Stainles Steel Fermentation tank unit | ||||||||
| Sanitary Relief Pressure Valves | Sanitary Unions/Clamp | |||||||||
| 4. Sanitary Pumps | 7.Sanitary Tube | 6.Sanitary Flexible Hose Adaptor | ||||||||
| Sanitary Centrifugal Pump | Seamless Tube | Stainles steel Flexible Hose Adaptor | ||||||||
| Sanitary Rotary Lobe Pump | Weldless Tube | Pre-cut hose with sanitary TC hose adaptor | ||||||||
| Sanitary Self Priming Pump CIP Pump | AISI 316L Square Tube | Flexible hose for suction and discharge application | ||||||||
| AISI 304 Stainless Steel Sheet | Temperature range - 40 to + 250 Degree C. | |||||||||
| 5. BHO Closed Loop Extractor | 8.Sanitary Gasket | 9.SCH Fittings & Screwed Fittings | ||||||||
| BHO Extractor Shatter Platter and Collection pod | Silicone/EPDM Gasket for Triclamp | SCH Elbow/Tee/Cross/Reducer | ||||||||
| Condenser Cooling Coil,Cap Lid with Cooling Coil | Silicone/EPDM Gasket for Union | Screwed Hexagon plug/Hex. Bushing | ||||||||
| BHO Extractor Full Set Machine,Cold Trap,Diamond Miner | Silicone/EPDM Gasket | Screwed Elbow/Tee/Cross/Reducer | ||||||||
| BHO Closed Extractor Gas Tank,Solvent Tank,Collection Tank | Viton Gasket | NPT/BSP/BSPT Hexagon nipple | ||||||||
| BHO Closed Loop Extractor Parts of Flat Cap (Dome) Lid | PTFE /Teflon Gasket | NPT/BSP/BSPT Barrel Nipple | ||||||||
   | ||||||||||
