Wenzhou Sansun Stainless Co., Ltd.

China Manufacturer with main products: Stainless Steel Sanitary Pipe Fitting, Sanitary Valve, Sanitary Pump, BHO Closed Loop Extractor, SCH Fittings & Screwed Fittings

Home  >Products Catalog > Sanitary Butterfly Valve > Stainless Steel Hygienic Grade Maunal Union-Union Ends Butterfly Valves

Stainless Steel Hygienic Grade Maunal Union-Union Ends Butterfly Valves

FOB Price: 12.00 - 20.00 USD/Piece
Supply Ability: 4,000 Piece(s) per Month
Payment Terms: L/C, T/T, Western Union, MoneyGram
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China

Quick Details

  • Brand Name: SANSUN
  • Temperature of Media: Medium Temperature
  • Material: Stainless Steel
  • Pressure: Medium Pressure
  • Standard or Nonstandard: Standard
  • Model Number: SS-V106
  • Port Size: 1/2"-8", DN10-DN200
  • Media: Water
  • Power: Manual
  • Structure: Butterfly
  • Certificate: Ce, FDA, ISO 9001
  • Body Material: SS304, SS316L
  • Disc: AISI 316L/304(Forged)
  • Handle Application: Two-Position Handle, Three-Position Handle, Four-P

Specifications

Product Name: Stainless Steel Hygienic Grade Maunal Union-Union Ends Butterfly Valves
Valve Body Material: 1.4404/1.4301, SS304/SS316L(Forged)
Disc: 1.4404/1.4301, SS304/SS316L(Forged)
Seal Material: EPDM (standard) conforms to FDA177.2600
Surface Finishing RA<0.8 um
Operating Principles: the handle blocks valve in Open or Close position, if with muti-position handle, other position is also available.
Max Working Pressure: 10Bar(DN25 to DN100), 8 bar(DN125 to DN150), 5 bar(DN200 to DN300)
Max. Working Tem.: 120 degree C
Availably Size: 1/2"-8", DN10-DN200
Features Compact and robust design
PED97/23EC
FDA.177.2600
the valve body can be changeable with any kind of connection
Availably standard: DIN/SMS/RJT/ISO/IDF
Operated: Manual
Options Gasket: EPDM, silicone or Viton
Connection:weld,clamp,thread,weld thread,flange
Hanld:two-position handle,three-position handle,four-position pull handle,multi-position plastic handle and multi-position stainless steel handle
Control: Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(as-I)
Certificate: PED/97/23/EC, FDA.177.2600
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Operating Torque (N.M) DN25/1" DN40/1.5" DN50/2" 2.5" DN65 3" DN80 DN100/4" DN125 DN150
3 4 5 10 12 14 18 25 40 55

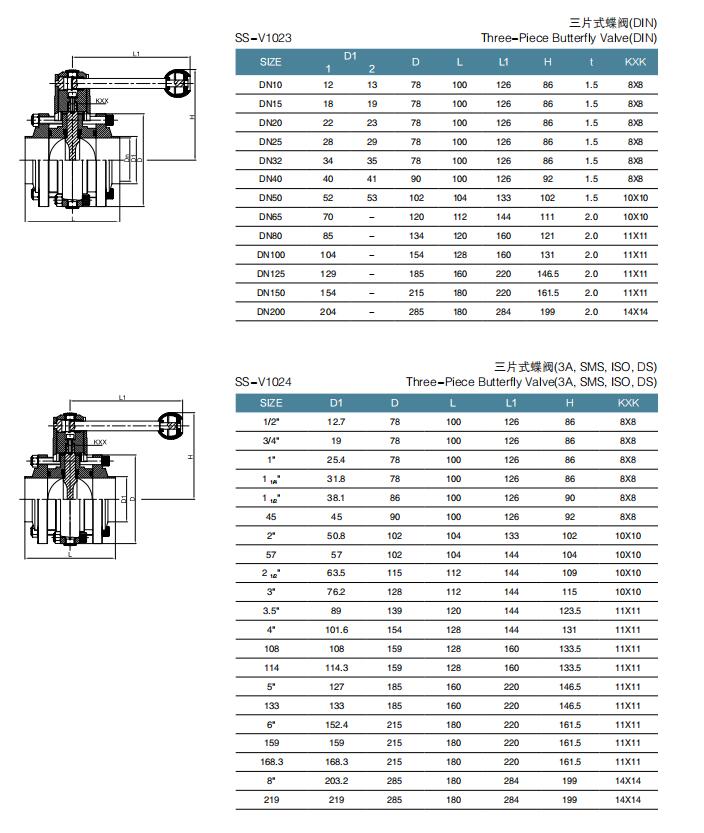

Weld Butterfly Valve Parameter Drawing Date Sheet
Stainless Steel Hygienic Grade Maunal UnionUnion Ends Butterfly Valves
SANSUN Factory Capacity FAQ
Factory Square Meter 3000 m3 Q: DO YOU HAVE MILL TEST CERTIFICATE?
Number of employees 105 Workers + 10 officers Yes, Each order is traceable by Material certificate EN10204 3.1, and we also can offer pressure testing report, roughness test report if Client need.
Number of Engineers 3 designers +2 CAD drawers
Number of Inspectors Raw Material    (3) Q: DO YOU HAVE PRODUCT WARRANTY
Finish Product   (5) Yes,12 months warranty. 100% inspection on finished products before dispatch. Inferior products can be returned or replaced. Repair parts is supplied for replacement.
Workshop Equipment 10--Mazak CNC Machine
6--HEADMAN CNC Machine Q: WHAT'S the MOQ?
1--of automatic CNC center No MOQ for standard products. Customized products can be discussed.
4--plain lathe Q: MAY I HAVE FREE SAMPLES?
4--Press Machine Free samples can be provided for starting cooperation, Freight is collected by Client.
3--bending Machine Q: how LONG IS the DELIVERY TIME?
2--Cutting Machine Standard item are in stocked--Normally 3-5 days. Bulk order usually takes about 20-25 days.
2-- Chamfering Machine Q: WHY WOULD I CHOOSE YOU?
10--Polishing Machine 1.Hard-working labor worker and advanced machine ensure large production capacity. It will give our clients fast delivery time.
2--Laser marking Machine
2--Chamfering Machine 2. Professional engineer and designer ensure the product parameter is well manufatcured and every month, we will have new products to help our client's enlarge market.
Testing Equipment 2--Pressure Testing Machine
1--Surface roughness device 3. 100% inspection on finished products before dispatch, give our clients good quality products
2--Spectro Instrument Gun 4. High effective sales team quick response to Any quote and complaint.
Stainless Steel SS304 Sanitary Tc Butterfly Valve with Pulling Handle
Stainless Steel SS304 Sanitary Tc Butterfly Valve with Pulling Handle
Stainless Steel SS304 Sanitary Tc Butterfly Valve with Pulling Handle
Stainless Steel SS304 Sanitary Tc Butterfly Valve with Pulling Handle
SANSUN Exhibitions
Stainless Steel SS304 Sanitary Tc Butterfly Valve with Pulling Handle
SANSUN Team
Stainless Steel SS304 Sanitary Tc Butterfly Valve with Pulling Handle
Other Products We Manufacture:
1 .Sanitary valve 2. Sanitary Pipe Fittings 3. Tank Facility
Sanitary Butterfly Valves Sanitary Elbow Sanitary Round Manway without Pressure
Sanitary Check Valves Sanitary Tee Sanitary Reducer Sanitary Round Manway with Pressure
Sanitary Ball Valvess Sanitary Cross Sanitary Square Manway
Sanitary Reversal Valve/Mixproof valve Sanitary Triclamp Ferrule Sanitary Oval Manway
Biopharmaceutical Diaphragm Valves Sanitary Cap Sanitary Tank Cleaning Ball
Sanitary Sample Valves Sanitary Pipe Hanger Sanitary Sight Glass
Sanitary Safety Valves Stainless steel pipe clip/holder Sanitary Strainer/Filter
Sanitary Control Valves Sanitary Hose Joint Stainles Steel Fermentation tank unit
Sanitary Relief Pressure Valves Sanitary Unions/Clamp
4. Sanitary Pumps 7.Sanitary Tube 6.Sanitary Flexible Hose Adaptor
Sanitary Centrifugal Pump Seamless Tube Stainles steel Flexible Hose Adaptor
Sanitary Rotary Lobe Pump Weldless Tube Pre-cut hose with sanitary TC hose adaptor
Sanitary Self Priming Pump CIP Pump AISI 316L Square Tube Flexible hose for suction and discharge application
AISI 304 Stainless Steel Sheet Temperature range - 40 to + 250 Degree C.
5. BHO Closed Loop Extractor 8.Sanitary Gasket 9.SCH Fittings & Screwed Fittings
BHO Extractor Shatter Platter and Collection pod Silicone/EPDM Gasket for Triclamp SCH Elbow/Tee/Cross/Reducer
Condenser Cooling Coil,Cap Lid with Cooling Coil  Silicone/EPDM Gasket for Union Screwed Hexagon plug/Hex. Bushing
BHO Extractor Full Set Machine,Cold Trap,Diamond Miner  Silicone/EPDM Gasket  Screwed Elbow/Tee/Cross/Reducer
BHO Closed Extractor Gas Tank,Solvent Tank,Collection Tank  Viton Gasket  NPT/BSP/BSPT Hexagon nipple
BHO Closed Loop Extractor Parts of Flat Cap (Dome) Lid  PTFE /Teflon Gasket NPT/BSP/BSPT Barrel Nipple
Stainless Steel SS304 Sanitary Tc Butterfly Valve with Pulling Handle
Stainless Steel SS304 Sanitary Tc Butterfly Valve with Pulling Handle
Stainless Steel SS304 Sanitary Tc Butterfly Valve with Pulling Handle
