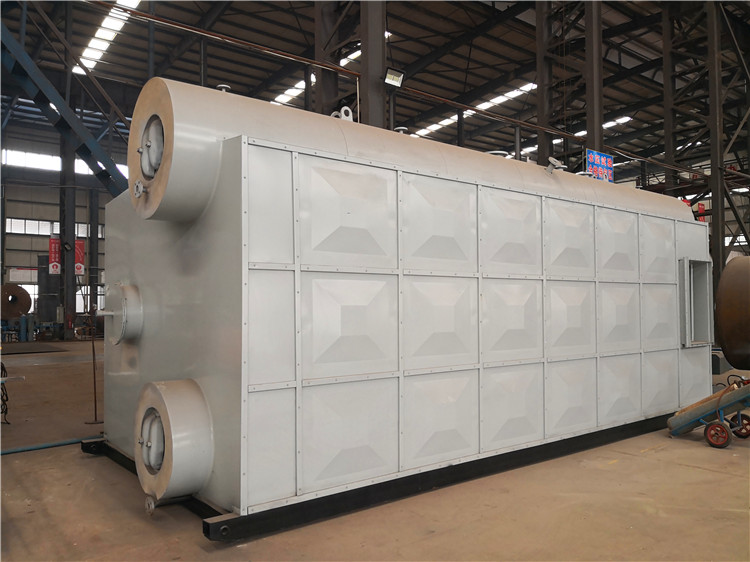

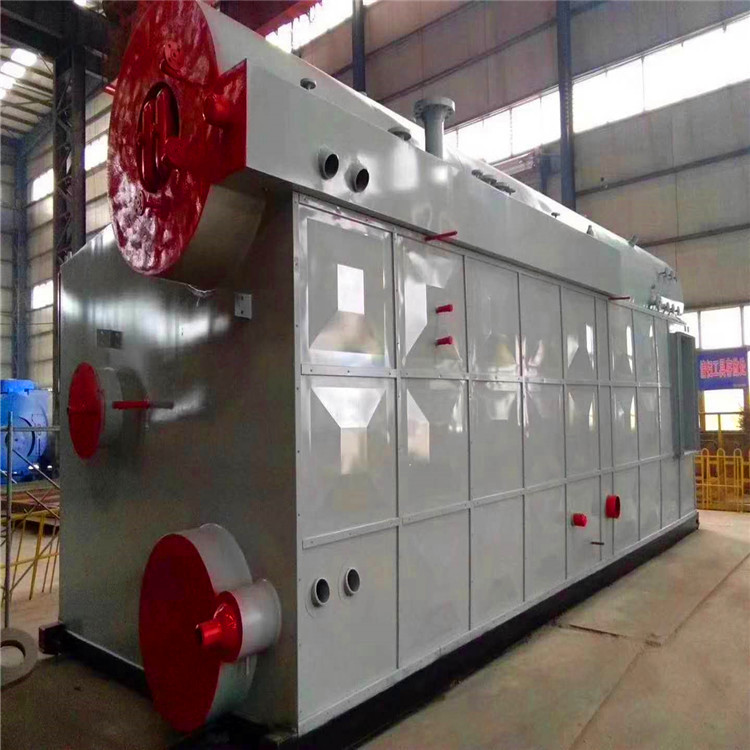

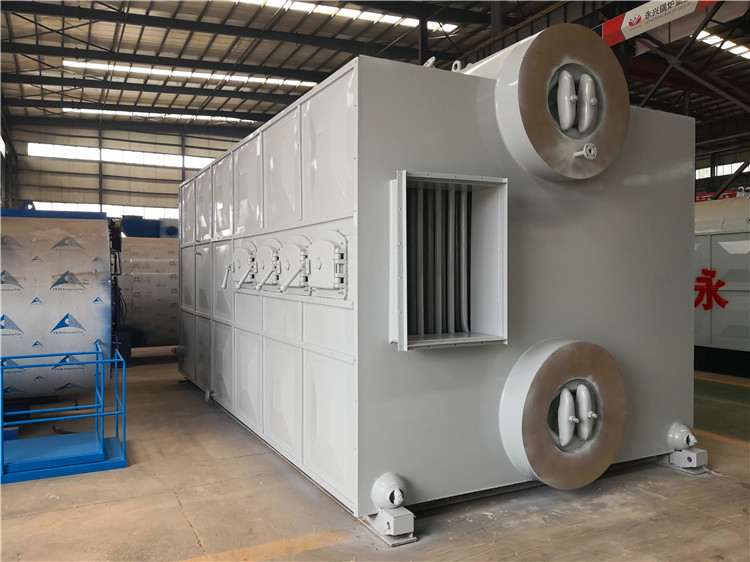

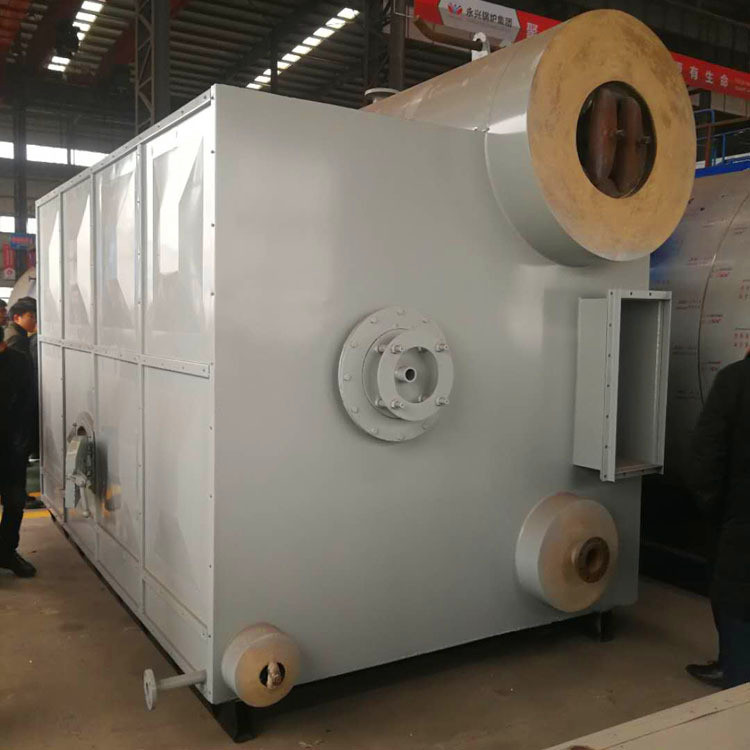

15 Ton SZS Series Double Drum Oil & Gas Fired Steam Boiler for Textile Mill/Garment Factory

FOB Price:	9999.00 - 10000.00 USD/Set
Supply Ability:	50 Set(s) per Year
Shipping:	by ship
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	wooden package

Quick Details

Brand Name: JinzhenBoiler
Style: Horizontal
Pressure: Low Pressure
Usage: Industrial
Condition: New
After-sales Service Provided: Overseas service center available
Certification: new
Weight: 28ton
Dimension(L*W*H): 7970*4628*3470
Output: Steam
Model Number: SZS15-1.25
Fuel: Oil-fired
Structure: Water Tube
Type: Natural Circulation
steam capacity: 15ton/hour
pressure: 10bar
temperature: 184C
water supply temperature: 104C
heating area: 632m2
advantage: double drum
effeciency: 98%

Specifications

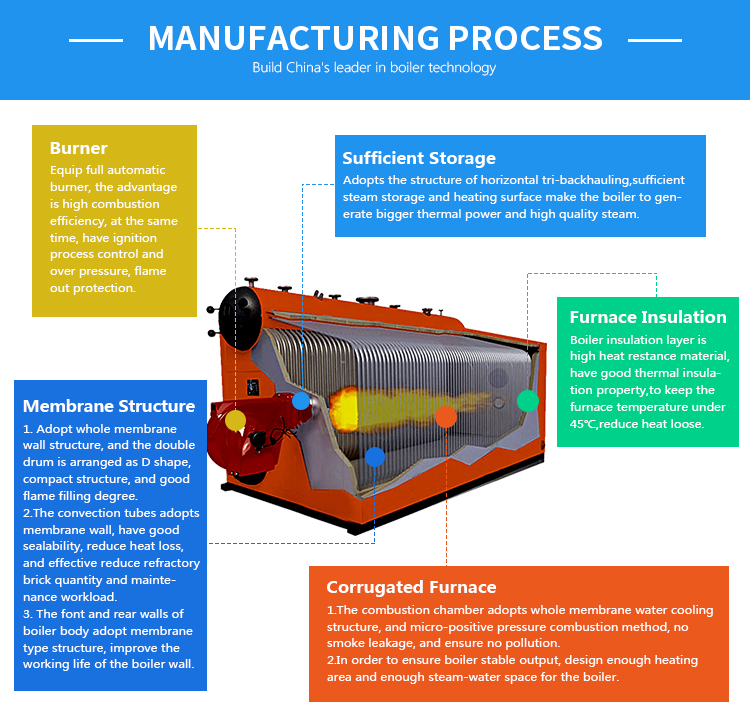

SZS series oil-fired and gas-fired boilers are double-drum vertical "D" type quick-install water tube boilers.It is composed of upper and lower boiler tube, membrane water cooling wall, convective tube bundle and flue gas condensation recovery device. after the fuel is burned in the furnace, the flue gas is discharged into the chimney through the convective tube bundle and flue gas condensation recovery device.Full combustion, pollution-free emission, convenient operation and installation are realized.High thermal efficiency, large output, strong load adaptability, high degree of automation, easy to operate, safe and reliable operation, is an ideal high efficiency, low consumption, low pollution green environmental protection products.

Performance advantages of Steam boiler

(1) the design of super large combustion chamber enables complete combustion of fuel with high combustion efficiency and low pollution.

(2) the boiler has a surplus heating surface and a large enough space for soft water to ensure the stability of boiler parameters.

(3) Explosion-proof door is set on the top of the furnace, which can discharge the energy released by chamber explosion.

(4) the water supply adopts continuous electric adjustment, and has the function of alarm of high and low water level and interlocking protection.

(5) Some furnaces are equipped with water-jet temperature-reducer, which is sensitive in temperature regulation and has a large range of temperature regulation.

(6) Considering the overall transport requirements of the boiler, the boiler design layout is more compact addition, the boiler adopts quick installation structure, which can effectively shorten the installation period.

Technical Parameter

Item\Model		SZS Double Drums Horizontal Steam Boiler
Rated steam capacity (Ton/h)		4	6	8	10	15	20	25	30	35
Rated steam pressure MPa		1.25/1.6/2.5
Rated steam temperature ℃		194/203/225/400
Design efficiency %		92.26	92.23	92.22	92.26	92.26	91.99	91.82	91.99	92.17
Feed water temperature ℃		20	105	105	105	105	105	105	105	105
Available fuel		Diesel / heavy oil / natural gas / LPG
Fuel consumption	Diesel kg/h	267.45	402.68	535.2	668.6	1002.6	1337.3	1671.6	2005.9	2336.8
Fuel consumption	Natural gas Nm3/h	329.4	425.9	567.9	709.6	1064.3	1418.4	1773.1	2127.6	2477.4
Overall dimension	Length m	5.2	5.9	7.2	7.8	8.5	9.2	11.4	11	11.2
	Width m	2.7	2.7	3.4	3.4	3.6	3.7	3.7	3.9	4.6
	Height m	3.2	3.2	3.5	3.6	3.6	3.7	3.8	4.6	5.2

Boiler design basis

1. NB/T47034-2013 Technical Conditions for Industrial Boilers.

2. TSG G0001-2012 Boiler Technical Supervision Regulation.

3. Water-tube Boiler, GB/T16507.1 ~ 16507.8-2013

4. Gb13271-2014 Boiler Atmospheric Pollutant Emission Standard.

6. GB/T1576-2008 Water Quality for Industrial Boilers.

7. Standard Method for Thermal Calculation of Boiler Units (Soviet Union, 1973).

8. TSG G0002-2010 Boiler Energy Saving Technical Supervision and Management Regulations.

9. Standard Method for Calculating the Aerodynamic Force of Boiler Equipment.
15 ton SZS Series Double Drum Oil and Gas Fired Steam Boiler for Textile MillGarment Factory
