Ningbo Xincan Hydraulic Co., Ltd.
China Manufacturer with main products: Hydraulic Motor, Hydraulic Winch, Power Unit Head, Gearbox Drive, Reducer Speed, Auger Drive |
Home
>Products Catalog > Hydraulic Motor > XSM4 Series OEM 5-Piston Design Hydraulic Motor, Radial Piston Hydraulic Motor for Auger Drive

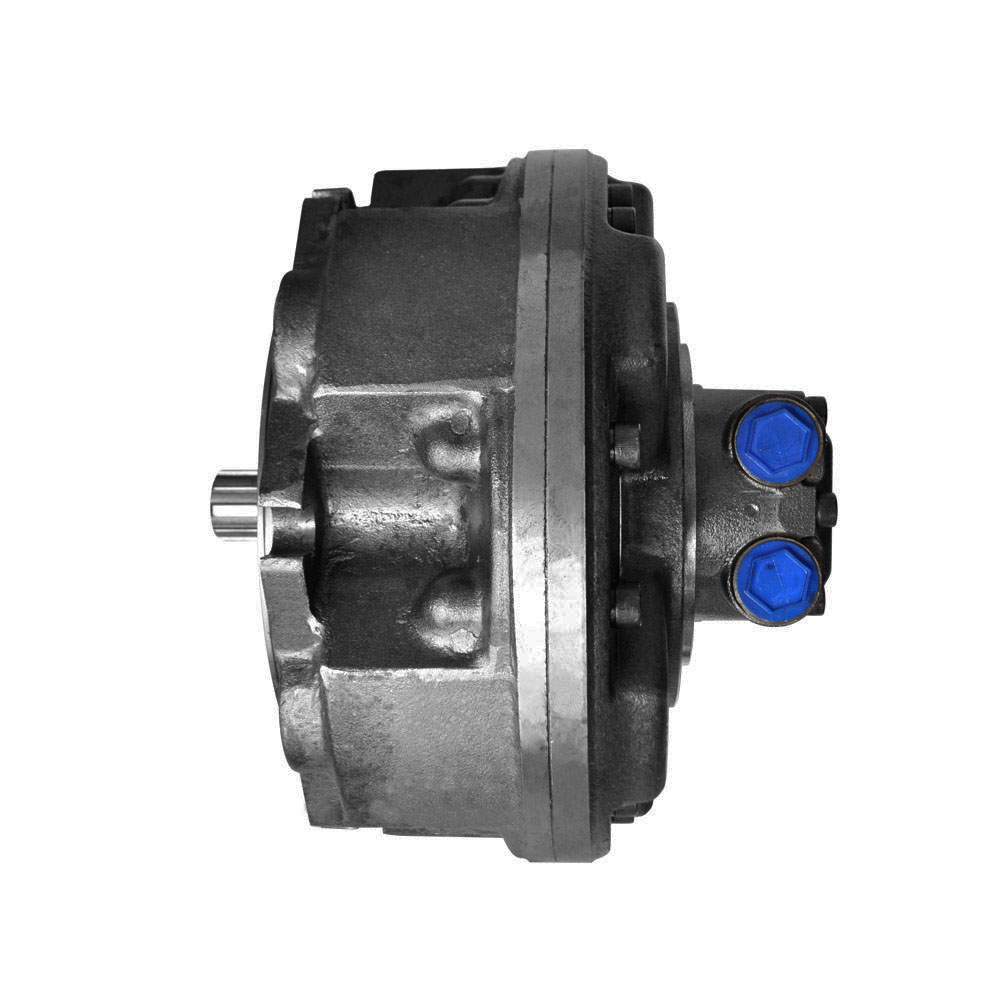

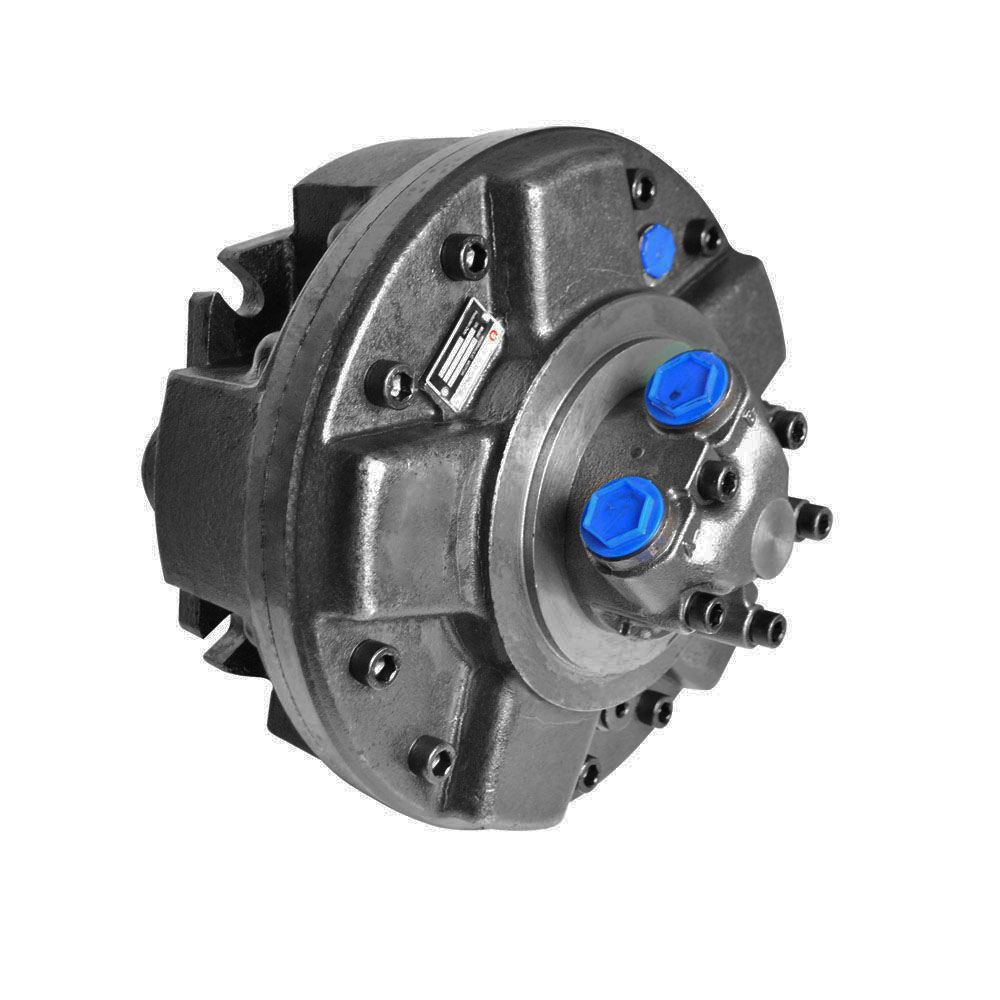

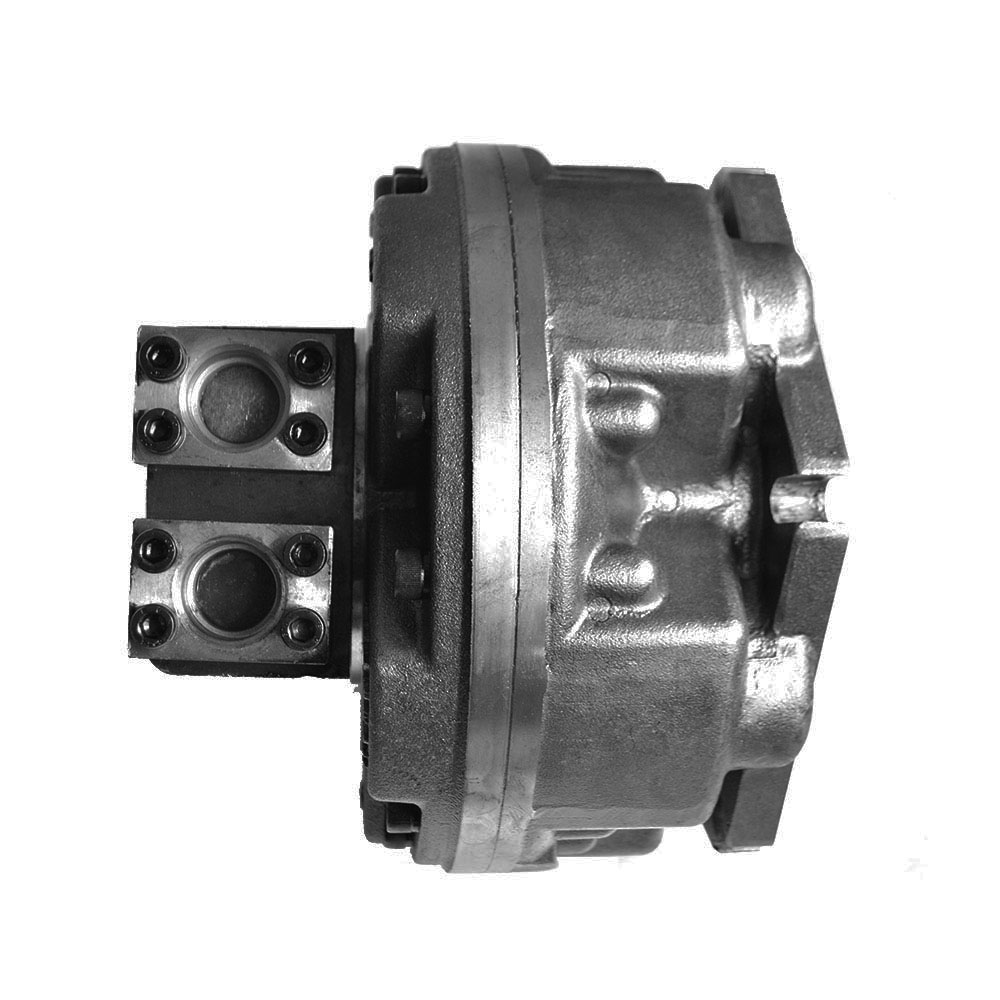

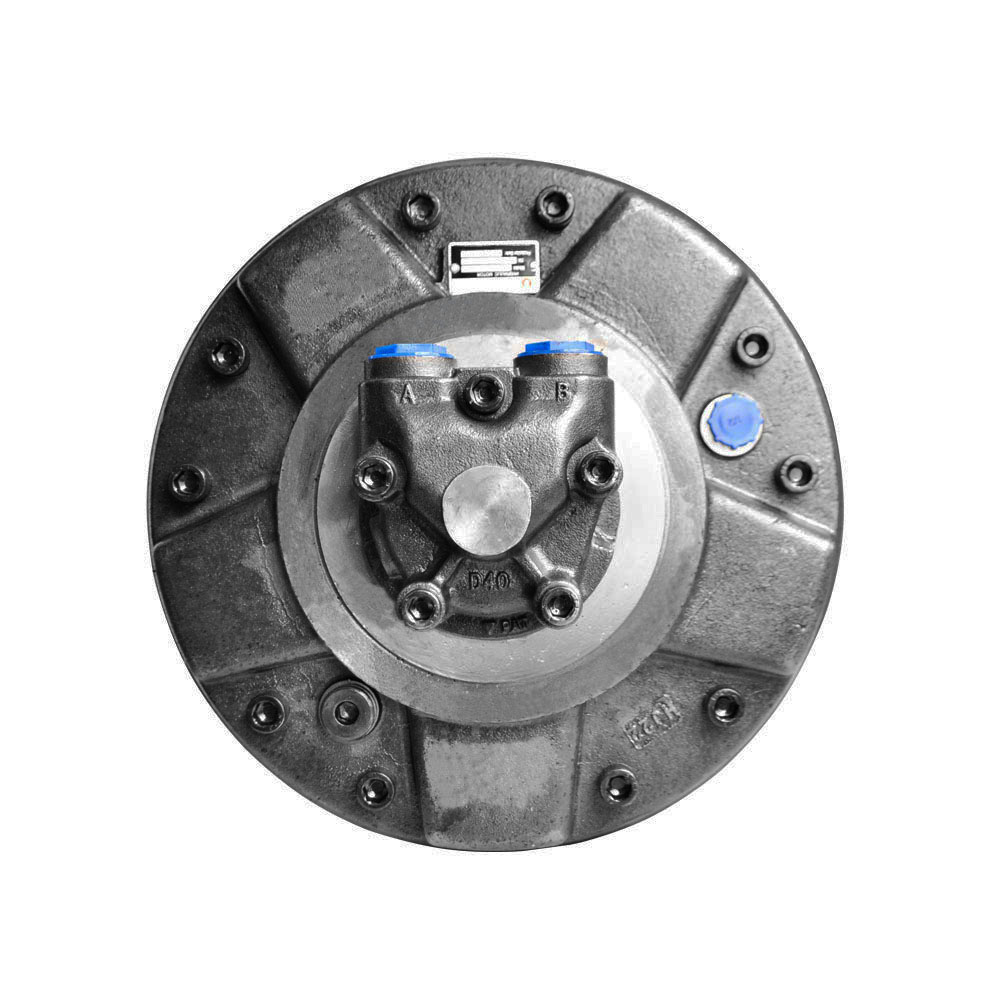

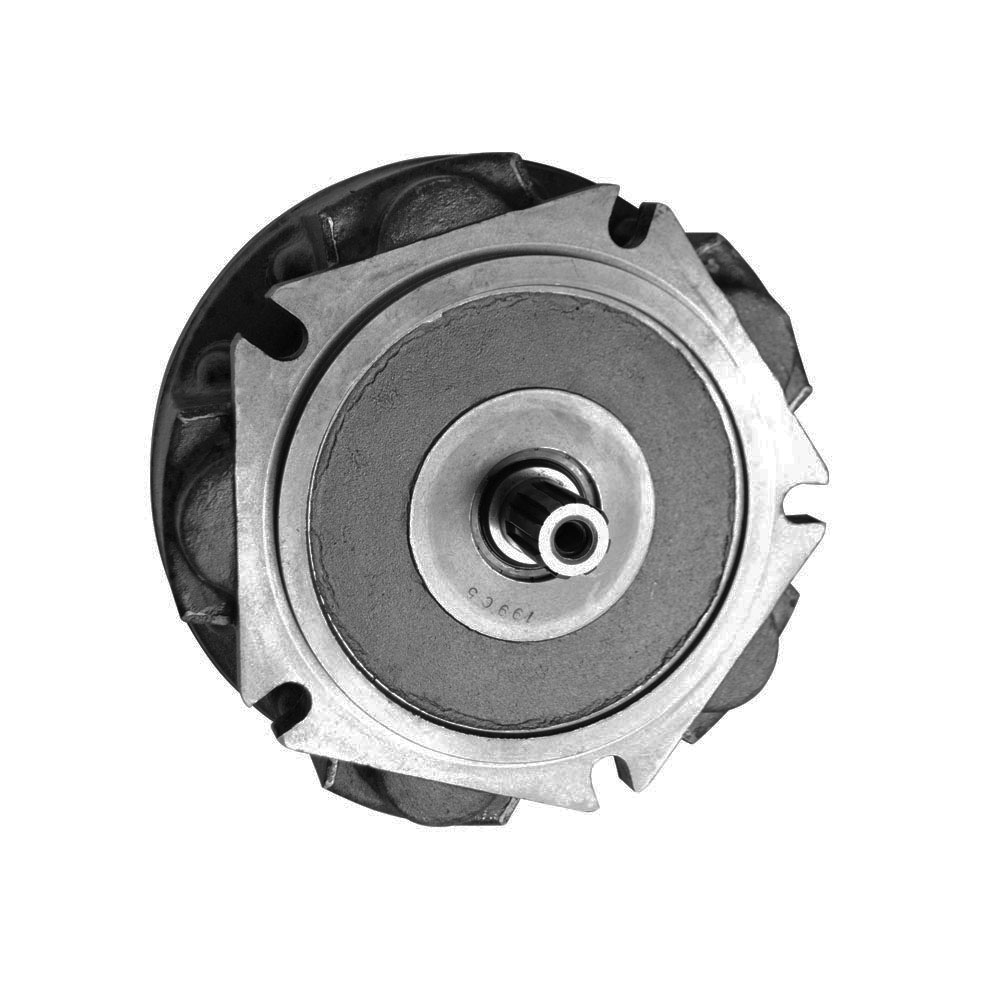

XSM4 Series OEM 5-Piston Design Hydraulic Motor, Radial Piston Hydraulic Motor for Auger Drive
| FOB Price: | 600.00 - 900.00 USD/Piece |
|---|---|
| Supply Ability: | 2,000 Piece(s) per Month |
| Shipping: | Support air and sea transportation |
| Payment Terms: | L/C, D/A, D/P, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Wooden box |
Quick Details
- Brand Name: XINCAN
- Certification: OTHER
- Type: hydraulic motor
- Voltage(V): 25
- Output Power: .
- Model Number: XSM05
- Theoretical displacement(ml/ R): 790
- Rated pressure(Mpa): 25
- Peak pressure(Mpa): 40
- Rated torque(N.m): 2400-5125
- Continuous speed(r/min): 96-205
- aximum speed: 0.4-400
- Maximum speed(R/Max): 450
- Weight (KG): 120
Specifications
XSM series motors are a result of the many years' of experience based on Italy technology, and incorporate a number of design variations with respect to the technology intended to increase the strength of the motor casings and the load capacity of the internal dynamic components. the result is the series of motors with high continuous power ratings, both because of the reduced internal specific loads, and because of the high mechanical and volumetric efficiency that contribute in reducing the amount of heat produced and therefore also the negative effects associated with it.
Application: Due to above these advantages, it has been widely applied in all kinds of hydraulic transmission system such as plastic injection machine, ship and deck machinery, construction machinery and equipment, hoist and transport vehicle, heavy metallurgical machinery, petroleum and mine machine, light industry equipment, lath, light industry equipment and drilling machine etc. In particular, it can be well available in driving screw rod of injection machine, hoisting winches and capstan, and driving various slew drives.
