20 Ton/h SZS Series Water Tube Gas/Oil Fired Steam Boiler for Food Industry/Food Plant

FOB Price:	9999.00 - 10000.00 USD/Set
Supply Ability:	50 Set(s) per Month
Shipping:	by ship
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	1.20&40 container or 20&40 flat container packing, according to the model of boiler. 2.the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box. 3.The products could be transported by ship and train, customers could designate the ports.

Quick Details

Brand Name: Jinzhen Boiler
Style: Horizontal
Pressure: Low Pressure
Usage: Industrial
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Weight: 32ton
Output: Steam
Model Number: SZS20-1.25
Fuel: Gas-fired
Structure: Water Tube
Type: Natural Circulation
steam capacity: 20 ton/hour
pressure: 0.7Mpa-2.5Mpa
temperature: 170-225C
water supply temperature: 104C
fuel consumption: 1500kg/h
advantage: double drum
warranty: 2 years

Specifications

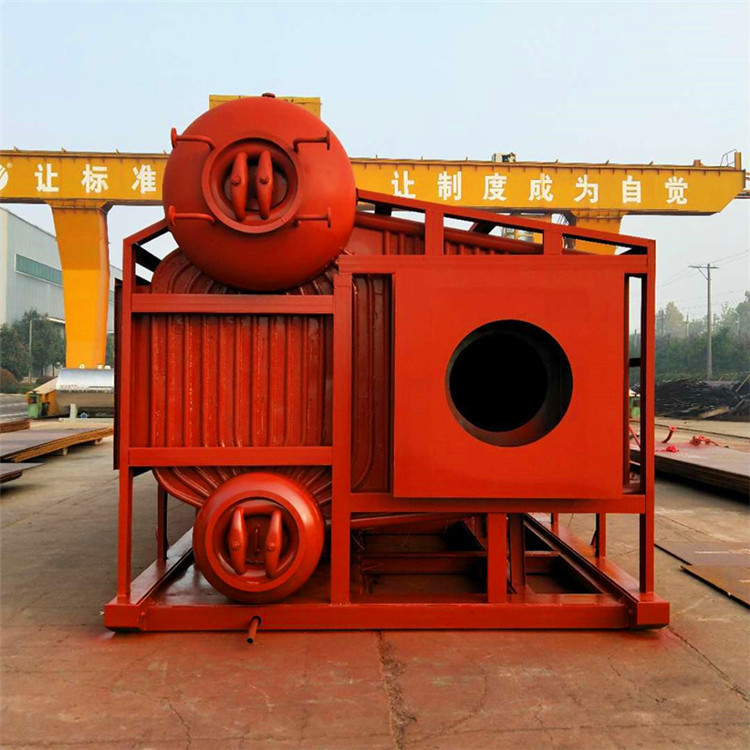

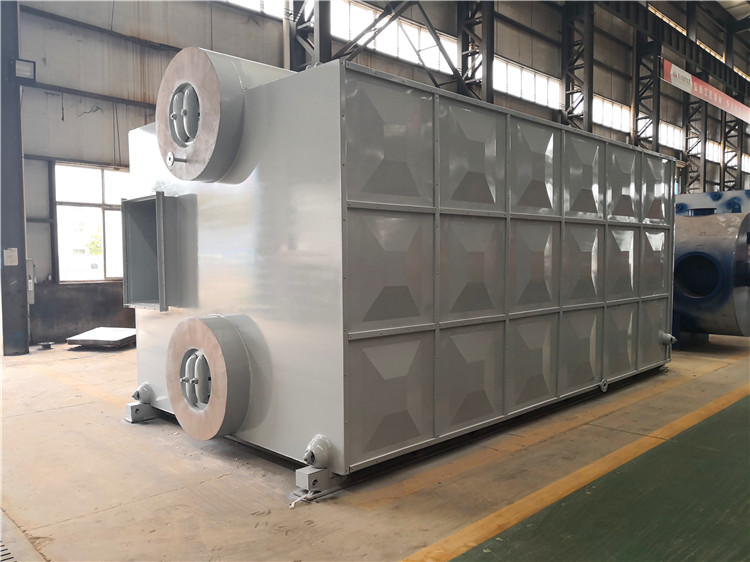

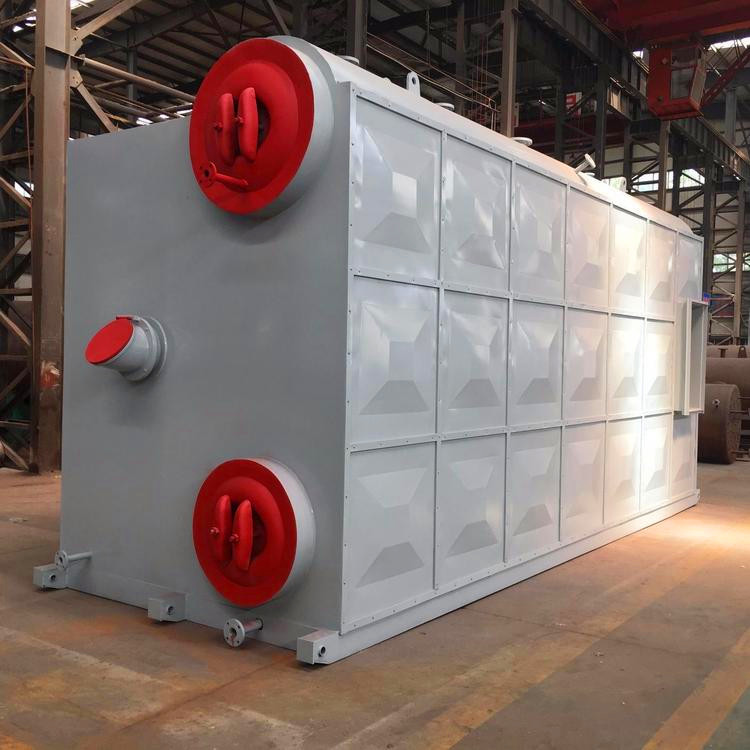

the SZS fuel gas boiler is a double-drum vertical chamber-fired boiler, composed of upper and lower drums, membrane water walls, burners, superheaters, convection tube bundles, economizers, and decontamination devices. both the water wall of the furnace and the convection flue adopt a membrane wall structure, which reduces the use of refractory bricks. In addition, the boiler has the advantages of energy saving, high efficiency, environmental protection, short installation cycle, fully automatic operation, simple operation, perfect protection function, etc., which can not only meet the needs of industrial heating, but also meet the heating needs of small power stations. A very popular boiler on the market.

D-type layout

Compact structure, small volume

Good flame fullness.

Membrane water wall structure

this boiler is a quick-assembled,the convection tube bundle on the left and the furnace on the right. during heating process, the flue gas generated by furnace combustion enters combustion chamber. Convection tube bundle area from the smoke outlet at the end of the furnace, then turns to economizer and condenser made of finned tube, and finally passes through flue and chimney.

Technical Parameter

Model	Rated Evaporation	Rated Steam Temperature	Working Pressure	Water Supply Temperature	Heating Area	Overall Dimension
Model	(t/h)	(℃)	(Mpa)	(℃)	()	(mm)
SZS10-1.25-Y(Q)	10	194	1.25	20	340.23	850058654670
SZS15-1.0-Q	15	184	1	104	632.99	797046283470
SZS20-1.25-Y(Q)	20	194	1.25	105	556.64	1222068954465
SZS25-2.45-Y(Q)	25	225	2.45	105	714	10860700004850
SZS30-1.25-Y(Q)	30	194	1.25	105	767	1290070004850
SZS35-2.45-Y(Q)	35	225	2.45	105	958	1291070004850
SZS50-2.45-Y(Q)	50	225	2.45	105	1230	13200120004700
Note: Parameter is for reference only, if any changes should follow the factory technical data.

BoilerFeature

1. this kind of boiler adopts the structure of double longitudinal drums and D-type furnace. Water tube design, the economizer and other auxiliary heating surface are fixed in the rear. The combustor is located on the front wall. The convection tube bank and rear heating surface from the back of the furnace, and then into air through the chimney.

2. Boiler capacity from 4-60ton/hr, pressure up to 50 bar

3. Body Structure Features: for the double drums longitudinal D-type boiler, the pressure body has a good state of stress. Drums and other important pressure parts won't be radiated and eroded by high temperature flame. Pressure parts, with small thermal stress, can stretch out and draw back freely, and can reach higher safety margin.

4. Auto protect, long-distance control, safety operation.

20 tonh SZS Series Water Tube GasOil Fired Steam boiler for Food industryfood plant
this steam boiler is widely used in chemical industry, plastics industry, coatings and automotive industries, bitumen industry, construction equipment industry, shipbuilding industry, apparel clothing, washing, ironing, the pharmaceutical industry, biotechnology, food industry, sauna and beauty, hotels, restaurants, sports, fitness and other places where need energy.

1. the brand of burner?

the brands of burner are Italy Baltur, Rellio, Elco, etc.

2. What is the thickness of combustion chamber?

the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.

3. What is the advantages of fire tube boiler?

this fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1!

4. Details of electric control cabinet.

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

5. What is the inlet pressure of gas burner?

the inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
