Sanitary Stainless Steel 3 Way Tri Clamp Manual Ball Valve

FOB Price: 12.00 - 20.00 USD/Piece
Supply Ability: 4,000 Piece(s) per Month
Payment Terms: L/C, T/T, Western Union, MoneyGram
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China

Quick Details

  • Brand Name: SANSUN
  • Temperature of Media: Medium Temperature
  • Material: Stainless Steel
  • Pressure: Medium Pressure
  • Standard or Nonstandard: Standard
  • Model Number: SS-V201
  • Port Size: DN25-DN100, 1"-4"
  • Media: Water
  • Power: Manual
  • Structure: Ball
  • Certificate: Ce, FDA, ISO 9001
  • Body Material: SS304, SS316L
  • Working Pressure: 10 Bar
  • Acting Mode: Manual or Pneumatic or Electrical


Product Name: Sanitary Stainless Steel 3 Way Tri Clamp Manual Ball Valve
Valve Body Material: 1.4404/1.4301, SS304/SS316L(Forged)
Seal Material: EPDM (standard) conforms to FDA177.2600
Surface Finishing RA<0.8 um
Operating Principles: the ball valve is installed in any to pipeline and equipments for to controling.It is specially used in brewing industry.
Max Working Pressure: 10Bar(DN25 to DN100), 8 bar(DN125 to DN150),  5 bar(DN200 to DN300)
Max. Working Tem.: 120 degree C(EPDM)
Availably Size: DN25-DN100,1"-4"
Features Compact and robust design
the valve body can be changeable with any kind of connection
Availably standard: DIN/SMS/RJT/ISO/IDF
Operated: Manual
Options Gasket: EPDM, silicone or Viton
Connection:weld,clamp,thread,weld thread,flange
Hanld:two-position handle,three-position handle,four-position pull handle,multi-position plastic handle and multi-position stainless steel handle
Certificate: PED/97/23/EC, FDA.177.2600
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Operating Torque (N.M) DN25/1" DN40/1.5" DN50/2" 2.5" DN65 3" DN80 DN100/4" DN125 DN150
3 4 5 10 12 14 18 25 40 55

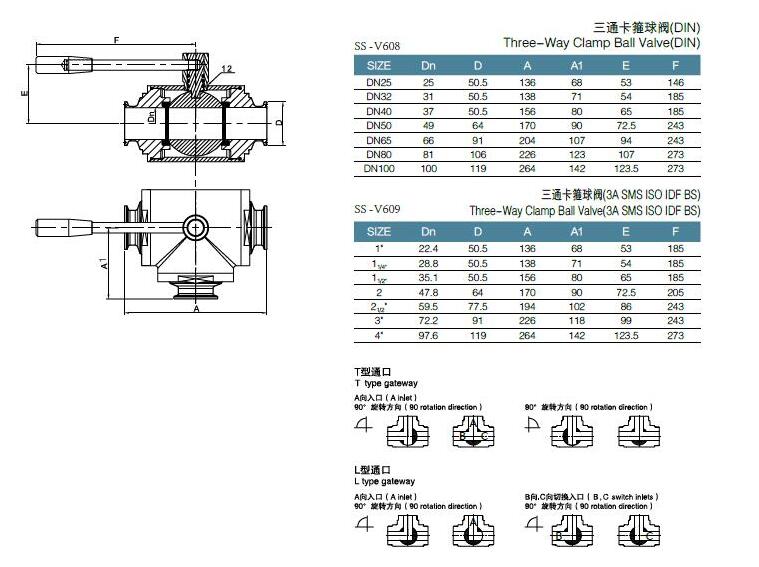

Ball Valve Parameter Drawing Date Sheet

SANSUN Factory Capacity FAQ
Factory Square Meter 3000 m3 Q: DO YOU HAVE MILL TEST CERTIFICATE?
Number of employees 105 Workers + 10 officers Yes, Each order is traceable by Material certificate EN10204 3.1, and we also can offer pressure testing report, roughness test report if Client need.
Number of Engineers 3 designers +2 CAD drawers
Number of Inspectors Raw Material     (3) Q: DO YOU HAVE PRODUCT WARRANTY
Finish Product    (5) Yes,12 months warranty. 100% inspection on finished products before dispatch. Inferior products can be returned or replaced. Repair parts is supplied for replacement.
Workshop Equipment 10--Mazak CNC Machine
6--HEADMAN CNC Machine Q: WHAT'S the MOQ?
1--of automatic CNC center No MOQ for standard products. Customized products can be discussed.
4--plain lathe Q: MAY I HAVE FREE SAMPLES?
4--Press Machine Free samples can be provided for starting cooperation, Freight is collected by Client.
3--bending Machine Q: how LONG IS the DELIVERY TIME?
2--Cutting Machine Standard item are in stocked--Normally 3-5 days. Bulk order usually takes about 20-25 days.
2-- Chamfering Machine Q: WHY WOULD I CHOOSE YOU?
10--Polishing Machine 1.Hard-working labor worker and advanced machine ensure large production capacity. It will give our clients fast delivery time.
2--Laser marking Machine
2--Chamfering Machine 2. Professional engineer and designer ensure the product parameter is well manufatcured and every month, we will have new products to help our client's enlarge market.
Testing Equipment 2--Pressure Testing Machine
1--Surface roughness device 3. 100% inspection on finished products before dispatch, give our clients good quality products
2--Spectro Instrument Gun 4. High effective sales team quick response to any quote and complaint.
