Qingdao Bestech Machinery Co., Ltd.
China Manufacturer with main products: Shot Blasting Machine, Foundry Machine, Sand Mixer, Sand Molding Machine, Core Shooter, Dust Collector, Resin Sand Molding Line, Clay Sand... |

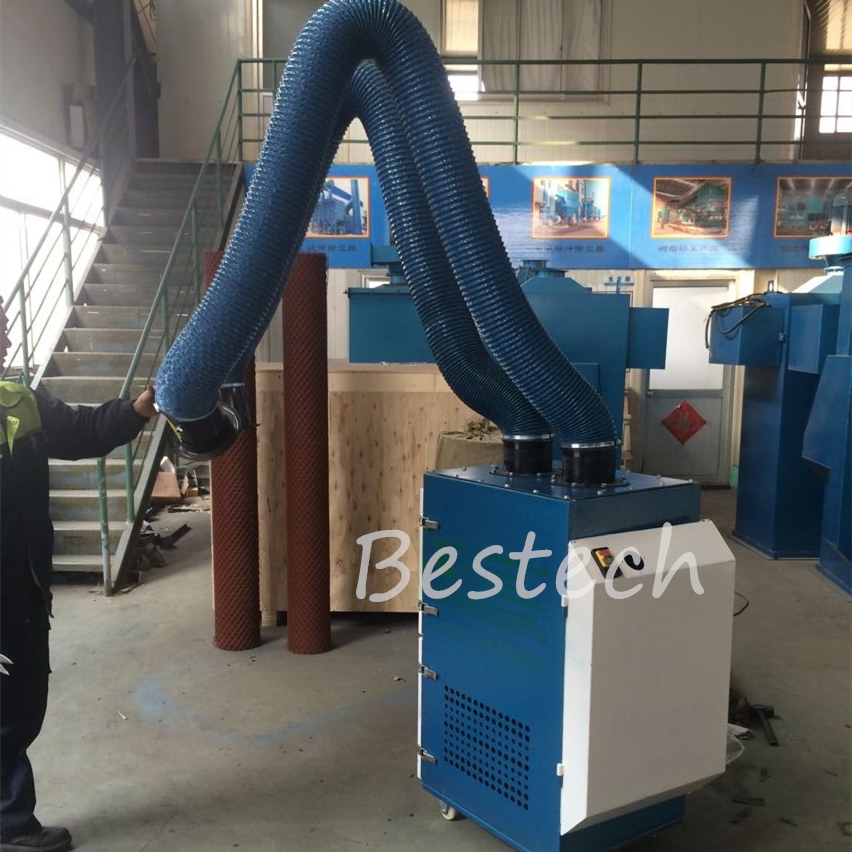

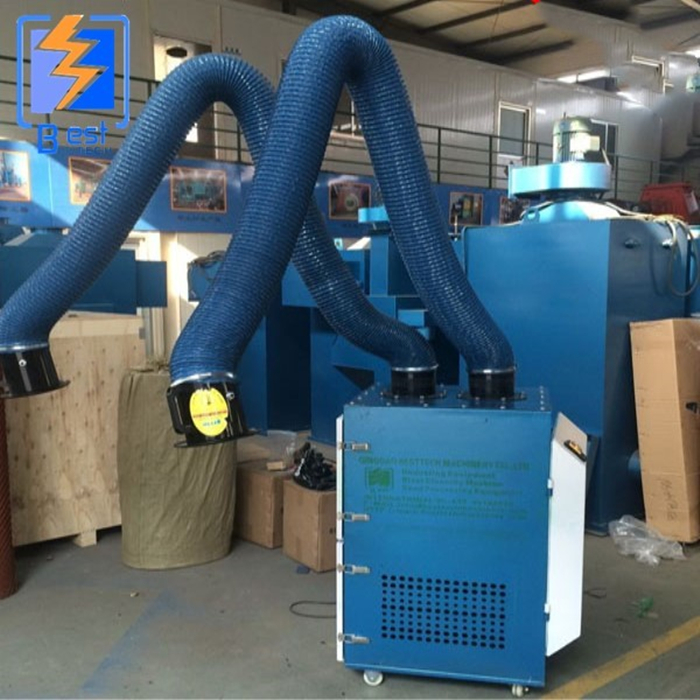

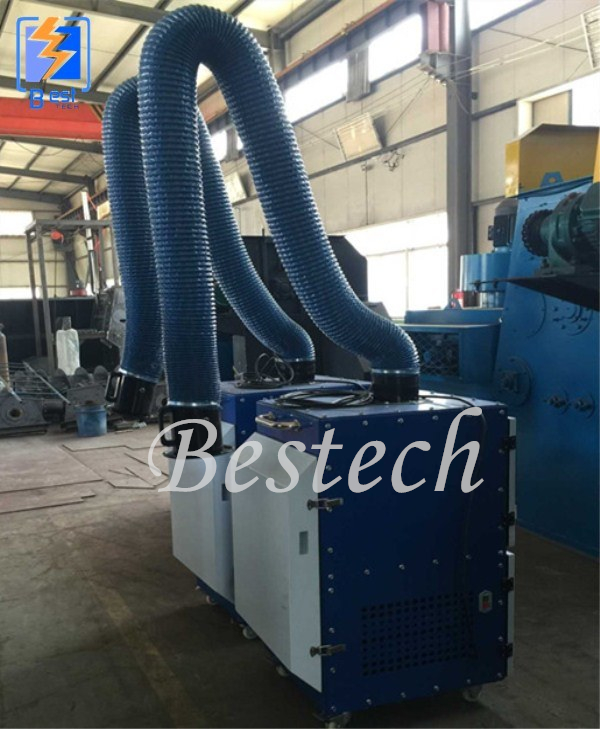

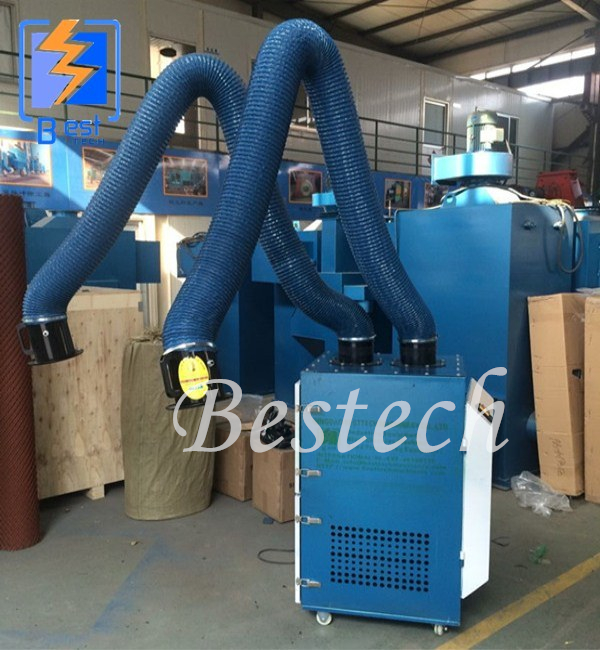

Welding Fume Dust Collector with Mobile Suction Arm
| FOB Price: | 2000.00 - 20000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Month |
| Shipping: | Qingdao Port |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden box or according to customer's requirement |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE ISO
- Brand Name: bestech
- Condition: New
- Weight: 900
- Dimension(L*W*H): 1100*1100*1500
- Model Number: HR1-1
- Minimum Particle Size: 0.05
- Efficiency: 99.99
- Type: Fabric Dust Collector
- color: customized
- voltage: customized
Specifications
the Dust Collector in our environmental protection division total including three categories one hundred and
Twenty varieties,absorbed the advanced technology from Germany, Japan, Denmark and other countries,
Divided into series of high efficient heavy flow reverse pulse filter cartridge dust collector,the back pulse
Jetting bag dust collector, mechanical shaking bag dust collector. Mainly used in workshop, shot blasting
Equipment etc.
Cartridge Dust Collector Usage:
the filter dust collect is widely used for steel , food ,refractory material ,Abrasives,mineral ,chemical industry.
Cartridge Dust Collector Features:
1. High efficiency, 99.9% fine dust can be filtered.
2.Save space, compare with the bag dust collector, one filter can replace 7-9 bags, it has large filter area.
3 .the filter can use for longer time, the material of filter is polyester fiber, besides, a dust board is installed the
dust entrance,so that the dust can't impact filter directly.
4.Easy to maintain. Because the filter area is large, it's easy to install and change.
5. There are wheels on the bottom of the dust collector, can move everywhere freely.
6.the surface of box is stoving varnish, looks very nice.
Cartridge Dust Collector Equipment Composition and Structural Characteristics:
the machine constituted by dust chamber, fan, ash hopper, pulse valve, pulse control meter, filter cartridge,
Air bag, butterfly valve and so on.
If any requirement please feel free to contact us cassie(at)
Technical parameter:
| type | Number of cartridge | Filtering area(m2) | Air volume(m3/h) | Cartridge specification | Velocity of filtering (m/min) |
| GHR2-8 | 8 | 80 | 3800 | (365-290)*660 | 0.7-1m/min |
| GHR3-12 | 12 | 120 | 5800 | ||
| GHR3-24 | 24 | 240 | 11500 | ||
| GHR4-32 | 32 | 320 | 15400 | ||
| GHR4-48 | 48 | 480 | 23000 | ||
| GHR4-64 | 64 | 640 | 30700 | ||
| GHR4-80 | 80 | 800 | 38400 | ||
| GHR4-96 | 96 | 960 | 46100 | ||
| GHR4-112 | 112 | 1120 | 53800 | ||
| GHR4-128 | 128 | 1280 | 61400 |
