Oil Steel Pipe Surface Cleaning Shot Blasting Machine

FOB Price: 2000.00 - 20000.00 USD/Set
Supply Ability: 100 Set(s) per Month
Shipping: Qingdao Port
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: wooden box or according to customer's requirement

Quick Details

  • Machine Type: Abrator
  • Use: Burnishing,Deflashing,Descaling / Stripping
  • Certification: CE
  • Feature: Non-Ionic,Non-Toxic,Rust / Corrosion Inhibitor
  • Brand Name: bestech
  • Machine Type: shot blasting
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Dimension(L*W*H): 12500*2500*5300
  • Power(W): 17.5
  • Material: Metal / Coil
  • Cleaning Type: Clean-In-Place (CIP)
  • Fuel: Electric
  • Model Number: QG
  • Condition: New
  • Voltage: customized

Specifications

Steel pipe inner wall special sandblasting equipment shot blasting machine



Regarding steel pipe with diameter of 16~600mm, we adopts V type conveyor which have an angle with steel pipe center line, steel pipe can rotation while going forward.



Regarding steel pipe with diameter of 159~2800mm, we adopts roller transmission, angle between roller is adjustable, running speed and rotation speed can be adjustable with large diameter, blasting wheel adopts bottom blasting distribution, cleaning efficiency is high, result is good.



Shots material circulation purification system takes overflow induction controllable full multi-stage curtain winnowing splitter and special polyester core elevator conveyor, achieves shot material sorting and recycling.



Blasting room adopts multi-layer seal curtain which is suitable for different diameters, shot blasting, dust removal system uses impulse reversal blowing filter cartridge dust collector, dust removal is good, life is long.



this equipment can be used for water, gas, mining, oil and pipe coating pretreatment, the seabed or desert gas such as duct blaster, it can improve the appearance quality of the product components and the state of the surface craft.



Equipment main structure and characteristics of Steel pipe shot blasting equipment:

QG Series Steel Pipe shot blasting machine Is consisted of shot blasting chamber, blasting wheel assembly, shot material cycle purify system, roller transmission system, dust removing system, electric control system and so on.

1.Shot blasting chamber

Shot blasting chamber is welded by Q235 Steel plate and steel frame. Meanwhile, shot blasting chamber equip testing door, which is the seal space to clean the workpiece. Inside of shot blasting chamber is protected by cast iron protective plate (material ZCr5,thickness 10mm), meanwhile, it is impacted by protective cap.

2.Blasting wheel assembly

Two sides of top shot blasting machine equip two sets blasting wheel assembly. the location of blasting wheel is calculated by computer three-dimensional dynamic simulation. the location and angel are calculated by computer to assure the workpieces completely cleaning.

3.Shot material cycle purify system

It is consisted of screw conveyor, bucket elevator, shot and grit separator, supplying shot sluice valve ,slipping shot pipe and so on.

4.Roller transmission system

Transmission roller consists of charging roller and discharging roller.

5.Dust Collector

It consists of dust collector body, blower, settling tank and pipeline.this equipment takes two grade dust removal, the dust goes through settling tank first, the large grain will fall down through inertia, then large particles will come out by filter cylinder type.

Technical parameter:

Parameter

Dia of cleaning size(mm)

Cleaning speed(m/min)

QGN100

50-300

1-4

QGN700

325-720

1-2

QGN1000

720-1016

1-4

QGN1500

1016-1500

1-4

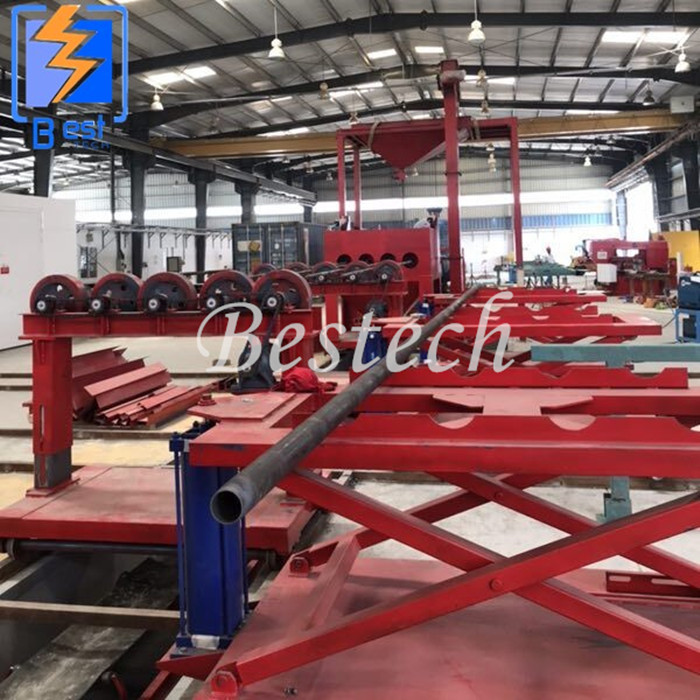

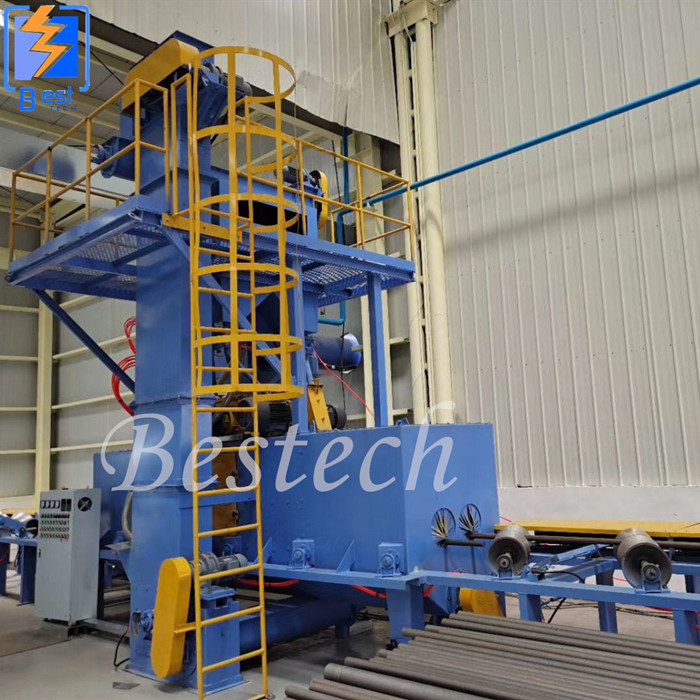

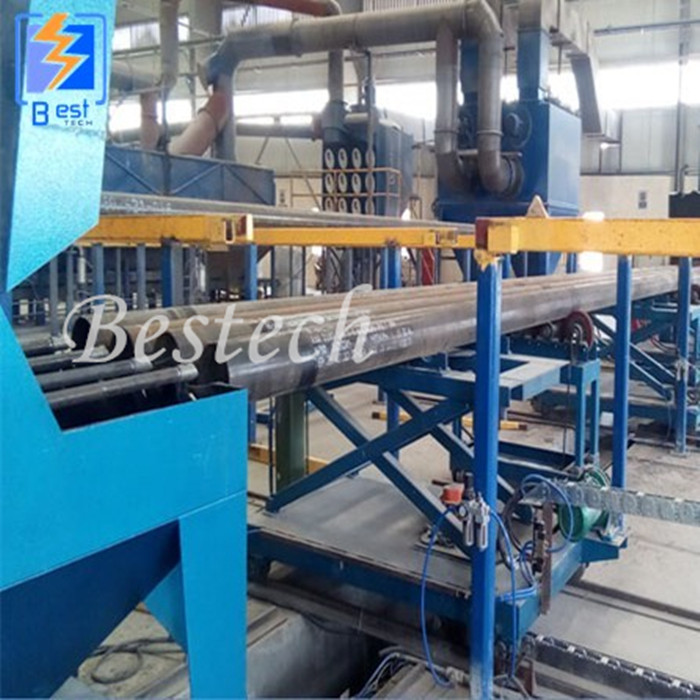

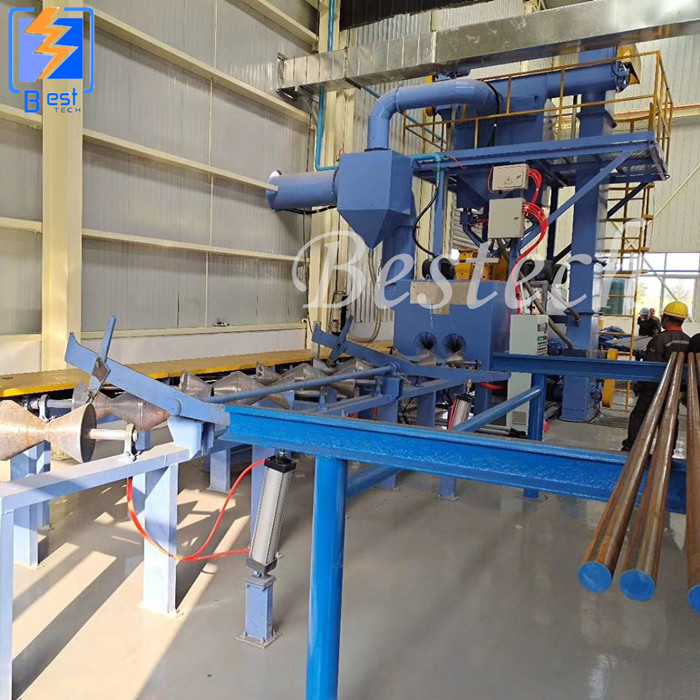

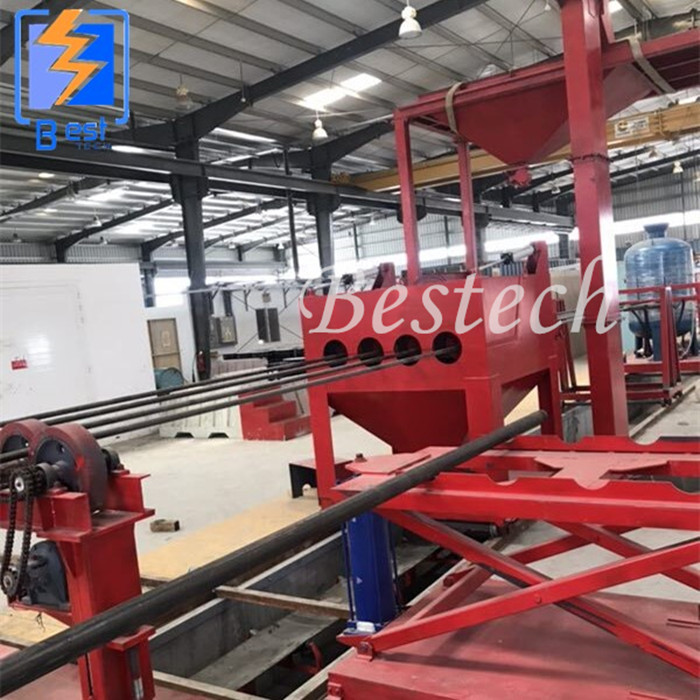

Oil Steel Pipe Surface Cleaning Shot Blasting Machine

Oil Steel Pipe Surface Cleaning Shot Blasting Machine

Oil Steel Pipe Surface Cleaning Shot Blasting Machine
Oil Steel Pipe Surface Cleaning Shot Blasting Machine
Oil Steel Pipe Surface Cleaning Shot Blasting Machine
