Save Energy & a Vast Market of Jaw Crusher Machinery Equipment PE Series Stone Machine Low Price Mobile Diesel Engine

FOB Price: 2000.00 - 5000.00 USD/Set
Supply Ability: 50 Set(s) per Month
Payment Terms: T/T
In Stock

Related products from verified members

Export Markets: South America, Southeast Asia, Africa, Mid East
Place of Origin: Henan in China
Packaging Details: standard packing or as per your request

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 12 months
  • Brand Name: zhengzhou zhongjia
  • Motor Type: AC Motor
  • Condition: New
  • Certification: iso
  • Weight: 2.8 tons
  • Dimension(L*W*H): 1300x1450x1400
  • Model Number: pe250x400
  • Capacity(t/h): 5-20
  • Power(W): 750
  • Application: primary crushing for stones and minerals
  • Type: Jaw Crusher
  • feed opening: 250x400mm
  • max feed size: 210mm
  • discharge port: 20-60mm
  • color: required
  • capacity: 5-20tph
  • power: 7.5kw

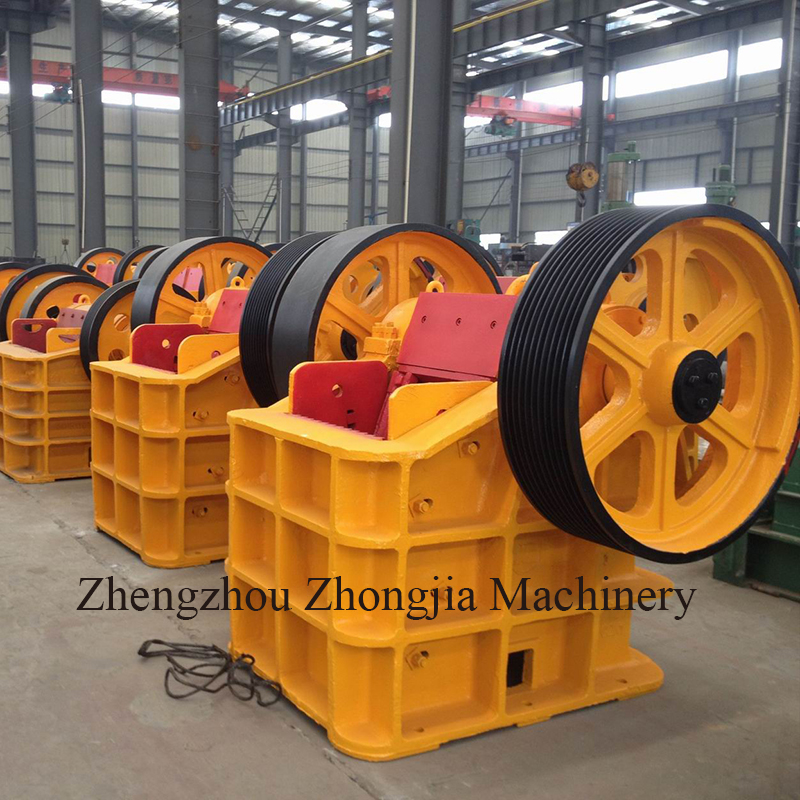

Introduction of Our Mining Stone Jaw Crusher
Our stone crusher machine, a type of jaw crusher is widely used in mining, railway construction, water conservancy project, metallurgy, chemical, building material industries. It is mainly used to crush rock and ore, whose compression strength is less than 320 Mpa. Jaw crusher, your preferred primary crusher, is used for coarse crushing and fine crushing.

Feeding size:≤1200 mm
Production capacity:1-1000 t/h
Application range:Widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries.
Applicable material:Granite, dolomite, river pebble, quartz stone, iron ore, calcite and other materials.

Advantages of Stone Jaw Crusher

1. Crushing cavity is deep without dead zone. that improves the feeding capacity and throughput;

2. Gasket discharge opening adjusting device enlarges adjustable range and increases the crusher's flexibility.
3. Reliable lubricating system, easy to replace components and maintain.
4. Simple structure, reliable working condition, low operation cost.
5. Energy saving: one jaw crusher can save energy of 15%-30%
6. Large adjustment range of discharge opening can meet different customers' requirements
7. Low noise and less dust


Working Principle of Stone Jaw Crusher

It is driven by motor. the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and cheek plate can be crushed and discharged through discharging opening

Save energy and a vast market of jaw crusher machinery equipment PE series stone machine low price Mobile diesel engine

Specification of Our Mining Jaw Crusher for Copper Ore



Max feeding

Size (mm)

Adjusting range
of discharge





PE-150*250 125 10-40 1-3 5.5 0.8 720*660*850
PE-250*400 210 20-60 5-20 15 2.8 1300*1090*1270
PE-400*600 340 40-100 16-60 30 7 1730*1730*1630
PE-500*750 425 50-100 40-110 55 12 1980*2080*1870
PE-600*900 500 65-160 50-180 55 17 2190*2206*2300
PE-750*1060 630 80-140 110-320 90-110 29 2660*2430*2800
PE-900*1060 685 230-290 230-390 110 33 2870*2420*2940
PE-900*1200 750 95-165 220-450 110 52 3380*2870*3330
PE-1000*1200 850 195-265 315-500 110 55 3480*2876*3330
PE-1200*1500 1020 150-300 400-800 160 100.9 4200*3300*3500
PEX-150*750 120 18-48 8-25 15 3.8 1200*1530*1060
PEX-250*750 210 25-60 13-35 30 5.5 1380*1750*1540
PEX-250*1000 210 25-60 16-52 30 7 1560*1950*1390
PEX-250*1200 210 25-60 20-61 37 9.7 2140*1660*1500
