Zhengzhou Zhongjia Machinery Co., Ltd.
China Manufacturer with main products: Different Type Crushers, Ball Mill and Etc. |

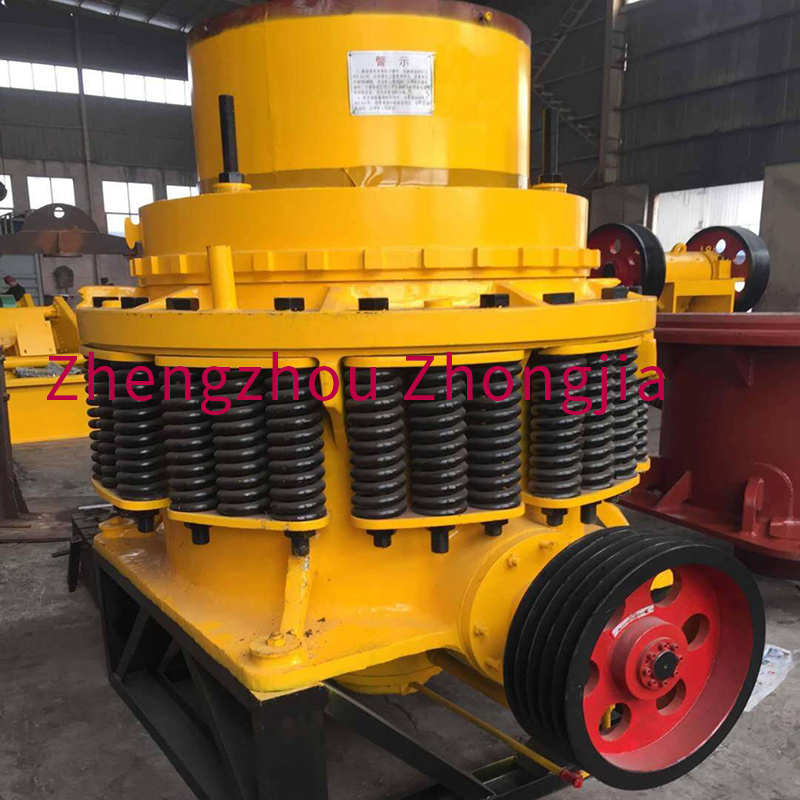

Pulley Spring Type Conical Crusher for Secondary Crushing Stage
| FOB Price: | 10000.00 - 50000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set(s) per Month |
| Shipping: | by shipping |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Mid East |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | standard packing or as required |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Brand Name: zhengzhou zhongjia
- Motor Type: AC Motor
- Condition: New
- Certification: iso
- Weight: 24.7 tons
- Dimension(L*W*H): 2805*2300*2980mm
- Model Number: pyb1200
- Capacity(t/h): 110-200
- Power(W): 110000
- Application: secondary crushing for stones
- Type: Cone Crusher
- cone diameter: 1200mm
- max feed size: 145mm
- adjustable range of discharge opening: 20-50mm
- color: required
Specifications
Spring cone crusher is widely used in metallurgical industry, construction industry, road building industry, chemical industry and phosphate industry, suitable for crushing hard and medium hard ore and rock, such as iron ore, copper ore, limestone, quartz, granite, basalt, and diabase.
the crushing chamber type is determined by the ore use:the standard type (PYB) is applied to secondary crushing; the medium type (PYZ) is applied to fine crushing and the short-head (PYD) are applied to ultra-fine crushing.
Advantages of Spring Cone Crusher
1. Reasonable structure advanced crushing principle and technical specification, reliable work and low cost.
2. Strong crushing ability; High efficient productivity; High capacity.
3. Reliable Hydraulic system providing safe and effective overload protection.
4. High automation adopting hydraulic adjustment and hydraulic clean cavity setting.
Applicable Materials
Suitable for crushing various kinds of ores and rocks of medium or above medium hardness
Working Principle
When the spring cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. the crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. the raw materials are pressed, impacted and finally crushed in the crushing chamber.
Main Specificaton of Spring Cone Crusher
Type |
Dia. of Cone |
Adjusting (mm) |
Max Feed |
Capacity |
Motor |
Weight |
Overall |
PYB-600 |
600 |
12-25 |
65 |
15-25 |
30 |
5.5 |
174012251940 |
PYD-600 |
3-13 |
36 |
5-23 |
30 |
5.5 |
174012251940 | |
PYB-900 |
900 |
15-50 |
115 |
50-90 |
55 |
10.18 |
199016402380 |
PYZ-900 |
5-20 |
60 |
20-65 |
55 |
10.19 |
199016402380 | |
PYD-900 |
3-13 |
40 |
15-50 |
55 |
10.27 |
199016402380 | |
PYB-1200 |
1200 |
20-50 |
145 |
110-200 |
110 |
24.7 |
280523002980 |
PYZ-1200 |
8-26 |
100 |
50-150 |
110 |
25 |
280523002980 | |
PYD-1200 |
3-15 |
50 |
18-105 |
110 |
25.6 |
280523002980 | |
PYB-1750 |
1750 |
25-60 |
215 |
280-480 |
155-160 |
50.6 |
361029504185 |
PYZ-1750 |
10-30 |
185 |
115-320 |
155-160 |
51 |
361029504185 | |
PYD-1750 |
5-15 |
85 |
75-230 |
155-160 |
50.5 |
361029504185 | |
PYB-2200 |
2200 |
30-60 |
300 |
590-1000 |
260-280 |
84 |
479034305080 |
PYZ-2200 |
10-30 |
235 |
200-580 |
260-280 |
85 |
479034305080 | |
PYD-2200 |
5-16 |
110 |
120-370 |
260-280 |
85 |
479034304852 |
