Liquid Filling Machine Bottle Filling Machine with 2/4/6/8/10 Heads

FOB Price:	2000.00 - 3000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	by sea,by air
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Hunan in China
Packaging Details:	1sets/wooden case

Quick Details

Type: Filling Machine
Brand Name: customized
Packaging Material: Glass,Plastic
Packaging Type: Bottles
Application: Beverage,Chemical,Commodity,Food,Medical
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Weight: 140kgs
Model Number: SN-YZ4
Power: 1.6KW
Voltage: 220V
Driven Type: Electric
Automatic Grade: Automatic

Specifications

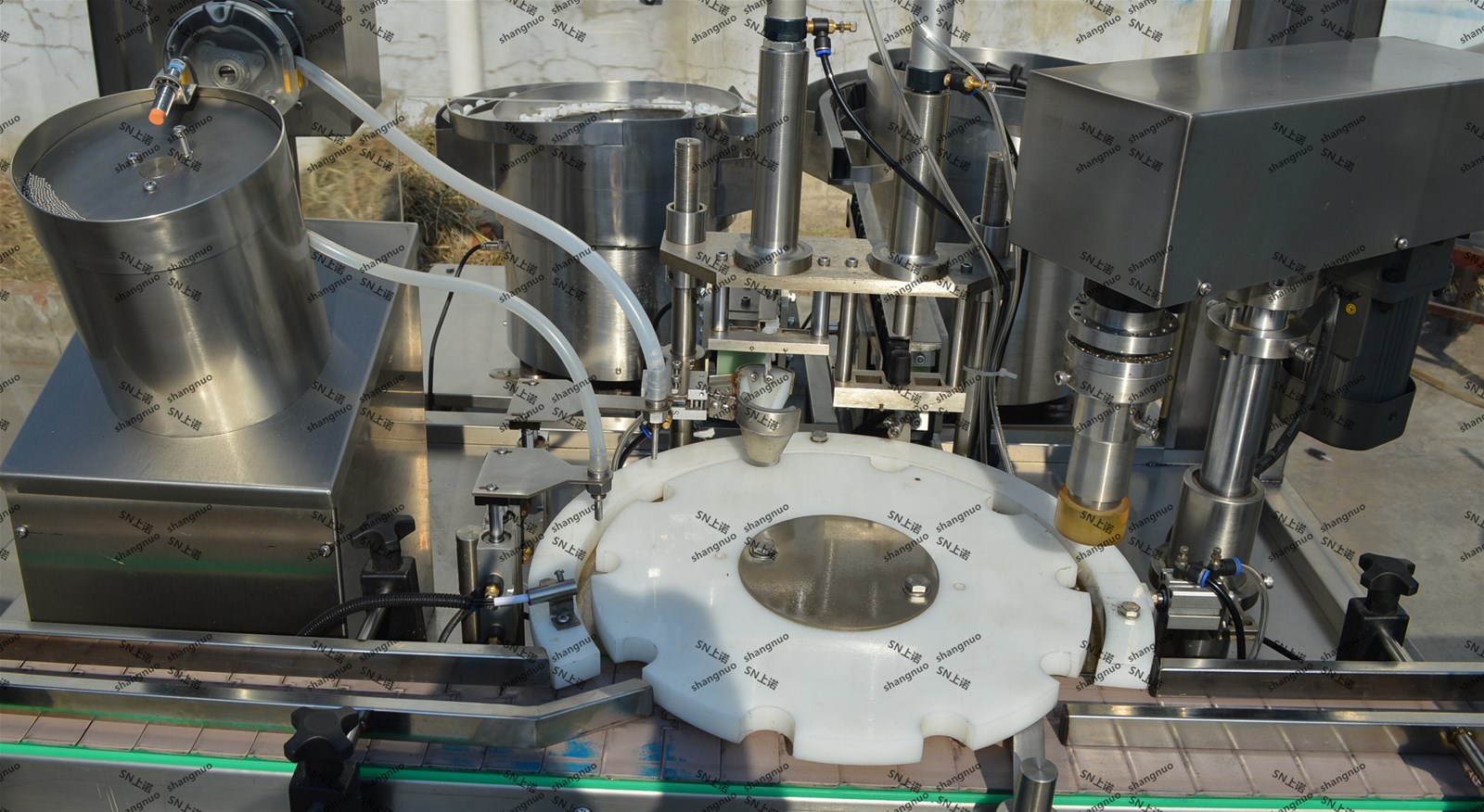

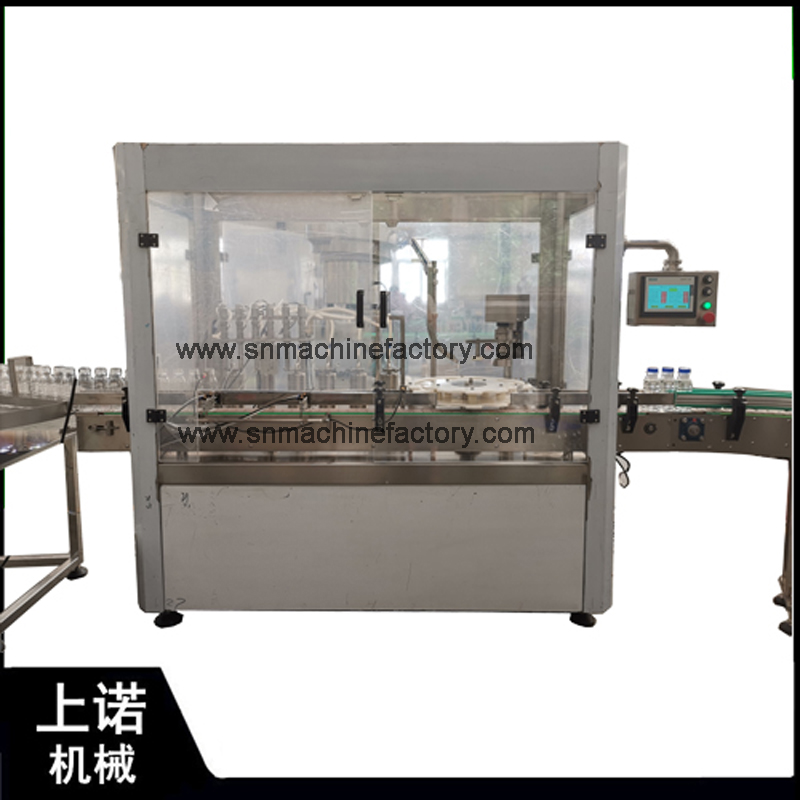

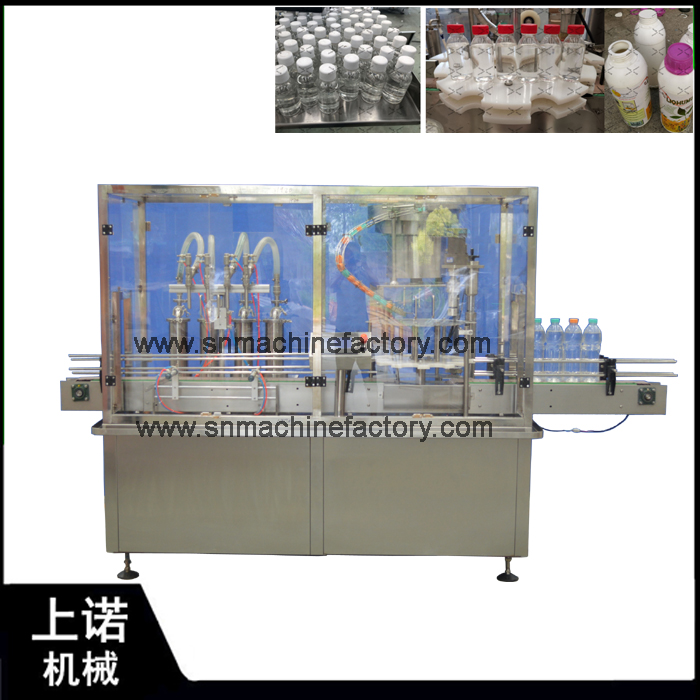

Machine name: SN-YZ4/6/8 Automatic Liquid Filling and Capping Machine
Application:this Machine is mainly used for filling and rolling lids of 30-1000ml aqua Liquid,such as: syrup enzyme oral liquid, alcoholic beverage, soy sauce and Vinegar oil, cod liver oil liquid calcium health products, liquid fertilizer, Essential oil, ink, disinfectant, injection, medical agent, industrial alcohol and all kinds of medical liquid. It's full Automatic filling, cover cap, screw/roll cap, adopt linear conveying filling, Screw/roll cap in rotary plate.PLC control Touch screen operation interface, with no bottle filling, no bottle cover and Other functions, high degree of automation, filling no leakage, the machine Design is reasonable, easy to operate.

Technical parameter:

Model	SN-YZ4	SN-YZ6	SN-YZ8
Filing head Number	4	6	8
Capping Head number	1	1	2
Filling volume	30-500ml(500-1000ml customized)
Production Capacity	10-50 bottles/min	20-70 Bottles/min	35-100 bottles/min
Power Supply	1 Ph. AC220V, 50/60Hz
Total power	1.6 KW	1.6 KW	2 KW
Net Weight	140kg	500kg	650kg
