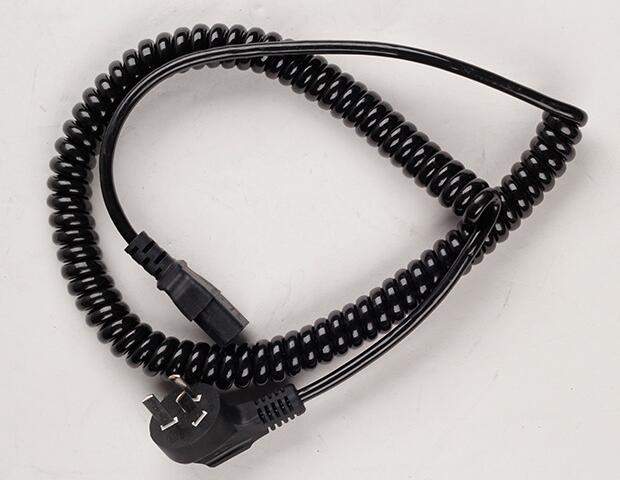

3-Phase Spiral Cable with Power Plug

Specifications

the following example is for you reference.

     Features of 3-phase spiral cable with power plug:

It has good elasticity and flexibility, and the extension length is 2-3.5 times of the original

Three phase spiral cable with power plug has the properties of cold resistance, wear resistance, oil resistance, high temperature resistance, low temperature resistance, flame retardant, UV resistance and corrosion resistance

Working temperature: according to customer requirements, cold resistance - 35℃~ - 40℃; high temperature: + 70℃~ + 100℃

     3-phase spiral cable with power plug,working current 18amp; rated voltage 300V / 450V. Inner conductor is composed of multi-core stranded copper wire; the number of cores is 1-4; and the black sheath is used. According to different application situations and requirements, the tensile length is 1.5m, 2.5m, 3.0m, 4.0m, 6.0m and 8m-20m respectively

Technical details:

     3-phase spiral cable with power plug can be manufactured with different materials according to different application range, such as PP, TPU, PUR, etc.

Name and dimension relationship of each part of spiral cable:

     (1) Helix diameter D: cable diameter for manufacturing spring cable;

     (2) Outer diameter D of spiral cable: outer diameter of spring cable;

     (3) Inner diameter D1 of spiral cable:  outer diameter of spring cable;

     (4) Spiral cable length L: the static length of spring cable without external force;

     (5) Working length l0 of spiral cable: dynamic length of spring cable under external force;

     (6) Spiral cable development length a: the total length of the straight line required for winding the spring cable;

     (7) Tail length of spiral cable: L1 and L2 are used to indicate tail length at both ends;

     (8) Spiral direction: there are left and right rotation, commonly used right-hand rotation, the drawing does not indicate the general use of right-hand rotation

Operation method of useage:

     the 3-core power spring wire is the wire that transmits current. the current transmission is usually point-to-point. 3-core power supply spring wire, AC rated voltage 450 / 750V and below, power, lighting, electrical device, instrument and telecommunication equipment connection and internal installation line. the 3-core power spring wire is mainly used for connecting cables of medium and light-duty mobile appliances (household appliances, electric tools, etc.), instruments and meters, power lighting, etc

Package:
   Carton packing. Plastic bag inside the bag;
