High Speed CNC Router Single/Double Side 4-Spindles PCB Routing Machine

FOB Price: 43550.00 - 43590.00 USD/Set
Supply Ability: 5 Set(s) per Month
Shipping: FOB Shenzhen
Payment Terms: T/T
In Stock

Related products from verified members

Place of Origin: Guangdong in China
Packaging Details: wooden case

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certification: ce
  • Brand Name: kexin
  • CNC or Not: CNC
  • Condition: New
  • Weight: 5200kg
  • Dimension(L*W*H): 3.24m*1.93m*1.62m
  • Power(W): 5k
  • Voltage: 380V
  • Model Number: R14KT
  • Drilling Speed: 60000RPM
  • Drilling diameter: 0.5-6.35mm
  • Milling diameter: 0.6-3.175mm
  • No. of Spindle: 4

Specifications

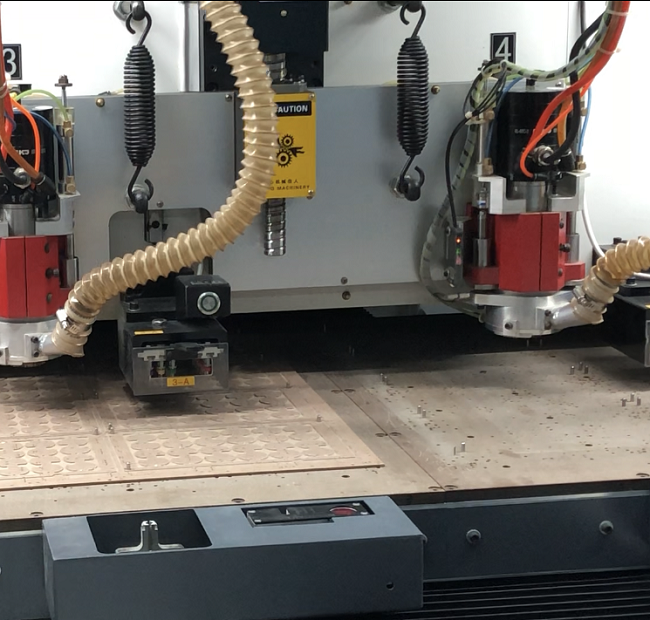

High Speed CNC Router Single/Double Side 4-Spindles PCB Routing Machine
High Speed CNC Router SingleDouble Side 4Spindles PCB Routing Machine
Product Description

Model PCB CNC Router R14KT
No. of Z axis 1
No. of Spindle  4
Spindle Speed 60k rpm / min
Processing area of each axis 580mm*730mm
XYZ axial movement stroke 600mm*825mm*55mm
Number of tools per axis 66 pcs
Drilling diameter 0.5-6.35mm
Milling diameter 0.6-3.175mm
XY Axial max. Movement speed 28m/min
 Axial max. Movement speed 25m/min
System resolution ratio 0.001mm
Positioning Accuracy ±0.01mm
Repeatability Accuracy ±0.005mm
Routing precision ±0.05mm
Power requirements 3P/380V/50Hz(±5%)/5KW
Compressed air requirement 400L/min
Cooling water requirement 18℃-25℃
Environmental temperature 20℃-25℃
Ambient humidity  50%-75%
Noise ≤75dBA

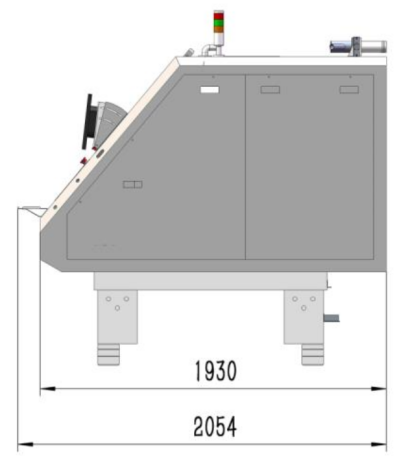

Machine measurement 3.24m*1.93m*1.62m

Special Features:

1.Manipulator pour tool knife can arbitrarily pick and place tool.

2.Every axis can process 66 tools, cartridge type tool box.

3.Automatic needle length detection function.

4.Automatic circulating water cooling, temperature monitoring can ensure the safe operation of the principal axis.

5.Dot-matrix automatic stripping, pick & place workpiece is convenient and efficient.

6.Pneumatic observation cover is safe and convenient.

7.the work origin of automatic memory file.

8.There is complete software and hardware limit protection.

9.Overheating overcurrent and overload protective measures.

Packing & Delivery

1. Trade Term: FOB Shenzhen USD by T/T in advance.
2. Discount is allowed against your quantity.
3. OED/OEM is accepted.
4. Delivery will be carried out by Express or your requirement.
5. Lead Time: 2~7 days after payment.

Our Service

1. High quality for our products and best inspection before shipping out.
2. Professional drawings as your request. We could provide drawing for our products and send you for checking to make sure our products could match up with requirement.
3. Customized could be allowed.
4. Samples for specified products could be provider.
5. Fast reply for your inquiry and quick lead time.
6. Spindle rebuilt service.
