Uiy Inc.
China Manufacturer with main products: RF Isolator, RF Circulator, RF Filter, RF Amplifier, Coaxial Terminator/ Attenuator, Power Divider / Splitter, Hybridge Combiner,... |

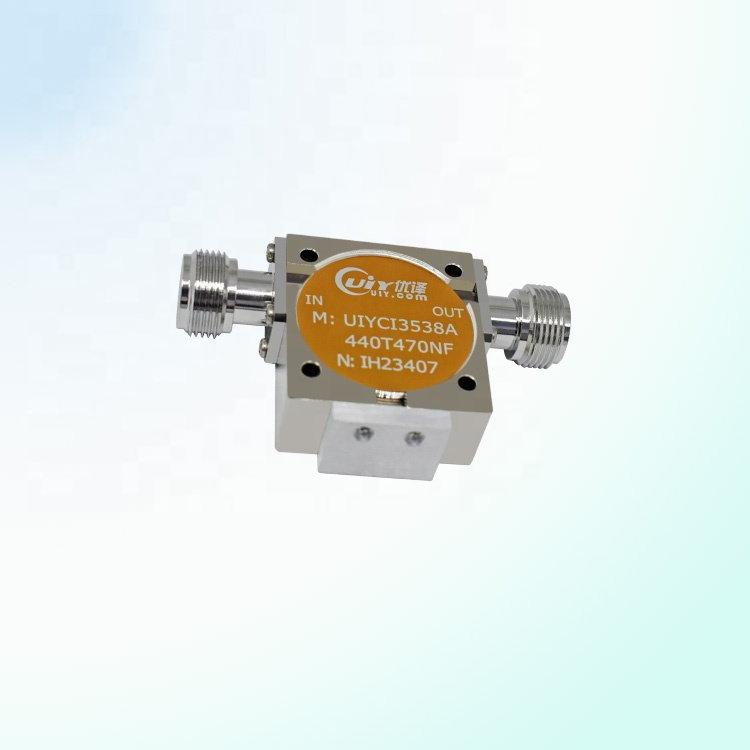

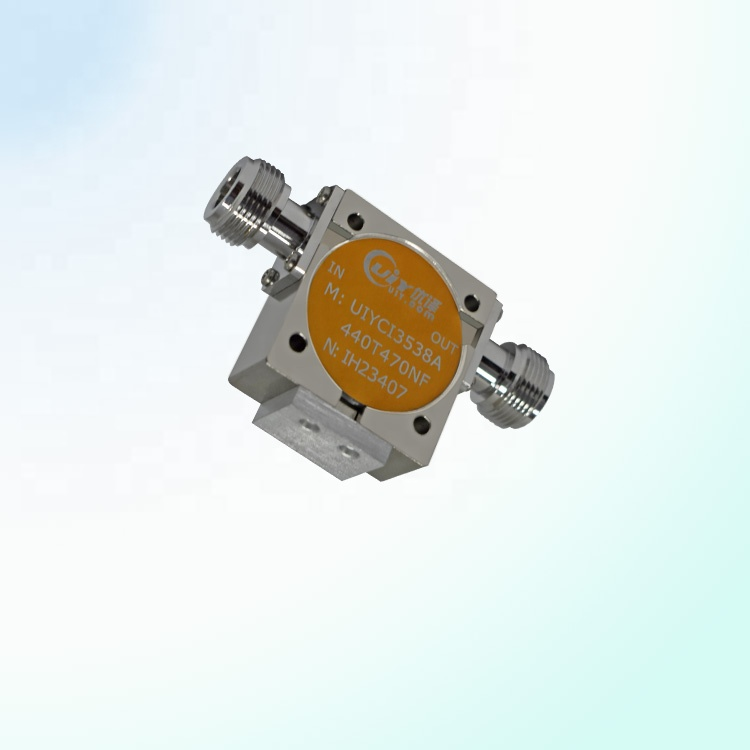

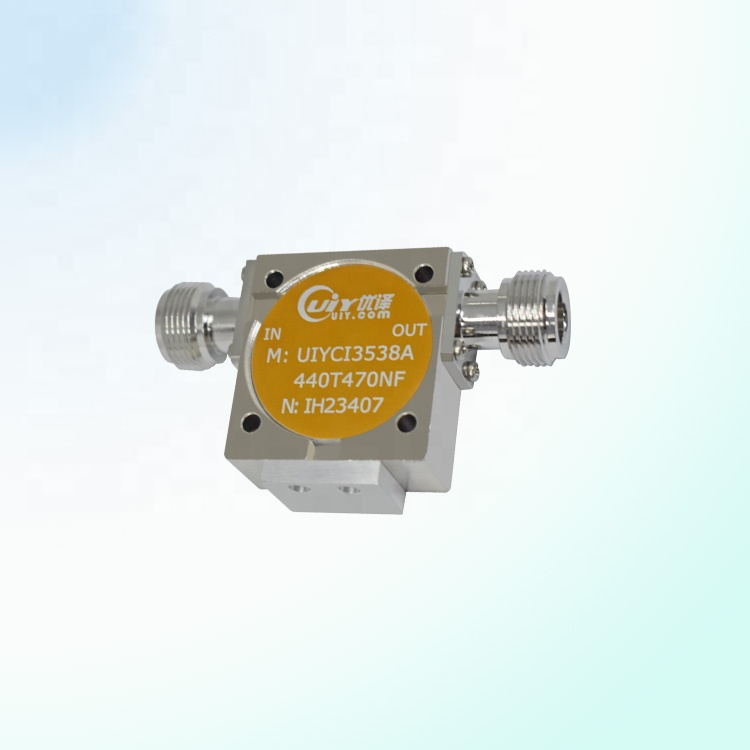

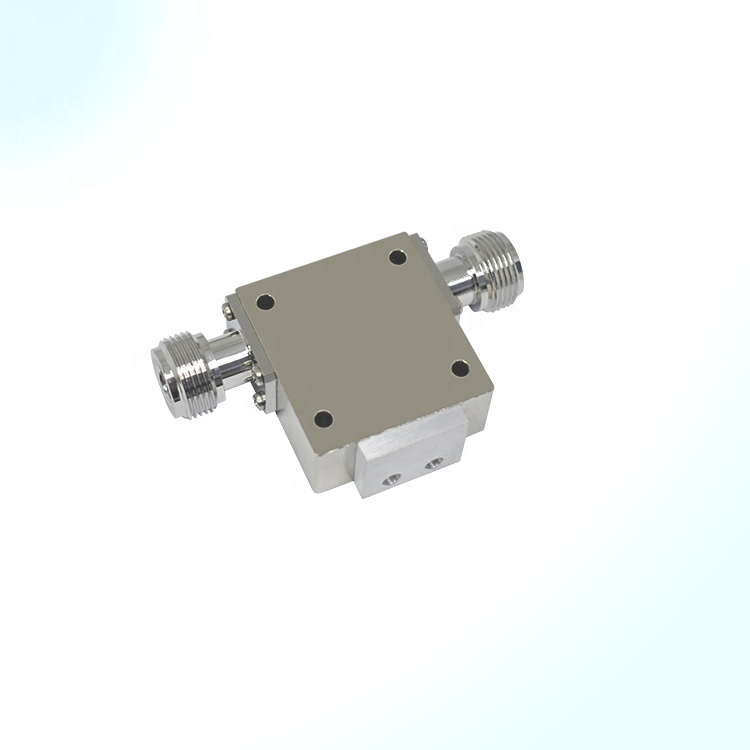

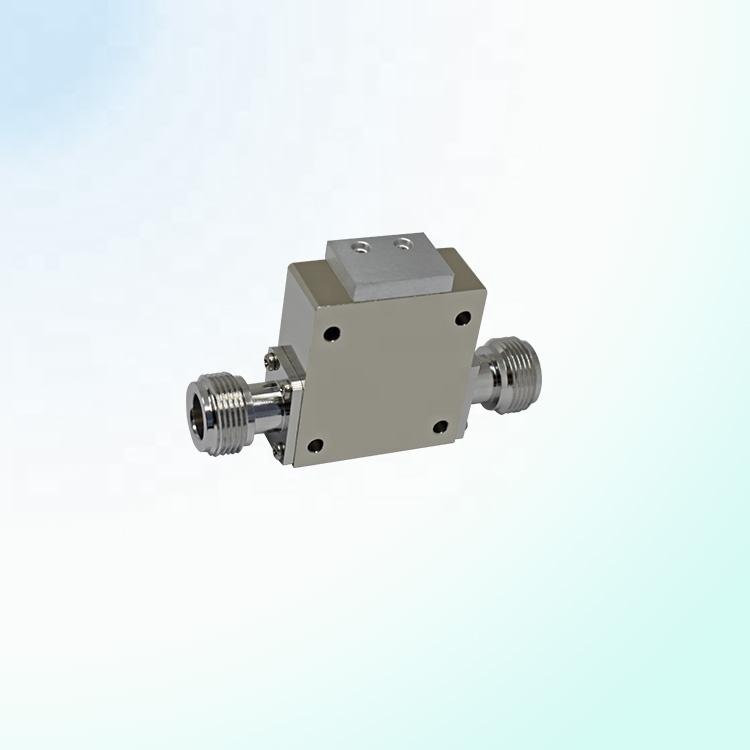

UIY Customized RF Coaxial Isolator 440 ~ 470 MHz
| FOB Price: | 40.00 - 60.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Day |
| Shipping: | By Air |
| Payment Terms: | T/T, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | Standart Export Cartons for RF Isolator and Circulator |
Quick Details
- Brand Name: UIY
- Material: Coaxial
- Sealing Class: First
- Color: Silver
- Application: Military, space and commercial
- Model Number: UIYCI3538A440T470NF
- Frequency Range: 440 ~ 470 MHz
- BW Max.: 40%
- Insertion Loss Max(dB): 0.3
- Isolation Min(dB): 23
- VSWR Input Max: 1.2
- Forward Power(W): 300
- Reverse Power(W): 30
- Connector Type: N-Female
- Temp.: -30 ~ +70
- Warranty: 1 Year
Specifications
Product Specification:
Product Name |
RF Coaxial Isolator |
Model Number |
UIYCI3538A440T470NF |
Frequency Range (MHz) |
440 ~ 470 |
Insertion Loss Max (dB) |
0.3 |
Isolation Min (dB) |
23 |
VSWR Max |
1.2 |
Forward Power (W) |
300 |
Reverse Power (W) |
30 |
Connector Type |
N-Female |
Temperature (°C) |
-30 ~ +70 |
Dimension L*W*H(mm) |
353815 |
Warranty |
1 Year |
Design Features:
1.Can be dual junction even three for high isolation.
2.Military, space and commercial applications.
3.Custom design available upon request.
4.Guaranteed for one year standard.
Packaging&Shipping:
1.Packaging Details: Standard Export Carton Package.
2.Shipping Method: as below.
3.Delivery Time: 5-7 days after payment.
4.Payment: T/T, PayPal, Western Union
5.Others: Pls feel free to ask me, we will reply you soon.
Our services:
We support - Customize upon request
We offer - ISO 9001 & ROHS Compliant
We offer - HFSS Simulation (S Parameters)
We guarantee - Good quality & One-year warranty
We guarantee - Safe & Fast Delivery
FAQ:
1. Question: when can I get the price?
We usually quote within 24 hours after confirming the detailed requirements. If the situation is similar, we can quote immediately.
2. Question: what is the minimum order quantity?
Minimum order 1 piece.
3. Question: when will the goods be delivered?
the delivery time is usually about 7 - 14 days after ordering.
4. Question: do you only have this product?
No, we can do other products, just need you to give the specific requirements of products and data or templates.
5. Question: what is the quality and quantity of your products?
We have international common materials and different material products, and you can choose according to your needs.
6. Question: why do you choose us?
Our products are complete in specifications, small in size, excellent in indicators and low in price. Our products are in full compliance with iso 9001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system. We are committed to providing our customers with high-quality products for a long time.
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
