Dongzheng Motor Co., Ltd.
China Manufacturer with main products: DC MOTOR, DC GEAR MOTOR, GEAR REDUCER, MAGNET |
Home
>Products Catalog > DC planetary gear motor > Low Noise 52mm Diameter DC Planetary Gear Motor 52JXM300K/52ZY

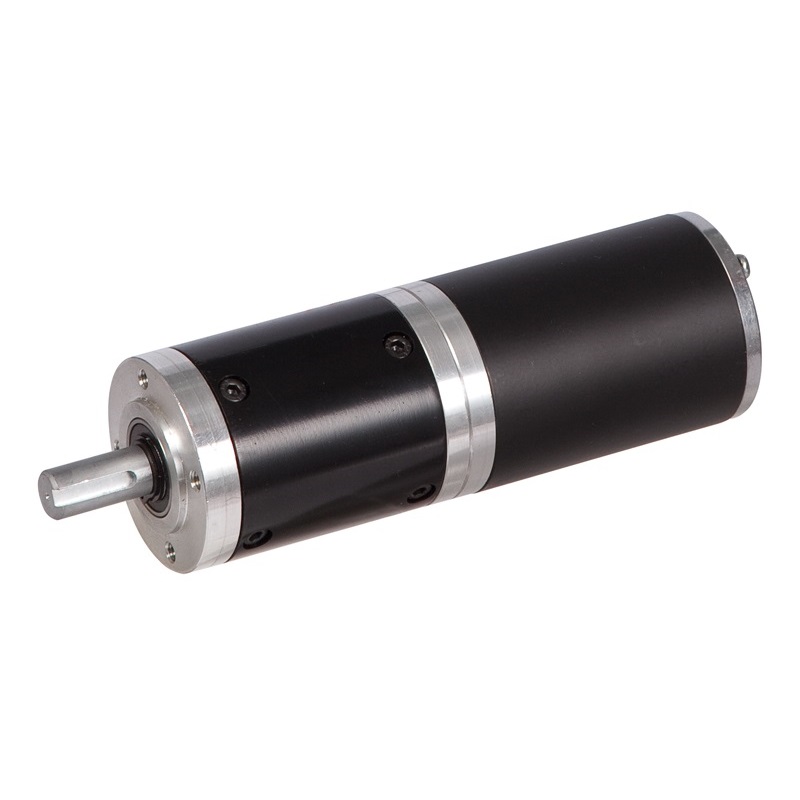

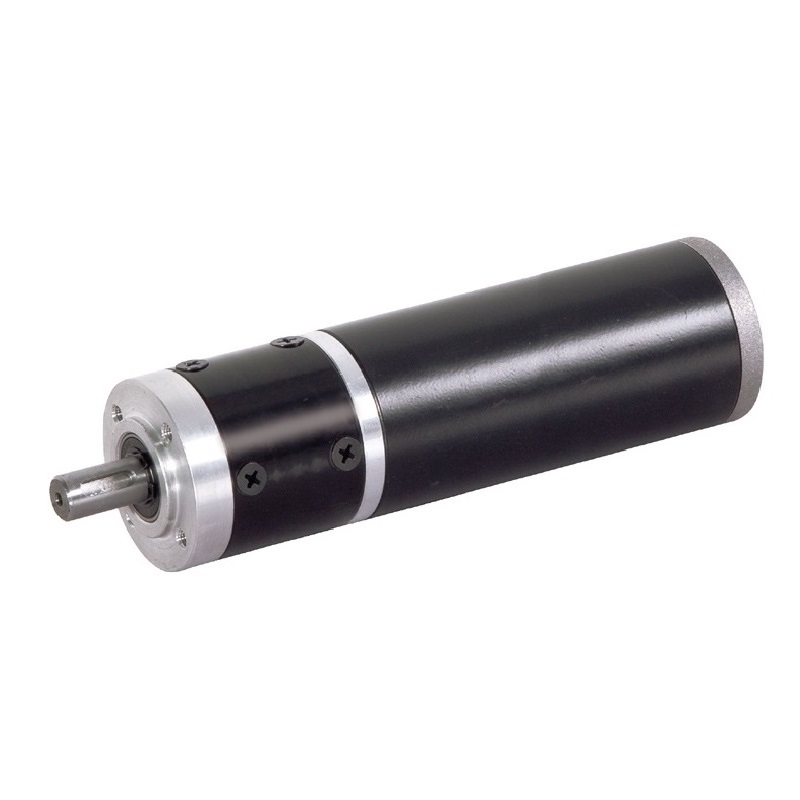

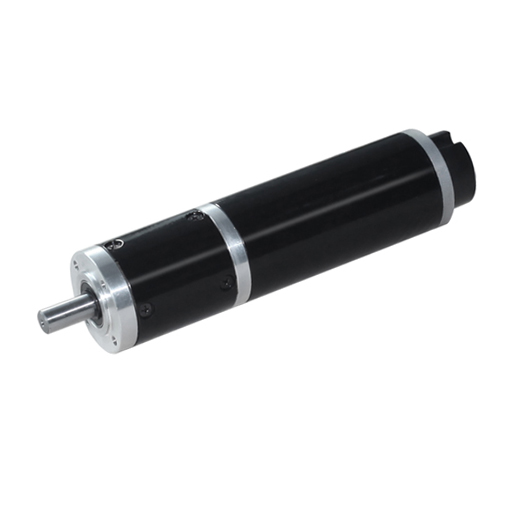

Low Noise 52mm Diameter DC Planetary Gear Motor 52JXM300K/52ZY
| FOB Price: | 25.00 - 70.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Week |
| Shipping: | FCA, CFR, CIF, DDU |
| Payment Terms: | T/T, Western Union, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Cartons/pallets/containers |
Quick Details
- Voltage(V): 6 ~ 400V DC
- Type: Gear Motor
- Certification: CCC,CE,ROHS,UL
- Usage: Boat,Car,Electric Bicycle,Fan,Home Appliance,Industrial automation
- Brand Name: DYD MOTOR
- Output Power: up to 150W
- Continuous Current(A): within 25A
- Speed(RPM): up to 8000rpm
- Protect Feature: Waterproof
- Commutation: Brush
- Construction: Permanent Magnet
- Torque: up to 45N.m
- Model Number: 52JXM300K/52ZY
- Keywords: DC planetary gear motor
- Noise level: Very low
- Shaft dimensions: Customer
- Gear material: Plastic/steel/ powder metal
- Gearbox type: Planetary
- Color: Black or customized
- Motor diameter: 52MM
- Warranty: 1 year
- Option: Magnetic/optical encoder; brake; connector

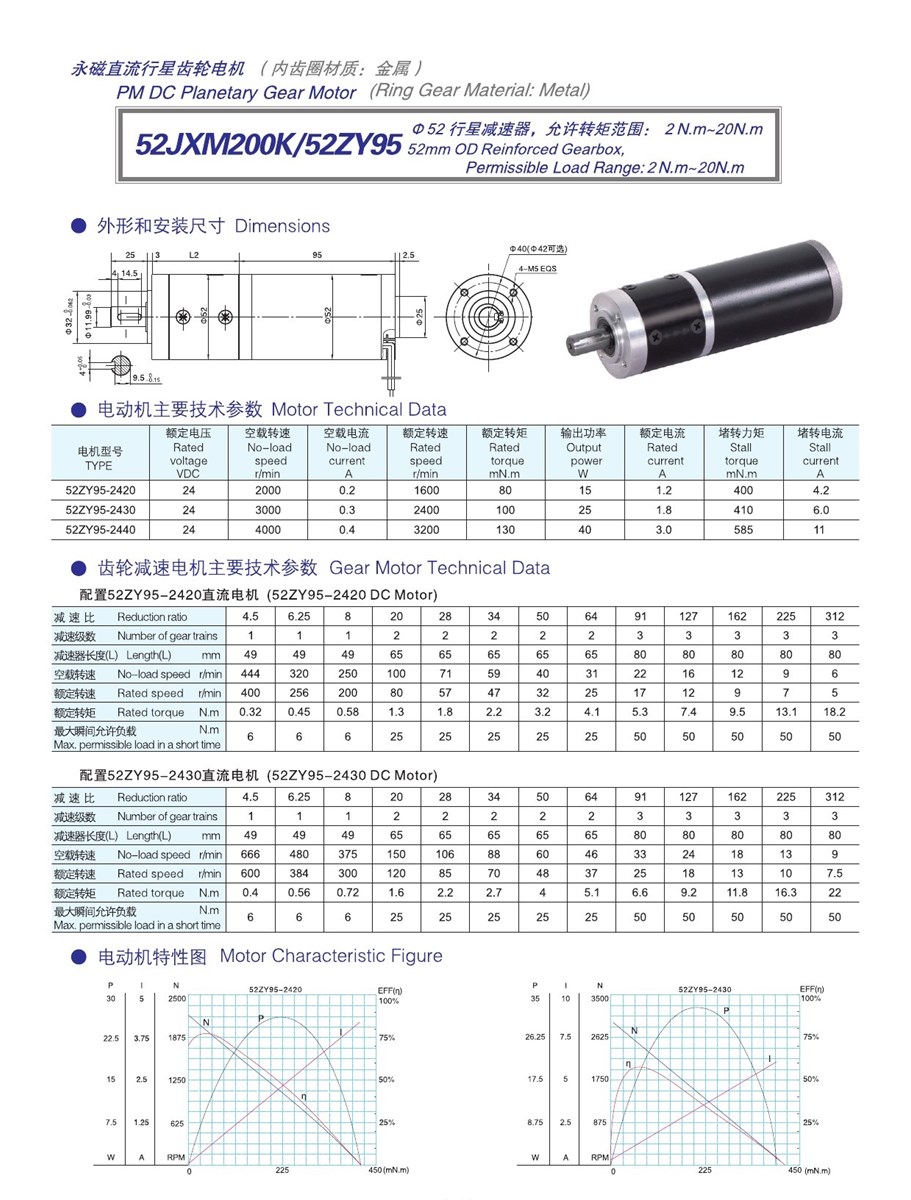

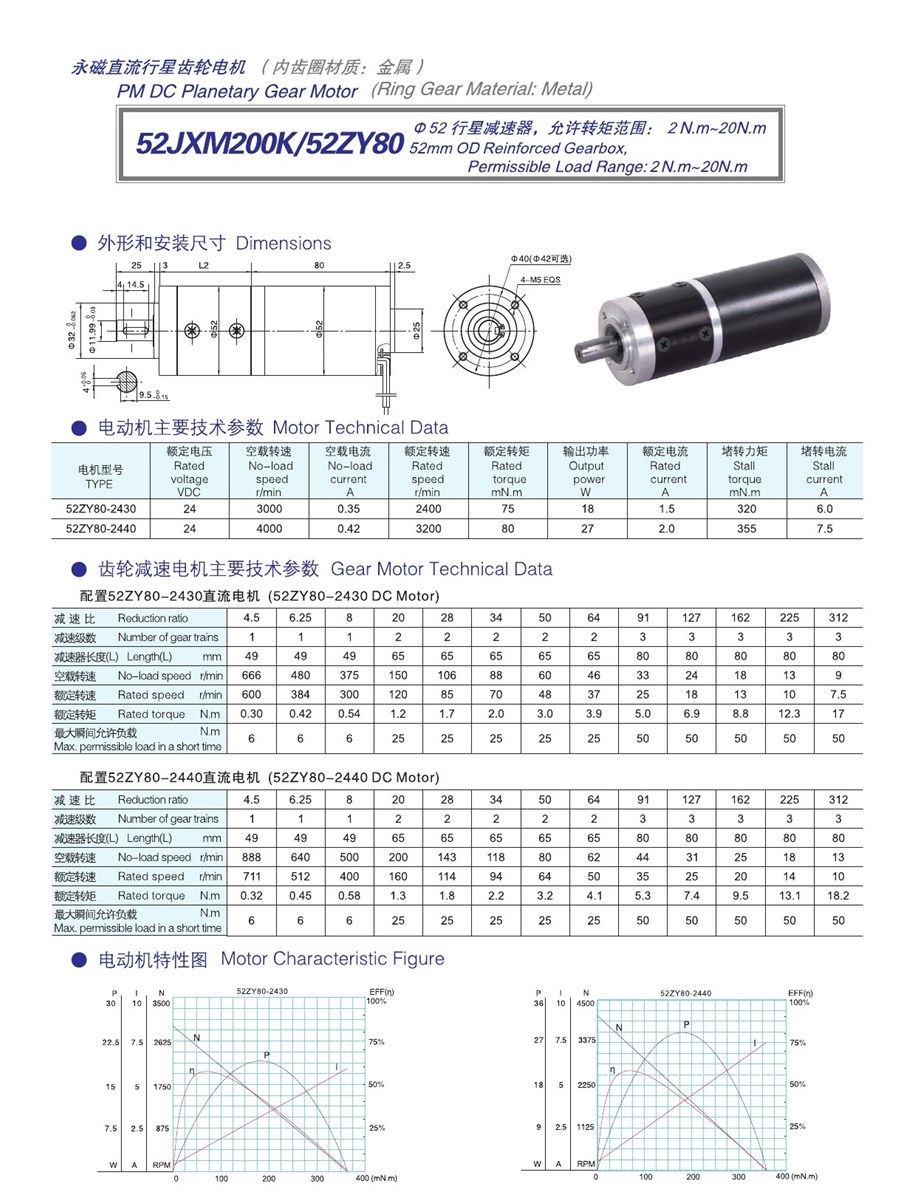

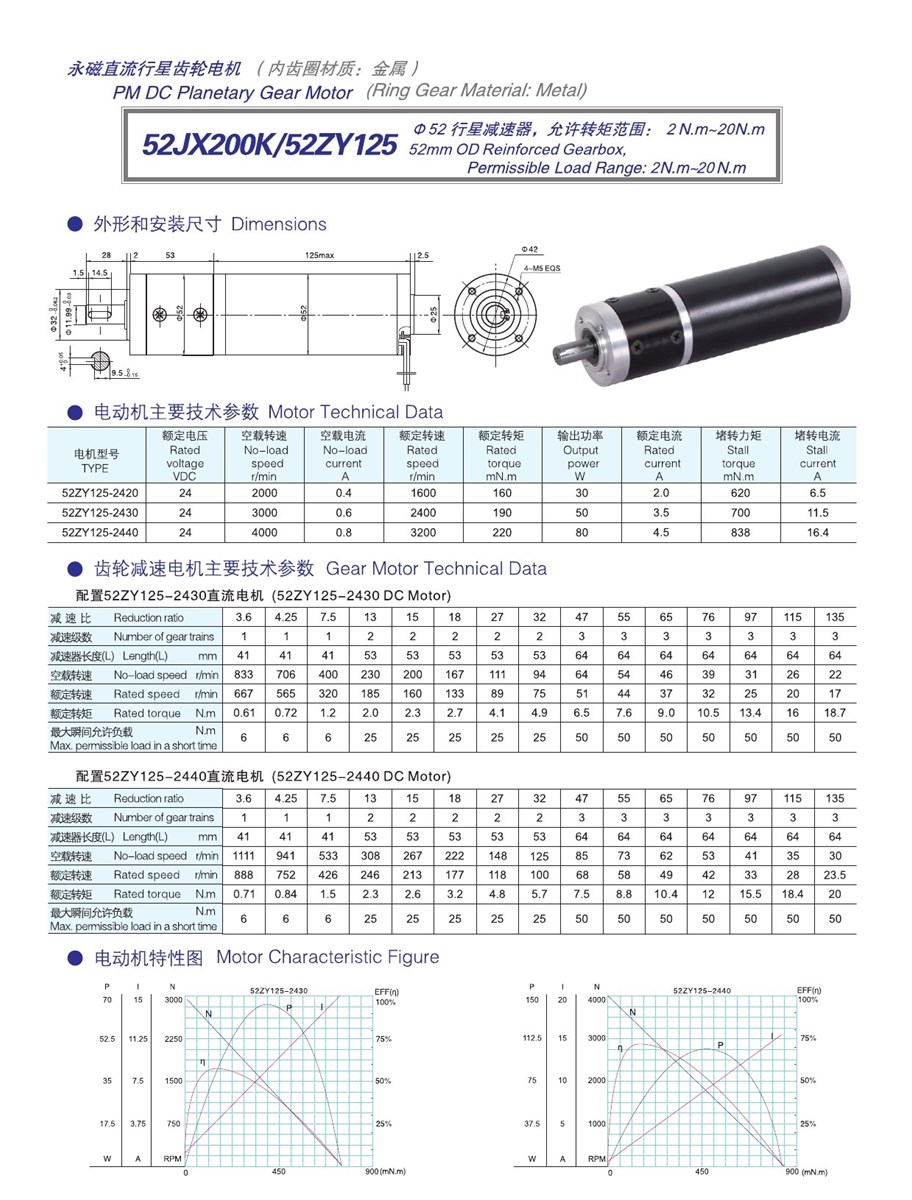

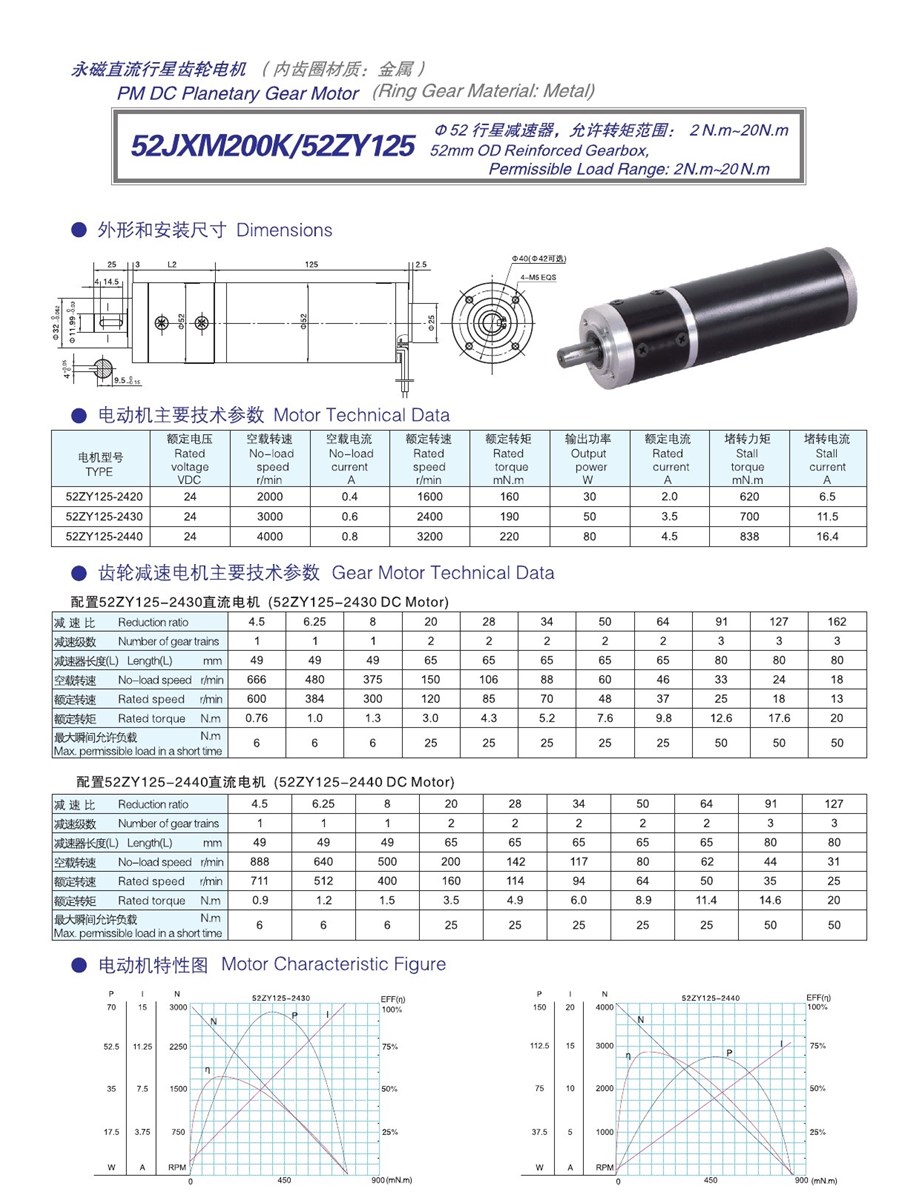

Specifications
DC Planetary Gear Motor
Model: 52JXM200K/52ZY
Voltage: 6 ~ 400V DC
Only motor output power: up to 150W
Gear ratio: 4.5:1 ~ 312:1
Rated torque up to 30N.M for continuous running and 50N.M for intermittent running
CE, Reach and RoHS approval
Options
Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning.
Power-on or power-off type electromagnetic brake
Capacitor& resistor for EMC suppression
Special shaft material and dimensions
Custom design; OEM products available
Features
Ball bearing at output shaft
Magnetic field generated by permanent magnets
Operation in both directions of rotation(CW & CCW)
Speeds ranging up to 8000 RPM
Various gear ratios enable either speed reduction or to increase the torque capability
Advantageous torque with minimum space requirements
Suitable for continuous, reversing and intermittent operation
Can be installed in any mounting position
