Cement Bucekt Elevator Sprocket Traction Wheel Price
| FOB Price: | 1.00 - 10000.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Year |
| Shipping: | Shanghai Port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | steel frame or box |
Quick Details
- Brand Name: Guohong
- Standard: ISO
- Material: Steel
- finished bore sprockets: Y
- Warranty: 1 year warranty
- Model Number: ghs
- Sprocket Tooth Ring: 42CrMo
- Sprocket Hub: Zg310-570
- Advantage: Easy Maintenance
Specifications
Cement Bucekt Elevator Sprocket Traction Wheel Price:

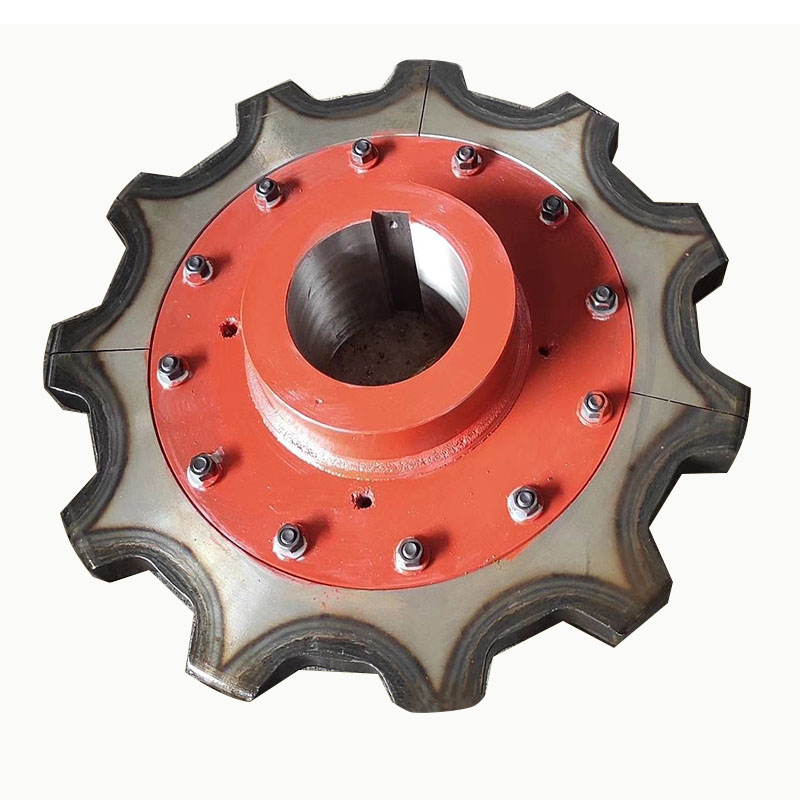

Split head sprocket is composed of sprocket tooth ring, sprocket hub, and fixed sprocket fastener. the tooth ring and the hub are discoid shapes, and the side surface of the hub is provided with a boss. the outer diameter of the boss is smaller than the inner diameter of the tooth ring, and the tooth ring is evenly divided into three to four pieces. the tooth ring and the hub are fixed by elastic expansion sleeves and then fixed together with high-strength bolts.
Split Head Sprocket Application:
Split head sprocket is suitable for conveying equipment, for example, plate chain bucket elevator, bucket wheel stacker reclaimer, inclined belt conveyor, drag chain conveyor, plate type feeder.
Processing Technology:
1. Raw material inspection must be carried out before production, it includes inspecting the size, the texture, the heat-treatment condition and so on.
2. the roughcast is processed by a turning lathe, obtaining the inner round shape of the gear tooth ring.
3. the gear milling is conducted in the CNC center, obtaining the gear tooth ring outer shape and assembly holes.
4. the gear hub is processed by a CNC turning lathe. Obtaining the gear hub inner diameter, outer diameter, and assembly holes.
Remarkable Advantages:
Select high-quality raw materials for processing, use advanced and sophisticated processing technology, and strictly control each production process to ensure the high quality of the products. the split head sprocket has the advantages of simple structure, reliable operation, wide application range, long service life, it can reach more than 5 years, and it is easy to be replaced and repaired, which can greatly save the production cost.
Product Maintenance:
Product Maintenance:

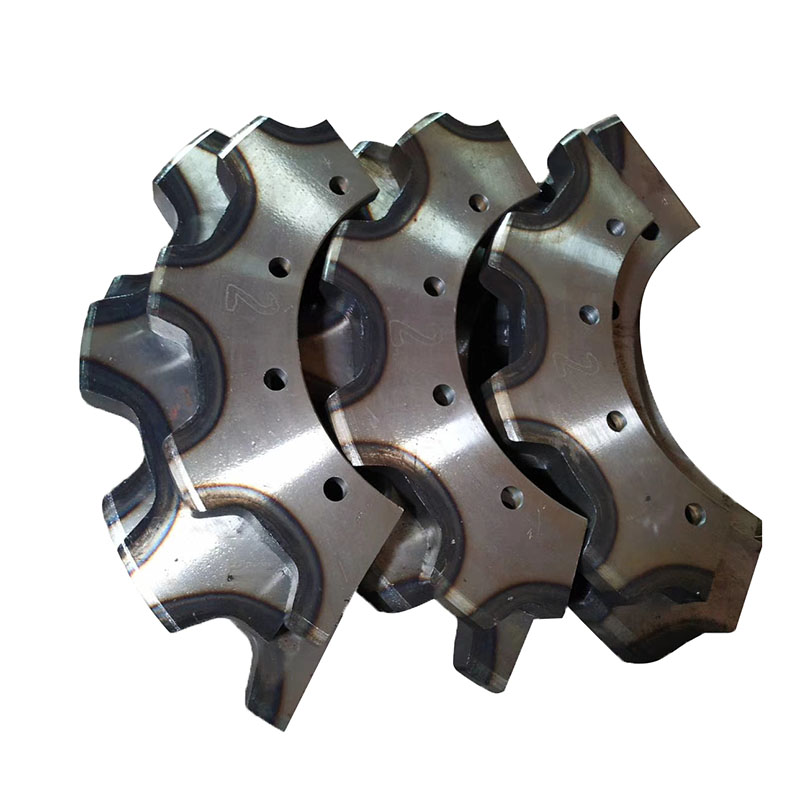

When the sprocket tooth ring needs to be replaced, it can be discharged by removing the bolts. When the new sprocket tooth ring needs to be installed, the head sprocket assembly is not required to be demounted from the bucket elevator head, the installation can be operated by 2 people on site, and it is not necessary to adjust the chain tightness again, which is very simple and convenient. When the sprocket teeth ring is worn on one side, the left and right sides of the sprocket tooth ring can be exchanged and used continuously, which is equivalent to double the service life, it can greatly save the cost.
Packing and Shipment:
Head sprocket wheel Will be packed by steel frames or boxes with necessary shipping marks. If the customers do not know how to purchase or import sprocket wheel, we could provide door to door service.
Quality Warranty:
Split head sprocket is full 12 months since customer receiving it. at any time, if there is any problem, we'll provide a solution by emails or calls within 24 hours, if the problem can't be solved, we'll send engineers to solve on site.
Installation & Commissioning:
We have a technical team composed of experienced engineers. They will be sent for commissioning, installation and training your staff.
