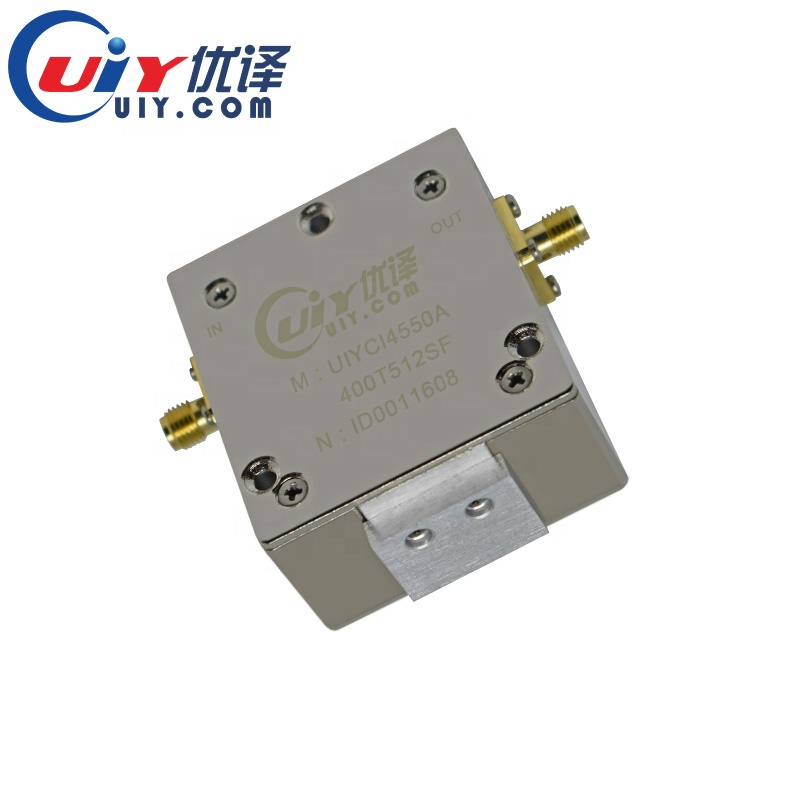

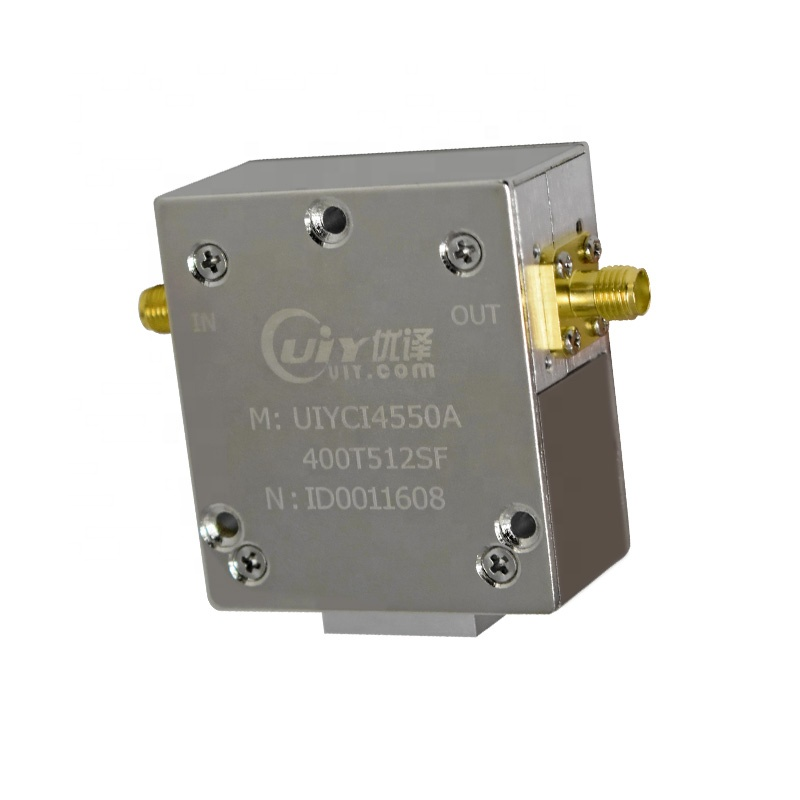

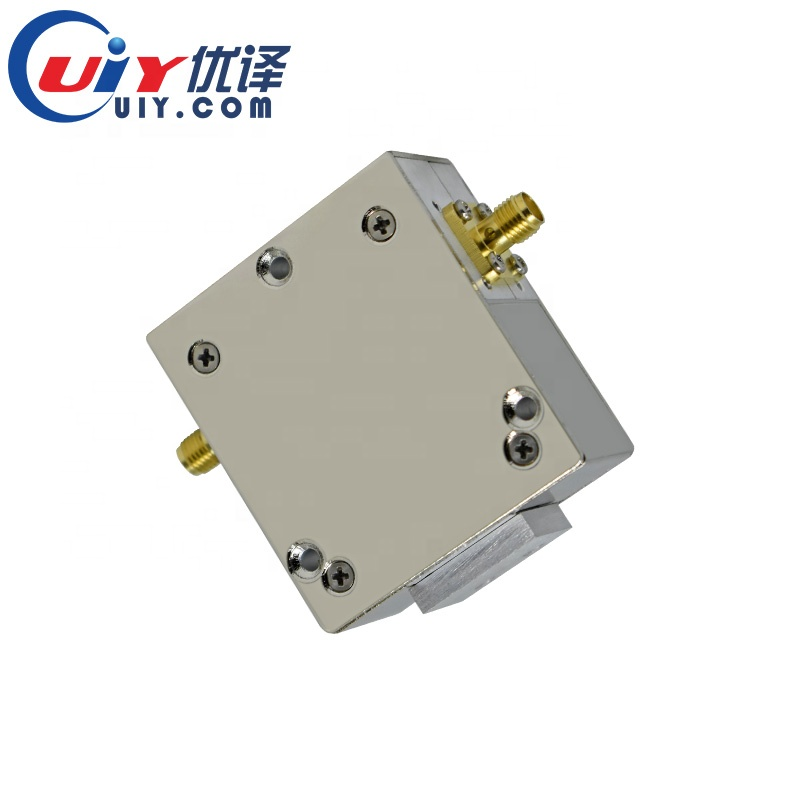

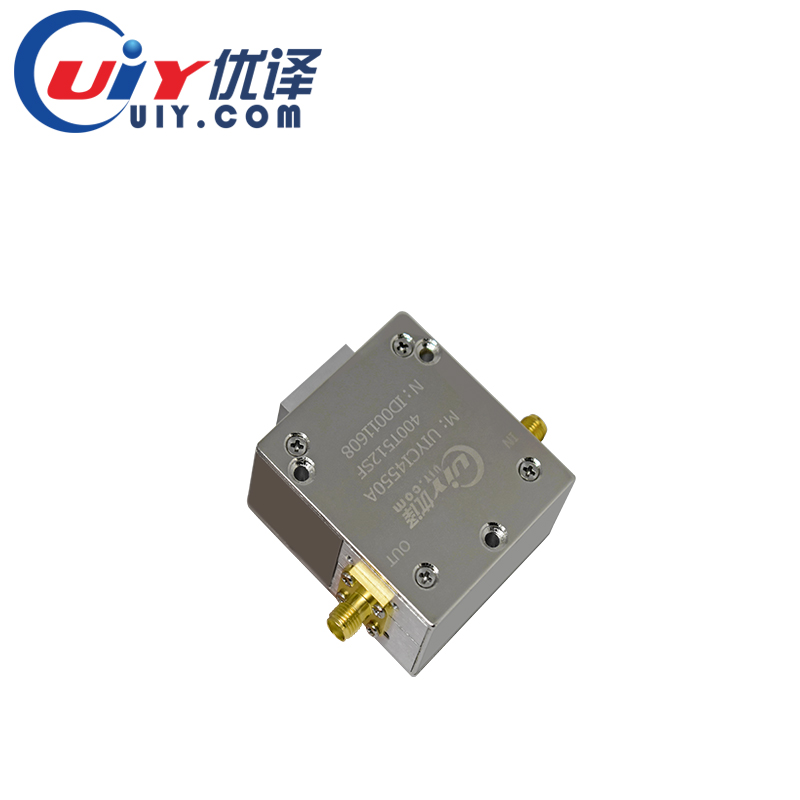

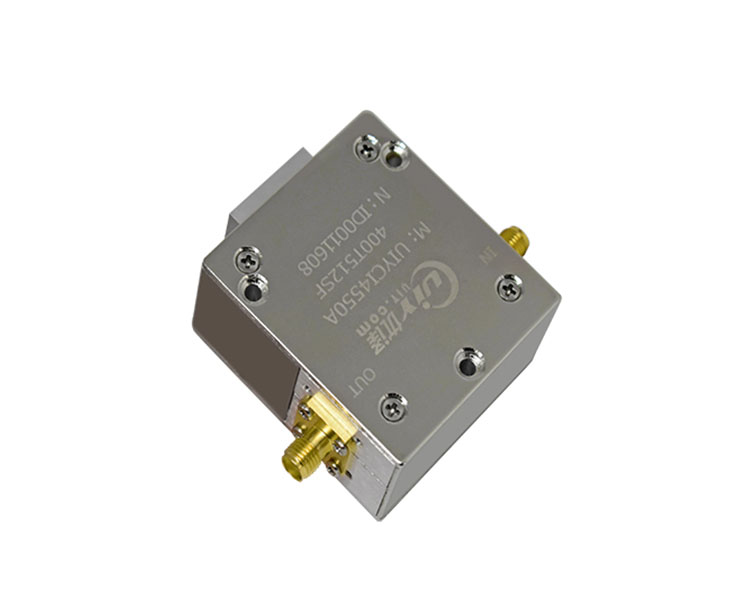

UIY RF Coaxial Isolator Communication Module 400-512 MHz
| FOB Price: | 70.00 - 75.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Day |
| Shipping: | By Air |
| Payment Terms: | T/T, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standart Export Cartons for RF Isolator and Circulator |
Quick Details
- Brand Name: UIY
- Material: Coaxial
- Sealing Class: First
- Color: Silver
- Application: Military, space and commercial
- Model Number: UIYCI4550A400T512SF
- Frequency Range: 400 ~ 512 MHz
- BW Max.: 30%
- Insertion Loss Max(dB): 0.5
- Isolation Min(dB): 20
- VSWR Input Max: 1.25
- Forward Power(W): 100
- Reverse Power(W): 30
- Connector Type: SMA Female
- Temp.: -30 ~ +70
- Warranty: 1 Year
Specifications
Product Specification:
Product Name |
RF Coaxial Isolator |
Model Number |
UIYCI4550A400T512SF |
Frequency Range (MHz) |
400 ~ 512 |
Insertion Loss Max (dB) |
0.5 |
Isolation Min (dB) |
20 |
VSWR Max |
1.25 |
Forward Power (W) |
100 |
Reverse Power (W) |
30 |
Connector Type |
SMA-Female |
Temperature (°C) |
-30 ~ +70 |
Dimension L*W*H(mm) |
455024 |
Warranty |
1 Year |
Design Features:
1.Can be dual junction even three for high isolation.
2.Military, space and commercial applications.
3.Custom design available upon request.
4.Guaranteed for one year standard.
5.High RF performance, ultra-competitive price.
Packaging&Shipping:
1.Packaging Details: Standard Export Carton Package.
2.Shipping Method: as below.
3.Delivery Time: 5-7 days after payment.
4.Payment: T/T, PayPal, Western Union
5.Others: Pls feel free to ask me, we will reply you soon.
Our services:
We support - Customize upon request
We offer - ISO 9001 & ROHS Compliant
We offer - HFSS Simulation (S Parameters)
We guarantee - Good quality & One-year warranty
We guarantee - Safe & Fast Delivery
