Lamborghini LDAS LARA ODIS Diagnostic Tools Tester LDAS LARA ODIS Diagnostic System

Specifications

Lamborghini LaRA LDAS VAS ODIS Diagnostic Tester Tool

LDAS-32 Diagnostic system:
LDAS is a tool based on the CAN line interface between a personal computer and a vehicle control device. It can monitor the status parameters of the engine and provide all the information needed for engine adjustment and diagnosis (including OBD II).
LDAS32 has following functions:
Stored fault information can be displayed in accordance with OBD II technical specifications, without the use of scanning tools.
Engine status can be displayed at the right time to make necessary adjustments.
Data stored by ECU acquired during engine operation can be downloaded and saved in files.

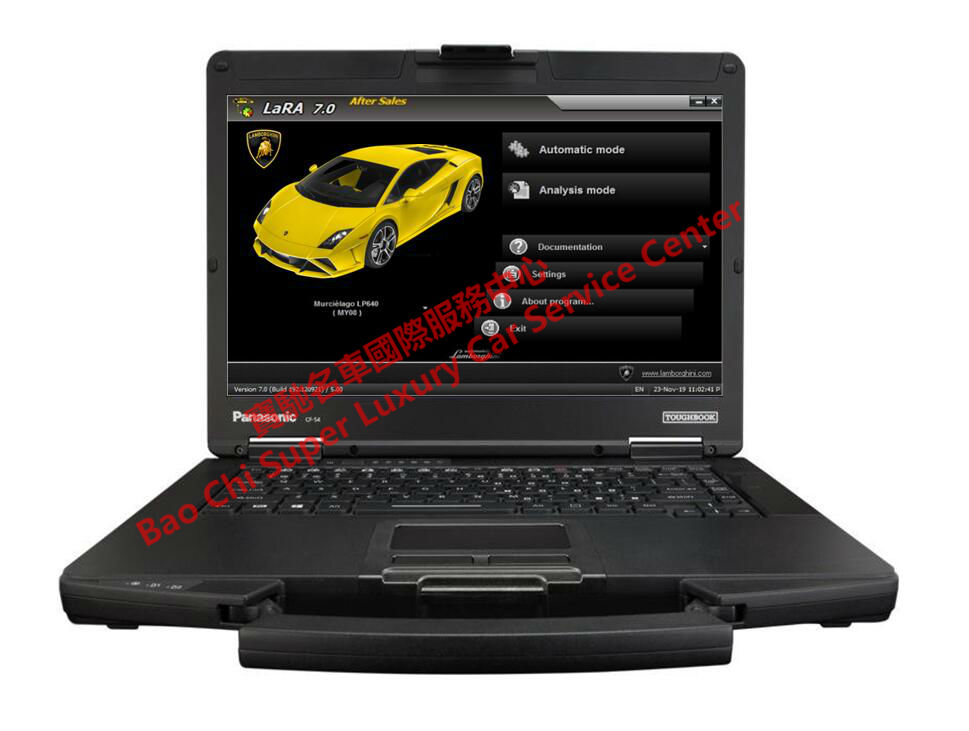

LaRA-as Diagnostic system:
LaRA provides you with full diagnostic connection to all of the later model ECU, such as the ABS system on late model Murcielago, Gallardo, ZKE system, ILM ECU, Radio and HiFi system, AC and Climate control system, AirBag control and reset, LIE and EGear ECUS. the most important feature is the ability to run the Purge, Prime, and reset the Kiss point on ALL Murciealgo and Gallardo eGear clutches. IT will allow you to recalibrate the eGear system and diagnose eGear related problems. NOT just measure life left on the clutch, but you can RESET it too.
LaRA has following functions:
ECU Identification (Part number, Software version and status)
Erase Fault Memory codes
Egear Snap file reading
Control Unit Identification (Displays a list of every control unit in the car, including the part number and software version)
Setting the ABS/ESP control unit " AirBag" (Gallardo) (Murci and Diablos use the ABS/Airbag separate software and hardware)
Setting the A/C control Unit Functions
E-gear Snap
Actuator testing (Waring lights, Antitheft and door closure, lights, wiper and nozzels test, ESP lock and unloc test, Radio speakers, Navigation speaker, TV Tuner test, Climat control flap test

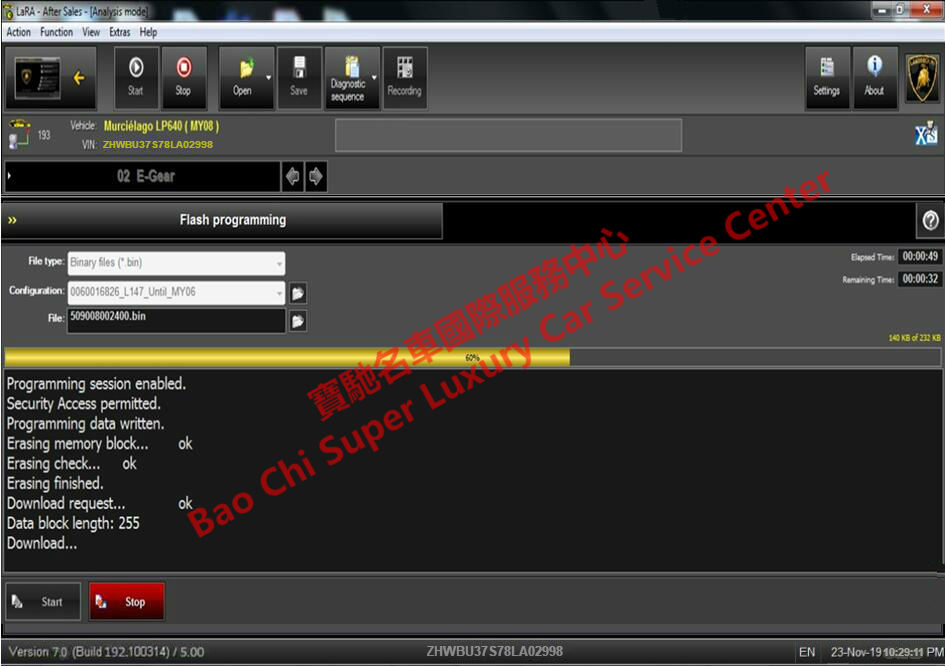

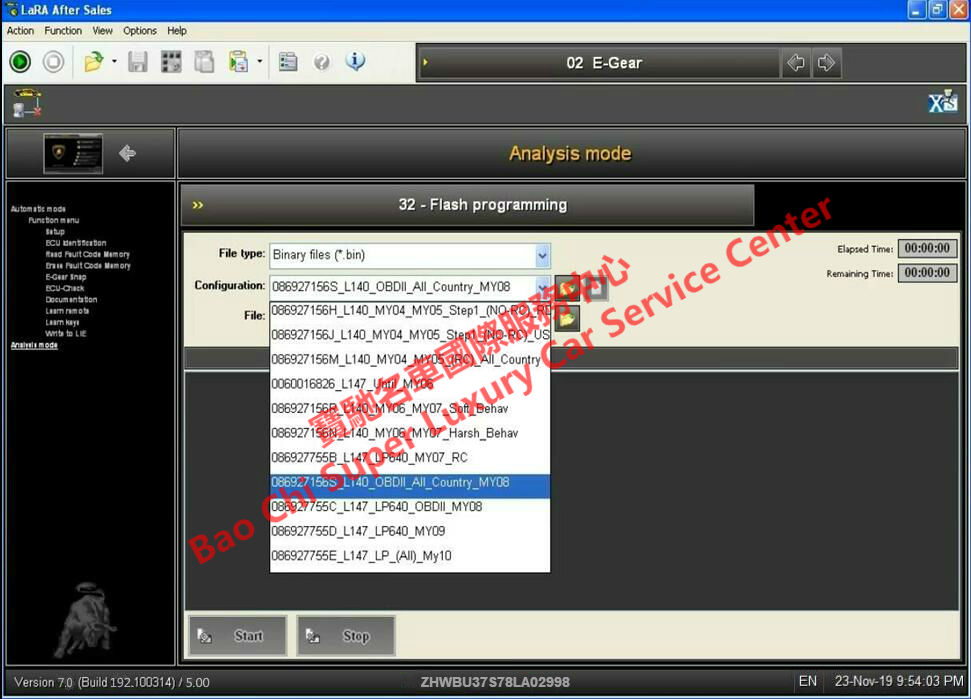

Egear flash programming (Pump bleeding, read and write clutch functions)
Transport and normal setting (for transporting vehicle)
E-gear PIS valve procedure
Gallardo Spyder Soft top calibration
Gallardo Spyder and Murci Roadster Roll over protection testing

>LaRA covered models:
Gallardo Coup MY04-08
Gallardo Spider MY06-08
Gallardo Spider LP560-LP570 MY09-14
Gallardo Coup LP570-LP560-LP550 MY09-14
Murcilago MY04-07
Murcilago LP640 MY08
Murcilago LP640/650/670 MY09-10

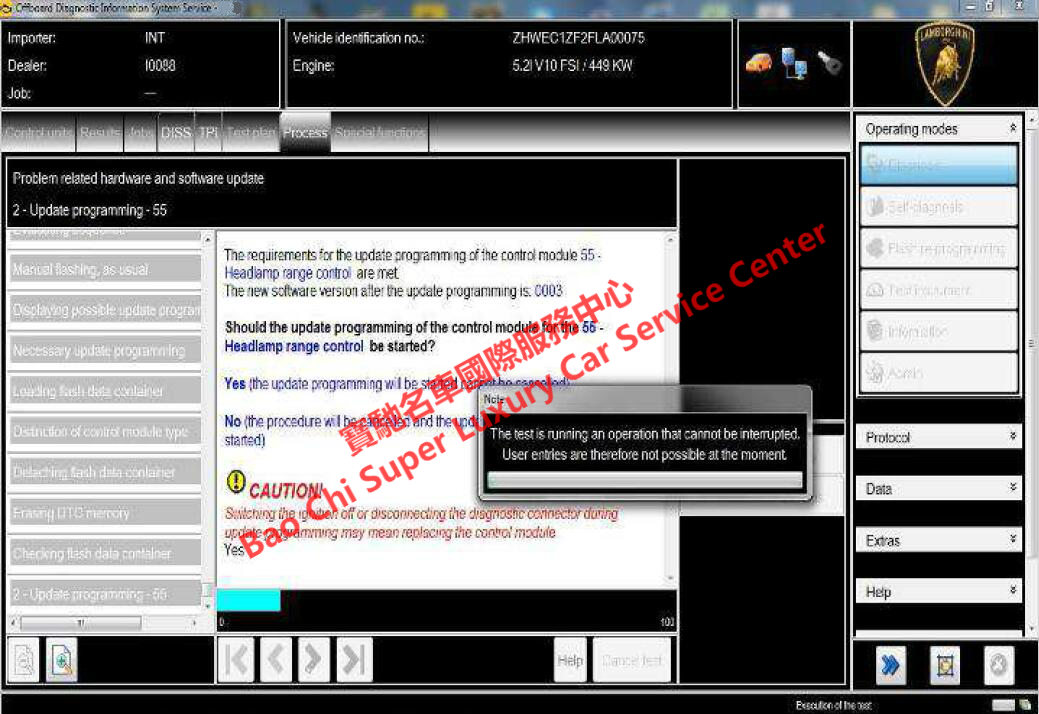

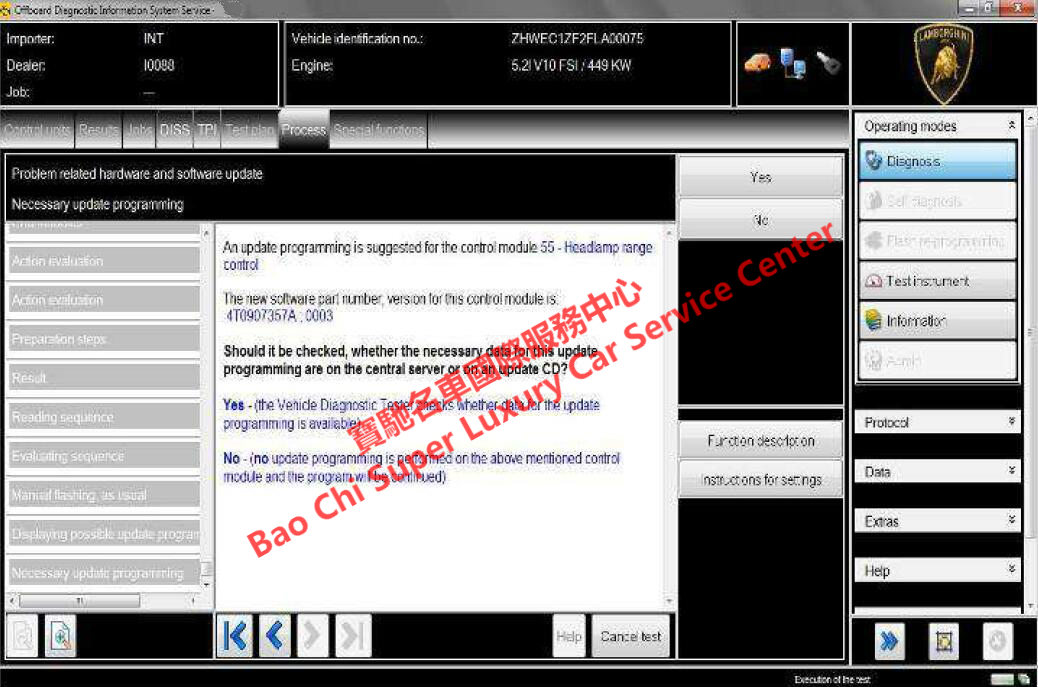

VAS ODIS Diagnostic system:
this is the latest Lamborghini diagnostic system,to manage the diagnosis of the complete electronic vehicle space from the following Lamborghini models: Avantador, Huracan, Urus and Gallardo from MY2009,
>during vehicle diagnosis, you can also access the following information:
Vehicle data, Repair guide, System structure description, Wiring diagram, Technical Bulletin, Technical product information
VAS ODIS has following functions:
Read fault code
Clear fault code
Test actuator
Basic adjustment
Read measurement data block
Separate channel data
Control unit coding
Adaptive matching
ElsaPro system
Software refresh
Log in online
Online Coding Flash Programming
Set the service provider code
Send car chassis number
through convenient upgrades,,in time can be service latest models
with obd-ⅱ diagnostic function
