Tianjin Daqiml International Trade Co., Ltd.
China Manufacturer with main products: Liquid Tight Connector, Cable Gland, Pipe Clamp, Flexible Conduits, Electrical Pipe, Pipe Fitting, Stainless Steel Cable Gland, Electrical... |

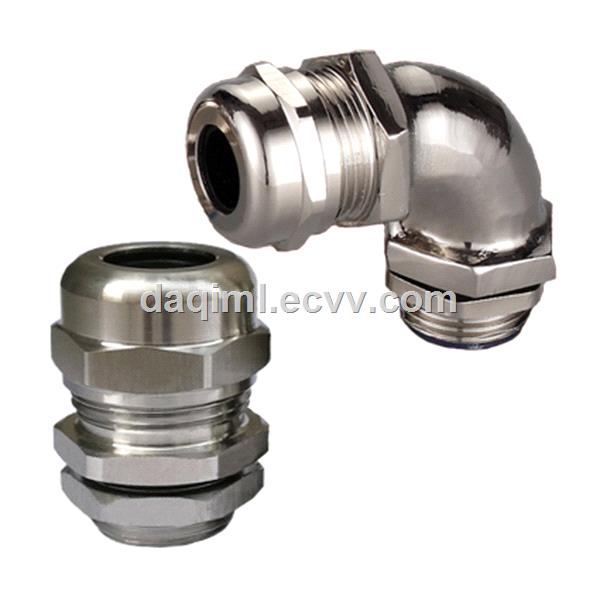

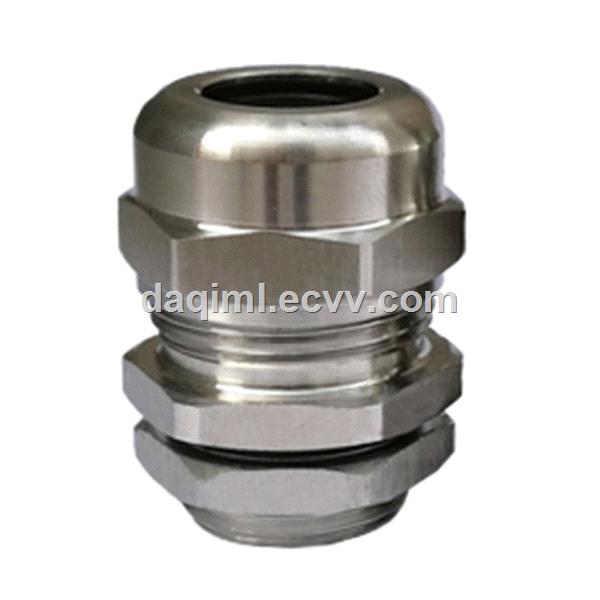

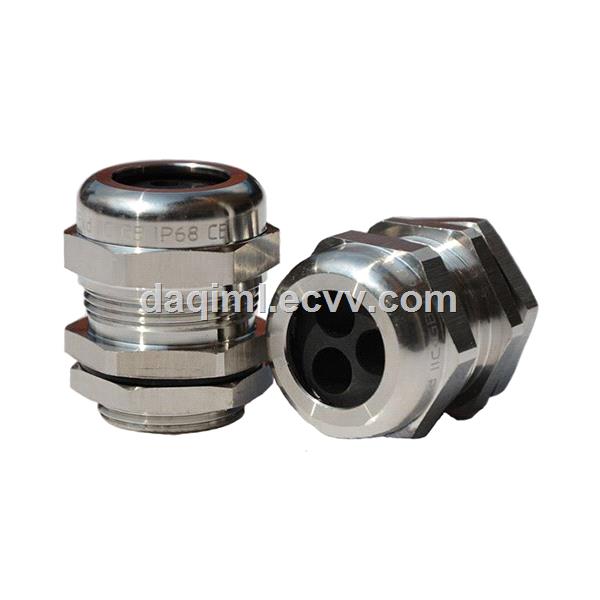

Stainless Steel IP68 Waterproof Cable Gland
| FOB Price: | 1.11 - 5.68 USD/Piece |
|---|---|
| Supply Ability: | 2,000 Piece(s) per Week |
| Shipping: | by sea/by air |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | carton+pallet |
Quick Details
- Material: stainless steel
- Size: PG21
- Protection Level: IP68
- Brand Name: Daqiml
- Color: sliver
- Model Number: CG-P21-13
- Item No.: CG-P21-13
- Thread: PG21
- Clamping range: 13-18mm
- Thread O.D: 28.3mm
- Thread Length: 12mm
- Material: SS304/SS316/SS316L
- Protection rate: IP68
- Other material option: brass
Specifications
Stainless steel IP68 waterproof cable gland
Material: SS304,Nickel plated Brass
Thread Standard: Metric,PG Thread,G Thread,NPT Thread
Protection Rate: IP68
Usage: Fixing and protecting cables in the outlet of power distribution
Specification: Other dimensions can be customized
Item No. |
Thread |
Clamping Range (mm) |
Thread O.D (mm) |
Thread Length (mm) | |
Straight |
90 Degree | ||||
CG-M12-3 |
CG90-M12-3 |
M12X1.5 |
3.0-6.5 |
12.00 |
9 |
CG-M16-4 |
CG90-M16-4 |
M16X1.5 |
4.0-8.0 |
16.00 |
9 |
CG-M18-5 |
CG90-M18-5 |
M18X1.5 |
5.0-10.0 |
18.00 |
10 |
CG-M20-6 |
CG90-M20-6 |
M20X1.5 |
6.0-12.0 |
20.00 |
10 |
CG-M20-10 |
- |
M20X1.5 |
10.0-14.0 |
20.00 |
10 |
CG-M22-10 |
CG90-M22-10 |
M22X1.5 |
10.0-14.0 |
22.00 |
10 |
CG-M25-10 |
- |
M25X1.5 |
10.0-14.0 |
25.00 |
12 |
CG-M25-13 |
CG90-M25-13 |
M25X1.5 |
13.0-18.0 |
25.00 |
12 |
CG-M27-13 |
CG90-M27-13 |
M27X1.5 |
13.0-18.0 |
27.00 |
12 |
CG-M32-17 |
CG90-M32-17 |
M32X1.5 |
17.0-25.0 |
32.00 |
14 |
CG-M40-24 |
CG90-M40-24 |
M40X1.5 |
24.0-32.0 |
40.00 |
14 |
CG-M50-31 |
CG90-M50-31 |
M50X1.5 |
31.0-38.0 |
50.00 |
14 |
CG-M60-37 |
- |
M60X1.5 |
37.0-44.0 |
60.00 |
15 |
CG-M63-37 |
- |
M63X1.5 |
37.0-44.0 |
63.00 |
15 |
|
|
|
|
|
|
CG-P7-3 |
CG90-P7-3 |
PG7 |
3.0-6.5 |
12.50 |
9 |
CG-P9-4 |
CG90-P9-4 |
PG9 |
4.0-8.0 |
15.20 |
9 |
CG-P11-5 |
CG90-P11-5 |
PG11 |
5.0-10.0 |
18.60 |
10 |
CG-P13.5-6 |
CG90-P13.5-6 |
PG13.5 |
6.0-12.0 |
20.40 |
10 |
CG-P16-10 |
CG90-P16-10 |
PG16 |
10.0-14.0 |
22.50 |
10 |
CG-P21-13 |
CG90-P21-13 |
PG21 |
13.0-18.0 |
28.30 |
12 |
CG-P29-17 |
CG90-P29-17 |
PG29 |
17.0-25.0 |
37.00 |
14 |
CG-P36-24 |
CG90-P36-24 |
PG36 |
24.0-32.0 |
47.00 |
14 |
CG-P42-31 |
- |
PG42 |
31.0-38.0 |
54.00 |
15 |
CG-P48-37 |
- |
PG48 |
37.0-44.0 |
59.30 |
15 |
CG-P63-42 |
- |
PG63 |
42.0-52.0 |
|
16 |
