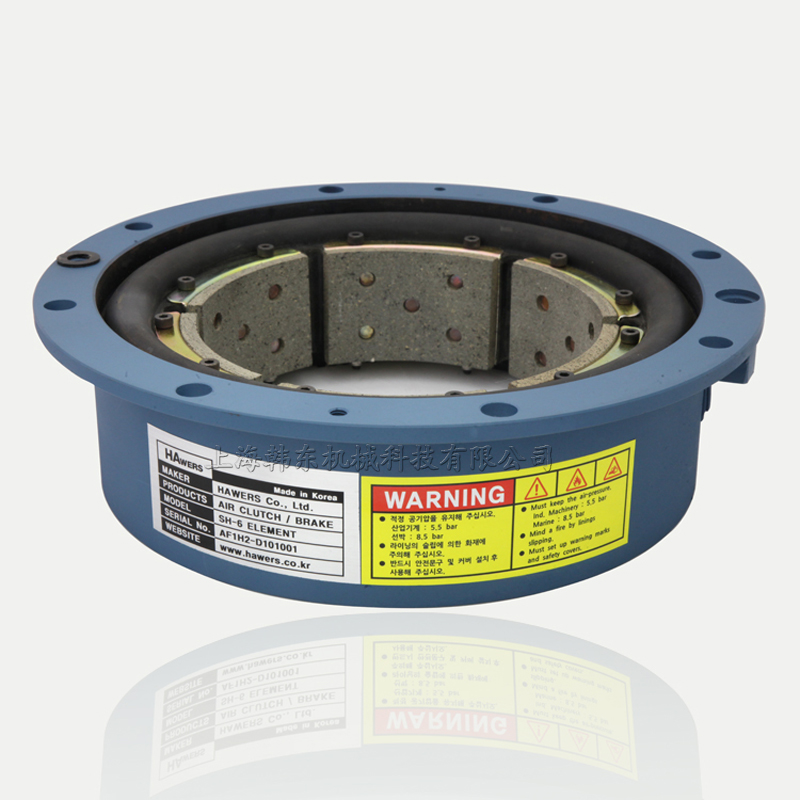

Equal Eaton Airflex Pneumatic Clutch Drum Brake 12CB350

FOB Price:	200.00 - 2000.00 USD/Set
Supply Ability:	300 Set(s) per Month
Shipping:	by courier or sea
Payment Terms:	L/C, T/T, Western Union, Other, by cash

In Stock

Inquiry Now

Related products from verified members

Electromagnetic Brake

Price:450.00-550.00 USD/Set

Min. Order:20 Sets
500L Brew house

Price:1,000.00-20,000.00 USD/Piece

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	export non-fumigation wooden case package

Quick Details

Brand Name: Handong
TR50: carbon steel
Model Number: 12CB350
HS code: 8483600001
Model: 12CB350
Working mode: rubber tube friction
Max air pressure: 0.8Mpa
Weight: 12.5KGS
Max torque: 2380N.m
Dimension: 460mm*127mm
Max rotating speed: 2000r/min
Max connecting speed: 2000r/min
Installation: shaft and shaft

Specifications

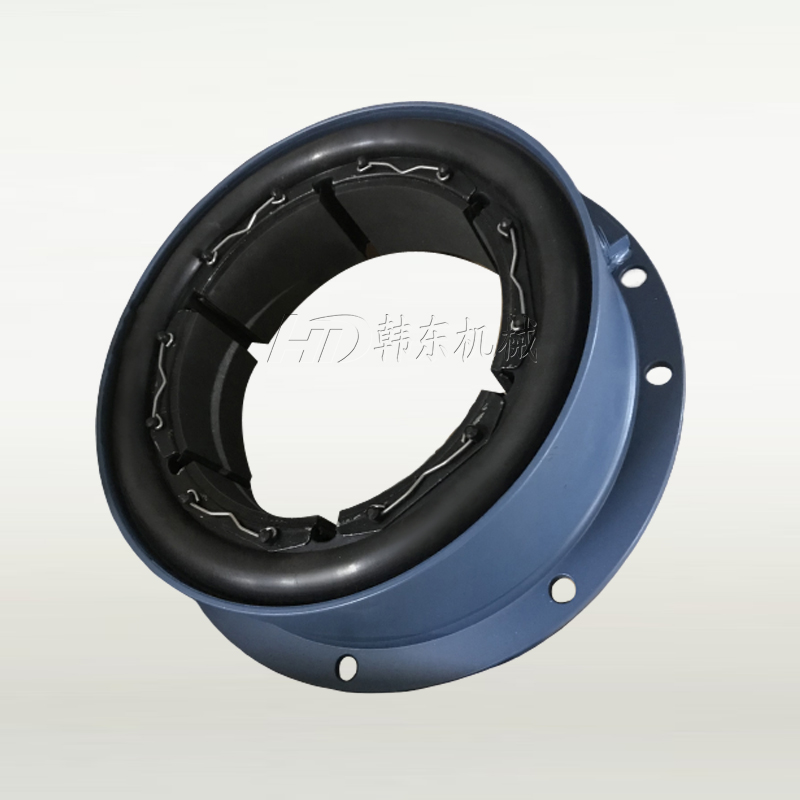

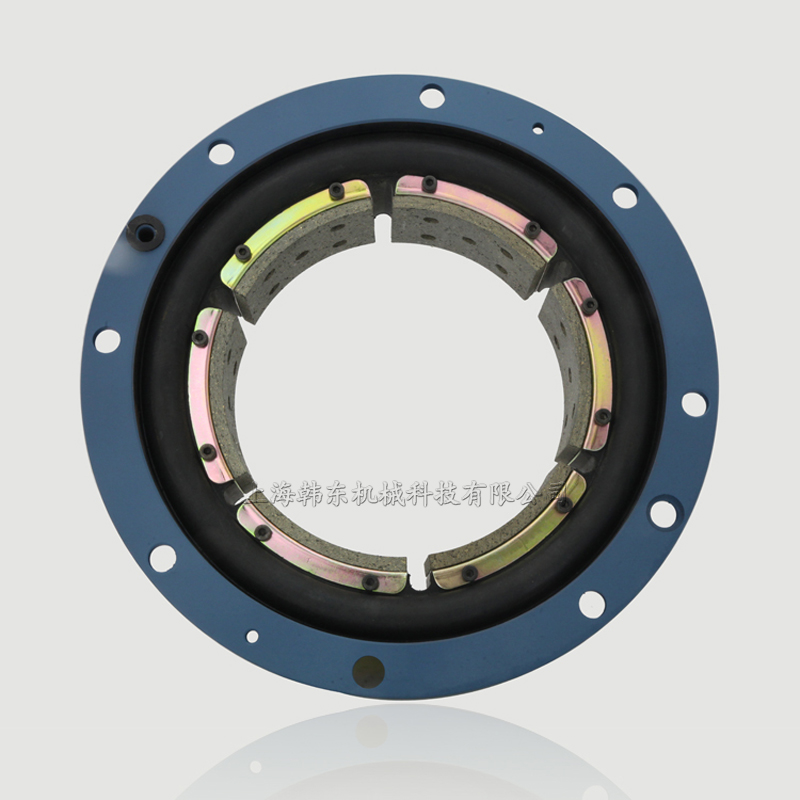

Pneumatic clutch drum brake 12CB350 not only can be played as cluth, but also can be worked as brake, it depends on working need. this rubber tube clutch brake is widely applied in marine, pump and boat industries.

Pneumatic clutch drum brake 12CB350 is easy structure, it is an integrated rubber tube clutch brake. It can be worked as a clutch or brake as needed.

Working theory of pneumatic actuated rubber tube clutch brake:
this air driven rubber tube clutch can be engaged with an inside drum by pneumatically actuated tube with linings, after connected as a clutch, it can transmit a certain torque and rotating with flywheel together. It can be applied to customs (power transmission) or brake (power braking) as needed.

Mainly characters ofPneumatic clutch drum brake 12CB350:
this pneumatic rubber tube clutch take air pressure as power source, it doesn't need the spline or complex electrical connection as other type of clutch, so as to eliminate many mechanical trouble and reduce the maintenance cost at the least. As this pneumatic rubber tube clutch is closed-circuit system, only input air pressure when clutch linking is enough, it doesn't need to continuous input air source during working. It doesn't need to disassemble driving shaft and driven shaft when maintenance, dismantle screw bolt, then taken out clutch's element and drum from shaft.

Pneumatic actuated rubber tube clutch application:
Pneumatic rubber tube clutch is through input air source to realize clutch link for power transmission, output air source to realize clutch separated device. It has the advantage of running stable, transmit high torque, easy maintenance, convenient and other characters. So this rubber tube clutch is also can be used a brake. this pneumatic rubber tube clutch CB/SH/SY, VC/AH is widely applied in mine, metallurgy, petroleum, building, chemical, ship & boat, rubber & tire, light and other industries.

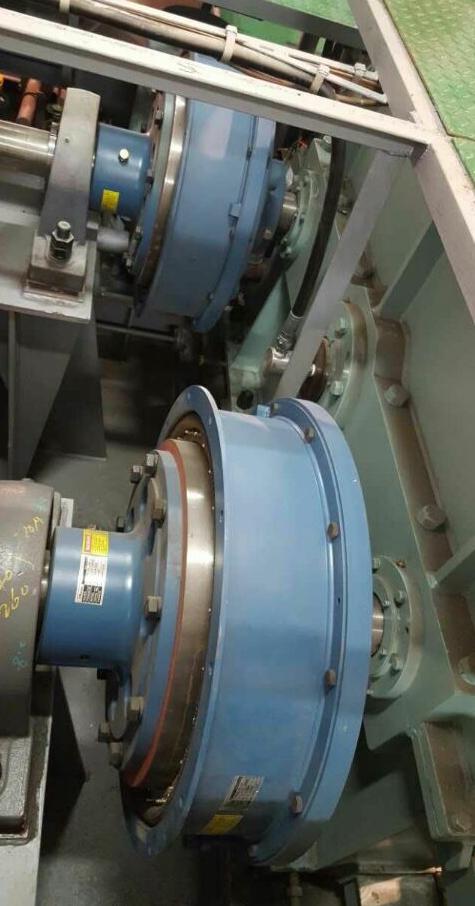

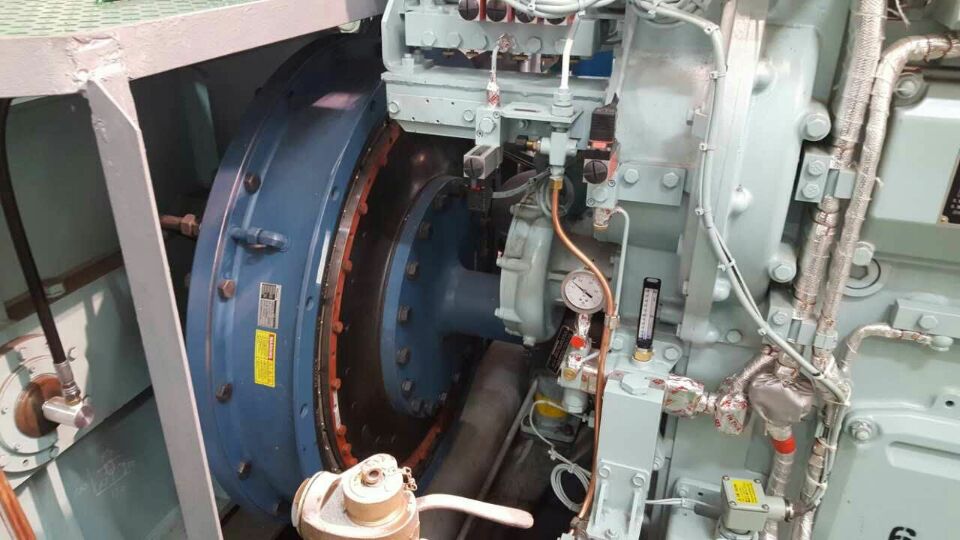

as above pictures shown, they are Pneumatic clutch drum brake 12CB350 applied in slime pump for stopping. 12CB350 is connected with flange plate, after inputting air source, brake linked, then making rotating part stopped.
