Shanghai Handong Machinery Technology Co., Ltd.
China Manufacturer with main products: Pneumatic Clutch, Pneumatic Brake, Clutch and Brake Unit, Safety Chuck, Air Shaft, Tension Controller, Mechanical Chuck |

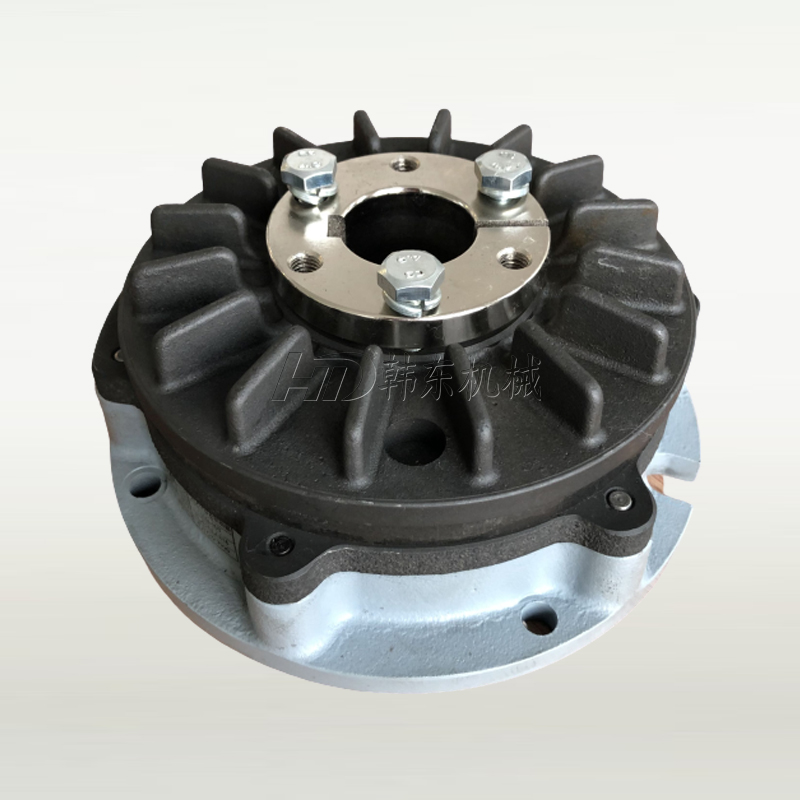

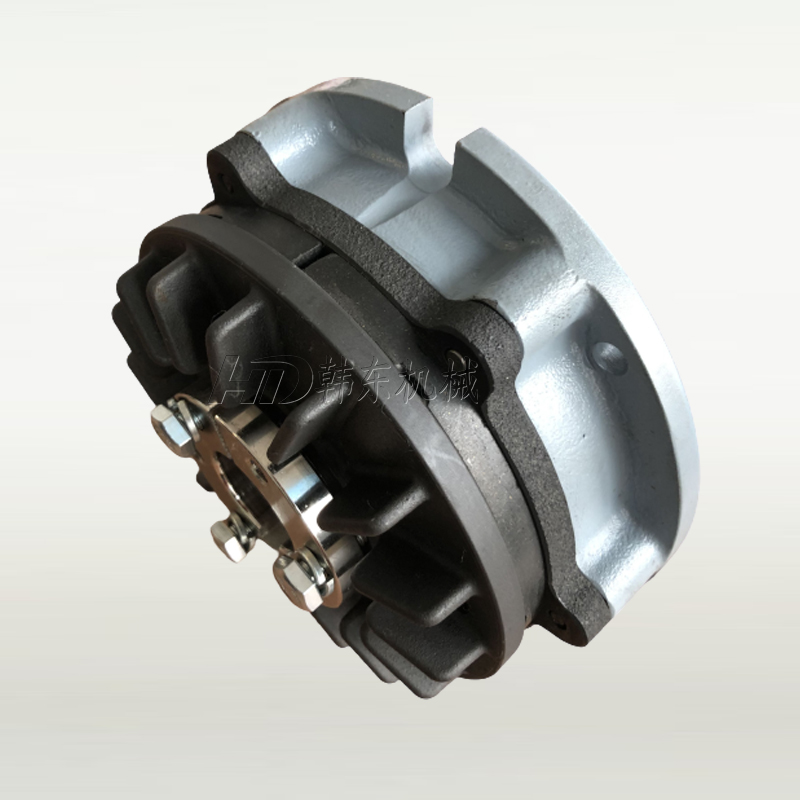

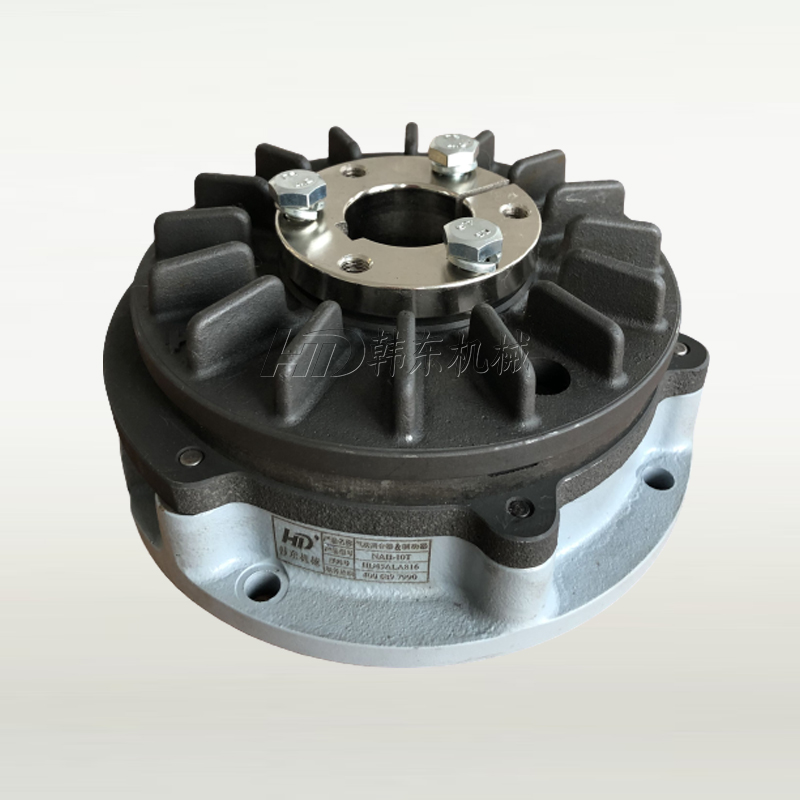

NAB Pneumatic Caliper Disc Brake Shaft Mounted
| FOB Price: | 100.00 - 1000.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set(s) per Month |
| Shipping: | by courier or sea |
| Payment Terms: | L/C, T/T, Western Union, Other, by cash |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | standard export package |
Quick Details
- Brand Name: Handong
- TR50: carbon steel
- Model Number: NAB-5T
- HS code: 8483600001
- Model: NAB-5T
- Bore diameter: 25mm
- Max air pressure: 0.6Mpa
- Friction material: non-asbestos pads
- Max torque: 53N.m
- Dimension: 150mm*68.5mm
- Max rotating speed: 3600r/min
- Working mode: Air engagement
- Weight: 3.5kgs
Specifications
NAB pneumatic caliper disc brake can be shaft mounted, it is a friction brake with non-asbestos friction pads. this material friction pad with long service life, durable and without noise. NAB pneumatic caliper disc brake is air engagement.
this air engagement NAB pneumatic caliper disc brake is driven by air pressure. as usually, this brake is releasing; after supplying air source, installation flange and friction pads moved forward, then connected with flange plate, brake linked. Its working thoery is very easy, and convenient for operation.

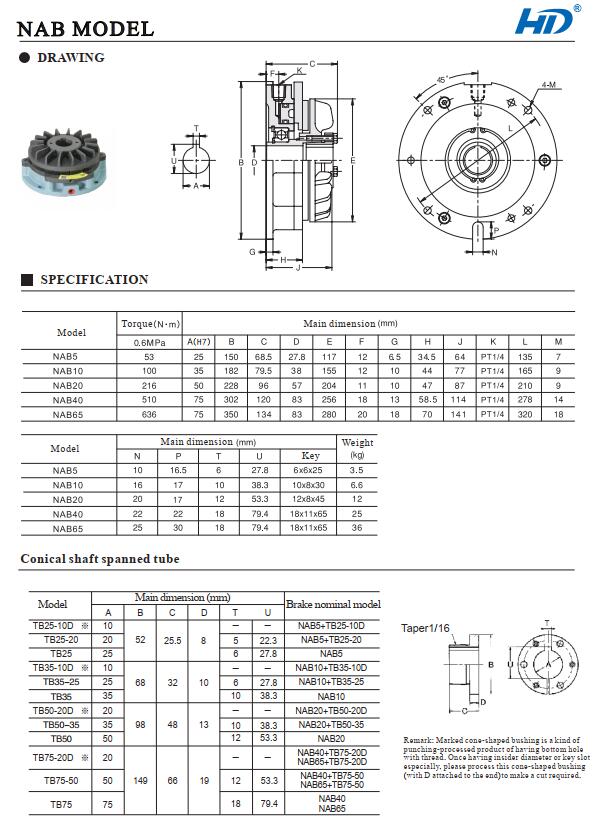

Following is the technical data of this NAB pneumatic caliper disc brake:
